10G SFP+ Dual Wavelength Single Mode LC Module (10km)

TEG-10GBS10D3 (Version V1)

  • Transmission distance of up to 10km (6.21 mi.)
  • Simplex LC optical interface
  • Supports data rates of up to 10.31Gbps
  • Supports Transmit: 1330nm / Receive: 1270nm
  • Digital Diagnostics Monitoring (DDM) support
  • Must be paired with TEG-10GBS10D2
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

TRENDnet’s 10G SFP+ Dual Wavelength Single Mode LC Module, model TEG-10GBS10D3, is compatible with standard SFP+ ports found on network switches and fiber converters. The single mode 10G BiDi SFP+ transceiver is equipped with a simplex LC fiber connection interface, supports high-speed data rates up to 10.31Gbps, and spans distances up to 10km. This 10G SFP+ transceiver needs to be paired with the TEG-10GBS10D2 SFP+ transceiver. These 10G BiDi SFP+ fiber modules support connections for reliable, long-distance network applications.

Two industrial and office building complexes connected by a dotted communication link, illustrating a network connection between remote locations over a blue gradient background.

Fiber Applications

Long-distance fiber networking for manufacturing, business parks, and school campus applications.

Two location markers connected by a dotted line labeled 10km 6.21 mi. illustrating a point-to-point distance link over a blue gradient background.

Fiber Distance

Single mode 10G SFP+ transceiver spans distances up to 10km (6.21 mi.) at 10G speeds.

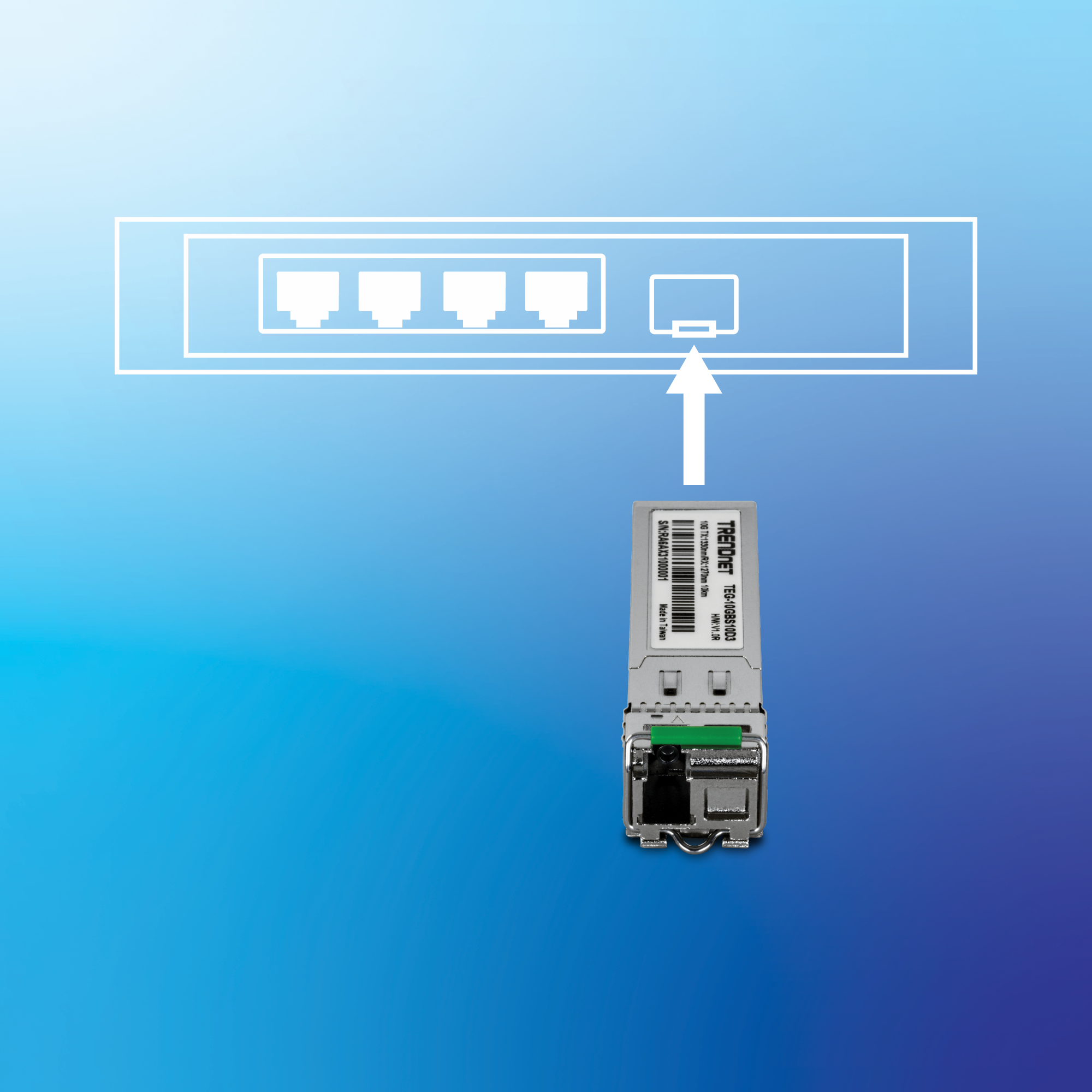

SFP+ fiber transceiver module shown below a network device port diagram with an arrow indicating insertion into an SFP+ slot, illustrating compatibility with supported switches and network equipment.

Compatibility

Hot-pluggable 10G BiDi SFP+ transceiver works with an MSA compliant 10G SFP+ port.

SFP+ simplex fiber transceivers connected between two network switches with a fiber cable, illustrating a 10Gbps point to point fiber link using LC simplex connections.

Fiber Distance

Ideal for long-range networking distances up to 10km (6.21 mi.)

Electromagnetic Interference

Low Electromagnetic Interference (EMI) design

Fiber Interface

This single mode fiber 10G SFP+ BiDi transceiver supports an LC-type simplex connector

Bi-Directional SFP

Transmit: 1330nm / Receive: 1270nm; must pair with TEG-10GBS10D2

Data Rate

10G SFP+ supports data rates up to 10.31Gbps

Hot-Pluggable SFP

Hot-pluggable 10G BiDi SFP+ transceiver compatible with an MSA compliant SFP port

Standards
  • IEEE 802.3z
  • IEEE 802.3ae
  • 10GBASE-LR
Device Interface
  • SFP+ MSA Compliant
  • LC simplex connector
Data Transfer Rate
  • 10.31Gbps
Wavelength
  • Tx: 1330nm
  • RX: 1270nm
Optical Output Power
  • -8.2 ~ 1 dBm
Distance
  • 10km (6.2 mi)
Sensitivity
  • -14.4 dBm
Power
  • Max. consumption: 1W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 85% non-condensing
Dimensions (L x W x H)
  • 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 21.5g (0.76 oz.)
Certifications
  • CE
  • FCC
Warranty

PACKAGE CONTENTS
  • TEG-10GBS10D3

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
