10GBASE-T to SFP+ Fiber Media Converter

TFC-10GSFP (Version v1.0R)

1 x 10G RJ-45 port
1 x 10G SFP+ Slot
LFPT support (Link Fault Pass Through)
SFP slot accommodates multimode or single-mode modules
RJ-45 port supports full-duplex mode
Functions as a standalone converter
NDAA / TAA compliant (U.S. only)

TRENDnet’s compact 10GBASE-T to SFP Fiber Media Converter, model TFC-10GSFP, converts a 10GBASE-T (Copper 10Gbps) ethernet connection to 10G BASE-SX/LX (Fiber) SFP media connection , and vice versa. The 10GBASE-T RJ-45 port on the 10G SFP+ transceiver supports a full-duplex 10G connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.

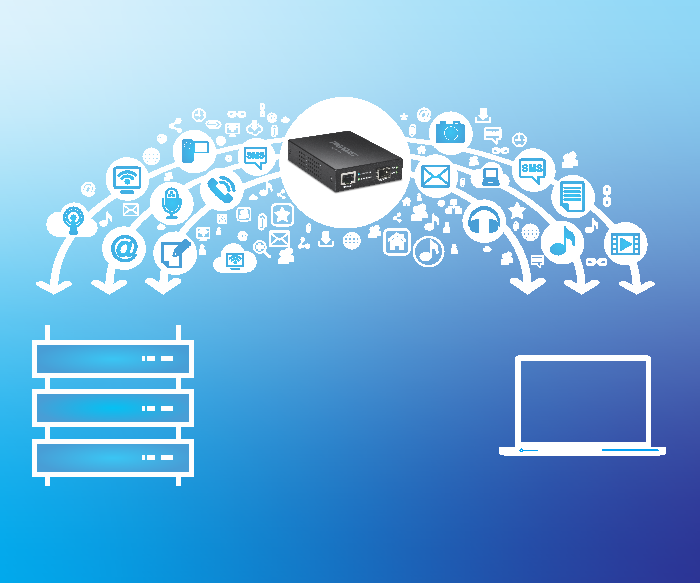

10GBASE-T to SFP+ Fiber Media Converter with network icons.

Multi-Gig Slot

The SFP and RJ-45 ports support 10G, and 1G speeds.

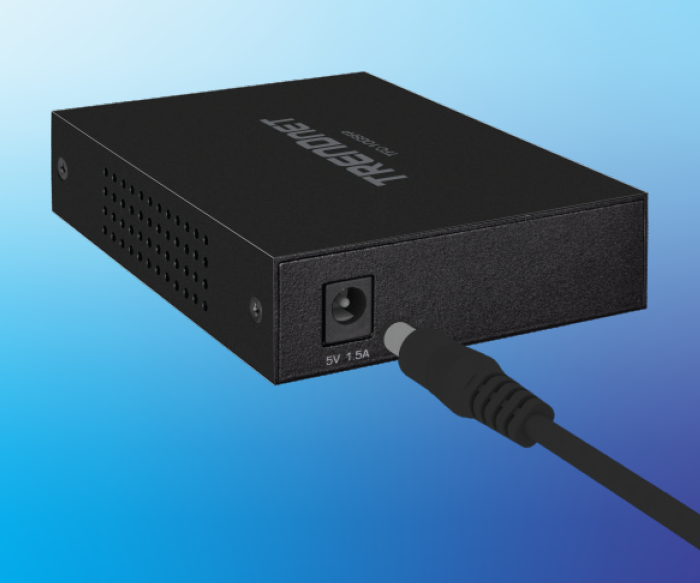

10GBASE-T to SFP+ Fiber Media Converter with power cable.

Power Adapter

A power adapter is included with the 10G SFP+ transceiver for standalone use.

Compact

Compact and lightweight metal housing design provides greater installation flexibility.

A network device labeled TRENDnet features a 10G/1G Ethernet port marked 10GBase-T, a 10G/1G SFP+ slot labeled 10G SFP+, and LED indicators for 10G/5G LINK, 2.5G/1G LINK, ACT, and PWR. The back has a power input labeled 12V DC. Below, a building and factory are connected by this device, with close-ups showing the device installed in a server rack and a network cabinet, demonstrating its use in connecting different locations.

Multi-Gig Ethernet

1 x 10G/1G Ethernet port

Multi-Gig SFP

1 x 10G/1G SFP+ slot

Fanless

Fanless design on the 10G SFP+ media converter lowers energy consumption and eliminates operating noise

Compact Design

Small, compact, and lightweight metal housing of the 10GbE SFP+ transceiver provides greater installation flexibility

LED Indicators

LED indicators convey port status

Fiber Wavelength

The 10G SFP+ transceiver is compatible with multi-mode and single mode transmissions

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3an IEEE 802.3bz IEEE 802.3z
Device Interface	1 x 10G/1G ethernet port 1 x 10G/1G SFP+ slot LED indicators
Data Transfer Rate	Gigabit: 2000Mbps (full duplex) 10G: 20Gbps (full duplex)
Special Features	Supports Link Fault Pass-Through (LFPT) SFP slot supports Multimode and Single mode Modules
Power	Input: 110 – 240 V AC, 50/60 Hz 0.5A Output: 5V DC, 1.5A Max. consumption: 4W
Operating Temperature	0° C – 50° C (32° F – 122° F)
Operating Humidity	Max. 90% non-condensing
Dimensions	105 x 75 x 22 mm (4.13 x 2.95 x 0.86 in.)
Weight	188 g (6.63 oz.)
Certifications	CE FCC
Warranty	3 year

PACKAGE CONTENTS

TFC-10GSFP
Quick Installation Guide
Power Adapter (5V DC, 1.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
