8-Port Industrial Gigabit DIN-Rail Mini Switch

TI-GLC80 (Version V2)

  • 8 x Gigabit ports
  • Hardened IP50 rated metal mini switch
  • Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
  • 16Gbps switching capacity
  • Includes DIN-Rail mount and wall mount brackets
  • Power supply sold separately (model: TI-M6024)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Price: $96.69
Quantity:
Wishlist

TRENDnet’s 8-Port Industrial Gigabit DIN-Rail Mini Switch, model TI-GLC80, is a reliable and rugged networking solution that is designed for use in both extreme and demanding environments. This compact industrial switch features a rugged IP50 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). The hardened industrial mini switch features eight copper Gigabit ports for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.

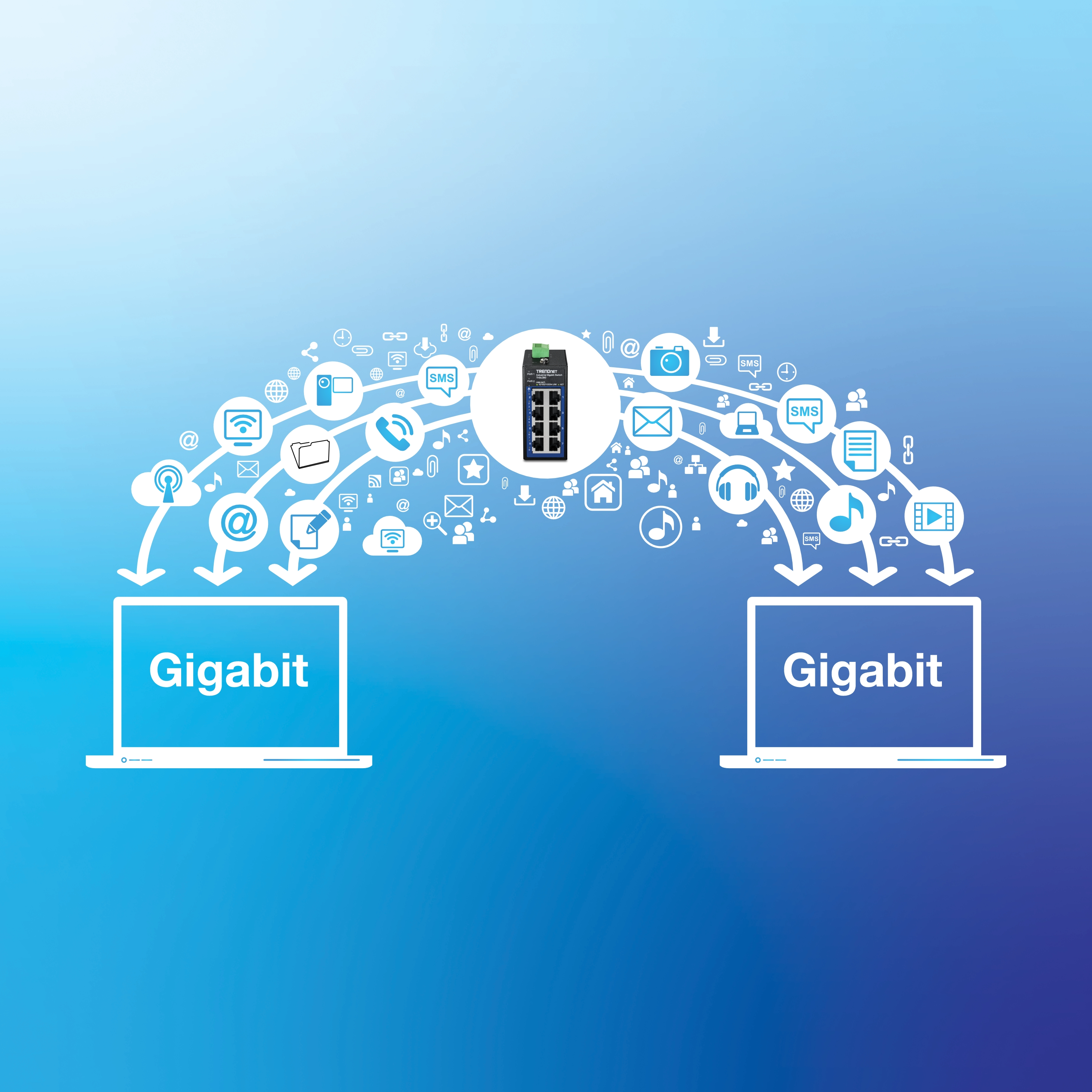

Two laptops labeled Gigabit are connected through a central network switch with icons for email, cloud, video, music, documents, and social media flowing between them, representing high-speed data transfer.

Gigabit Ports

This compact industrial switch features eight copper gigabit ports for high-speed device connections.

Four quadrants display device features with icons for vibration resistance, temperature tolerance, electrical protection, and IP50 dust protection, each marked with a check to indicate compliance.

Industrial Hardened Design

Equipped with a rugged IP50 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).

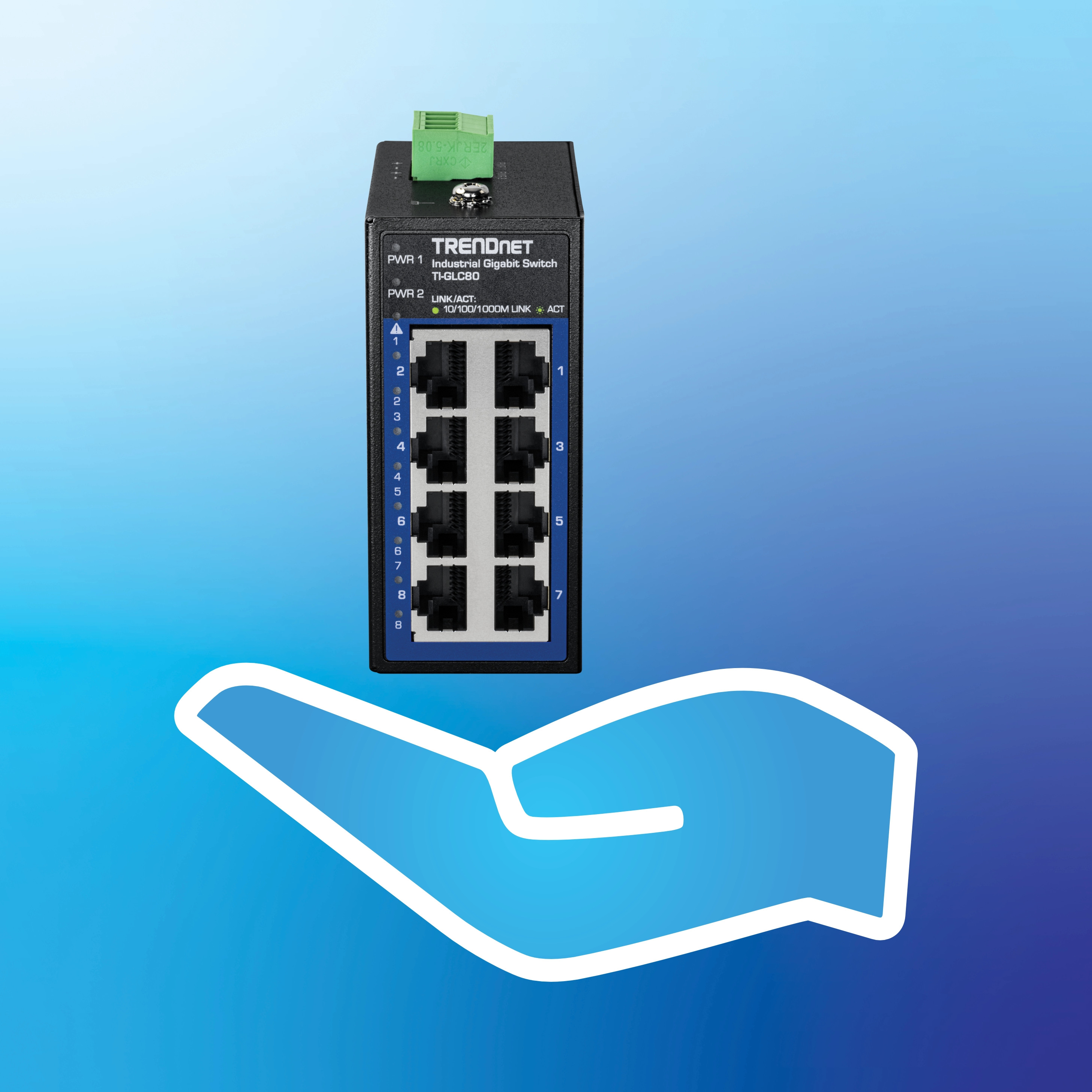

Network switch Ethernet ports and a green terminal block is shown above a stylized hand graphic, set against a blue gradient background to highlight its compact footprint and space-saving design.

Compact Design

With a compact metal housing design, this mini network switch is well-suited for installations into most environments. Its fanless design is perfect for quiet environments that require silent operation.

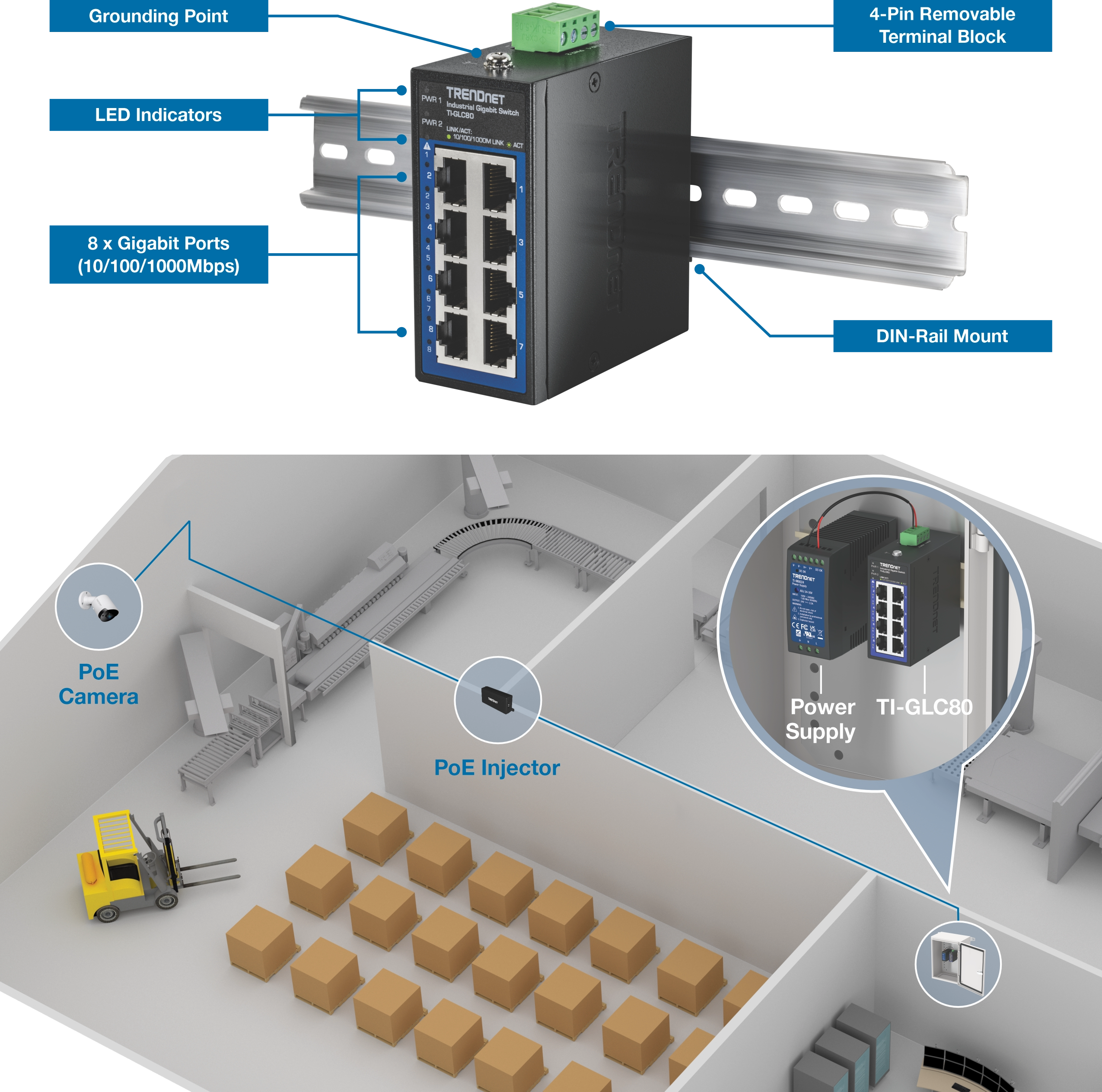

Top section shows the TI-GLC80 industrial Ethernet switch with eight gigabit ports, LED indicators, grounding point, and a removable terminal block mounted on a DIN rail. Bottom section illustrates a warehouse control room setup with the switch powering a PoE camera via injector, connected to a power supply and integrated into a network system.

Gigabit Ports

This small industrial switch is equipped with eight gigabit Ethernet ports

DIN-Rail / Wall Mounts

IP50 rated metal enclosure on the compact industrial switch, with included DIN-Rail mount and wall mount hardware

Mini Housing Design

Compact and sturdy metal housing

Jumbo Frame

Supports larger packets, or Jumbo Frames (up to 9KB), for increased performance

Operating Temperature Range

Operating temperature range of -40° – 75° C (-40° – 167° F) allows for the installations of the compact industrial switch in environments with extreme hot or cold conditions

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

Complies with industrial EMS certifications (IEC 61000-4-2) ESD: Contact: 6kV | Air: 8kV, (IEC 61000-4-4) EFT: Power: 2kV | Signal: 2kV, (61000-4-5) Surge: Power: 2kV | Signal: 2kV

Grounding Point

The compact industrial switch features a grounding point for protection against external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
Device Interface
  • 8 x Gigabit ports (10/100/1000Mbps)
  • 4-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 192KB
  • Switching Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
Special Features
  • Hardened components rated for extreme temperatures
  • VLAN Passthrough
Power
  • Input: 9 – 60V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Max. consumption: 4.72W @ 60V
Terminal Block
  • 4-pin terminal block
  • Wire range: 1.5mm^2
  • Solid wire (AWG): 16-26
  • Stranded wire (AWG): 16-26
  • Torque: 3 lb. – In / 0.2Nm / 0.56Nm
  • Wire strip length: 6-7mm
MTBF
  • 2,300,000 hours @ 25° C
Housing
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • ESD 6KV protection
Operating Temperature
  • - 40° - 75° C (-40° - 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 85 x 80 x 39mm (3.34 x 3.14 x 1.53 in.)
Weight
  • 352g (12.41 oz.)
Certifications
  • CE
  • FCC
  • Shock (EN 60068-2-27)
  • Freefall (EN 60068-2-31)
  • Vibration (EN 60068-2-6)
  • ESD 6kV
  • EFT 6kV
  • Surge 6kV
Warranty
  • 2 Years

PACKAGE CONTENTS
  • TI-GLC80
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
