TEG-10GECTX Product Photo
TEG-10GECTX Product Photo TEG-10GECTX Product Photo TEG-10GECTX Product Photo TEG-10GECTX Product Photo TEG-10GECTX Product Photo

10G PCIe Network Adapter

TEG-10GECTX (Version V5)

  • Converts a PCIe 3.0 x4 slot into a 10G Ethernet port
  • Supports connection speeds of 10Gbps, 2.5Gbps, and 1Gbps
  • Supports 802.1Q VLAN Tagging
  • Includes standard and low-profile brackets
  • Windows® and Windows Server® support
  • IEEE 802.3an and 802.3bz compliant
Coming Soon

TRENDnet’s 10G PCIe Network Adapter, model TEG-10GECTX, converts a free PCI Express slot into a 10 Gigabit Ethernet port. The 10G PCIe card includes advanced features, such as jumbo frames, Wake-On-LAN, and VLAN tagging support. The standard and low-profile brackets included with the 10G PCIe card are compatible with Windows® and Windows Server® desktop computer designs.

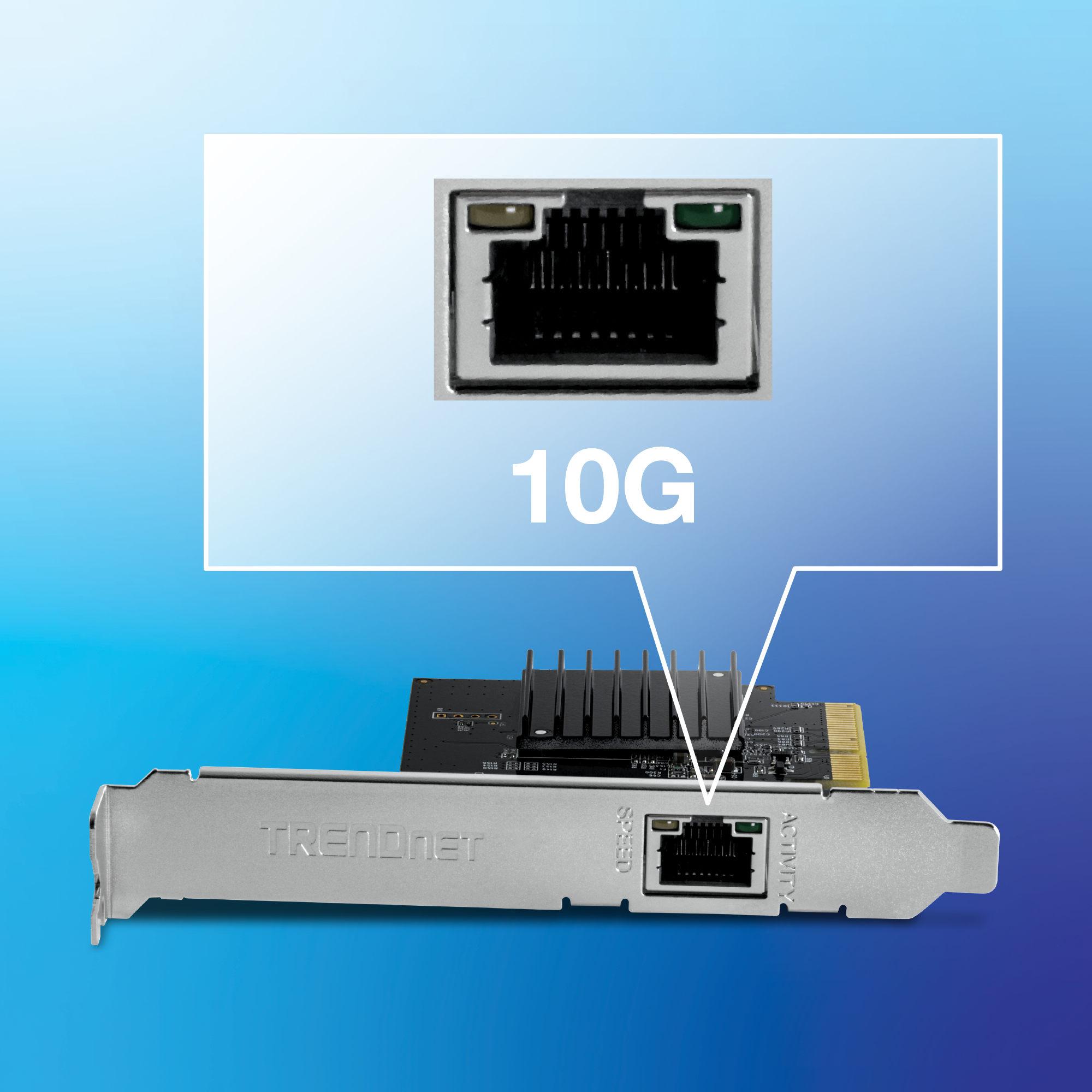

Close-up of a 10G RJ45 Ethernet port on a PCIe network adapter with LED indicators, highlighting 10Gbps network connectivity.

10G Port

10G PCIe card supports connection speeds: 10Gbps, 2.5Gbps, and 1Gbps

Server rack connected to a desktop computer with illustrated data icons flowing between them, representing high-speed data transfer and network communication.

Jumbo Frames

Sends larger packets, or jumbo frames (up to 16KB), for increased performance.

Desktop computer and server rack connected with bidirectional arrows, representing data exchange and communication between systems.

Operating Systems

Compatible with Windows® and Windows Server® operating systems.

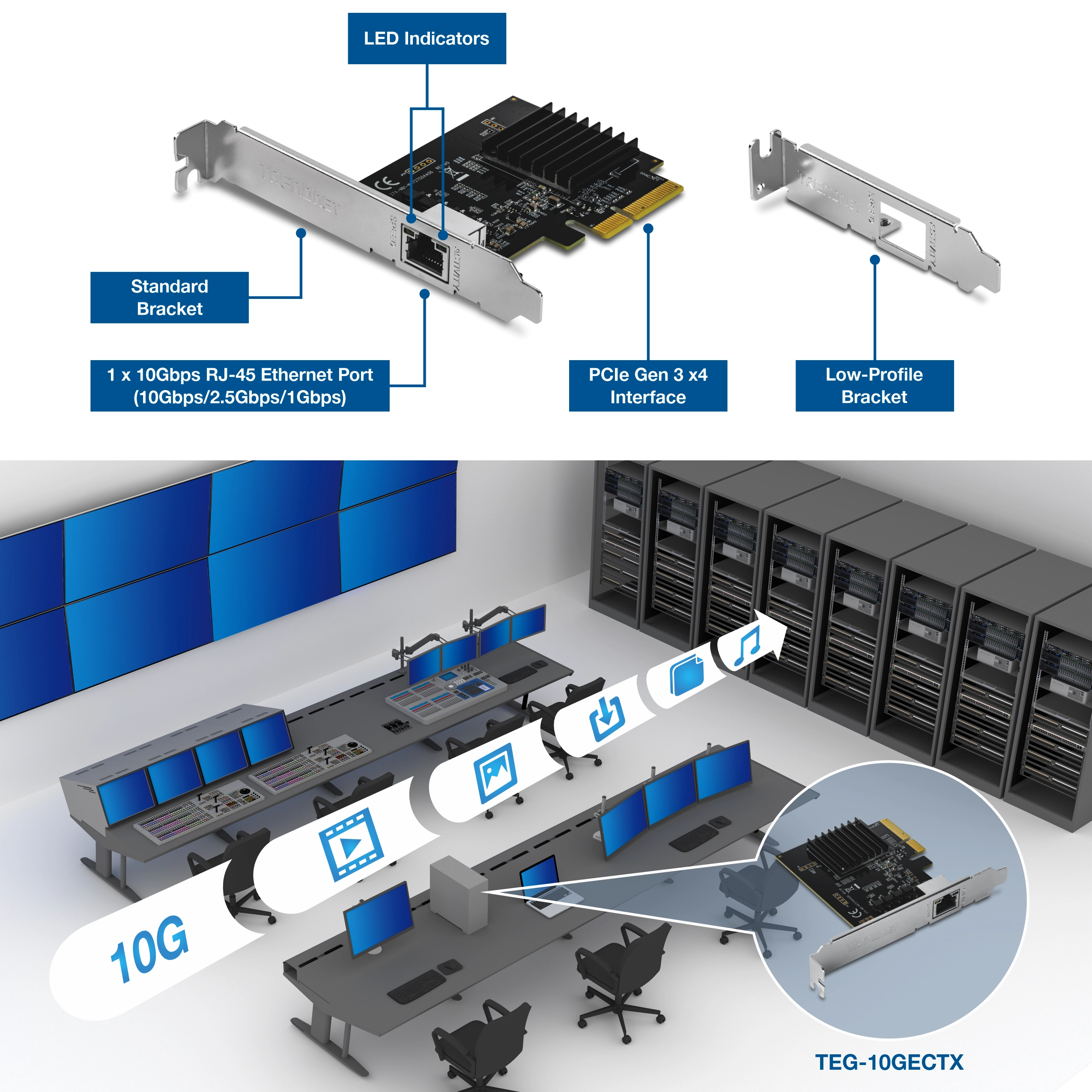

PCIe 10G network adapter with RJ45 port, heatsink, LED indicators, PCIe Gen 3 x4 interface, and included standard and low-profile brackets, shown in a high-speed 10G workstation and server environment.

10G Port

10G PCIe card supports connection speeds: 10Gbps, 2.5Gbps, and 1Gbps

PCI Express

10GbE PCIe card converts a PCIe 3.0 x4 slot into a 10G Ethernet Port

2.5GBASE-T Support

2.5GBASE-T specification (802.3bz) supports 2.5Gbps speeds over standard Cat5e cables at distances up to 100m

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16KB), for increased performance

VLAN Support

IEEE 802.1Q tagged-based VLAN support

Brackets

Supports most installations with included standard and low-profile brackets

Operating Systems

Compatible with Windows and Windows Server operating systems

LED Indicators

LED indicators on the 10G PCIe card convey port status, link speed, and activity

Standards
  • IEEE 802.3ab
  • IEEE 802.3bz 2.5GBASE-T
  • IEEE 802.3an 10GBASE-T
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1ad
  • IEEE 802.3x
  • IEEE 802.3az
Hardware Interface
  • PCIe Gen 3 x4 interface
  • 1 x 10Gbps RJ-45 Ethernet port (Supported Speeds: 10Gbps/2.5Gbps/1Gbps )
  • LED indicators
Cable Requirements
  • 10GBASE-T (10Gbps): Cat6 twisted pair @ 55m / 180 ft. (max.) / Cat6A twisted pair @ 100m / 328 ft. (max.)
  • 2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)
  • 1000BASE-T (1Gbps): Cat5e twisted pair @ 100m / 328 ft. (max.)
Compatibility
  • Windows® 11, 10
  • Windows® Server 2025, 2022, 2019, 2016
Jumbo Frames
  • Up to 16KB
Additional Support
  • 802.1Q VLAN Tagging
  • Receive-side scaling (RSS)
  • Supports protocol offload (ARP & NS)
  • Message Signaled Interrupts (MSI)
  • Latency Tolerance Reporting (LTR)
  • IP, TCP, and UDP checksum offloading
  • Supports Wake-On-LAN
  • Supports Link Aggregation
Power
  • Max. consumption: 2.5W
Operating Temperature
  • 0⁰– 40⁰ C (32⁰ – 104⁰ F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 120 x 88 x 22mm (4.7 x 3.5 x 0.86 in.)
Weight
  • 52g (2.6 oz.)
Warranty
  • 3 year

PACKAGE CONTENTS
  • TEG-10GECTX
  • Standard & low-profile brackets

*Maximum distance of Cat6 and Cat6a cabling are references to IEEE 802.3an standard. Actual data throughput and distance will vary depending on the quality of the cable.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
