Outdoor IP67 Gigabit PoE++ Injector (24 – 57V)

TI-O119GI (Version v1.0R)

  • 1 x Gigabit PoE++ data out port
  • 1 x Gigabit data in port
  • 1 x Two-wire power connector
  • 95W PoE power budget
  • IP67 outdoor weather rated housing
  • Extreme operating temperature range -40° to 75 °C (-40° to 167 °F)
  • Supports 24 – 57V DC power input (power supply sold separately, model: TI-S15052)
  • Supports VLAN pass-through
  • Built-in 6kV ESD protection
  • Wall mountable
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices

TRENDnet’s Outdoor IP67 Gigabit PoE++ Injector, model TI-O119GI, is an 802.3bt PoE++ injector that combines electrical power with a gigabit network connection to produce a high-powered 95W PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ device. Connect the outdoor PoE++ injector to a non-PoE switch, and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. The outdoor PoE++ injector is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for outdoor environments.

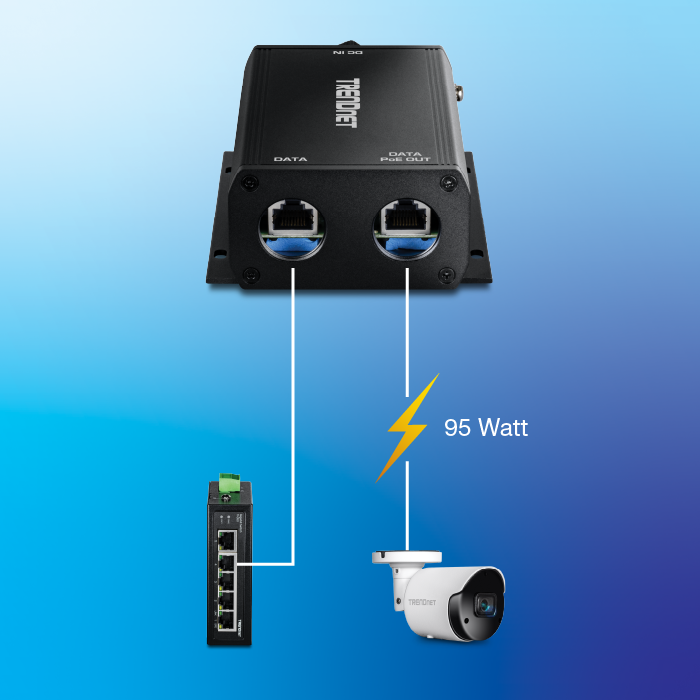

A TRENDnet device has two Ethernet ports labeled Data and Data/PoE Out. The Data port connects to a switch with multiple Ethernet ports, while the Data/PoE Out port links to a TRENDnet security camera. A lightning bolt symbol indicates that the connection to the camera supplies 95 watts of power. The background features a gradient of blue shades.

PoE++

This outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.

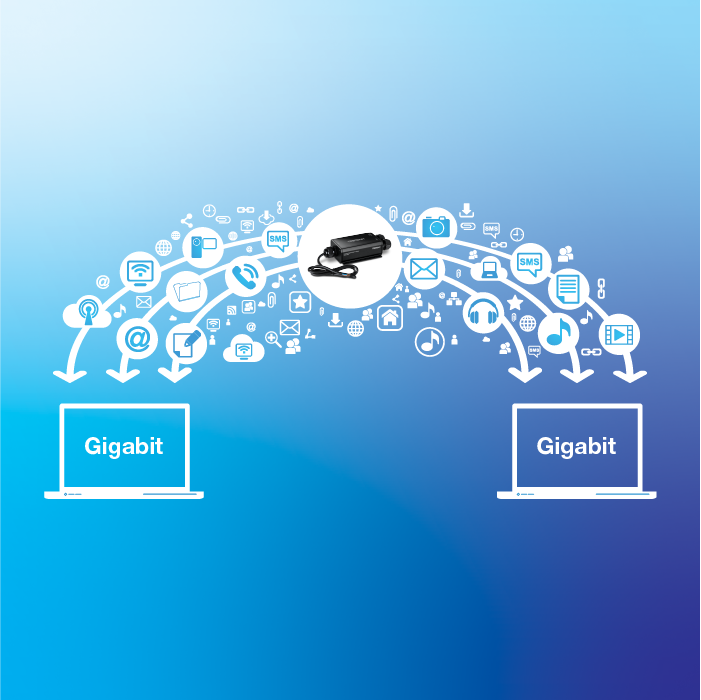

Two laptops labeled Gigabit are connected by a network of icons representing data and communication, including emails, messages, photos, music, and documents. An Outdoor IP67 Gigabit PoE++ Injector in the center facilitates data transfer between them. The background transitions from light blue to dark blue.

Gigabit Ports

Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port.

icons of phone, temperature, lightning & IP67.

Industrial Design

IP67 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 75° C (-40° – 167° F).

TRENDnet Industrial Gigabit PoE++ Injector model TI-O119GI with labeled components including a grounding point, Gigabit PoE++ port for data and PoE out, Gigabit port for data, wall mount, and power connector. Below, a warehouse diagram highlights its connection to a PoE camera, power supply, and non-PoE switch, illustrating its industrial application.

PoE++

This industrial 802.3bt outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device

Waterproof Design

This waterproof PoE++ injector features a durable enclosure with an IP67 outdoor weather rating

Industrial Design

Designed to withstand a high degree of vibration and shock

Extreme Operating Temperature

Operating temperature range of -40° – 75° C (-40° – 167° F) allows for installations in environments with extreme hot or cold conditions

Gigabit Ports

Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port

PoE Distance

The outdoor-rated PoE++ injector provides PoE network connections up to 100m (328 ft.) away

Ethernet Surge Protection

Supports RJ-45 surge protection up to 6kV

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)

Electro Magnetic Compliance

The outdoor PoE++ injector complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power to ground: 2kV, Signal: 6kV

Grounding Point

Grounding point on the outdoor PoE++ injector protects equipment from external electrical surges

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Device Interface
  • 1 x Gigabit PoE++ port (Data + PoE out)
  • 1 x Gigabit port (Data)
  • 1 x Power connector
  • Wall mount
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Special Features
  • Auto shut down if the current is over 700mA or in event of short circuit on either Ethernet ports
Power
  • Input: 24 – 57V DC
  • Max. consumption: 3.84W (without PD)
  • Power cable: 91.5cm / 3ft.
PoE
  • Up to 95W @ 52 – 57V DC
  • Up to 30W @ 24 – 48V DC
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
MTBF
  • 250,880 hours @ 25° C
Housing
  • IP67 rated metal case
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 8kV Air ESD protection
  • 6kV RJ-45 surge protection
  • Line to Ground 2kV surge protection
Operating Temperature
  • - 40° — 75° C (-40° — 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 190 x 76 x 42mm (7.5 x 3 x 1.65 in.)
Weight
  • 576g (20.3 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
Warranty
  • 3-year

PACKAGE CONTENTS
  • TI-O119GI
  • Mounting kit
