5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point

TEW-941APBO (Version v1.0R)

Dual band WiFi 6 AX1800 point-to-point and point-to-multi-point bridge
2 x 5 dBi 2.4GHz omni-directional antennas
2 x 5 dBi 5GHz omni-directional antennas
1 x 2.5G PoE+ LAN port
Supports Access Point, Client Bridge, and Repeater modes
IP67 outdoor weather rated housing
Supports IEEE 802.3at PoE+
NDAA / TAA compliant (U.S. and Canada only)

TRENDnet’s 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point, model TEW-941APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. This WiFi 6 outdoor access point can be powered with an IEEE 802.3at PoE+ switch or injector. The WiFi 6 outdoor omnidirectional AP supports point-to-point and point-to-multi-point scenarios with Access Point, Client Bridge, and Repeater modes. The IP67 rated housing on this WiFi 6 outdoor access point is designed for outdoor environments, and conveniently includes wall and pole mounting hardware.

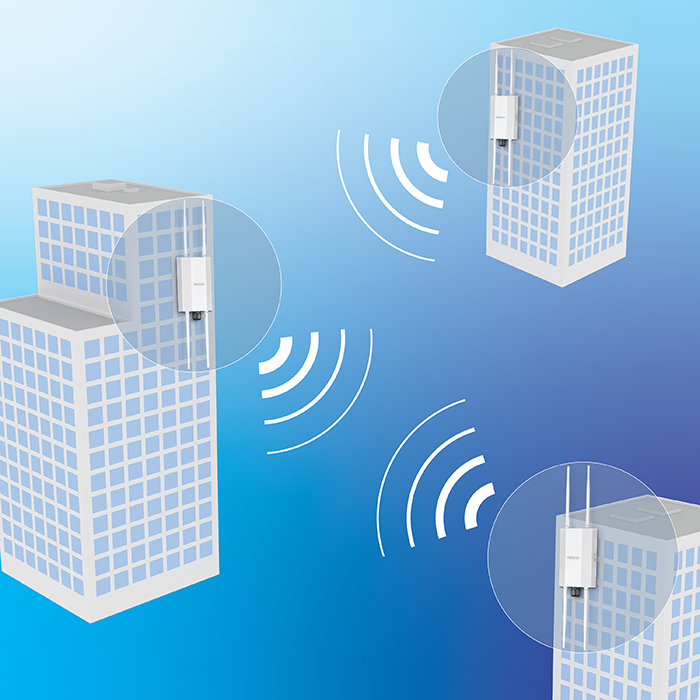

Wireless Multi-Point Bridge

Use this dual band wireless AX1800 point-to-multi-point bridge to conveniently link two or more locations together with WiFi 6 AX1800 speeds and performance.

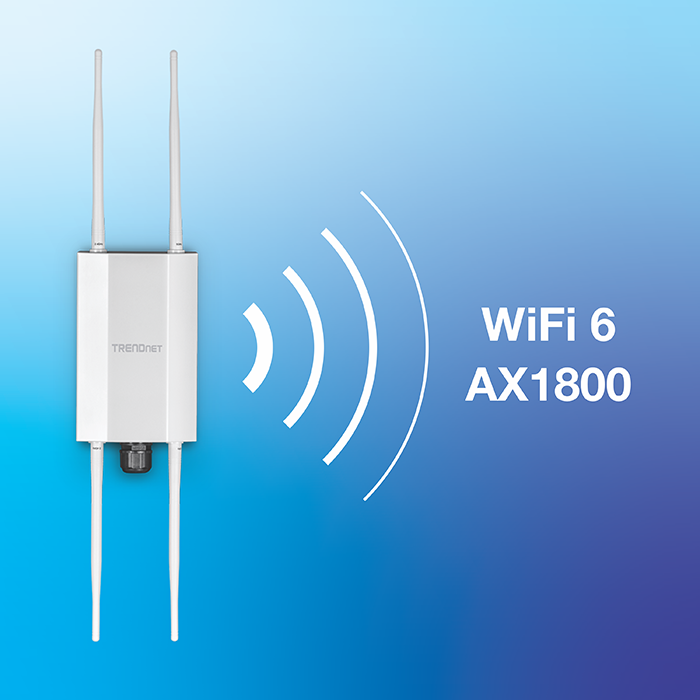

AX1800 WiFi 6

This WiFi 6 outdoor access point supports dual band WiFi 6 AX1800 to maximize point-to-point networking speeds and wireless client connectivity.

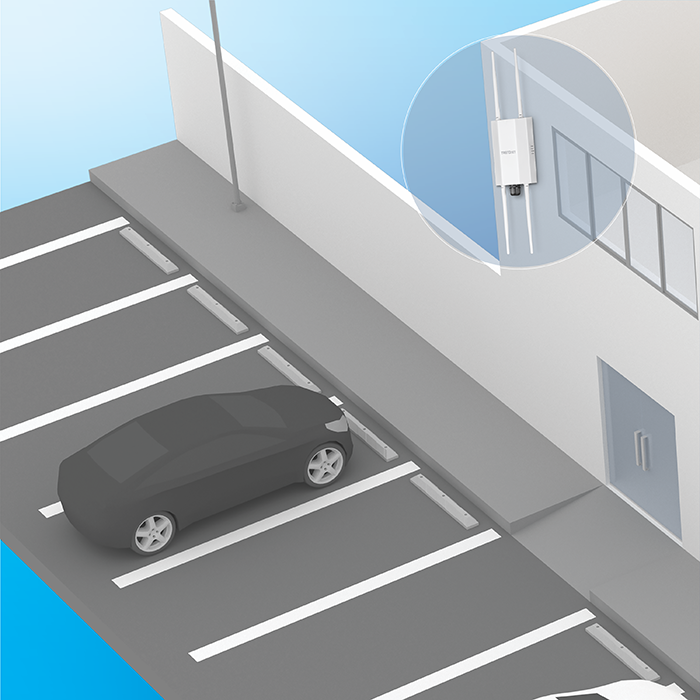

Outdoor Ready

Built for outdoor installations with an IP67 outdoor protection rating and an operating temperature range of -22° – 60° C (-7.6° – 140° F).

Concurrent Dual Band

AX1800: Concurrent 1201Mbps (5GHz) + 573Mbps (2.4GHz) bands

Wireless Modes

Supports Access Point, Client Bridge, and Repeater modes

Outdoor Rated

The outdoor wireless 6 access point features a durable enclosure with an IP67 weather rating

Omni-Directional Antenna

2 x 5 dBi 2.4GHz antennas, 2 x 5 dBi 5GHz antennas

PoE+ Powered

Supports 2.5G 802.3at PoE+ power input

Encrypted Wireless

Support for wireless encryption of up to WPA3

Multiple SSID

Create up to eight dual band SSIDs with band steering capabilities

Mounting Hardware

Pole and wall mount hardware are conveniently included with this WiFi 6 outdoor access point

Standards

IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3at
IEEE 802.3bz
IEEE 802.1Q
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (5GHz: up to 300Mbps, 2.4GHz: up to 300Mbps)*
IEEE 802.11r*
IEEE 802.11v
IEEE 802.11ac (5GHz: up to 867Mbps)*
IEEE 802.11ax (5GHz: up to 1201Mbps, 2.4GHz: up to 573Mbps)*

Hardware Interface

1 x PoE+ 2.5G LAN port (power input)
4 x RP-SMA (female) antenna connectors
LED indicators

Features

802.11ax WiFi 6 support
IP67 rated housing
MU-MIMO
Airtime fairness
Band steering
802.1Q VLAN assignment per SSID
IPv6 support
LEDs on/off
802.11k intelligent radio resource management
RSSI Threshold (client signal strength and connectivity control)
LLDP
Bonjour/UPnP

Operation Modes

Access Point
Client Bridge
Repeater

Management/Monitoring

Web based management (HTTP/HTTPS)
Command Line Interface (SSH)
SNMP v2c/v3
Spanning Tree Protocol (STP)
Event logging
Ping test
Traceroute
Performance throughput test
Schedule WiFi radio enable/disable
Ping watchdog/gateway connection monitor
Reboot & scheduled automatic reboot
Channel utilization scan/AP detection

Access Control

Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal)
MAC filter (max. entries: 32)
Maximum client limit
Client isolation/separate stations

QoS

WMM
Bandwidth control per SSID

SSID

Up to 8 SSIDs per wireless band (16 total)

Frequency

2.4GHz: 2.412 – 2.472GHz
5GHz: 5.180 – 5.825GHz

Wireless Channels

2.4GHz: 1–11
5GHz: 36, 40, 44, 48, 149, 153, 157, 161 and 165

Modulation

DBPSK/DQPSK/CCK for DSSS technique
BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA

Antenna Gain

2.4GHz: 2 x 5 dBi external
5GHz: 2 x 5 dBi external

Antenna Pattern

2.4GHz H-Plane
2.4GHz E-Plane
5GHz H-Plane
5GHz E-Plane

Wireless Output Power

802.11a: 21 dBm (max.)
802.11b: 19 dBm (max.)
802.11g: 19 dBm (max.)
802.11n (2.4GHz): 19 dBm (max.)
802.11n (5GHz): 21 dBm (max.)
802.11ac: 21 dBm (max.)
802.11ax (2.4GHz): 19 dBm (max.)
802.11ax (5GHz): 21 dBm (max.)

Receiving Sensitivity

802.11a: -73 dBm (typical) @ 54 Mbps
802.11b: -88 dBm (typical) @ 11 Mbps
802.11g: -74 dBm (typical) @ 54 Mbps
802.11n (2.4GHz): -74 dBm (typical) @ 300 Mbps
802.11n (5GHz): -72 dBm (typical) @ 300 Mbps
802.11ac: -58 dBm (typical) @ 867 Mbps
802.11ax (2.4GHz): -59 dBm (typical) @ 573 Mbps
802.11ax (5GHz): -53 dBm (typical) @ 1201 Mbps

Power

IEEE 802.3at Type 2 PoE+ PD Class 4
Max. consumption: 25W

Operating Temperature

-22° – 60° C (-7.6° – 140° F)

Operating Humidity

Max. 90% non-condensing

Certifications

Dimensions

122 x 205 x 45mm (4.8 x 8.07 x 1.77 in.)

Weight

706g (24.9 oz.)

Warranty:

3 year

PACKAGE CONTENTS

TEW-941APBO
2 x Detachable 2.4GHz 5 dBi antennas
2 x Detachable 5GHz 5 dBi antennas
IP67 weather rated cable gland
Mounting hardware
Quick Installation Guide

Disclaimer

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300Mbps, use with a 300Mbps 802.11n wireless adapter. For maximum performance of up to 1201Mbps use with a 1201Mbps 802.11ax 5GHz wireless adapter. For maximum performance of up to 573Mbps use with a 573Mbps 802.11ax 2.4GHz wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
