Outdoor 2.5G PoE++ Ethernet Surge Protector

TI-OS300 (Version V1)

  • Two 2.5Gbps RJ45 Ethernet ports and ground terminal
  • Supports PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices
  • Operating temperature range of -40°– 75° C (-40° – 167° F)
  • IP67-rated metal enclosure and Ethernet cable glands
  • Line to line and line to ground protection modes
  • Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA and clamping voltage of 20V@1kA
  • Compliant with shock, freefall, vibration, IEC 61643-21, and IEC 61000-4-5 standards
  • Compact design with detachable mounting bracket
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Coming Soon

TRENDnet’s Outdoor 2.5G PoE++ Surge Protector, model TI-OS300, is installed inline using Ethernet cabling to protect and prevent damage to internal low voltage network devices from electrical surges caused by lightning strikes, electrical overloads, and faulty or damaged wiring. The surge protector supports up to 2.5Gbps networking speeds and PoE++ (95W) devices. The surge protector also features an IP67-rated metal enclosure, detachable mounting bracket, Ethernet cable glands for water protection, and wide operating temperature range of -40°– 75° C (-40° – 167° F) suitable for outdoor installations.

Shield-shaped emblem with a blue gradient background featuring a white outer border and a blue interior divided by a white lightning bolt, suggesting protection or electrical safety.

Surge Protection

Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA, clamping voltage of 20V@1kA, and compliant with IEC 61643-21 and IEC 61000-4-5 testing standards

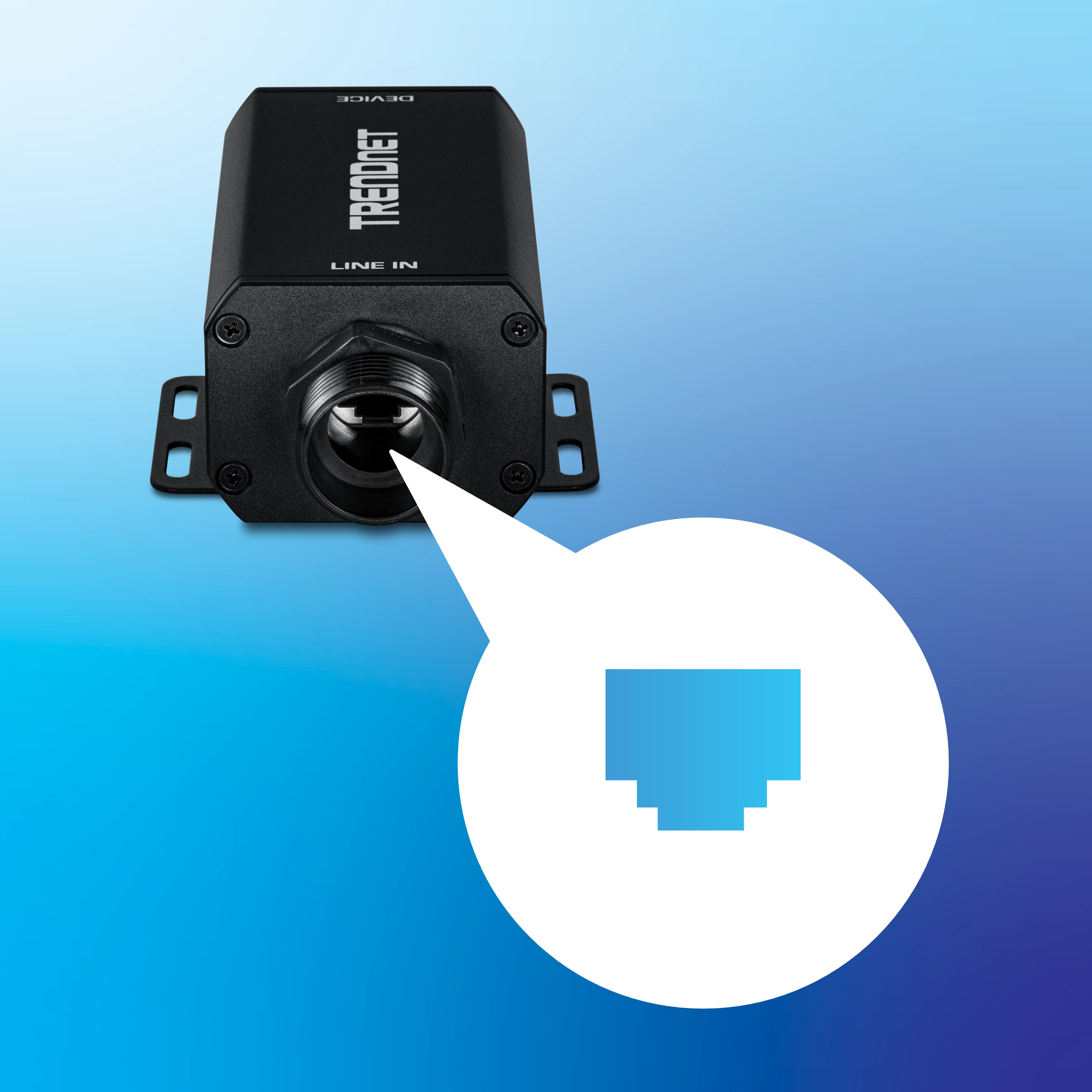

Black TRENDnet device with logo on top and a circular connector labeled LINE IN on the front. A magnified view highlights the Ethernet port symbol. Background features a blue gradient.

2.5G Networking Speeds

Features two 2.5Gbps RJ45 Ethernet ports and compatible with PoE++ devices (up to 95W)

Four-section layout showing an industrial Ethernet switch with shock resistance, a thermometer icon for temperature tolerance, a lightning bolt symbol for surge protection, and IP67 text for dust and water resistance. Each section includes a checkmark in the top right corner.

Industrial Grade Design

Built for industrial network environments, with an IP67 metal enclosure, Ethernet cables glands for water protection, compliance with shock, freefall, vibration, and an operating temperature range of -40°– 75° C (-40° – 167° F).

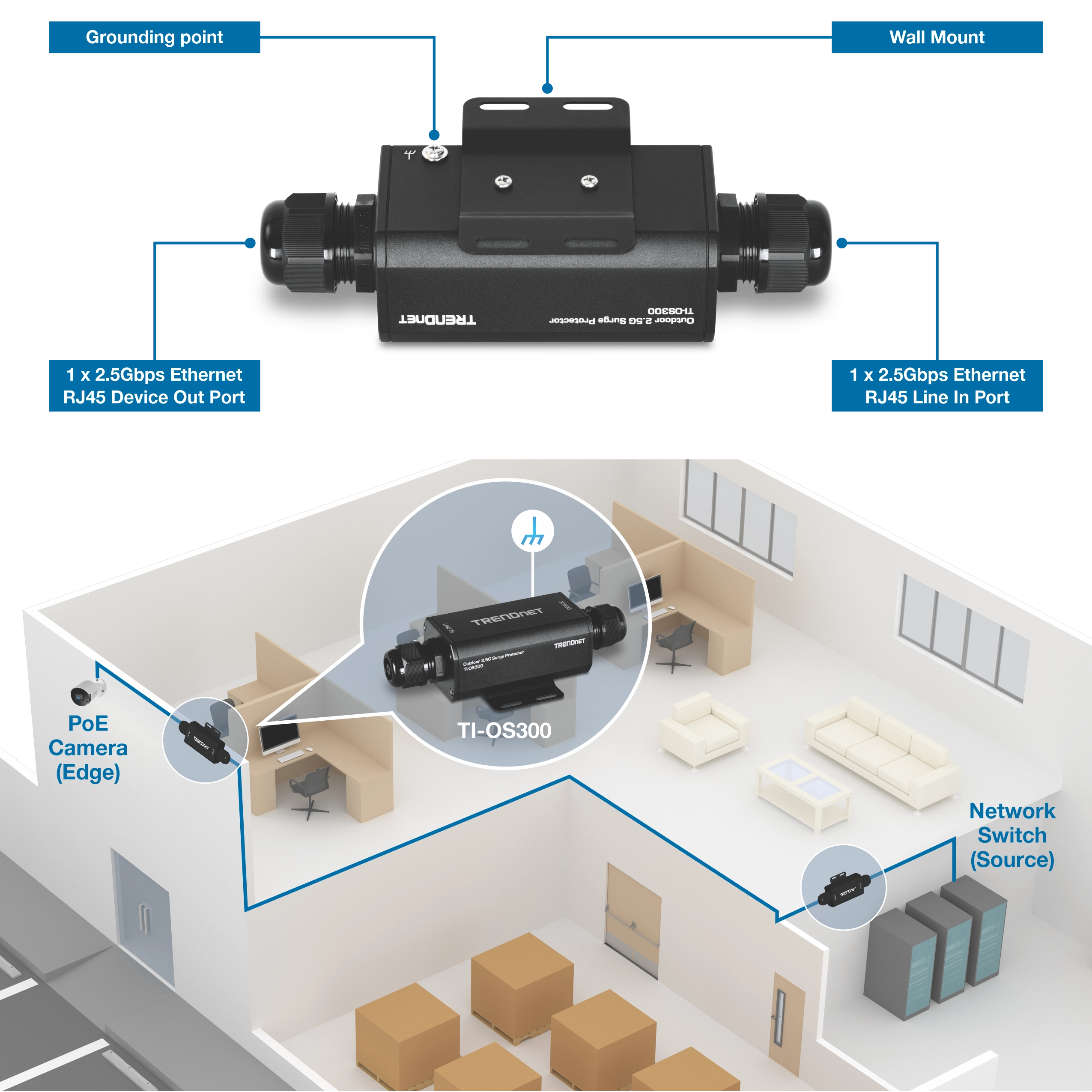

TRENDnet Outdoor 2.5G PoE++ Ethernet Surge Protector shown with labeled features including grounding point, wall mount, and two Ethernet RJ45 ports—RJ45 Device Out Port and RJ45 Line In Port. A network diagram below illustrates its placement between a PoE camera and a network switch in an office setup.

2.5G Networking

Features two 2.5Gbps RJ45 Ethernet ports (Line In, Device out)

Surge Protection

Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA and clamping voltage of 20V@1kA

PoE Support

Compatible with PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices

Industrial Design

IP67-rated metal enclosure and Ethernet cable glands for water and dust protection

Wide Temperature Range

Operates within a wide temperature range of -40°– 75° C (-40° – 167° F) suitable for outdoor installations

Compliance

Compliant with shock (EN 60068-2-27), freefall (EN 60068-2-31, vibration (EN 60068-2-6), IEC 61643-21 (Low voltage surge protective devices), and IEC 61000-4-5 (Surge immunity) standards

Device Interface
  • 1 x 2.5Gbps Ethernet RJ45 Line In port
  • 1 x 2.5Gbps Ethernet RJ45 Device out port
  • Ground terminal
Nominal Discharge Current (8/20µs)
  • 10kA+
Nominal PoE Voltage
  • <60V
Cable Impedance
  • 100 ohms
Clamping Voltage
  • 20V@1kA (Line to Line / Line to Ground)
DC Spark-Over Voltage
  • 90V @ 100V/s
Impulse Spark-Over Voltage
  • 700V @ 1kV/µs max.
Insulation Resistance
  • 1G ohm @ 50V max.
Surge Protector Type
  • Gas Discharge Tube (GDT)
Data Line Protection
  • Up to 2.5Gbps
Protection Modes
  • Line to Line
  • Line to Ground
PoE
  • PoE current: 1.6A (2 pairs), 3.2A (4 pairs)
  • PoE Mode Support: Mode A, Mode B
  • Supports PoE (15.4W), PoE+ (30W), PoE++ (up to 95W)
Enclosure
  • IP67 rated
  • Detachable mounting bracket
MTBF
  • 2,097,667 hrs @ 25° C
Operating Temperature
  • -40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 170 x 55mm x 42mm (6.7 x 2.2 x 1.7 in.)
Weight
  • 298g (10.5 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (EN 60068-2-27)
  • Freefall (EN 60068-2-31)
  • Vibration (EN 60068-2-6)
  • Low voltage surge protective devices (IEC 61643-21)
  • Surge immunity (IEC 61000-4-5)
Warranty

PACKAGE CONTENTS
  • TI-OS300
  • 2 x Detachable cable glands
  • Mounting bracket

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
