Gigabit PoE Injector

TPE-113GI (Version v4.0R)

  • Full duplex gigabit speeds
  • Supplies PoE (15.4W)
  • Network a PoE device located up to 100 meters (328 ft.) away
  • Converts a non-PoE gigabit port to a PoE gigabit port
  • Save on installation and equipment costs
  • Wall mountable for installation flexibility
  • Built-in internal power supply
  • IEEE 802.3af compliant
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Coming Soon

TRENDnet's Gigabit PoE Injector, model TPE-113GI, combines electrical power with a gigabit network connection. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE devices. Connect the injector to a non-PoE gigabit switch and run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. Network PoE devices, such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Black TRENDnet Gigabit PoE injector is shown connected to a white TRENDnet security camera by a white line with a yellow lightning bolt symbol, indicating power delivery through the network cable.

PoE

Gigabit PoE injector supplies a PoE device with PoE (15.4W) power.

Black TRENDnet device is shown mounted horizontally on a wall with two blue screws indicated by dashed lines. A small green light is visible on the front and the TRENDnet logo appears on the side.

Installation Flexibility

Wall-mount design enclosure accommodates most installations scenarios.

Two laptops labeled Gigabit are connected through a Gigabit PoE Injector with icons for emails, music, photos, documents, and social media flowing between them, representing high-speed data transfer.

Gigabit

Equipped with a gigabit RJ45 port, providing gigabit networking speeds over existing Ethernet cables.

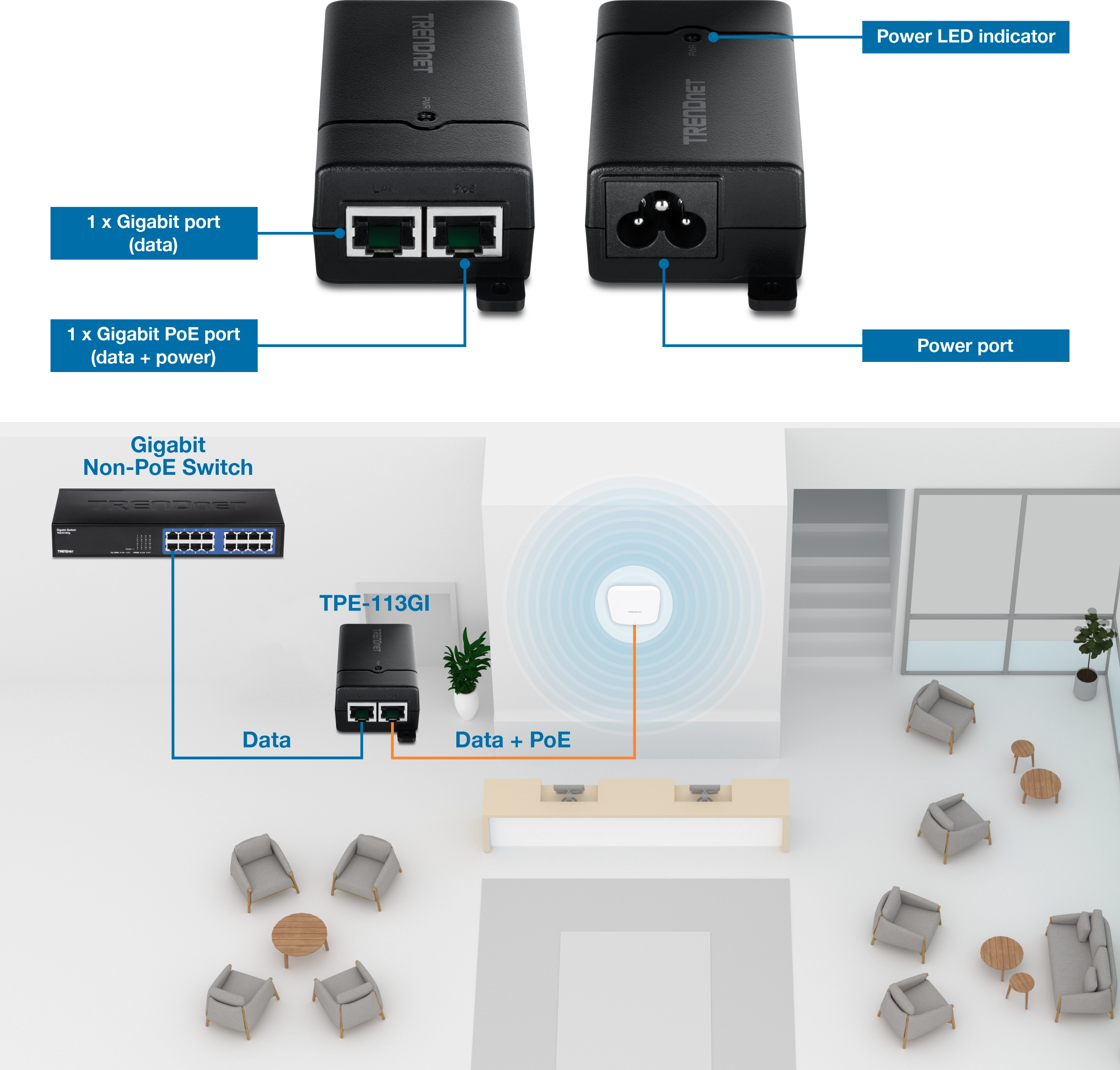

PoE injector with labeled Gigabit data port, Gigabit PoE port for data and power, and LED indicator is positioned above a diagram showing connection from a Gigabit Non-PoE switch to a powered device. The injector receives data from the switch and delivers combined data and power to the device, representing a streamlined lobby network setup.

PoE

Gigabit PoE injector supplies a PoE device with PoE (15.4W) power

Auto-Sensing Technology

Featuring auto-sensing technology, the PoE injector conveniently delivers the correct wattage needed to power your PoE devices

Easy Installation

Simply connect the PoE injector to your switch and PoE device – no configuration needed

Installation Flexibility

Wall-mount design accommodates most installations scenarios

Gigabit Ports

1 x Gigabit port (data) and 1 x Gigabit PoE port (data + power)

PoE Distance

Provides a PoE network connection up to 100m (328 ft.) over Cat5e or better cabling

LED Indicator

LED indicator on the PoE injector confirm PoE and network connectivity

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
Device Interface
  • 1 x Gigabit port (data)
  • 1 x Gigabit PoE port (data + power)
PoE
  • Mode A: Pins 1, 2 for power - and pins 3, 6 for power +
  • Max. 15.4W
Power Consumption
  • Max. 0.4W (without PD)
Temperature
  • 0° – 40° C (32° – 104° F)
Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
  • ETL
  • LVD
Dimensions
  • 103 x 46 x 30mm (4.05 x 1.81 x 1.18 in.)
Weight
  • 90g (3.17 oz.)
Warranty
  • 3-year

PACKAGE CONTENTS
  • TPE-113GI
  • Power cord (1m / 3.2 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
