TPE-TG82g Product Photo
TPE-TG82g Product Photo TPE-TG82g Product Photo TPE-TG82g Product Photo TPE-TG82g Product Photo

8-Port Gigabit PoE+ Switch

TPE-TG82g (Version V3)

  • 8 x Gigabit PoE+ ports
  • 65W PoE power budget
  • 16Gbps switching capacity
  • Compact fanless design
  • Wall-mountable metal housing
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Coming Soon

TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG82g, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This compact network switch features eight gigabit PoE+ ports with a total PoE power budget of 65W. With PoE technology, users only need one set of cables to deliver both data and power. This small network switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, and access controls. It features a fanless design, and has a convenient option for wall mounting.

Eight-port Gigabit PoE+ switch with labeled ports and DC power input shown supplying power and data through an Ethernet cable to a connected security camera, indicated by a lightning icon.

PoE+

A 65W PoE power budget supports up to eight Power over Ethernet devices, such as access points and IP cameras.

Two laptops labeled Gigabit connected through a central network switch, with icons representing data such as files, email, audio, and video flowing between devices across a high-speed network.

Gigabit Ports

Eight gigabit PoE+ ports feature a 16Gbps switching capacity to support edge network installations.

Compact eight-port Gigabit PoE+ switch shown above a stylized hand outline, indicating small size and easy placement.

Compact Design

The compact and lightweight housing is well-suited for desktops. The fanless design also makes it ideal for quiet environments.

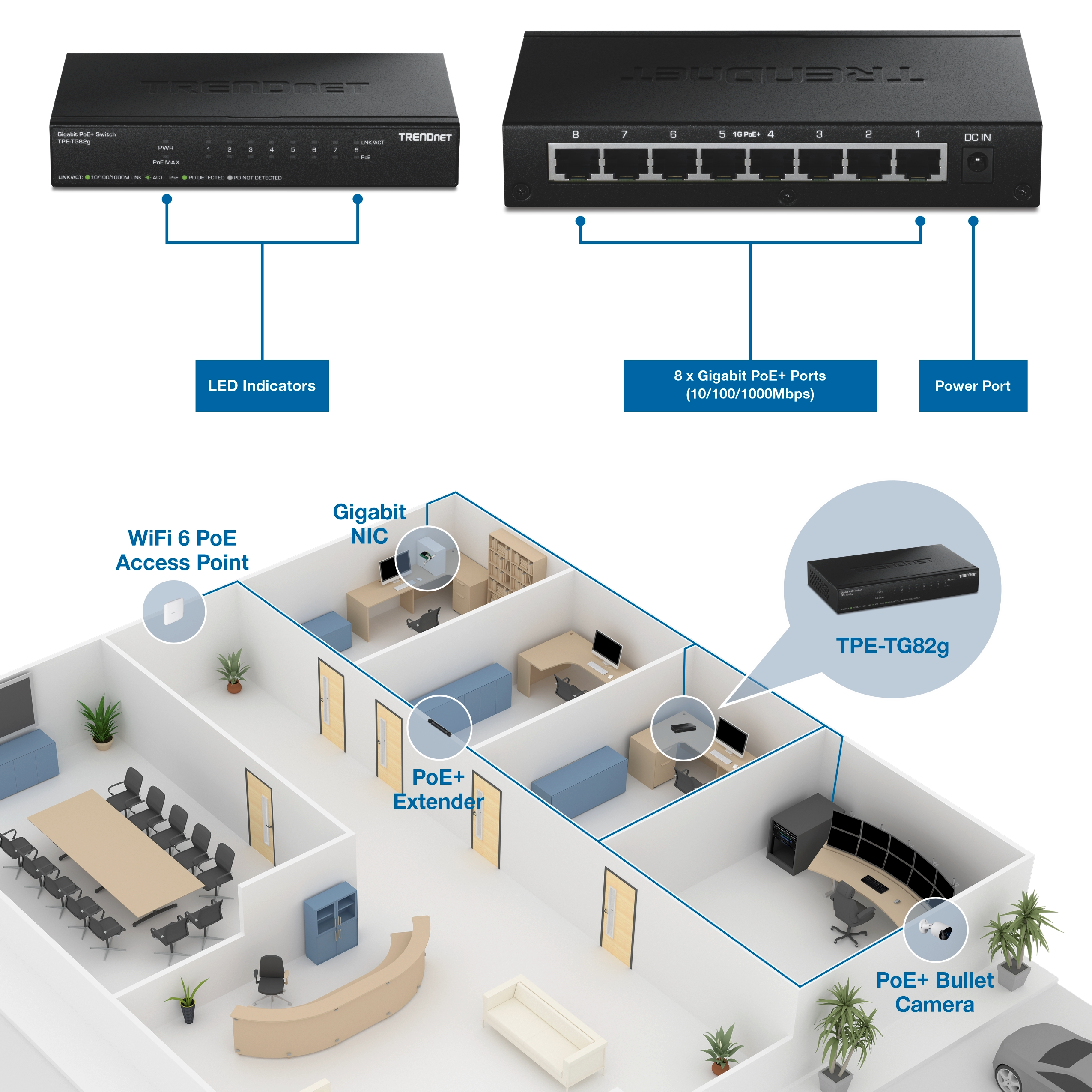

Annotated eight-port Gigabit PoE+ switch showing LED indicators, eight Gigabit PoE+ ports, and power port. Below, an office layout illustrates deployment with the switch providing network and PoE connectivity to a WiFi 6 access point, PoE extender, desktop computers with Gigabit NIC, and a PoE+ bullet camera.

PoE+

Supplies up to 30 watts of PoE power per port with a 65W PoE power budget

Gigabit Ports

8 x Gigabit PoE+ Ethernet ports

Compact Design

Compact and lightweight metal housing design well-suited for desktop installations

Switching Capacity

16Gbps switching capacity

Jumbo Frame

Sends Jumbo Frames (up to 9 KB) for increased performance

Fanless

Fanless design is ideal for quiet environments that require silent operation

LED Indicators

Includes LED indicators that convey port status

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports (10Mbps / 100Mbps / 1000Mbps)
  • LED indicators
Performance
  • Packet Buffer: 128KB
  • Switch Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Jumbo Frame: 9K
Power
  • Input: 100-240V AC, 50/60 Hz 1.2A
  • Output: 55V DC, 1.67A
  • Max. consumption: 5.18W (no PD connected)
PoE
  • PoE budget: 65W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power-
MTBF
  • 1, 141, 451 hours @ 25° C
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 154 x 85 x 26mm (6 x 3.35 x 1.02 in.)
Weight
  • 346g (12.2 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TPE-TG82g
  • Quick Installation Guide
  • Power Brick (55V DC, 1.3A)
  • Power cord

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
