2-Port USB KVM Switch

TK-207K (Version V3)

  • 2-Port KVM switch with VGA and USB connections to computers
  • High quality 2048 x 1536 resolution for a crisp display
  • Control two computers with one set of console controls
  • Device switching with auto-scan and audible feedback
  • Supports most operating systems and advanced mouse designs
  • Bus powered – No external power adapter required
  • All required cabling included
  • NDAA compliant
NDAA Compliant

TRENDnet’s 2-Port USB KVM Switch, model TK-207K, allows you to manage two PCs with just one set of keyboard, monitor, and mouse. Switch between two PCs with a simple press of a button. Separate sets of KVM cables are included with the KVM Switch so that users can start controlling two PCs instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features, such as computer switching, and auto-scanning. With its hot key feature and audible feedback, the 2-Port USB KVM Switch is an ideal choice for managing multiple PCs.

A computer monitor with a gradient blue background displays large white letters VGA on its screen. The monitor has a thin bezel and a modern stand.

VGA

Designed for VGA systems with resolutions up to 2048 x 1536 with a 60Hz refresh rate.

The TK-207K TRENDnet device is a compact black unit set against a gradient blue background, featuring two front USB ports and two top buttons labeled 1 and 2. A console port and an LED indicator are positioned on the top left side.

Push Button Controls

Use the front panel push buttons to easily switch between computers.

Two sets of KVM cables are displayed against a gradient blue background, each consisting of a VGA connector, a USB connector, and a black connector. The cables are neatly coiled and secured with a black tie.

Included Cables

This KVM kit includes two sets of KVM cables.

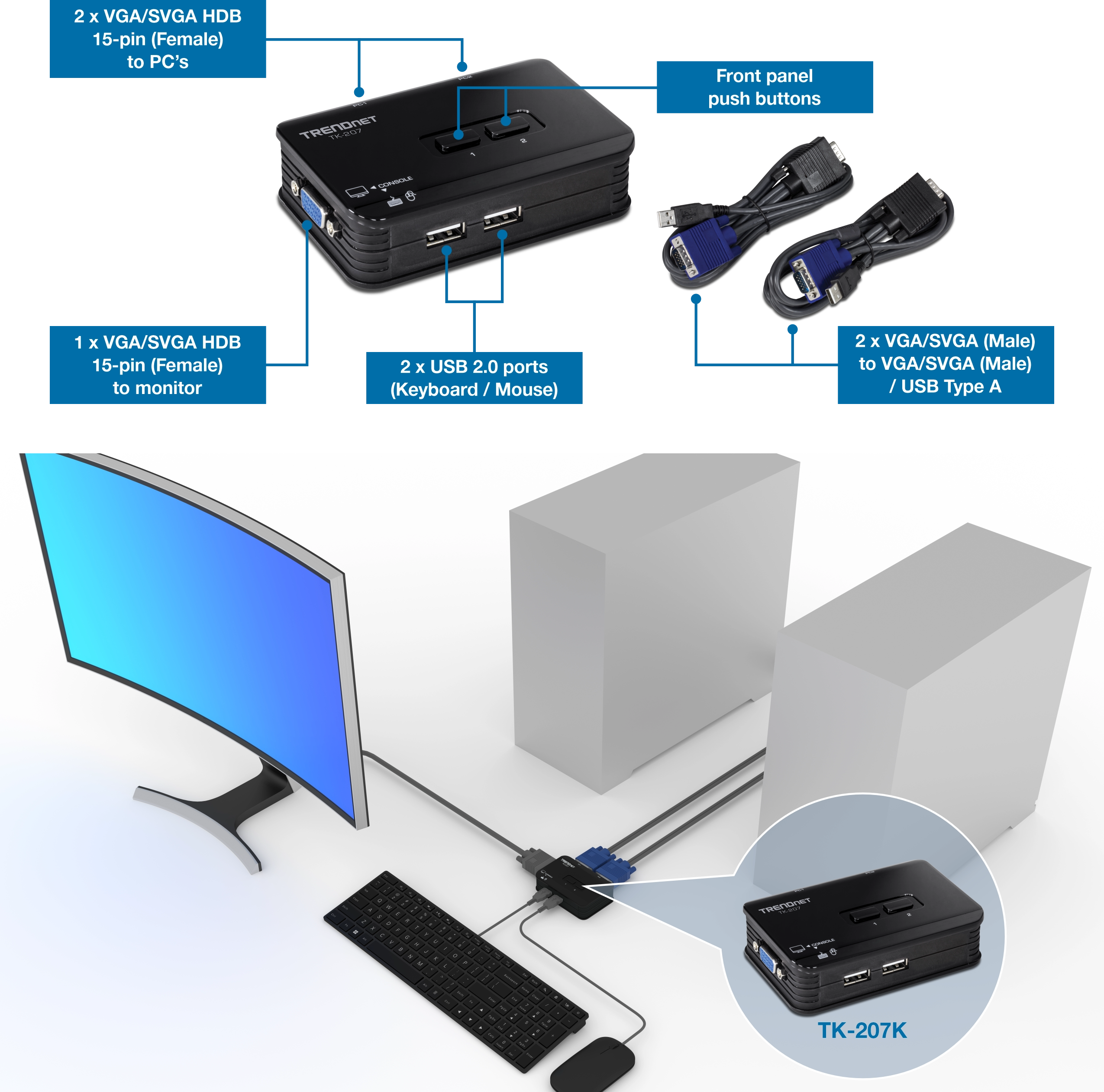

A TRENDnet TK-207K 2-port USB KVM switch with VGA and USB connections. The top section outlines key features, including ports for two PCs, a front-panel button for switching, a monitor port, and two USB ports for a keyboard and mouse. The bottom section illustrates the setup, showing a monitor, keyboard, and mouse connected to the switch, which links to two PCs for streamlined control.

Computers

Control up to 2 computers with one set of console devices

VGA

This VGA KVM switch supports resolutions up to 2048 x 1536 with a 60Hz refresh rate

Push Button Controls

Use the front panel push buttons on the KVM switch to easily switch between computers

Hot Keys

This VGA KVM switch features keyboard hot key commands for switching between computers

USB Mouse & Keyboard

Features USB keyboard and mouse connections

Included Cables

This KVM kit includes two sets of KVM cables

Computer Ports

Requires open USB and VGA ports from connected computers

Console Port Connectors
  • 1 x VGA/SVGA HDB 15-pin (Female)
  • 2 x USB 2.0 ports (Keyboard / Mouse)
Computer Interface (up to 2)
  • 1 x USB 2.0 Type A
  • 1 x VGA/SVGA HDB 15-pin (Female)
Cables (2 sets)
  • Length: 1.2m (4 ft.)
  • VGA/SVGA (Male) to VGA/SVGA (Male) / USB Type A
Monitor Resolution
  • 2048 x 1536 @ 60Hz
Switching Control
  • Front panel push buttons
  • Keyboard hotkey commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
  • Max. consumption: 0.7W
Dimensions
  • 95 x 63 x 24mm (3.74 x 2.48 x 0.95 in.)
Weight
  • 96g (3.4 oz.)
Warranty
  • 2-year
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TK-207K
  • 2 x KVM cables (1.2m/4 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
