10G SFP+ PCIe Network Adapter

TEG-10GECSFP (Version V4)

  • Converts a PCIe slot into a 10G SFP+ port
  • Supports 802.1Q VLAN Tagging
  • Supports 1G and 10G SFP modules
  • Includes standard and low-profile brackets
  • Windows® and Windows Server® support
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

TRENDnet’s 10G SFP+ PCIe Network Adapter, model TEG-10GECSFP, converts a free PCI Express slot into a 10 Gigabit SFP+ port. The 10G SFP+ PCIe adapter includes advanced features, such as jumbo frame and VLAN tagging support. The included standard and low-profile brackets are compatible with Windows® and Windows Server® operating systems.

Close-up of a 10G SFP+ port highlighted on a PCIe network adapter card with a metal mounting bracket, with an enlarged view of the SFP+ port shown above on a blue gradient background.

10G SFP+

10G SFP+ PCIe adapter provides one SFP+ port for high-speed 10 Gigabit connectivity.

Desktop computer and monitor connected to a network rack cabinet with switches and equipment, with curved arrows indicating bidirectional data communication between the computer and the rack system.

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16 KB), for increased performance.

Server rack and desktop computer connected by an arc of icons representing network data such as email, audio, video, messages, files, and wireless communication flowing between systems.

Operating Systems

Compatible with Windows and Windows Server operating systems.

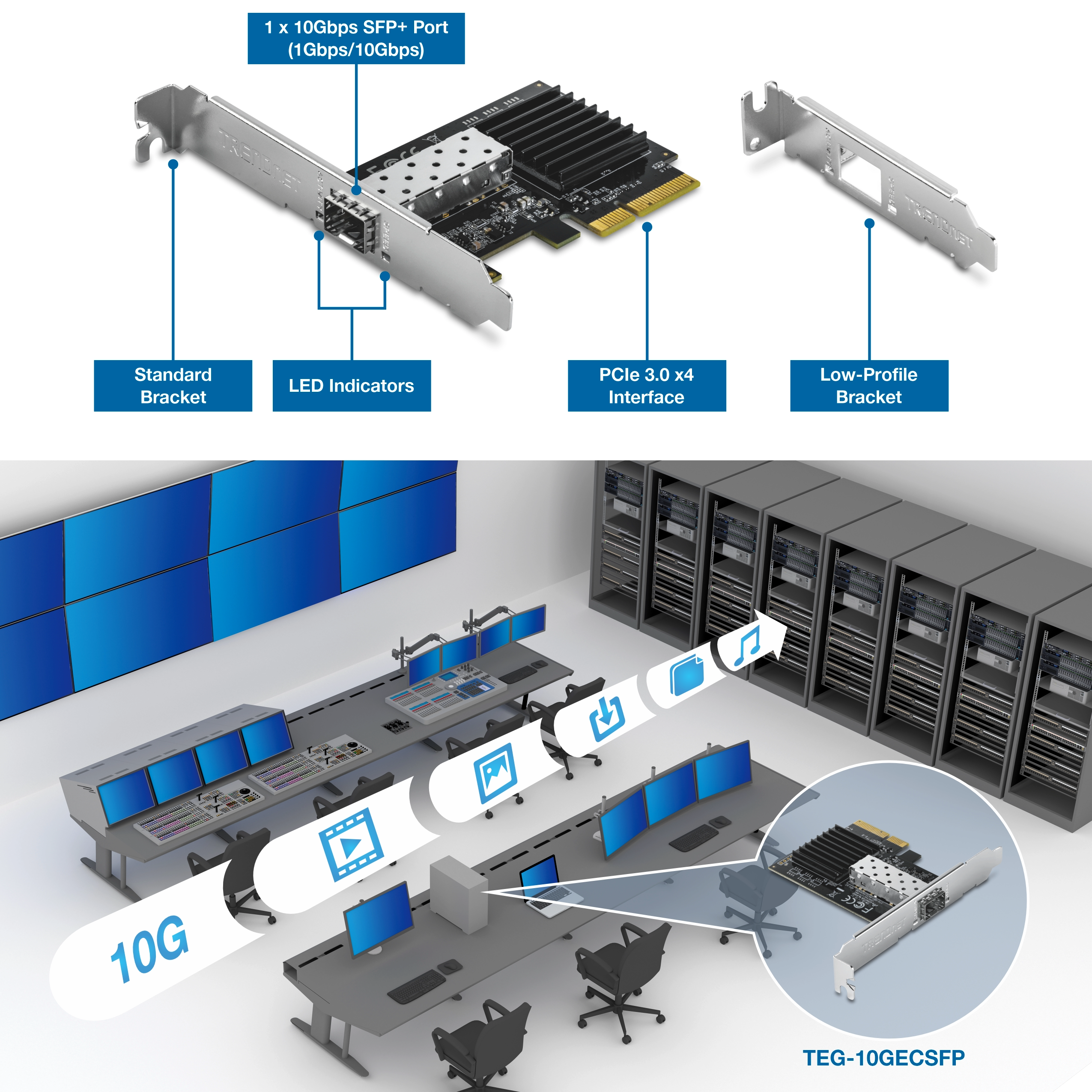

PCIe network adapter card with a 10Gbps SFP+ port highlighted, showing standard bracket, LED indicators, PCIe 3.0 x4 interface, and low-profile bracket. Below, a data center and workstation environment illustrates high-speed 10G data transfer between computers and server racks using the TEG-10GECSFP adapter.

10G SFP+

10G SFP+ PCIe adapter provides one SFP+ port for high-speed 10 Gigabit connectivity

PCI Express

Converts a PCIe 3.0 x4 slot into a 10G SFP+ port

Jumbo Frame

Sends larger packets, or jumbo frames (up to 16 KB), for increased performance

VLAN

IEEE 802.1Q tagged-based VLAN support

Brackets

Supports most installations with included standard and low-profile brackets

Operating Systems

Compatible with Windows and Windows Server operating systems

LED Indicator

LED indicator conveys status and activity

Standards
  • IEEE 802.1ad
  • IEEE 802.1P
  • IEEE 802.1Q
  • IEEE 802.3ae
  • IEEE 802.3x
Hardware Interface
  • PCIe 3.0 x4 interface
  • 1 x 10Gbps SFP+ port (1Gbps / 10Gbps)
  • LED indicator
Compatibility
  • Windows® 11, 10 (64-bit)
  • Windows® Server 2025, 2022, 2019, 2016
Jumbo Frames
  • Up to 16KB
Special Features
  • Compatible with standard 10G SFP+ modules and Direct Attach Copper (DAC) cables (up to 5 meters)
Additional Support
  • 802.1Q VLAN Tagging
  • Support LTR (Latency Tolerance Reporting)
  • Receive-side scaling (RSS)
  • Message Signaled Interrupts (MSI)
  • Supports Wake-On-LAN
  • IP, TCP, and UDP checksum offloading
Power
  • Max. Consumption: 3.34W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • CE
  • FCC
Dimensions
  • 86 x 63 x 18mm (3.38 x 2.48 x 0.7 in.)
Weight
  • 48g (1.69 oz.)
Warranty
  • 3-year

PACKAGE CONTENTS
  • TEG-10GECSFP
  • Standard & low-profile brackets

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
