4-port 10/100Mbps Dual Speed Starter Kit

TE100-SK2

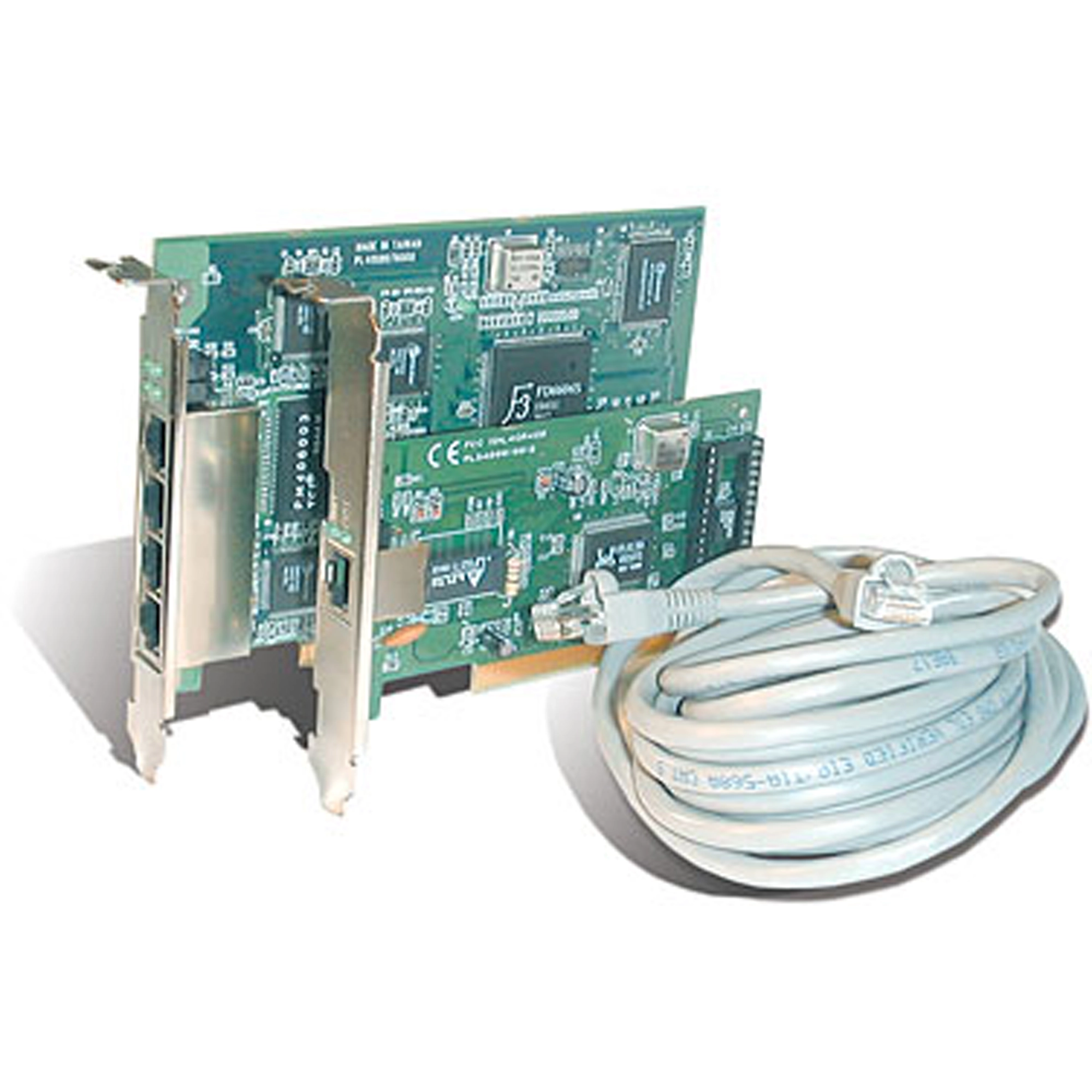

  • Total solution kit includes a 4-port 10/100Mbps dual-speed hub card, a single port10/100Mbps PCI network interface card and a 15' Category 5 UTP cable
  • This kit is specifically designed for home and small office use and can support up to 5 network nodes without expansion
  • Enjoy a 5-year user warranty

DISCONTINUED PRODUCT

The TE100-SK2  has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-SK2.pdf
Data: 5/2/2013
Tamanho de arquivo: 165.00 KB
Download Email
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3µ 100 Base TX
Data Transfer Rate:
  • 10/100Mbps (Half Duplex)
Topology:
  • Star
Protocol:
  • CSMA/CD
Connectors:
  • Hub Card: four UTP/STP RJ-45
  • Adapter Card: one UTP/STP RJ-45
Diagnostic LEDs:
  • Hub Card: Four (4) Link LEDs
  • Adapter Card: One LNK LED, one 100 LED
Network Cable:
  • 10Mbps-Category 3/4/5 UTP/STP (one 15' Category 5 UTP cable included) 100Mbps-Category 5, UTP/STP
Network Drivers:
  • Novell ODI, NDIS, SCO UNIX , MS LAN Manager , Windows NT/95/98, Windows for Workgroups and Packet Driver
Temperature:
  • Operating: 0° to 50° C / 32° -122° F
  • Storage: -20° to 80° C / -4° to 176° F
Humidity:
  • Operating:10 to 90% (non-condensing)
  • Storage: 10 to 90% (non-condensing)
Certification:
  • FCC, CE

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
