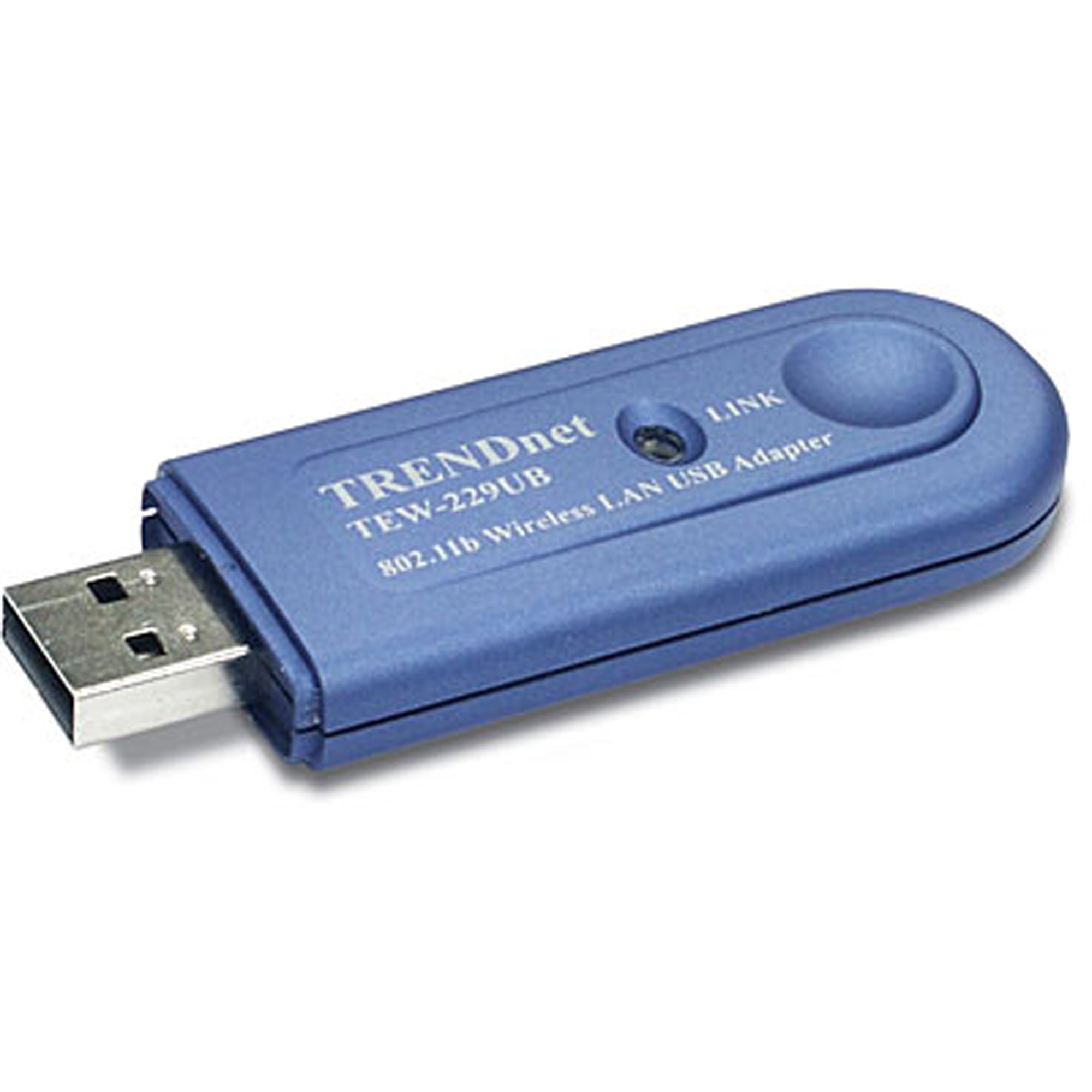

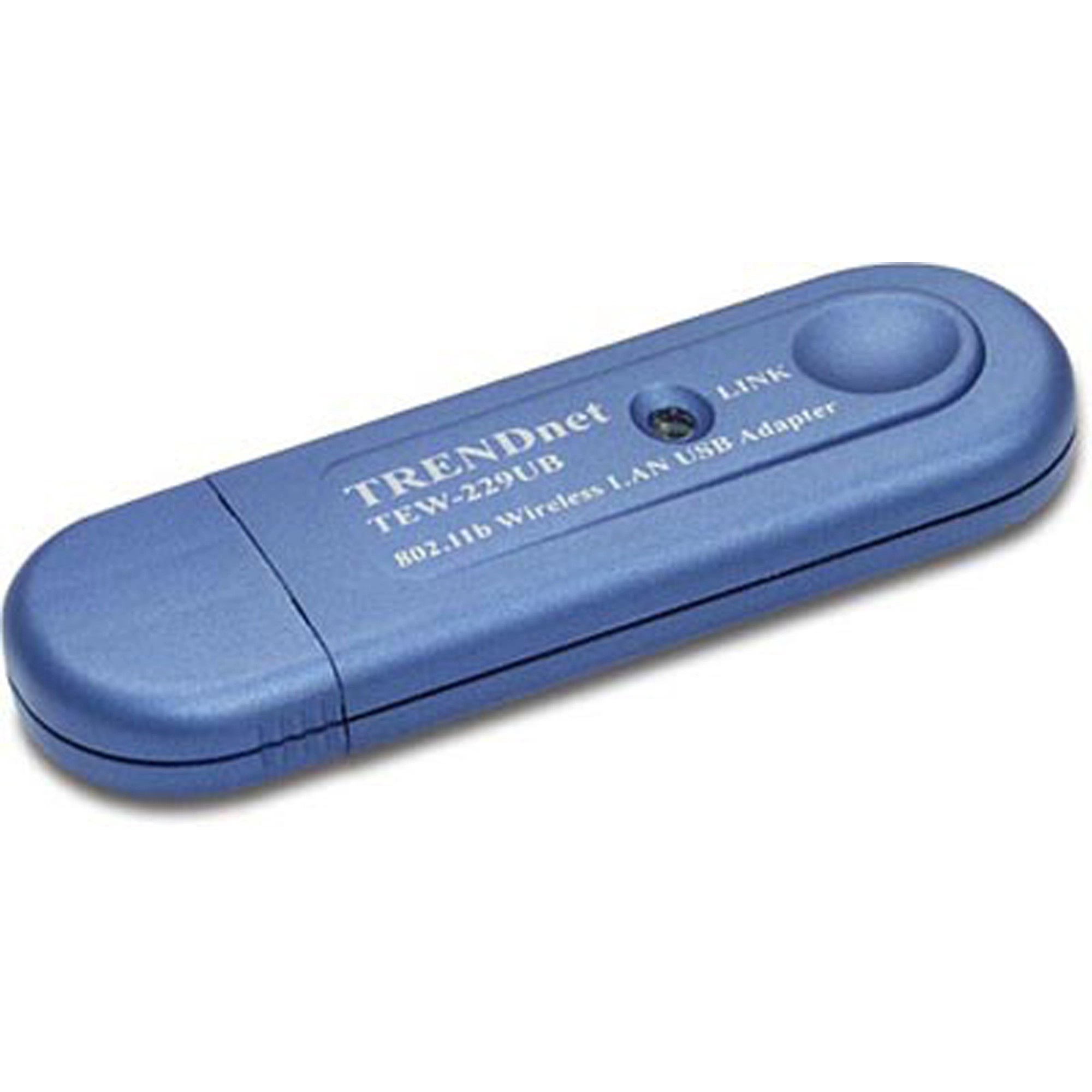

11Mbps Wireless USB Adapter

TEW-229UB   (Version 2.0)

DISCONTINUED PRODUCT

The TEW-229UB (Version 2.0) has been discontinued. It has been replaced by the TEW-805UB (Version v1.0R). For a list of discontinued products, click here.
Hardware
Adapter Type
  • USB 2.0, 1.0, 1.1Compliant, Type-A connector
Driver Support
  • Windows 98SE/ME/2000/XP
Antenna
  • Integrated Micro-strip 2dBi Antenna
USB Cable
  • USB Type-A, Male-to-Female, 10cm (3.9 inches)
LED Indicator
  • Link Status
Dimensions
  • 76 x 25 x 11 mm (2.99 x 0.98 x 0.43 inch)
Weight
  • 14.2g (0.5 Oz.)
Operating Temperature
  • 0° ~ 40° C (32° ~ 104° F)
Storage Temperature
  • -10° ~ 70° C (14° ~ 158° F)
Humidity
  • 10% ~ 95% (Non-condensing)
Certification
  • FCC, ETS
Wireless
Wireless Standard
  • IEEE 802.11b, Direct Sequence Spread Spectrum (DSSS)
Frequency
  • 2.412 to 2.484GHz (Industrial Scientific Medical Band)
Module Technique
  • 802.11b: CCK (11 and 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
Media Access Protocol
  • CSMA/CA with ACK
Security
  • 64/128-Bit WEP
Transmit Power
  • Minimum 13dBm (typically)
Data Rate
  • 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps (Auto-Fallback)
Receiving Sensitivity
  • 11Mbps 10 – 5 BER @ -85 dBm (typical)
  • 1Mbps 10 – 5 BER @ -96 dBm (typical)
Power Consumption
  • Receiving Mode: 230mA (typical)
  • Transmitting Mode: 380mA (typical)
Channel
  • 1~14 Channels (Universal Support)

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
