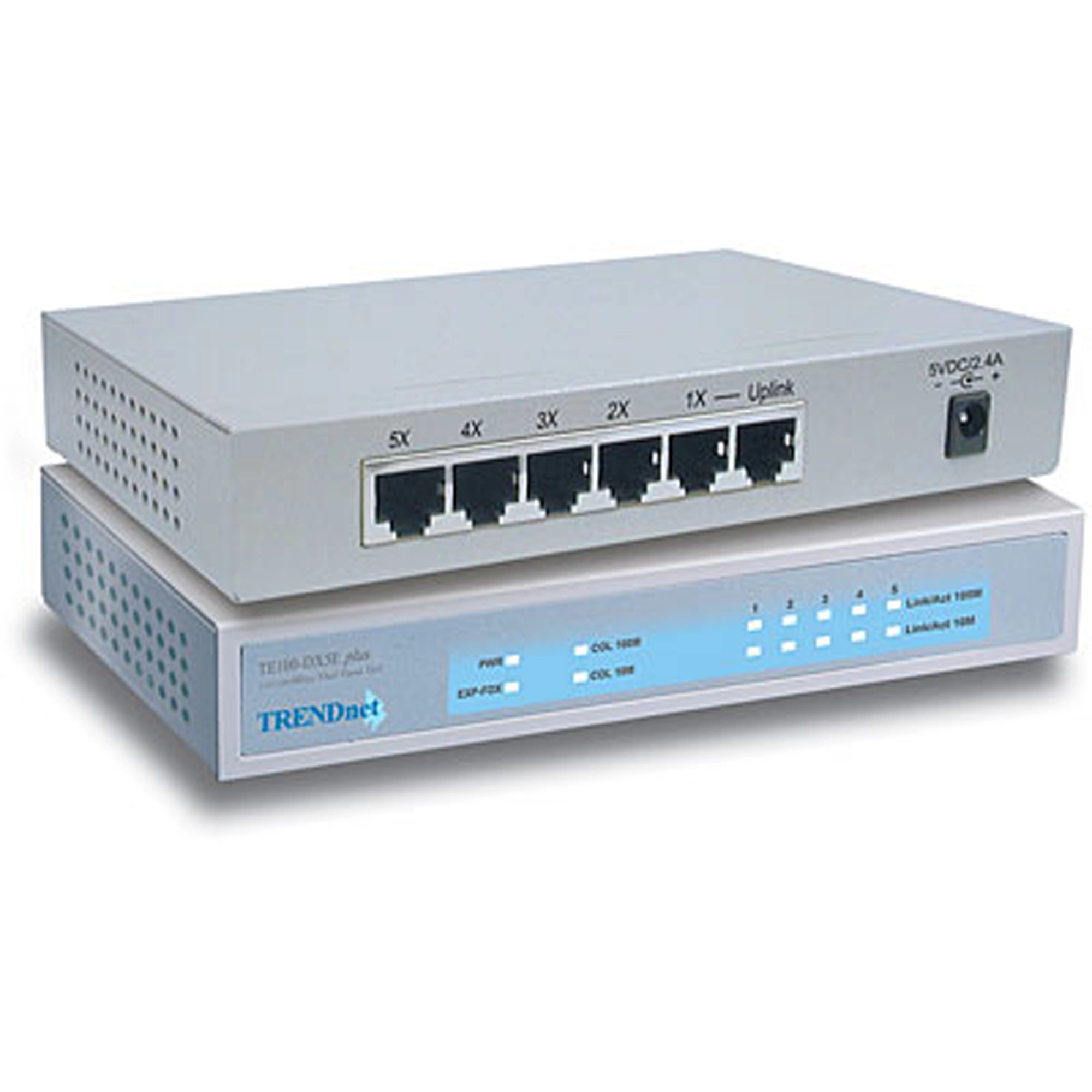

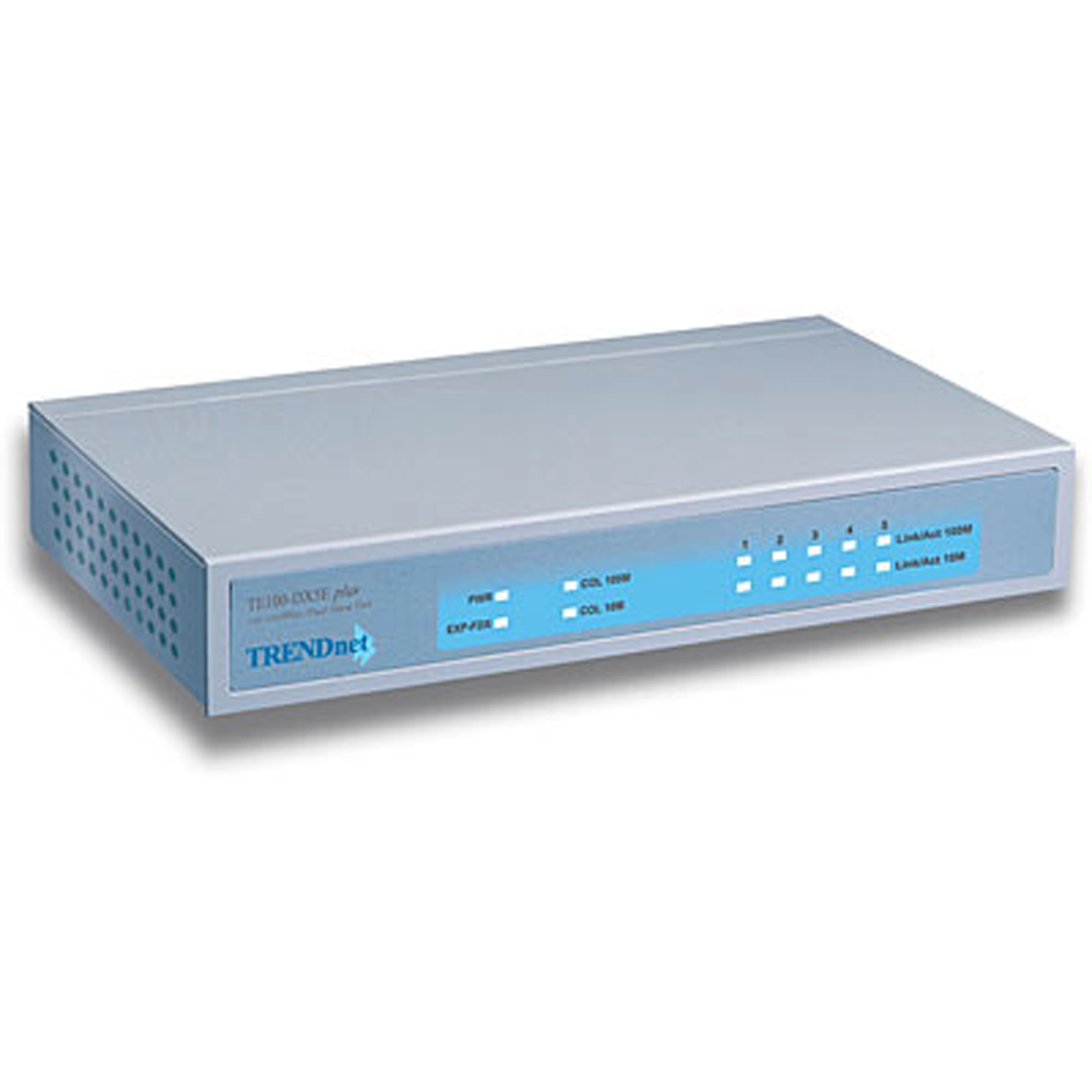

5-Port 10/100Mbps Dual Speed Hub with Switched Uplink Port

TE100-DX5Eplus   (Version 1.0)

  • Enjoy this 5-port palm-size dual speed hub that presents a quickest way to build or expand a fast Ethernet network
  • With a built-in switch, it allows communication between network end nodes operating at different speeds
  • Enjoy a 5-year warranty

DISCONTINUED PRODUCT

The TE100-DX5Eplus (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-DX5Eplus.pdf
Data: 5/2/2013
Tamanho de arquivo: 178.57 KB
Download Email
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet, IEEE 802.3µ 100Base-TX Fast Ethernet standards
Protocols:
  • CSMA/CD
Data Transfer Rate:
  • 10/100Mbps
Topology:
  • Star
Network Media:
  • UTP CAT 5 (100 m), EIA/TIA-568 100-ohm screened twisted pair (STP) (100 m)
Power Consumption:
  • 12 Watts max. AC external power adapter
Diagnostic LEDs:
  • System: Power, 10M Collision, 100M Collision, EXP-FDX
  • Port: 10M Link/Act, 100M Link/Act
Dimensions:
  • 171 x 98 x 29 mm (6.73 x 3.86 x 1.14 inches)
Weight:
  • 435 g (0.96 lbs.)
Temperature:
  • Operating: -10° to 40° C (14° to 104° F)
  • Storage: -20 to 70° C (-4° to 158° F)
Humidity:
  • Operating: 10 % to 90 % non-condensing
  • Storage: 5 % to 90 % non-condensing
Certifications:
  • FCC, CE, VCCI

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
