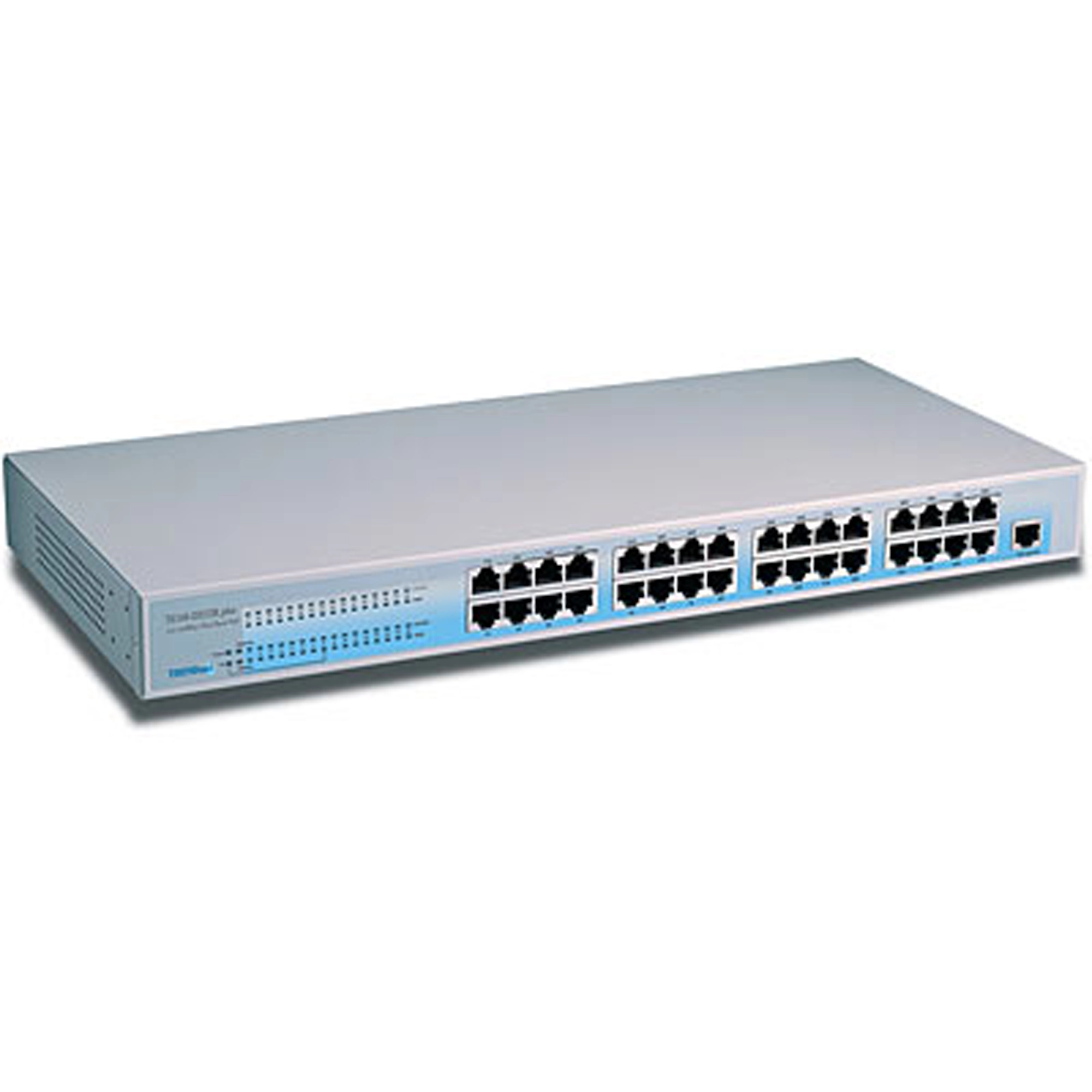

32-Port Stackable Dual-Speed Hub with built-in Switch

TE100-DX32Rplus   (Version 1.0)

  • Class II stackable hub features 32 10/100Mbps auto-sensing and auto-negotiation ports
  • Full 100Mbps connectivity significantly boosts network performance
  • Plug and Play installation with automatic port configuration

DISCONTINUED PRODUCT

The TE100-DX32Rplus (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-DX32Rplus.pdf
Data: 5/2/2013
Tamanho de arquivo: 210.44 KB
Download Email

Guia do Usuário

Manual
Nome do arquivo: UG_TE100-DX16_24_32R.pdf
Data: 8/20/2004
Tamanho de arquivo: 327.04 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T Ethernet Repeater, IEEE 802.3µ 100Base-TX Class II Repeater, IEEE 802.3 µ 100Base-FX
Protocol:
  • CSMA/CD
Data Transfer Rate:
  • 10/100Mbps
Topology:
  • Star
Network Media:
  • UTP CAT 5 (100 m), EIA/TIA-568 100-ohm screened twisted pair (STP) (100 m), 62.5/125 micron multi-mode fiber-optics (2 km)
Power Consumption:
  • 40 Watts max. (100 - 240 V, 50/60Hz AC internal power supply)
Diagnostic LEDs:
  • System: Power, FX Link/Rx, 10M Collision, 100M Collision, Link/Rx, 100M
Dimensions:
  • 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 inches)
Weight:
  • 2.76 kg (5.94 lbs.)
Temperature:
  • Operating: -10° to 40° C (14° to 104° F)
  • Storage: -20 to 70° C (-4° to 158° F)
Humidity:
  • Operating Humidity: 10 % to 90 % non-condensing
  • Storage Humidity: 5 % to 90 % non-condensing
Certifications:
  • FCC, UL, CE

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
