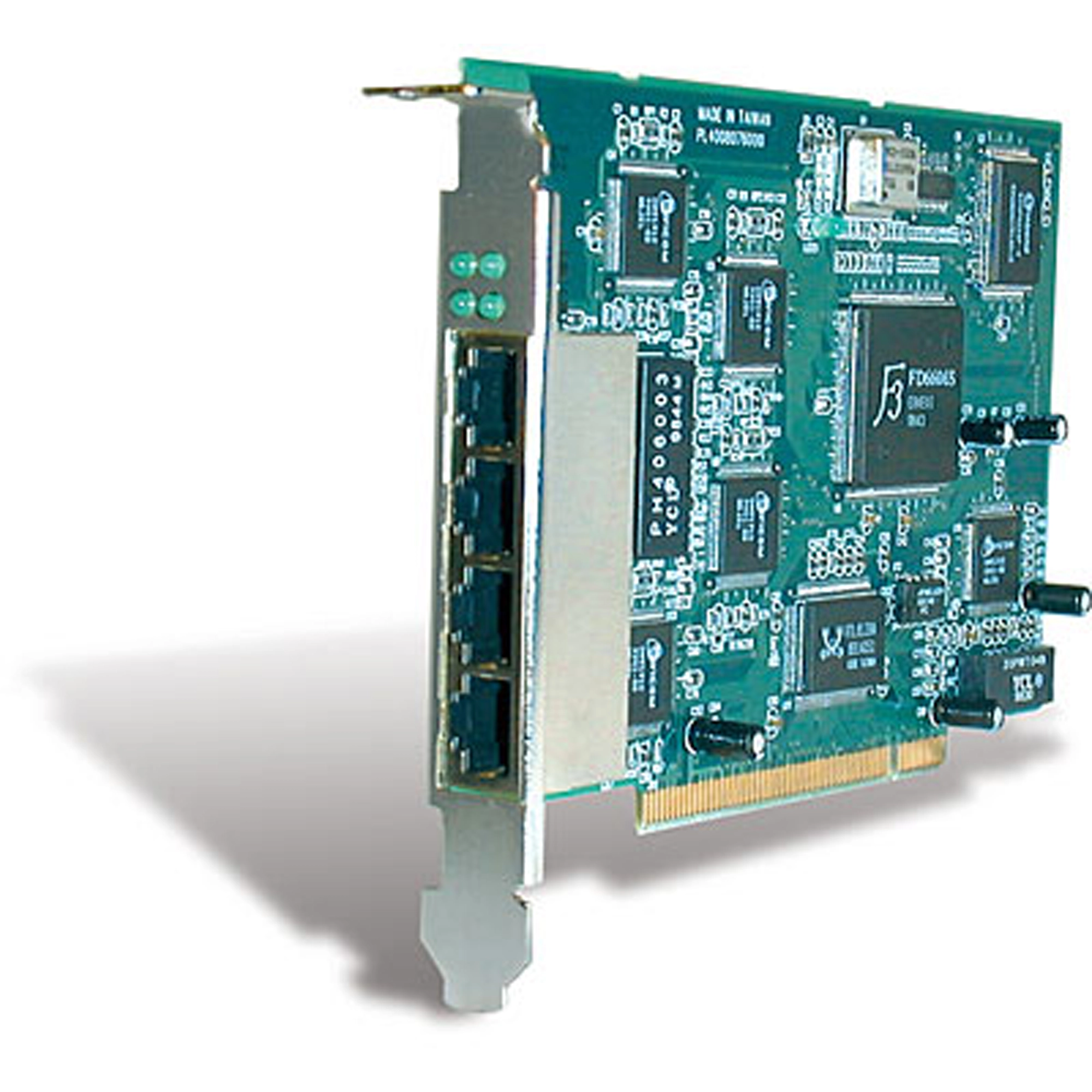

4-port Dual Speed Fast Ethernet Hub Card

TE100-DX4PCI   (Version 1.0)

  • The 100Mbps dual-speed hub card utilizes 100Base-TX technology to give you high-speed and high performance
  • This network device integrates four 10/100Mbps fast Ethernet hub ports into a 10/100Mbps PCI Ethernet card
  • Plug and Play installation with automatic configuration

DISCONTINUED PRODUCT

The TE100-DX4PCI (Version 1.0) has been discontinued. For a list of discontinued products, click here.

Drivers

Driver
Nome do arquivo: Driver_TE100-DX4PCI.zip
SHA-1 Checksum: B16D83E21D4B0842D9C8451B7443570C789B0B52
Data: 7/25/2017
Tamanho de arquivo: 1.39 MB
Download

Ficha técnica

Datasheet
Nome do arquivo: Spec_TE100-DX4PCI.pdf
Data: 11/3/2022
Tamanho de arquivo: 170.63 KB
Download Email

Guia do Usuário

Manual
Nome do arquivo: UG_TE100-DX4PCI.PDF
Data: 8/18/2004
Tamanho de arquivo: 160.25 KB
Download
Hardware
Standards:
  • IEEE 802.3 10Base-T, IEEE 802.3µ 100Base-TX
Data Transfer Rate:
  • 10 or 100Mbps
Topology:
  • Star
Protocol:
  • CSMA/CD
Connectors:
  • Four (4) RJ-45 UTP/STP
Diagnostic LED'S:
  • LINK (4) (green LED will light when a good link is established)
Network Cables:
  • CAT 3/4/5 UTP/STP for 10Mbps and CAT 5 UTP/STP for 100Mbps.
Network Drivers:
  • Novell ODI, NDIS, SCO UNIXÔ , MS LAN Manager , Windows NT/95/98, Windows for Workgroups and Packet Driver
Temperature:
  • Operating Temp.: 0° to 50° C ( 32° -122° F)
  • Storage Temp.: -20° to 80° C ( -4° to 176° F)
Humidity:
  • Operating Humidity: 10 to 90% (non-condensing)
  • Storage Humidity: 10 to 90% (non-condensing)
Certification:
  • FCC, CE

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
