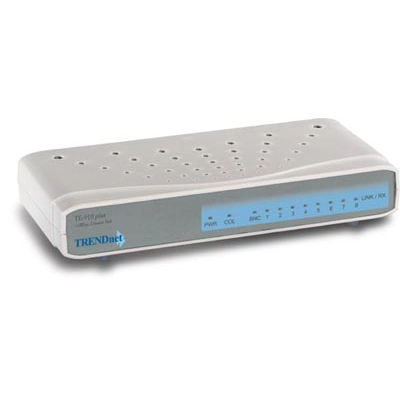

8-port RJ-45 and 1-port BNC Ethernet Hub

TE-910PLUS   (Version 1.0)

  • Enjoy this powerful 8 port cascade ready Ethernet hub for the home or office
  • The TE-900 is equipped with a BNC hub allowing up to 30 hubs to be connected
  • Enjoy a 5-year user warranty

DISCONTINUED PRODUCT

The TE-910PLUS (Version 1.0) has been discontinued. For a list of discontinued products, click here.
Hardware
Standards:
  • IEEE 802.3 10Base-T and 10Base-2
Topology:
  • Star
Protocol:
  • CSMA/CD
Cabling:
  • UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm screened twisted-pair (STP), 100 meters max. RG58A/U 50 Ohms Coaxial Cable, 185 meters max.
Speed:
  • 10Mbps
Ports:
  • 8 RJ-45 ports
LEDs:
  • Per Unit: Power, Collision, BNC
  • Per Port: Link/RX
Power:
  • 7.5V DC, 1A, 7.5W max. External Power Adapter
Dimensions:
  • 177 x 72 x 30 mm, (6.97 x 2.83 x 1.18 inches) (L x W x H)
Temperature:
  • Operating: 0 °C ~ 50 °C (32 °F ~ 122 °F)
  • Storage: -10 °C ~ 70 °C (14 °F ~ 158 °F)
Humidity:
  • Operating: 10% ~ 90% (non-condensing)
  • Storage: 5% ~ 90% (non-condensing)
Certifications:
  • FCC, CE, VCCI -A
