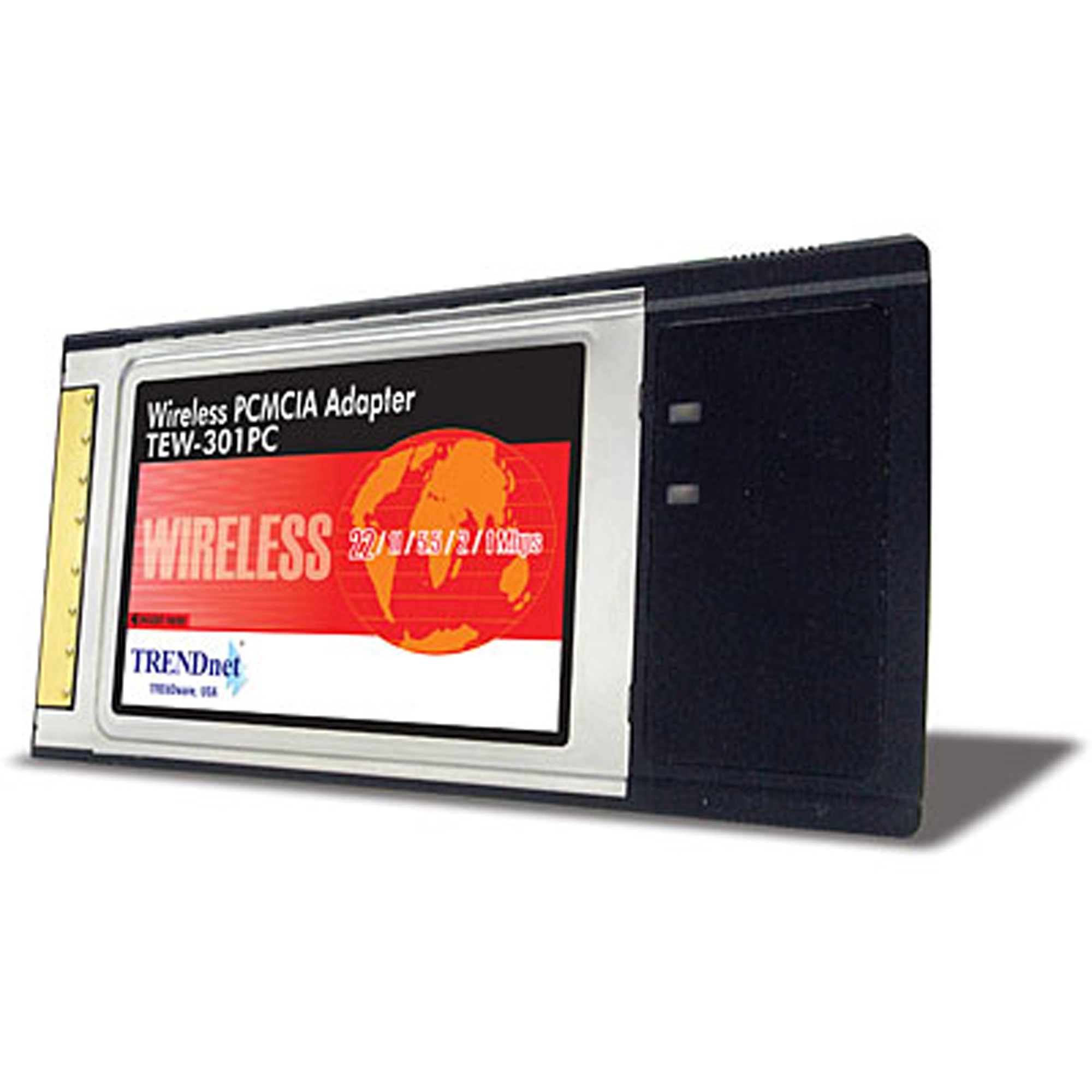

11/22Mbps Wireless PCMCIA Network Adapter

TEW-301PC   (Version 1.0)

DISCONTINUED PRODUCT

The TEW-301PC (Version 1.0) has been discontinued. For a list of discontinued products, click here.
Hardware
Adapter Type:
  • 32-bit PCMCIA CardBus
Standards:
  • IEEE 802.11b, Wi-Fi & PCMCIA 2.1 and JEIDA 4.2 Standard
Frequency:
  • 2.4 ~ 2.4835GHz (Industrial Scientific Medical Band)
Channels:
  • 11 Channels (US & Canada)
Data Rate:
  • 22Mbps, 11Mbps, 5.5Mbps, 2Mbps, 1Mbps
Modulation Technology:
  • Direct Sequence Spread Spectrum (DSSS), PBCC (Packet Binary Convolutional Coding), 11-chip Barker Sequence
Antenna:
  • 2dBi Internal Patch Antenna
Media Access Protocol:
  • CSMA/CA with ACK
LED Indicator:
  • Power, Link/Activity
Output Power:
  • 16 ~ 18dBm (typical)
Receiving Sensitivity:
  • -80dBm (typical)
Power Consumption:
  • DC +3.3V/+5V. TX: 650mA max. RX: 350mA Standby Mode: 350mA (RX); Sleep Mode: 0mA
Dimensions:
  • 128 x 54 x 9.6mm (5.04 x 2.13 x 0.38 inch)
Weight:
  • 40 g. (1.4 oz.)
Operating Temperature:
  • 0°~ 50° C (32° ~ 122° F)
Storage Temperature:
  • -20° ~ 70° C (-4° ~ 158° F)
Humidity:
  • Max. 95% (Non-condensing)
Certification:
  • CE, FCC

Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
