TRENDnet’s 7-Port Multi-Gig PoE+ Switch, model TPE-TG327, is an affordable 2.5G PoE+ switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TPE-TG327 multi-gig switch offers two dedicated 2.5G PoE+ ports and five dedicated 1G PoE+ ports for high-speed network connections with a 20Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the multi-gig PoE+ switch is a cost-effective solution for high-speed network connections. A 70W total PoE power budget on this affordable multi-gig PoE+ switch supplies up to seven PoE+ devices with up to 30W per port.
PORTAS 2.5G
Equipped with two 2.5GBASE-T RJ-45 PoE+ ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

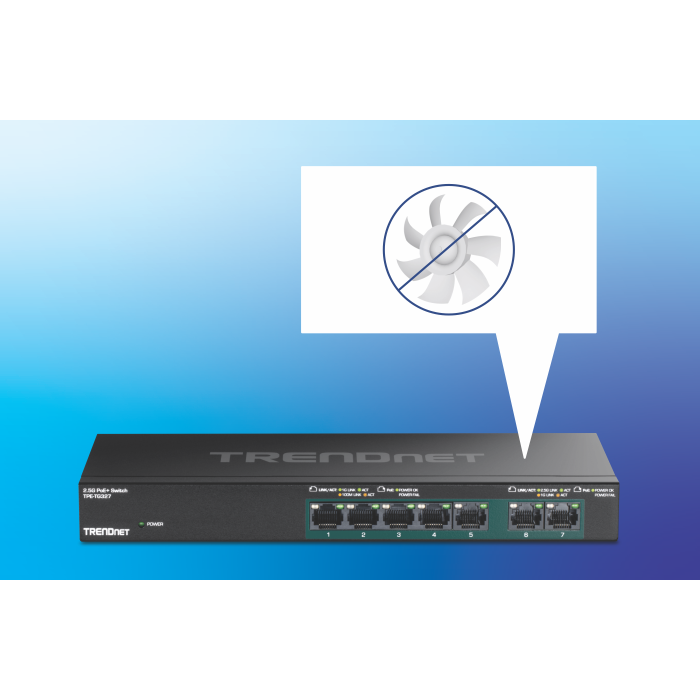

Sem ventoinha
Convenient fanless design lowers power consumption and energy costs, and eliminates distracting operating noise.

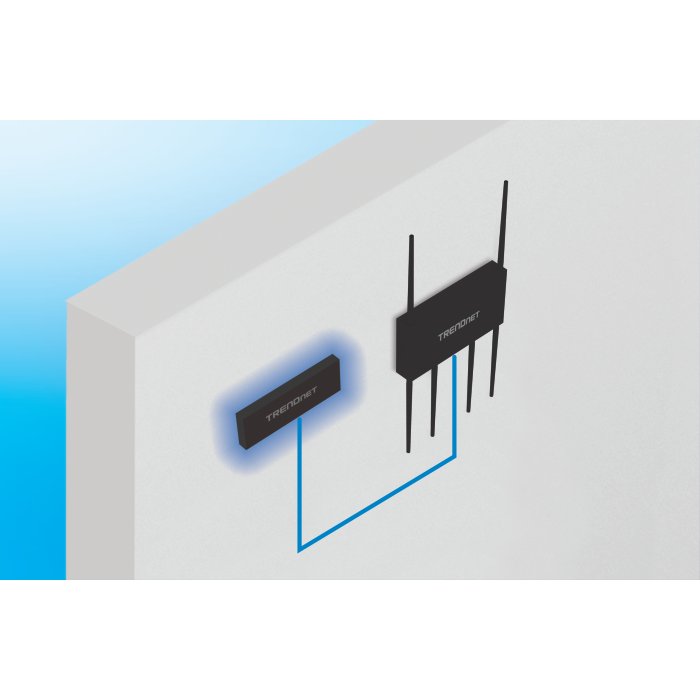

Parede montável
Well-suited for desktop installations, but also features a convenient wall-mountable design for greater installation flexibility.
Estándares | - IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bz
|
Interface do dispositivo | - 5 x portas gigabit PoE+
- 2 x 2.5GBASE-T PoE+ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
- LED indicators
|
Taxa de transferência de dados | - Gigabit Ethernet: 2000 Mbps (full-duplex)
- 2.5 Gigabit: 5Gbps (full duplex)
|
Desempenho | - Data RAM Buffer: 384KB
- Switch Capacity: 20Gbps
- Tabela de Endereços MAC: Entradas de 2K
- Taxa de Encaminhamento: 14.88Mpps (pacotes de 64-byte)
- Jumbo Frames: 15 KB
|
Características especiais | - Parede montável
- Sem ventoinha
|
Alimentação | - Entrada: 100 a 240V AC, 50/60 Hz
- Output: 55V/1.67A
- Max. consumption: 8W (no PD)
|
PoE | - PoE budget: 70W
- PoE Modo A: Pinos 1, 2, 3 e 6 para alimentação
- Proteção Sobrecorrente
- Proteção contra corto circuito
|
MTBF | |
Temperatura operacional | - 0° – 50° C (32° – 122° F)
|
Umidade de operação | |
Dimensões | - 286 x 102 x 27mm (11,3 x 4 x 1 pol.)
|
Peso | |
Certificações | |
Garantia | |
CONTEúDO DA EMBALAGEM |
- TPE-TG327
- Guia de Instalação Rápido
- Power brick (55V, 1.67A)
- Power cord (1.8m /6 ft.)
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
