TRENDnet’s 6-Port Multi-Gig Switch, model TEG-S762, is a multi-gig switch that provides advanced, high-bandwidth performance, ease of use, and reliability. The TEG-S762 multi-gig switch offers two dedicated 10G ports and four dedicated 2.5G ports for high-speed network connections with a 60Gbps switching capacity. It features a sturdy compact metal housing and fanless design. This multi-gig switch is a cost-effective switch solution for high-speed 10 gigabit network connections.

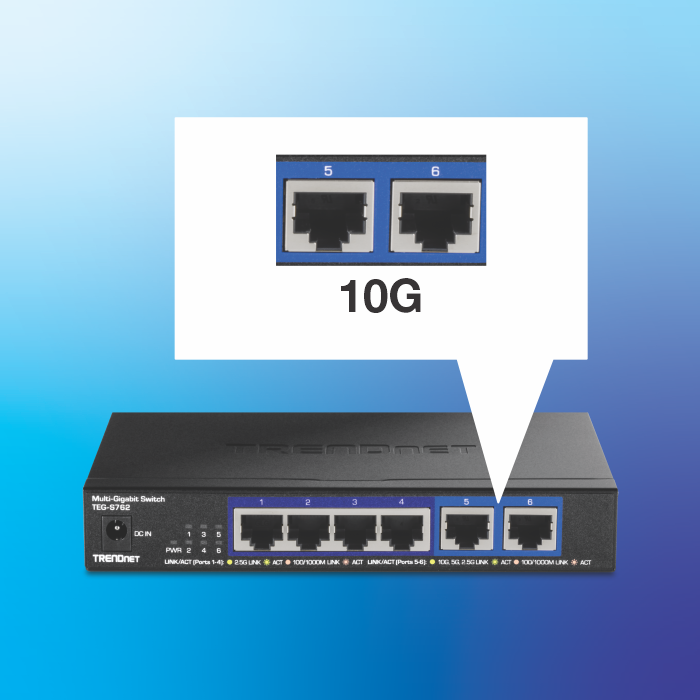

Portas 10G
Offers two 10G RJ-45 ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability.
PORTAS 2.5G
Equipped with four 2.5G RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

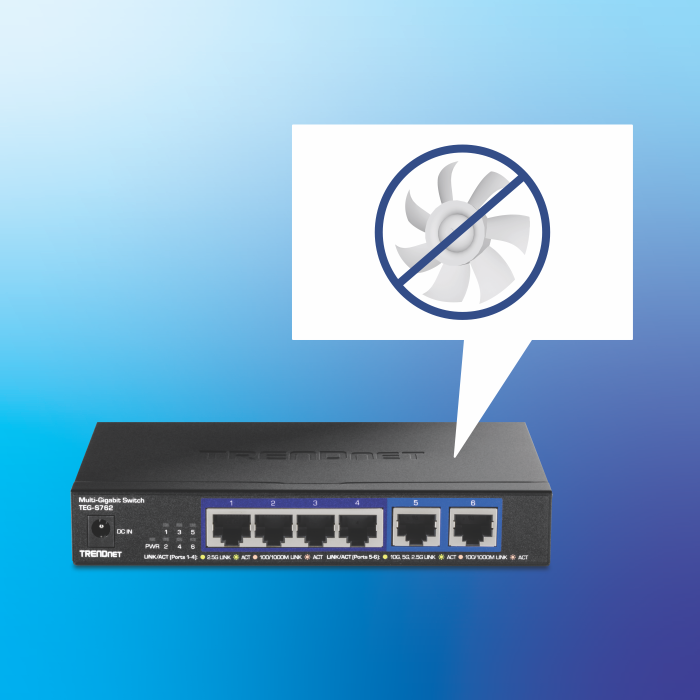

Sem ventilador
O design sem ventoinha reduz o consumo de energia e os custos desnecessários e elimina o ruído operacional perturbador.
Padrão | - IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.3az
- IEEE 802.3bz
- IEEE 802.1x
|
Interface do dispositivo | - 4 x Portas 2.5G (1Gbps/2.5Gbps)
- 2 x Portas 10G (1Gbps/2.5Gbps/10Gbps)
- Indicadores LED
|
Transferência de dados | - Gigabit Ethernet: 2000 Mbps (full-duplex)
- 2,5 Gigabit Ethernet: 5Gbps (full-duplex)
- 10 Gigabit Ethernet: 20Gbps (full-duplex)
|
Desempenho | - Switch fabric: 60Gbps
- Buffer de Dados RAM: 1MB
- Tabela de Endereços MAC: Entradas de 4K
- Jumbo Frames: 12KB
- Modo de Encaminhamento: store and forward
- Forwarding rate: 44.64Mpps (64-byte packet size)
|
Alimentação | - Entrada: 90 – 264 VAC, 47/63 Hz
- Saída: 12V, 1A
- Max. consumption: 13.37W
|
MTBF | |
Temperatura Operacional | - 0° – 40° C (32° – 104° F)
|
Umidade de Operação | - Máximo 90% sem condensação
|
Dimensões | - 160 x 110 x 26mm (6,3 x 4,3 x 1 in.)
|
Peso | |
Certificações | |
Garantia | |
CONTEúDO DA EMBALAGEM |
- TEG-S762
- Guia de Instalação Rápido
- Adaptador de Energia (12V, 1A)
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
