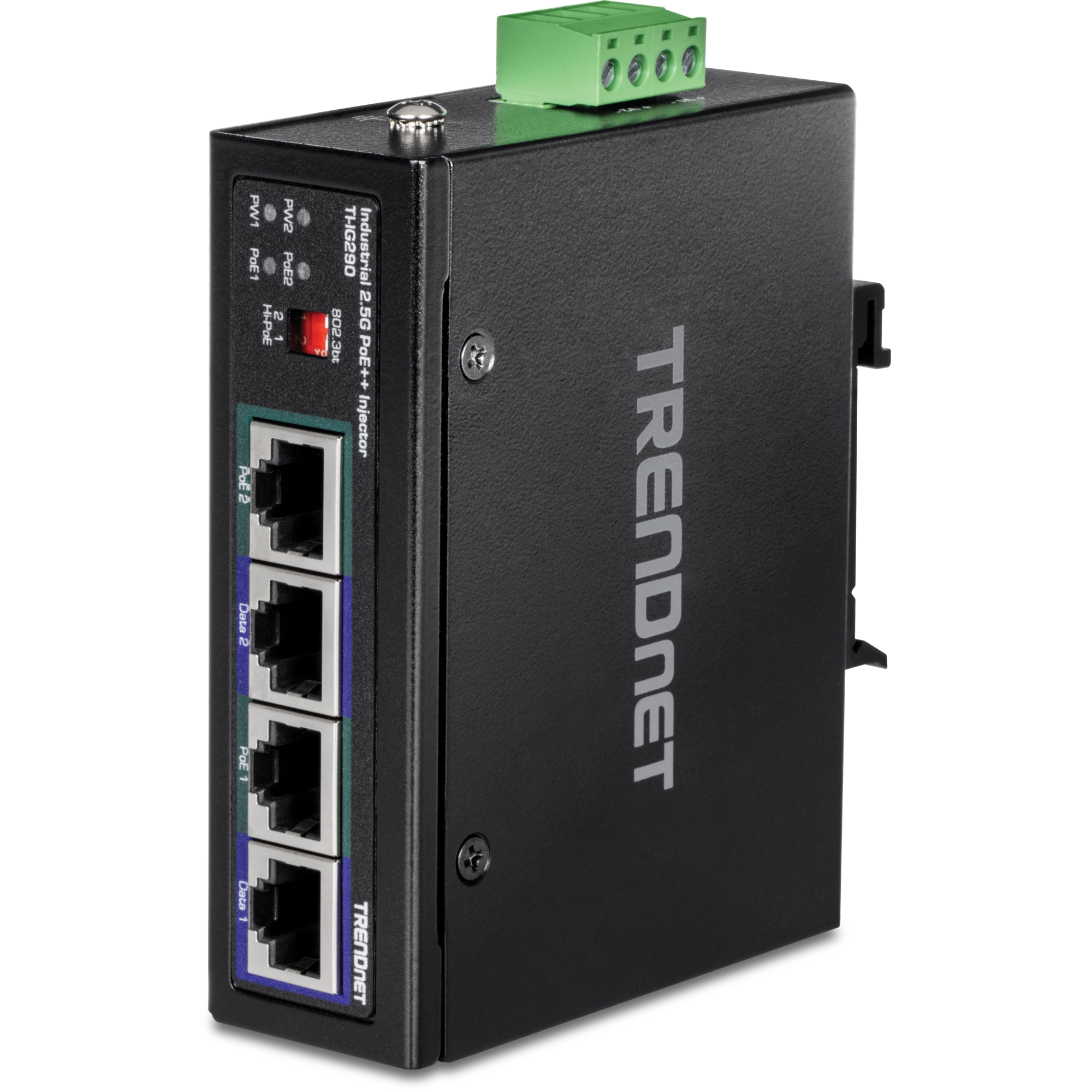

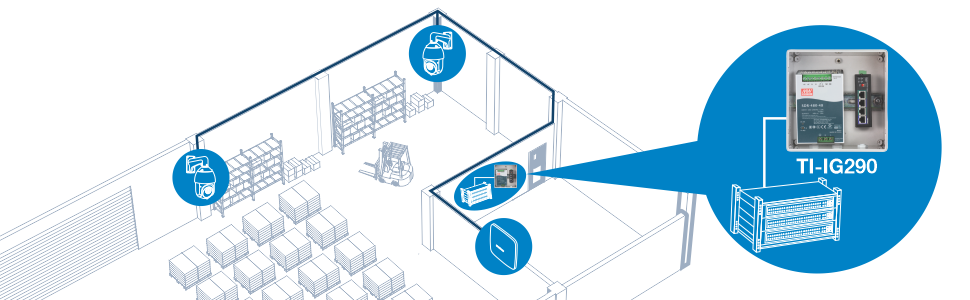

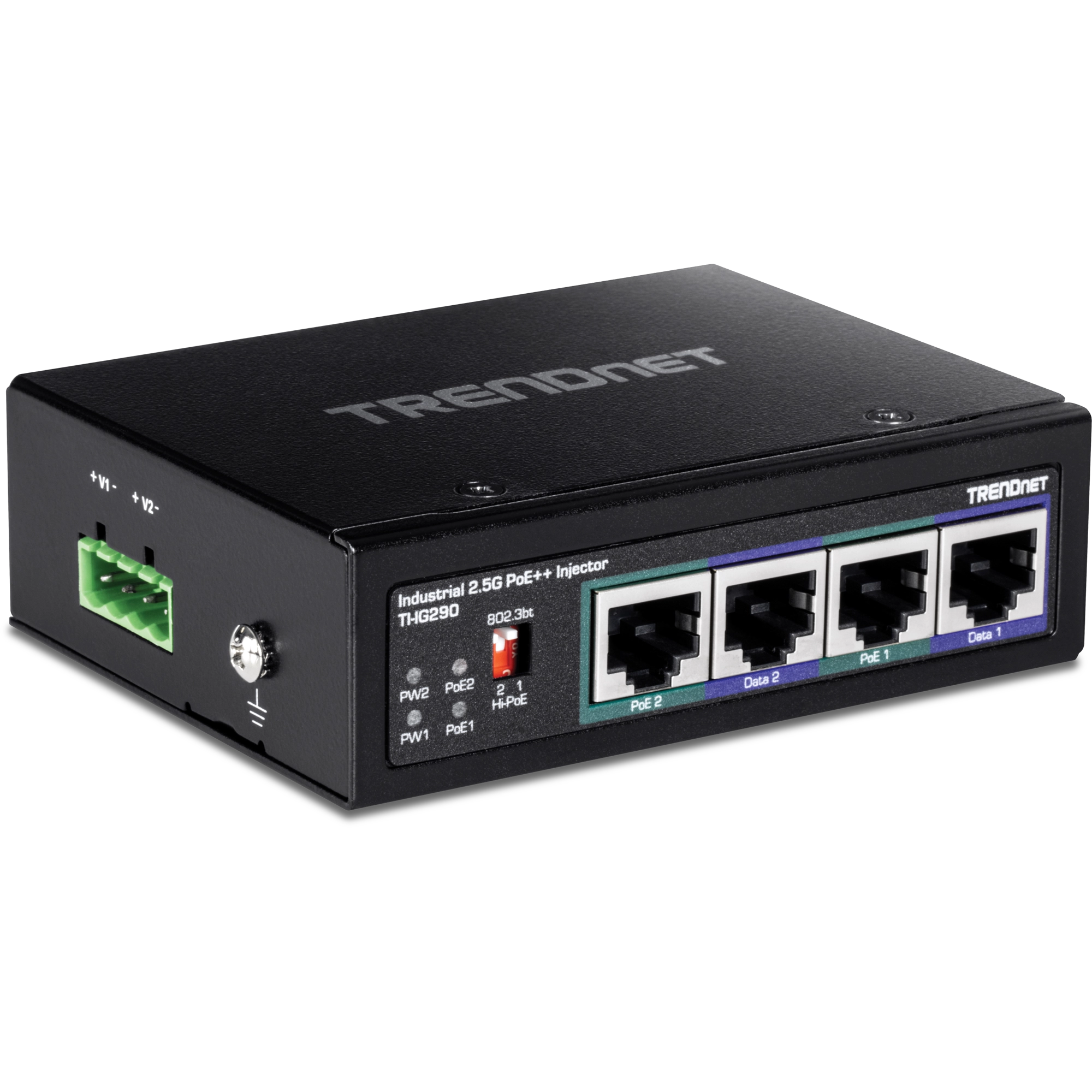

TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.

2-Port PoE
This multi-port 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W.

PORTAS 2.5G

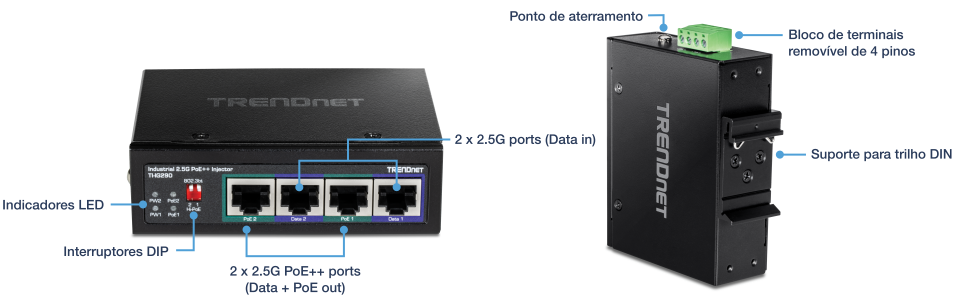

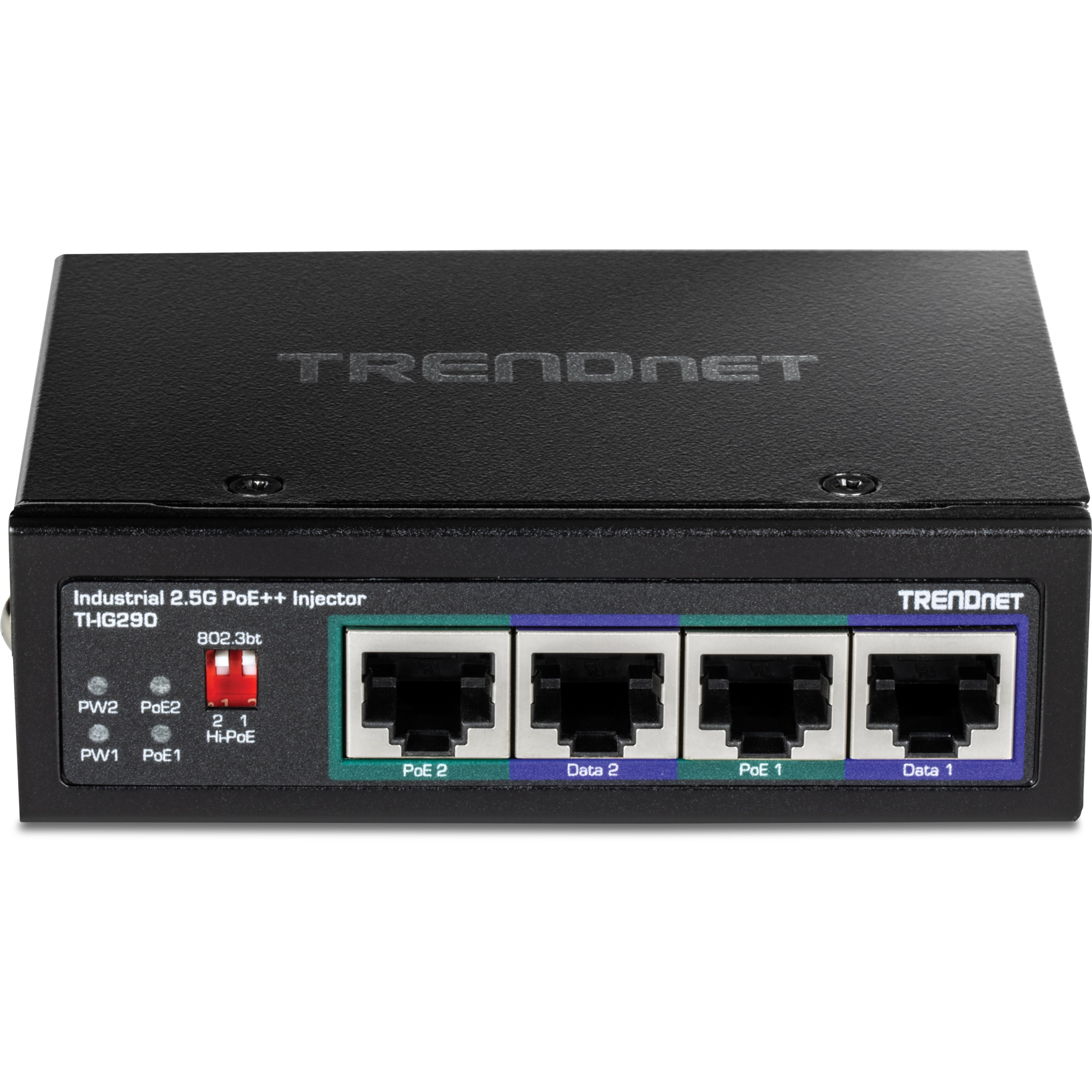

Features two high-speed 2.5G ports (data in) and two high-speed 2.5G PoE++ ports (data + PoE out).

Desenho industrial
IP30 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 75° C (-40° – 167° F).
Estándares | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3bz
|
Interface | - 2 x 2.5GBASE-T ports
- 2 x 2.5GBASE-T PoE++ ports
- Bloco de terminais removível de 4 pinos
- Indicadores LED
- Montagem em parede
- Ponto de aterramento
|
Intervalo de transferência de dados | - Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
- Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
- Gigabit Ethernet: 2000 Mbps (full-duplex)
- 2.5 Gigabit: 5000Mbps (full duplex)
|
Características especiais | - 90W 4-Pair PoE ports
- 2.5Gbps speed
- Hardened components rated for extreme temperatures
- Entradas de energia redundantes e duplas
- Auto-negociação
|
Alimentação | - Input: 52 – 56 V DC
- Compatible power supply: TI-S24052, TI-S24048 (sold separately)
- Máx. Consumo: 186W (carga total de PoE)
- Máx. Consumo: 1W (sem carga PoE)
|
PoE | - PoE budget: 180W
- Pin 3,6 para energia + e pinos 1,2 para energia- (modo A)
- Pin 4,5 for power+ and pin 7,8 for power-
|

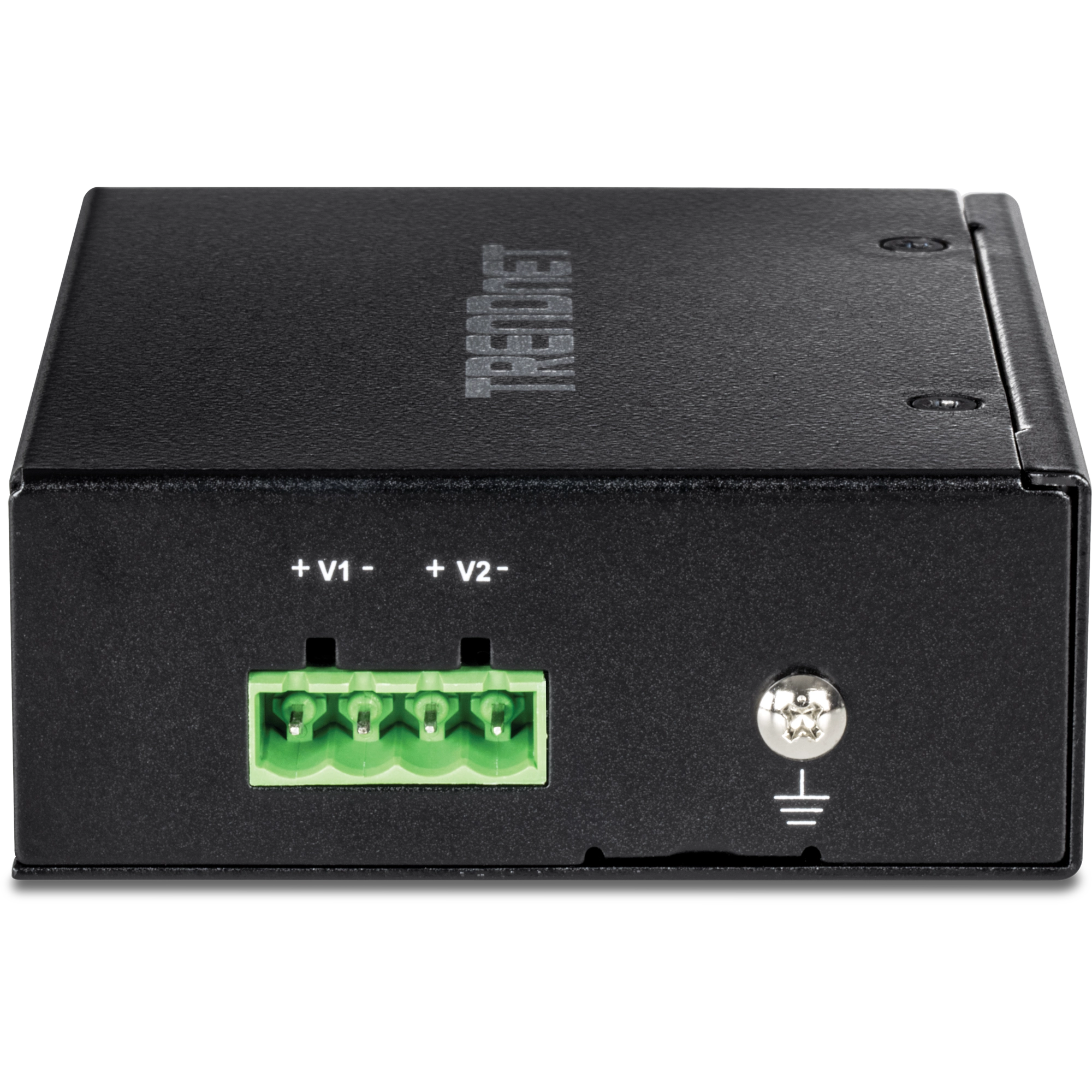

Bloco terminal | - Entradas de energia redundantes, 4 pinos
- Faixa do fio: 0,34 mm^2 a 2,5 mm^2
- Fio sólido (AWG): 12-24/14-22
- Fio trançado (AWG): 12-24/14-22
- Torque: 5 lb. – Pol / 0,5Nm / 0,56 Nm
- Comprimento do fio nu: 7 – 8mm
|
MTBF | |
Invólucro | - Estrutura de metal IP30

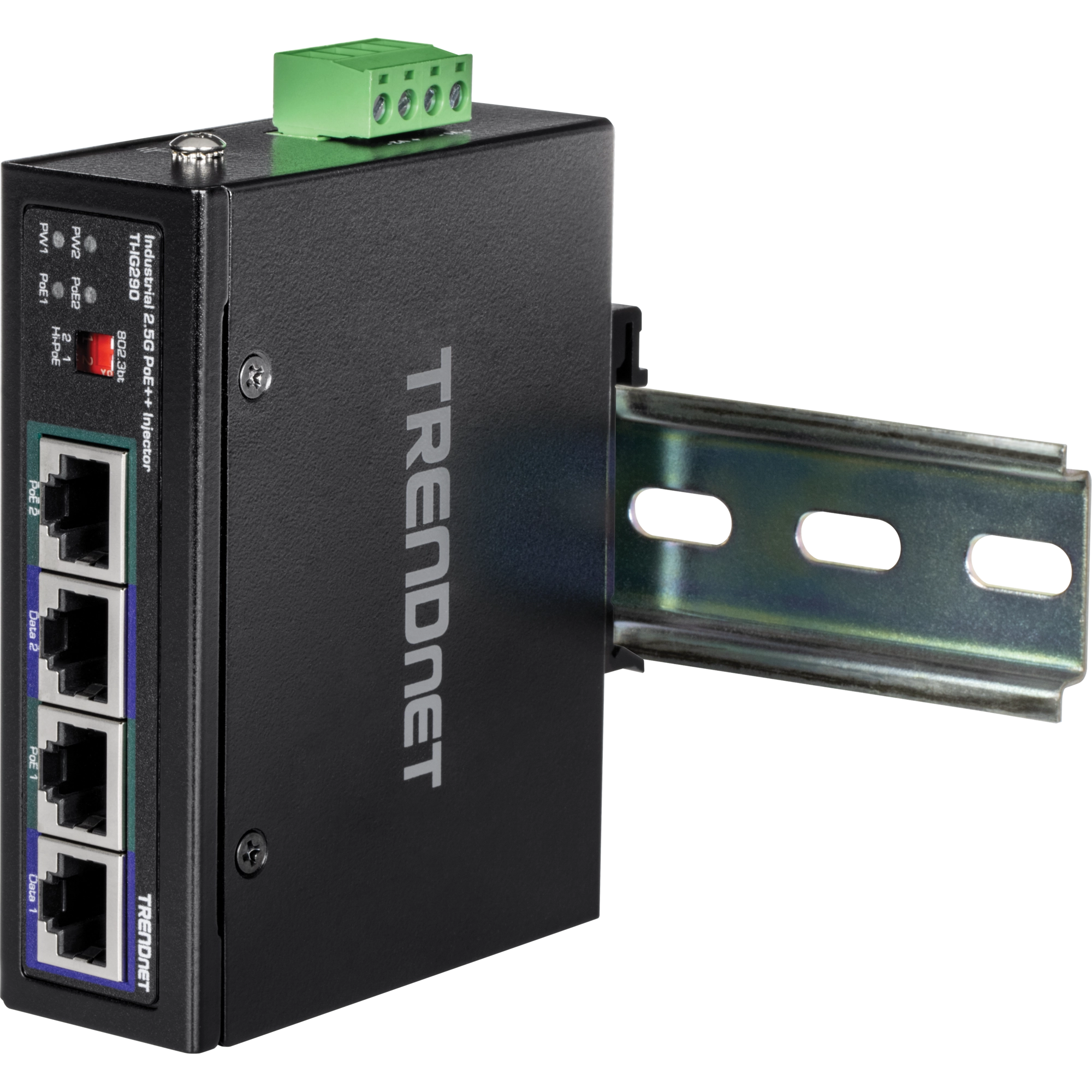

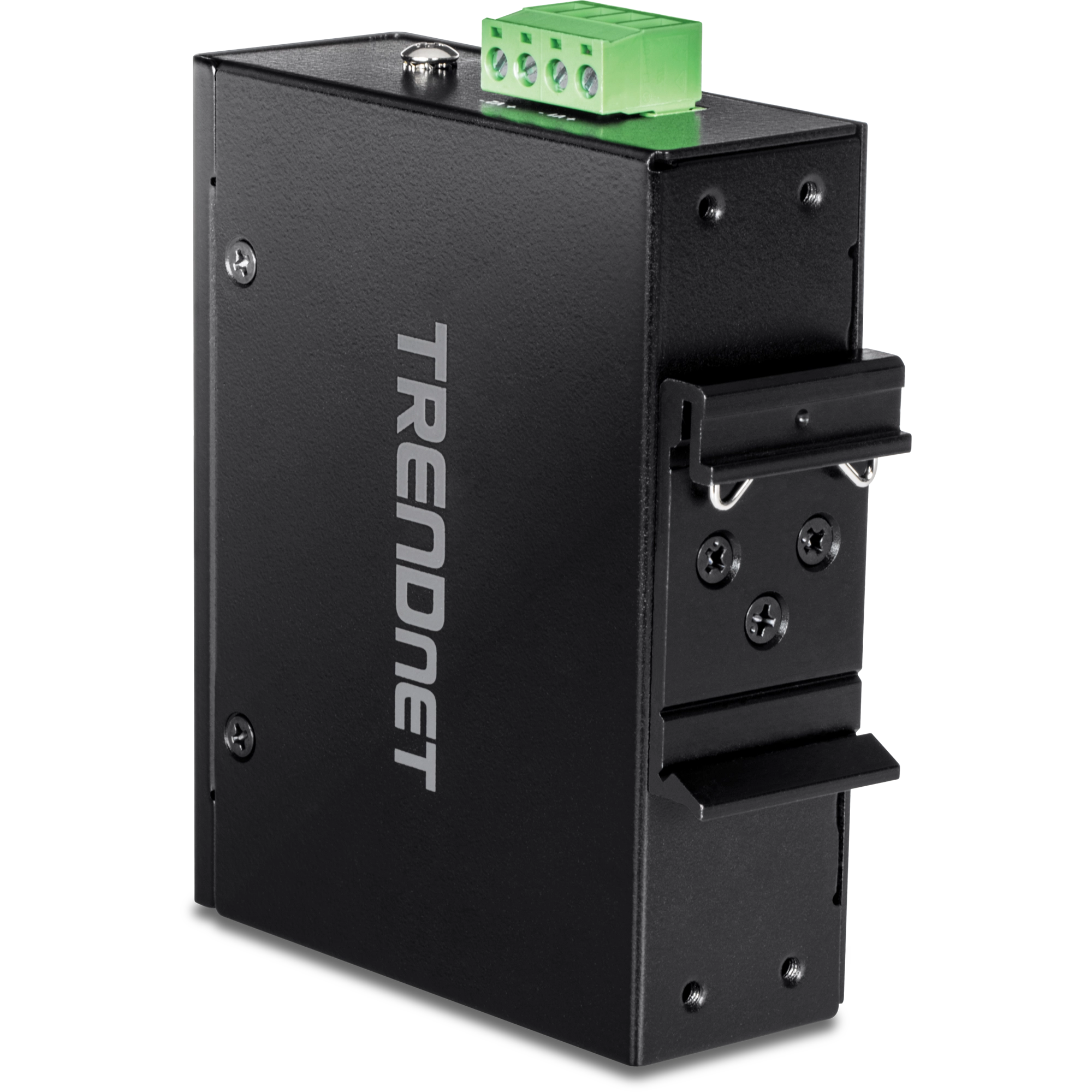

- Suporte para trilho DIN
- Montagem em parede
- Ponto de aterramento
- Contact 6KV/Air 8 KV ESD protection
- 2 KV surge protection
|
Temperatura de operação | - - 40° – 75° C (-40 – 167° F)
|
Umidade de operação | |
Dimensions (L x W x H) | - 103 x 81 x 30mm (4 x 3.2 x 1.2 in.)
|
Peso | |
Certificações | - CE
- FCC
- IEC EN60950-1
- Choque (IEC 60068-2-27)
- Queda livre (IEC 60068-2-32)
- Vibração (IEC 60068-2-6)
|
Garantia | |

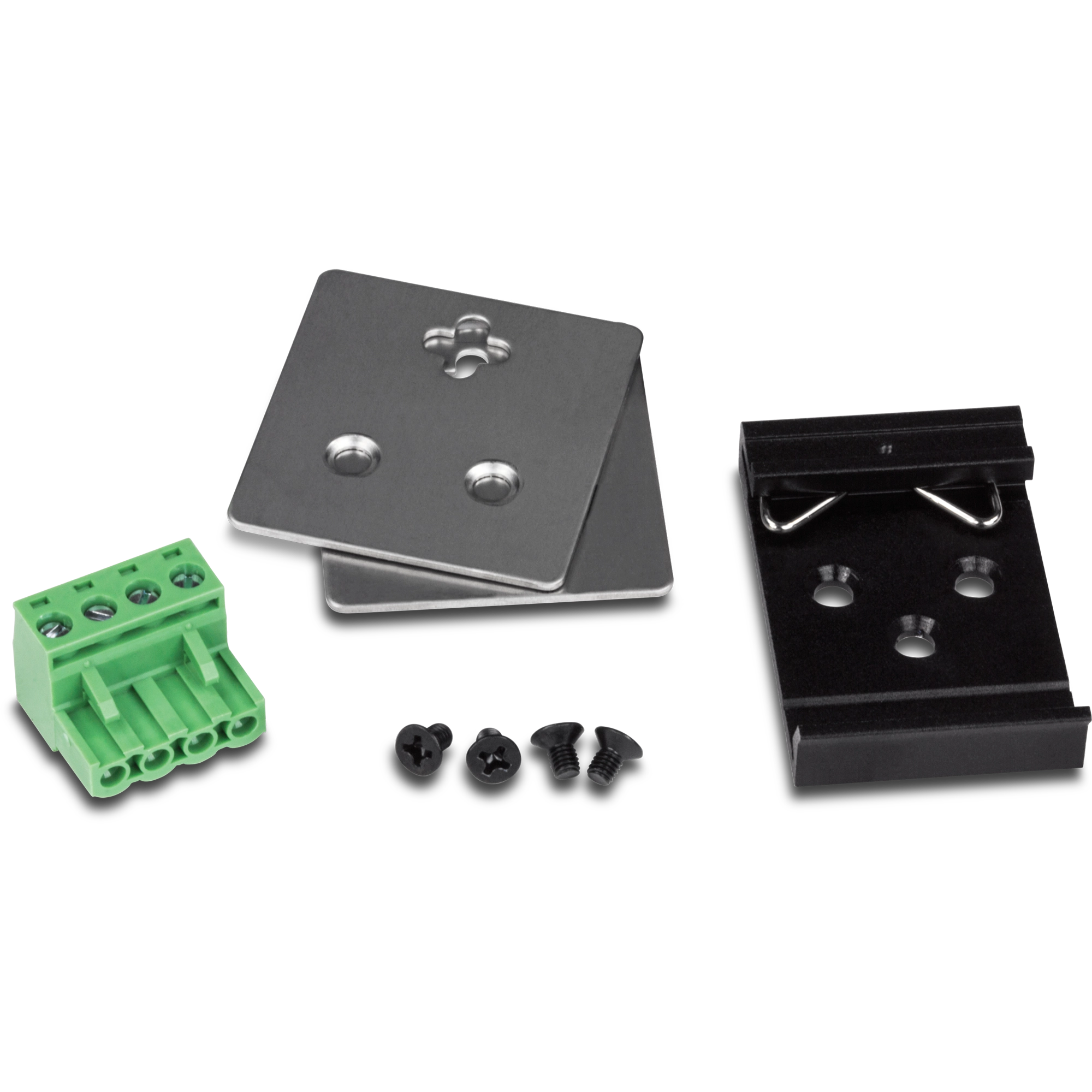

CONTEúDO DA EMBALAGEM |
- TI-IG290
- Guia de Instalação Rápido
- Bloco de terminais removível
- Suporte de montagem em trilho DIN
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
