TRENDnet’s 7-Port Multi-Gig PoE+ Switch, model TPE-TG327, is an affordable 2.5G PoE+ switch that provides advanced high-bandwidth performance, ease of use, and reliability. The TPE-TG327 multi-gig switch offers two dedicated 2.5G PoE+ ports and five dedicated 1G PoE+ ports for high-speed network connections with a 20Gbps switching capacity. Having a sturdy compact metal housing and fanless design, the multi-gig PoE+ switch is a cost-effective solution for high-speed network connections. A 70W total PoE power budget on this affordable multi-gig PoE+ switch supplies up to seven PoE+ devices with up to 30W per port.
![](/images/products/keypoints/TPE-TG327/2_5.png)
PORTAS 2.5G
Equipped with two 2.5GBASE-T RJ-45 PoE+ ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
![](/images/products/keypoints/TPE-TG327/fanless.png)
Sem ventoinha
Convenient fanless design lowers power consumption and energy costs, and eliminates distracting operating noise.
![](/images/products/keypoints/TPE-TG327/mountable.png)
Parede montável
Well-suited for desktop installations, but also features a convenient wall-mountable design for greater installation flexibility.
Estándares | - IEEE 802.3x
- IEEE 802.3z
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bz
|

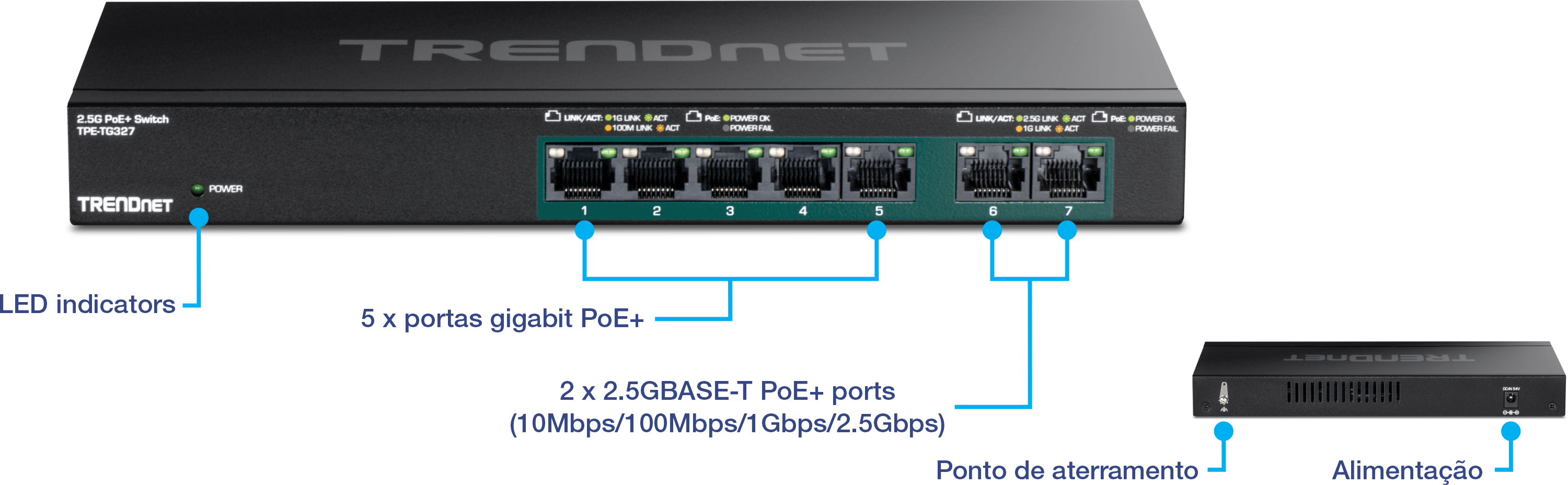

Interface do dispositivo | - 5 x portas gigabit PoE+
- 2 x 2.5GBASE-T PoE+ ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
- LED indicators
|
Taxa de transferência de dados | - Gigabit Ethernet: 2000 Mbps (full-duplex)
- 2.5 Gigabit: 5Gbps (full duplex)
|
Desempenho | - Data RAM Buffer: 384KB
- Switch Capacity: 20Gbps
- Tabela de Endereços MAC: Entradas de 2K
- Taxa de Encaminhamento: 14.88Mpps (pacotes de 64-byte)
- Jumbo Frames: 15 KB
|
Características especiais | - Parede montável
- Sem ventoinha
|
Alimentação | - Entrada: 100 a 240V AC, 50/60 Hz
- Output: 55V/1.67A
- Max. consumption: 8W (no PD)
|
PoE | - PoE budget: 70W
- PoE Modo A: Pinos 1, 2, 3 e 6 para alimentação
- Proteção Sobrecorrente
- Proteção contra corto circuito
|
MTBF | |
Temperatura operacional | - 0° – 50° C (32° – 122° F)
|
Umidade de operação | |
Dimensões | - 286 x 102 x 27mm (11,3 x 4 x 1 pol.)
|
Peso | |
Certificações | |
Garantia | |
CONTEúDO DA EMBALAGEM |
- TPE-TG327
- Guia de Instalação Rápido
- Power brick (55V, 1.67A)
- Power cord (1.8m /6 ft.)
|
Todas as referências à velocidade são apenas para fins comparativos. As especificações, tamanho e formato do produto estão sujeitos a alterações sem aviso prévio, e a aparência real do produto pode ser diferente da descrita aqui.
