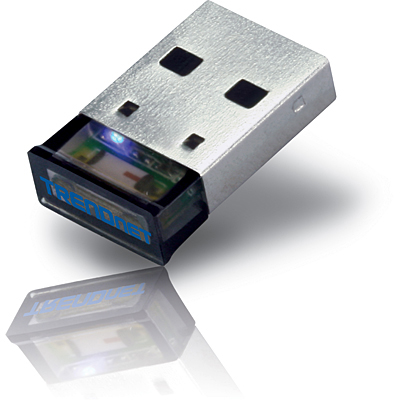

Micro Bluetooth® USB Adapter
TBW-107UB (Version 1.0R)

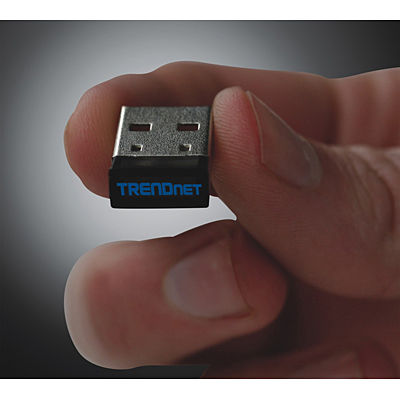

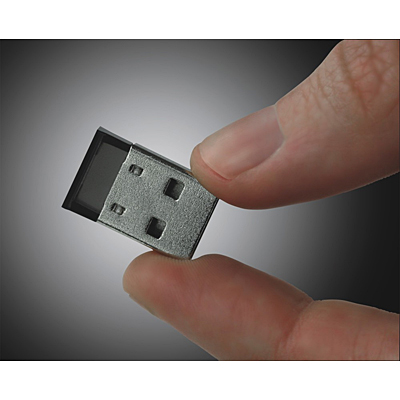

  • This micro-device is slightly larger than a penny
  • Turn your laptop or desktop computer into a Bluetooth enabled workstation
  • Connect Bluetooth enabled devices such as cell phones and headsets
  • Experience crystal clear sound quality for distances of up to 10m (32.8ft)


 DISCONTINUED PRODUCT
The TBW-107UB (Version 1.0R) has been discontinued.  It has been replaced by the TBW-107UB (Version v2.0R). For a list of discontinued products, click here.

The Micro Bluetooth® USB Adapter (Model TBW-107UB) networks Bluetooth enabled devices such as cell phones, keyboards, and headsets. Slightly larger than the size of a penny, simply plug this micro-device into an available USB port on your laptop or desktop and experience exceptional Bluetooth® connectivity.

Connect as many as 7 Bluetooth® devices at distances of up to 10m (32.8ft). Enhanced Data Rate (EDR) technology transfers your data quickly. Adaptive Frequency Hopping (AFH) minimizes interference from other wireless devices and advanced wireless encryption protects your network.

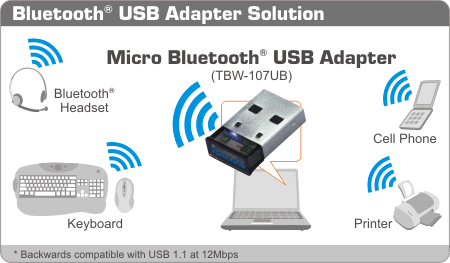

  • Connect Bluetooth-enabled devices such as printers, headsets, audio/video devices and mobile phones
  • Compliant with Class II Bluetooth V2.1+ compliant
  • Enhanced Data Rate (EDR) support
  • Bluetooth IVT software technology
  • Adaptive Frequency Hopping (AFH) support
  • Enhanced SCO (eSCO) for crisp and clear voice quality
  • Compatible with Windows 7/Vista/XP/2000
  • Communicates wirelessly up to 10 meters (32.8ft.) (depends on environment)
  • Trouble free Plug & Play installation
  • 2-year limited warranty
  • Hardware
  • Standards
  • Class II Bluetooth v2.1+ with EDR, SB 2.0
  • Backwards compatible with Bluetooth v1.1, v1.2, v2.0 and USB 1.1
  • Antenna
  • Internal
  • Supported OS
  • Windows 8, 7, Vista, XP, 2000
  • Mac: 10.7-10.8
  • Operating Voltage
  • 5V (USB bus-powered)
  • Power Consumption
  • Typical: 95mA; idle: 12mA
  • Tx max: 136mA @19dBm; Rx max: 45mA
  • LED Indicator
  • Single LED activity/connection
  • Dimensions
  • 19 x 12 x 5.5 mm (0.75 x 0.47 x 0.22 in.)
  • Weight
  • 1.8 g (0.063 oz.)
  • Temperature
  • Operation: 0°~ 40°C (32°F~104°F)
  • Storage: -10°~ 65°C (14°F~149°F)
  • Humidity
  • 5%~95% (no condensation)
  • Certifications
  • CE, FCC
  • Bluetooth
  • Frequency
  • 2.4 ~ 2.483 GHz
  • Modulation
  • GFSK (Gaussian Frequency Shift Keying), π/4 DQPSK, 8DPSK
  • Profile Support
  • DUN (Dial-up Networking)
  • FAX Profile, BPP ( Basic Printing Profile)
  • LAP (LAN Access Profile)
  • SPP (Serial Port Profile)
  • GAP (Generic Access Profile)
  • HID (Human Interface Device)
  • HCRP (Hardcopy Cable Replacement Profile)
  • FTP (File Transfer Profile)
  • OPP (Object Push Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • GAVDP (Generic Audio/Video Distribution Profile)
  • HSP (Headset Profile)
  • PAN (Personal Area Networking)
  • BIP (Basic Image Profile)
  • SYNC (Synchronization Profile)
  • AV (Audio Video)
  • GOEP (Generic Object Exchange Profile)
  • RF Output Power
  • -6~4dBm (typical)
  • Encryption
  • 128 bit data encryption
  • Receiving Sensitivity
  • - 82dBm ( typical)
  • Data Rate
  • Up to 3Mbps (typical)
  • Date Range
  • Up to 10m (32.8 ft.)


Conteúdo da Embalagem

  • TBW-107UB
  • Multi-Language Quick Installation Guide
  • CD-ROM
    (Driver and Utility)
