Step 1 Open the utility by right clicking on the icon at the bottom right hand side of the screen and click on "Open".

Step 2 Click on the Site Survey link then "Add To Profile".

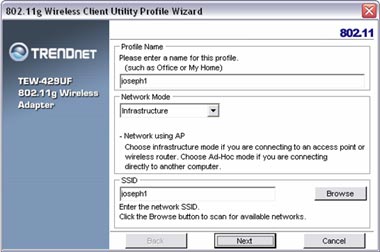

Step 3 Name your profile and click "Next".

Step 4 For WEP the Security Mode is set to "WEP". Click Configure.

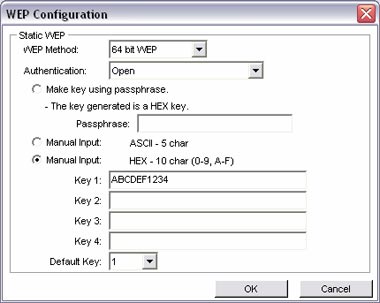

Step 5 Input your encryption settings and key, click OK then Next.

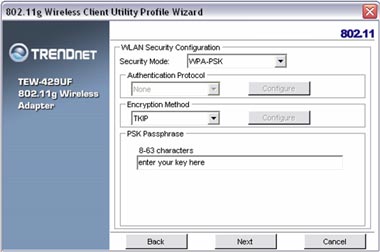

For WPA encryption the Security Mode is set to WPA-PSK, enter your key into the PSK Passphrase field. Click Next.

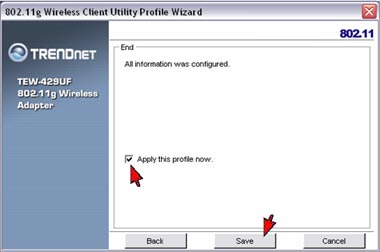

Step 6 Make sure Apply this profile now is selected then click Save.

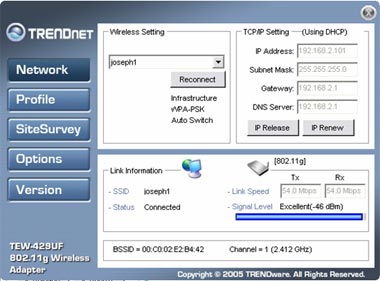

If you did not have encryption enabled it will Switch over to the Network tab. If the connection was successful you will receive signal level for Signal Strength.
