Standards | - IEEE 802.3ab (1000Base-T)
- IEEE 802.3z (1000Base-SX)
- IEEE 802.3x
|

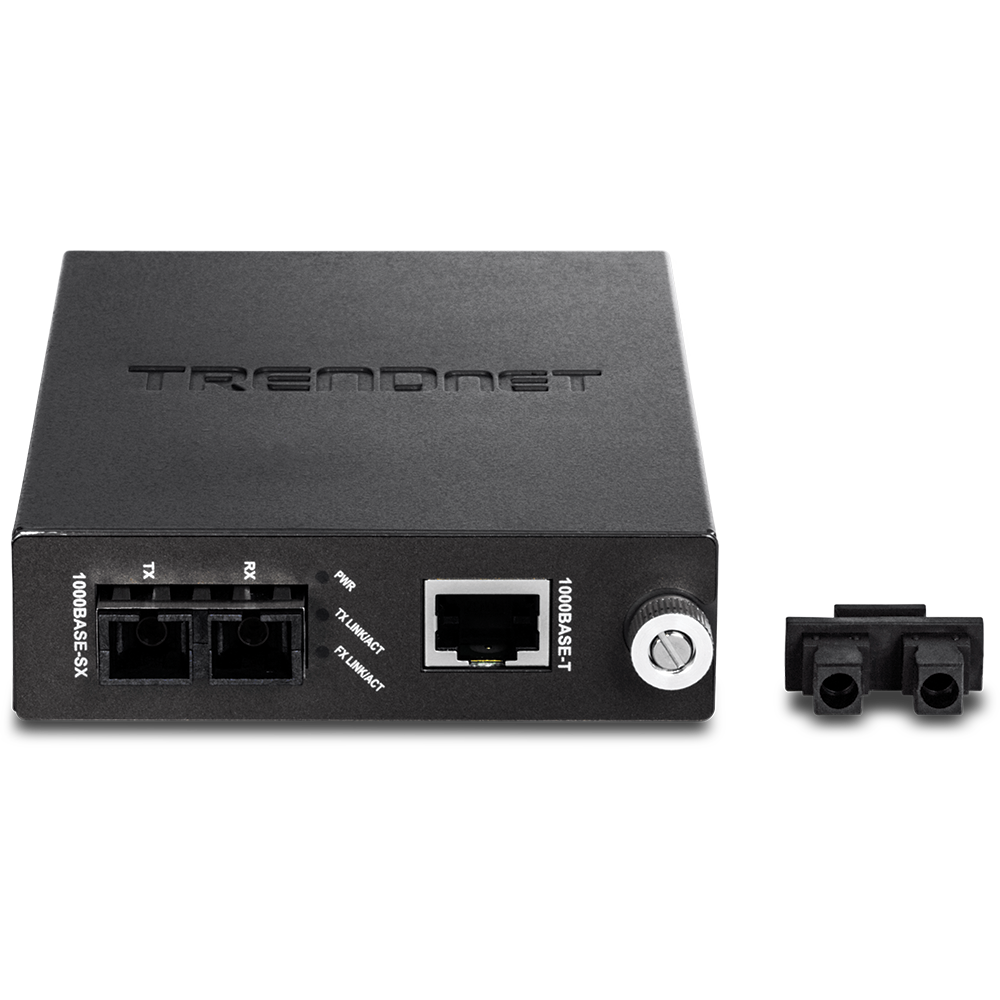

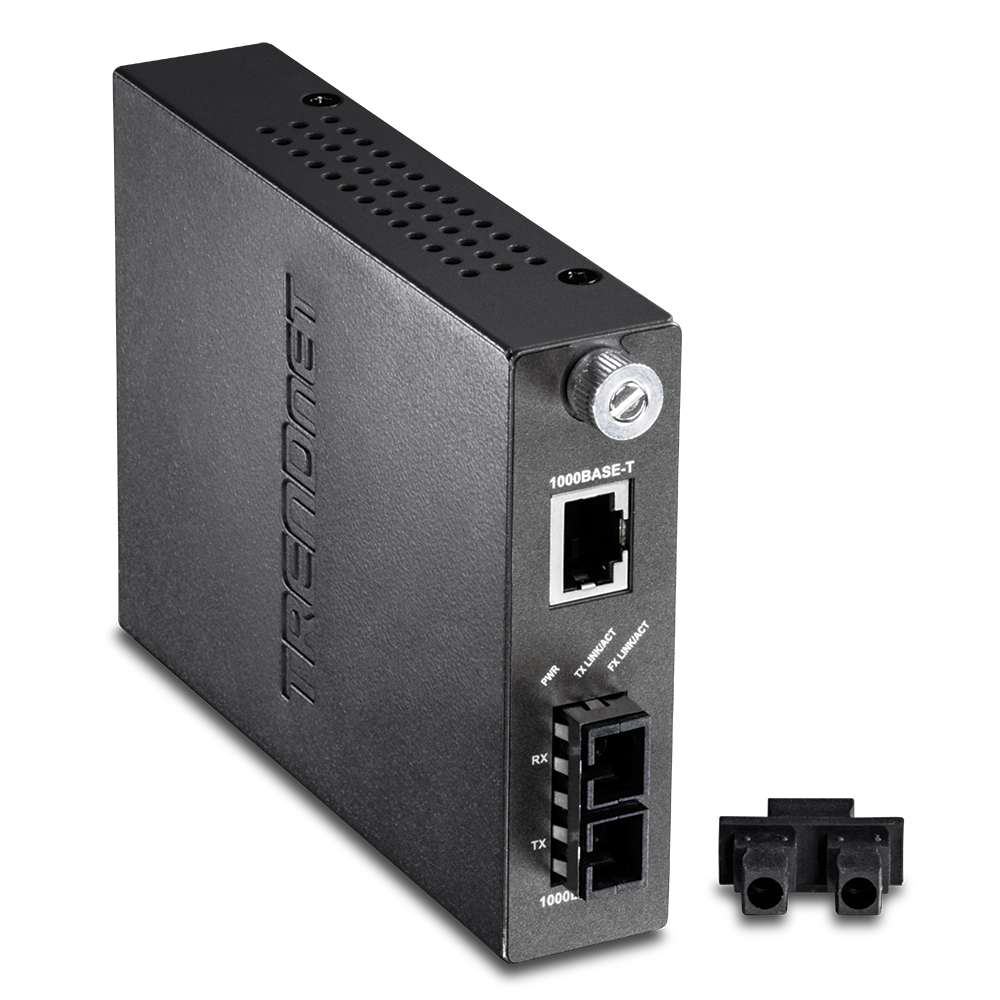

Device Interface | - 1 x Gigabit port
- 1 x SC type fiber port
- LED indicators
|
Network Media | - 1000Base-TX: Cat.5e, 6 EIA/TIA-568 100-ohm STP, up to 100 m
- 1000Based-SX: 50/125μm multi-mode SC-Type fiber optic, up to 550 m
|
Protocol | |
Dip Switch | - LLCF (enable & disable)
- Fiber (forced/auto-negation)
|
Data Transfer Rate | - Gigabit Ethernet: 2000 Mbps (full duplex)
|
Jumbo Frame | |
Wavelength | |
Optical Output Power | |
Optical Input Power | - Min. (Sensitivity): -18 dBm
- Max: 0 dBm
|
Power Budget | |
Power | - Input: 100–240 V 50/60 Hz 0.2 A
- Output: 5 V DC 1 A
- Consumption: 3.44 Watts (max.)
|
Special Features | - Support LLCF (Link Loss Carry Forward) and built-in LLR (Link Lose Return)
- Monitor and configure Ethernet or Fiber's duplex mode, LLCF, and receive link down information via management module TFC-1600MM and chassis TFC-1600
- Status LED indicators for Power and Link/Activity
- Wall mountable
- Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
|
Operating Temperature | |
Operating Humidity | |
Dimensions | - 120 x 88 x 25 mm. (4.7 x 3.46 x 0.98 in.)
|
Weight | |
Certifications | |
Warranty | |
PACKAGE CONTENTS |
- TFC-1000MSC
- Quick Installation Guide
- Power Adapter (5 V DC, 1 A)
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
