100Base-TX to 100Base-FX Single Mode SC Fiber Converter (15KM, 9.3Miles) (Certified Refurbished)

RB-TFC-110S15   (Version D3.4R)

   Select Another Version
  • SC type single-mode fiber port connects over distances of up to 15km (9.3 miles)
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Functions as a stand alone converter or with the TFC-1600 fiber chassis

Datasheet

Data Sheets (English)
Filename: EN_datasheet_TFC-110S15(d3.4R).pdf
Date: 2/20/2019
File Size: 713.88 KB
Download Email
Data Sheets (Français)
Filename: FR_datasheet_TFC-110S15(d3.4R).pdf
Date: 2/20/2019
File Size: 714.14 KB
Download Email
Data Sheets (Deutsch)
Filename: GE_datasheet_TFC-110S15(d3.4R).pdf
Date: 2/20/2019
File Size: 715.70 KB
Download Email
Data Sheets (Português)
Filename: PO_datasheet_TFC-110S15(d3.4R).pdf
Date: 2/20/2019
File Size: 714.00 KB
Download Email
Data Sheets (Español)
Filename: SP_datasheet_TFC-110S15(d3.4R).pdf
Date: 2/20/2019
File Size: 713.18 KB
Download Email
Data Sheets (Pусский)
Filename: RU_datasheet_TFC-110S15(d3.4R).pdf
Date: 2/20/2019
File Size: 723.24 KB
Download Email
Data Sheets (Italiano)
Filename: IT_datasheet_TFC-110S15(d3.4R).pdf
Date: 2/20/2019
File Size: 713.98 KB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: English_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 6.29 MB
Download
Quick Installation Guide (Français)
Filename: French_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 4.62 MB
Download
Quick Installation Guide (Deutsch)
Filename: German_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 3.01 MB
Download
Quick Installation Guide (Português)
Filename: Portuguese_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 2.83 MB
Download
Quick Installation Guide (Español)
Filename: Spanish_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 2.97 MB
Download
Quick Installation Guide (Pусский)
Filename: Russian_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 2.97 MB
Download
Quick Installation Guide (Italiano)
Filename: Italian_TFC-110_Series_Fiber_Converters_071321.pdf
Date: 9/1/2021
File Size: 2.88 MB
Download

Product Images

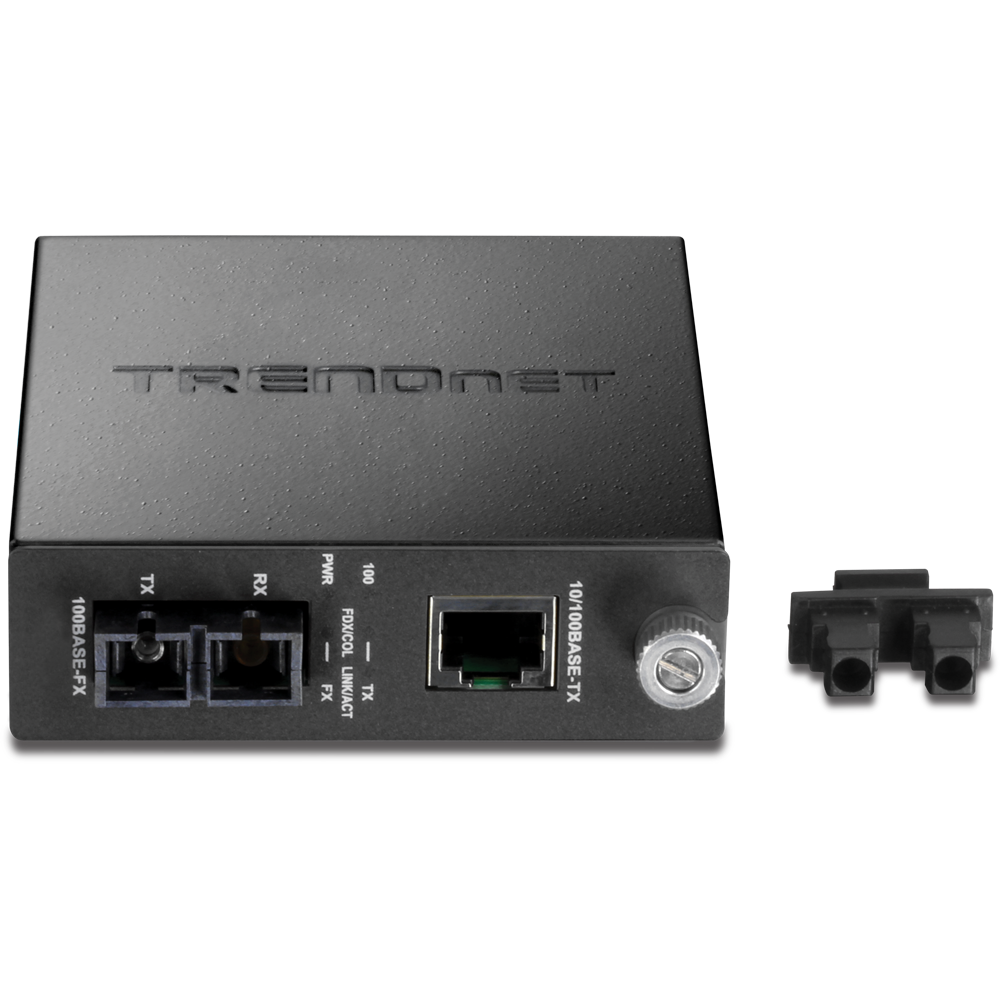

RB-TFC-110S15 Product Photo (PNG Image 1)
PNG Image
File Size: : 2.49 MB
Date: : 5/30/2017
Download

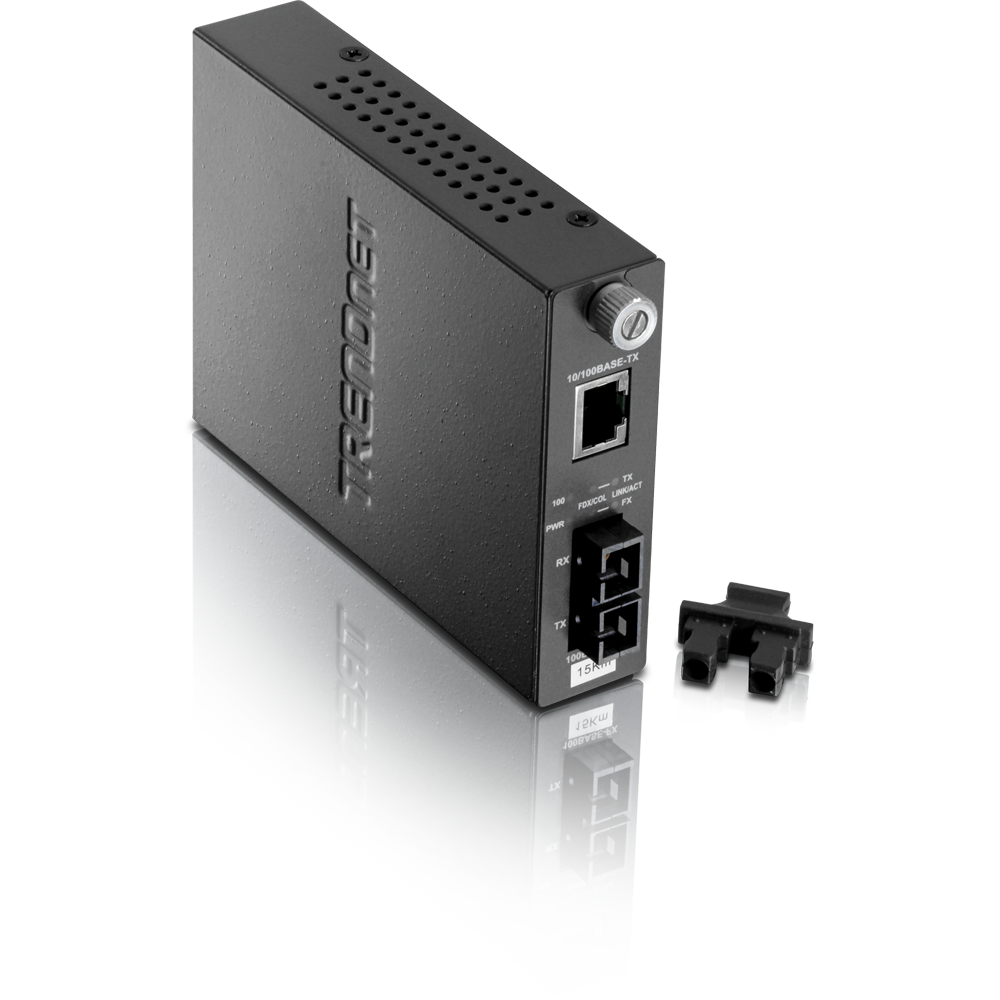

RB-TFC-110S15 Product Photo (PNG Image 2)
PNG Image
File Size: : 1.77 MB
Date: : 5/30/2017
Download
ROHS compliant Non-Disposable
Hardware
Standard
  • IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size
  • Standard Ethernet up to 1518bytes
Network Media
  • 100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UPT/STP, up to 100m
  • 100Base-FX: Single-mode fiber optic cable 9/125 µm or 10/125 µm, up to 15km
Protocol
  • CSMA/CD
Ports
  • 1 x 10/100Base-TX
  • 1 x 100Base-FX (SC-type)
Dip Switch
  • TX: duplex mode, auto negotiation or manual, speed, LLCF (enable/disable)
  • FX: duplex mode, LLR (enable/disable), LLCF
Transfer Rate
  • 100Mbps (half-duplex)
  • 200Mbps (full-duplex)
Diagnostic LEDs
  • Per Unit: power
  • Per Port: link/activity, full-duplex/collision, speed (on fiber port)
Power Adapter
  • 7.5V DC, 1A external power adapter
Power Consumption
  • 1.8 Watts (max)
Dimensions
  • 120 x 88 x 25mm (4.7 x 3.46 x 0.98 in.)
Weight
  • 354g (12.5oz)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certification
  • FCC,CE
Media
  • SMF
Wavelength
  • 1310nm
Pout (dBm)
  • -20 ~ 0
Sensitivity
  • -32 ~ 0
Power
  • 12
Distance
  • 15km

PACKAGE CONTENTS
  • TFC-110S15
  • Multi-Language Quick Installation Guide
  • Power Adapter (5V, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
