4-Port USB KVM Switch

TK-407K   (Version V3)

   Select Another Version
  • 4-Port KVM switch with VGA and USB connections to computers
  • Control four computers with one set of console controls
  • High quality 2048 x 1536 resolution
  • Device switching with auto scan and audible feedback
  • Supports most operating systems and advanced mouse designs
  • USB powered – No external power adapter required
  • All required cabling included
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

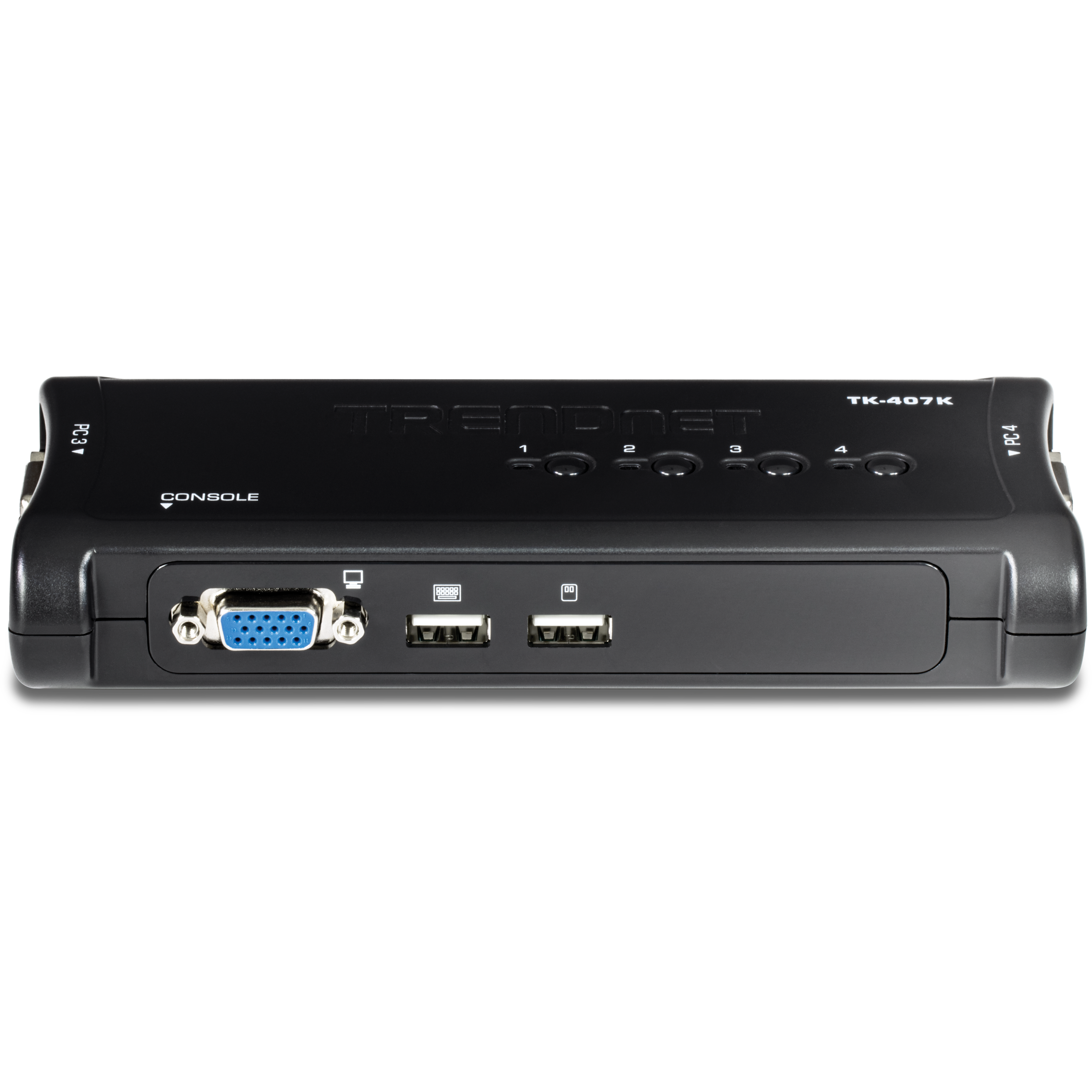

Console Port Connectors
  • 1 x VGA /SVGA HDB 15-pin (Female)
  • 2 x USB ports (Keyboard / Mouse)
  • 2 x 3.5mm microphone/speaker jacks
Computer Interface (up to 4)
  • 1 x USB 2.0 Type A
  • 1 x VGA/SVGA HDB 15-pin (female)

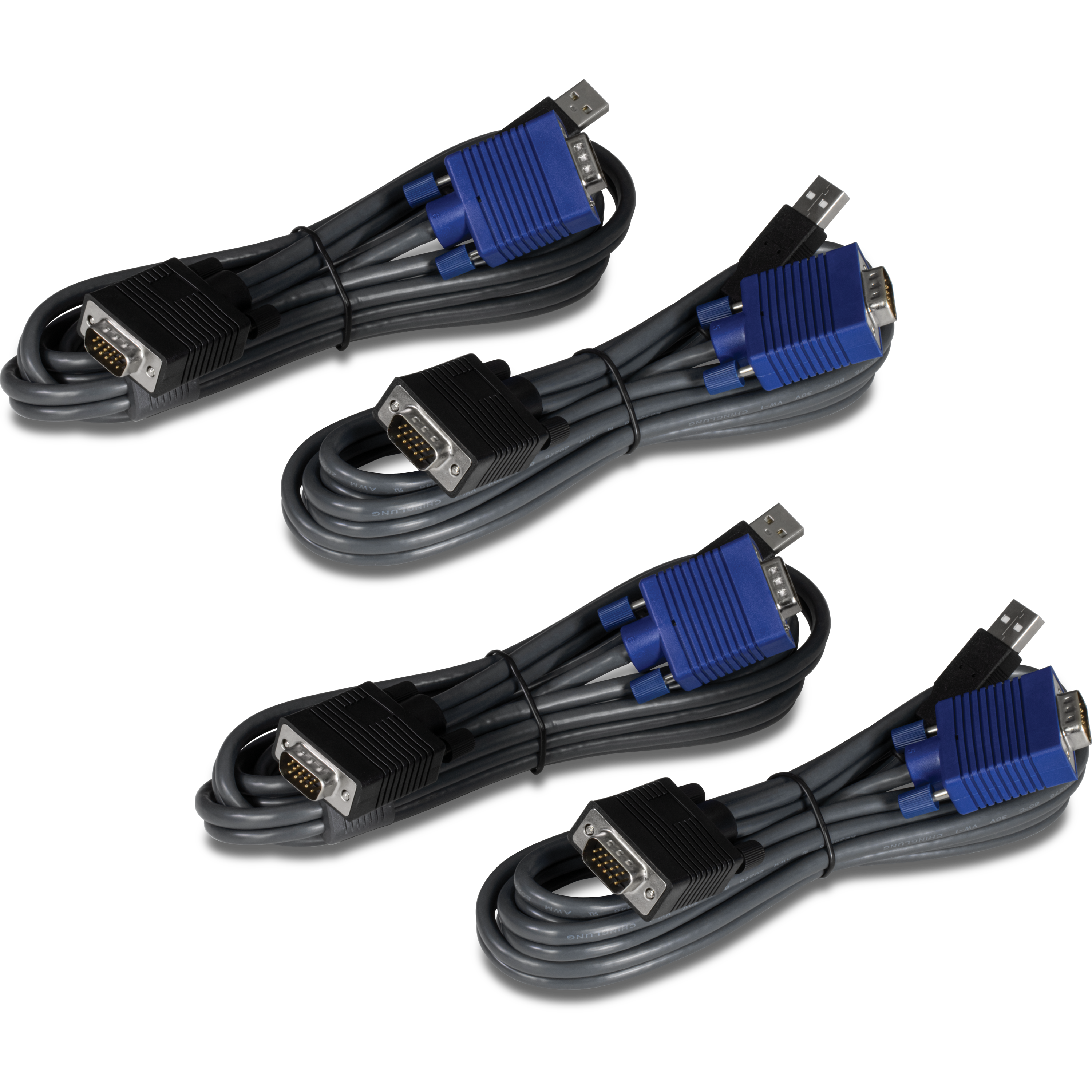

Cables (4 sets)
  • Length: 1.2m (4 ft.)
  • VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A
Monitor Resolution
  • 2048 x 1536 @ 60Hz
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
  • Max. consumption: 0.7W
Dimensions
  • 95 x 63 x 24mm (3.74 x 2.48 x 0.95 in.)
Weight
  • 96g (3.4 oz.)
Warranty
  • 2 year
Certifications
  • CE
  • FCC

PACKAGE CONTENTS
  • TK-409K
  • 4 x KVM cables (1.2m/4 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
