N300 Wireless Home Router
TEW-731BR (Version v1.0R)
- High performance 300Mbps wireless n router
- Stream video, download files, talk online and play games wirelessly
- Connect computers with one-touch Wi-Fi Protected Setup (WPS)
- Up to 50% energy savings with GREENnet technology
DISCONTINUED PRODUCT
The TEW-731BR (Version v1.0R) has been discontinued.
It has been replaced by the TEW-831DR (Version v1.0R).
For a list of discontinued products, click here. Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection. Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only |
Firmware Version: 1.03b01
Release Date: 6/2015
Note:
- Fixed UPnP miniigd security vulnerability issue.
Filename: FW_TEW-731BR_v1(1.03b01).zip
SHA-1 Checksum: 53563E50CCB9B5C6989615ADEA41E69F0EBCC78B
Date: 7/28/2017
File Size: 3.22 MB
Datasheet
Filename: EN_spec_TEW-731BR(V1.0R).pdf
Date: 10/29/2012
File Size: 648.21 KB
Filename: FR_spec_TEW-731BR(V1.0R).pdf
Date: 10/29/2012
File Size: 676.82 KB
Filename: GE_spec_TEW-731BR(V1.0R).pdf
Date: 10/29/2012
File Size: 680.11 KB
Filename: SP_spec_TEW-731BR(V1.0R).pdf
Date: 7/24/2013
File Size: 662.91 KB
Filename: RU_spec_TEW-731BR(V1.0R).pdf
Date: 2/6/2014
File Size: 1.01 MB
Filename: IT_spec_TEW-731BR(V1.0R).pdf
Date: 10/29/2012
File Size: 700.86 KB
Quick Installation Guide
Filename: EN_Web_TEW-731BR(1.01).pdf
Date: 10/29/2012
File Size: 1.72 MB
Filename: FR_Web_TEW-731BR(1.01).pdf
Date: 10/29/2012
File Size: 1.74 MB
Filename: GE_Web_TEW-731BR(1.01).pdf
Date: 10/29/2012
File Size: 1.28 MB
Filename: PO_Web_TEW-731BR(1.01).pdf
Date: 10/29/2012
File Size: 1.41 MB
Filename: SP_Web_TEW-731BR(1.01).pdf
Date: 10/29/2012
File Size: 1.29 MB
Filename: RU_Web_TEW-731BR(1.01).pdf
Date: 10/29/2012
File Size: 1.82 MB
Filename: EST_Web_TEW-731BR(1.01).pdf
Date: 10/29/2012
File Size: 1.70 MB
Filename: Latvian_QIG_TEW-731BR(V1.1).pdf
Date: 7/5/2013
File Size: 1.54 MB
User's Guide

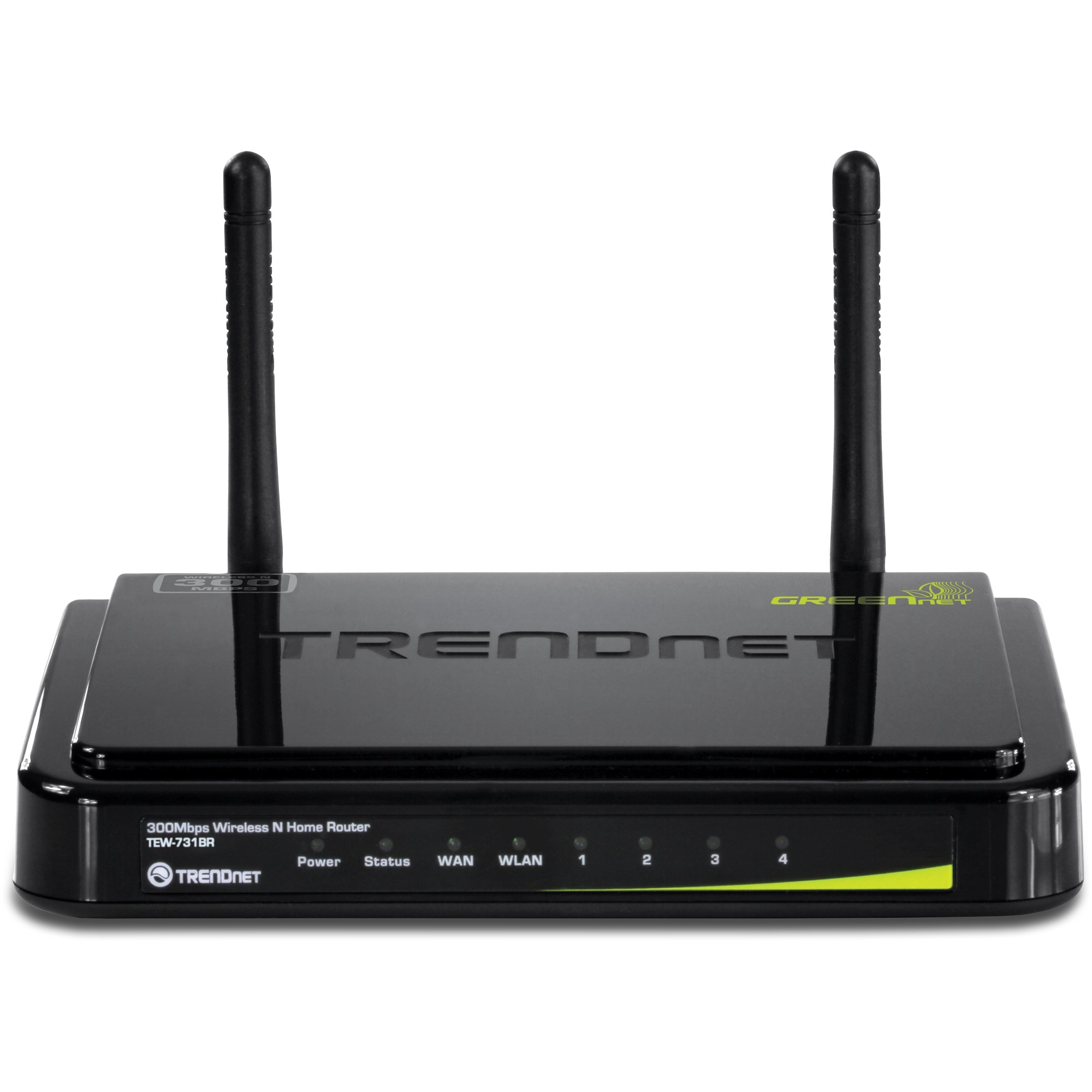

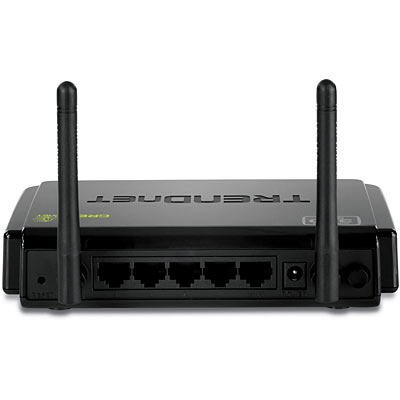

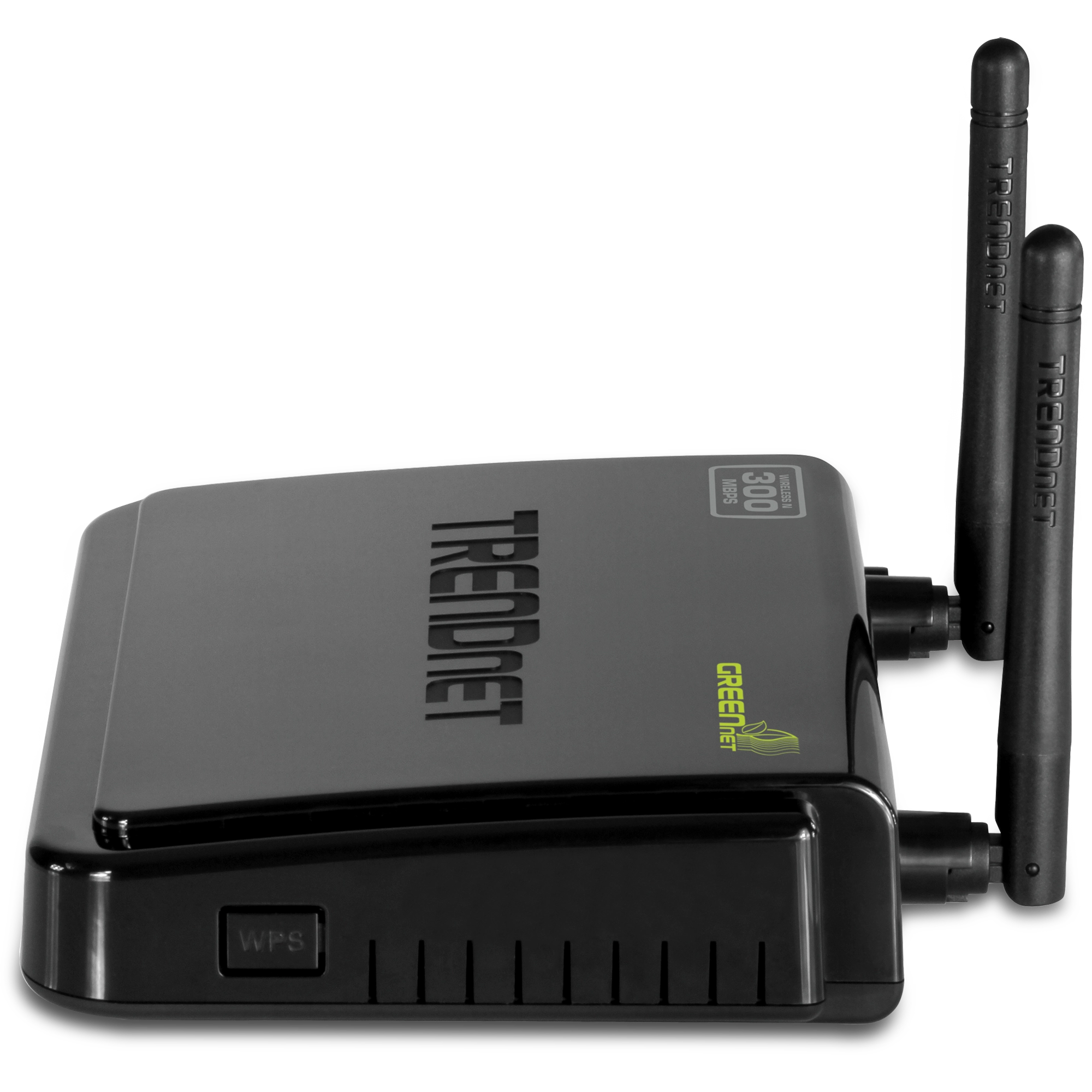

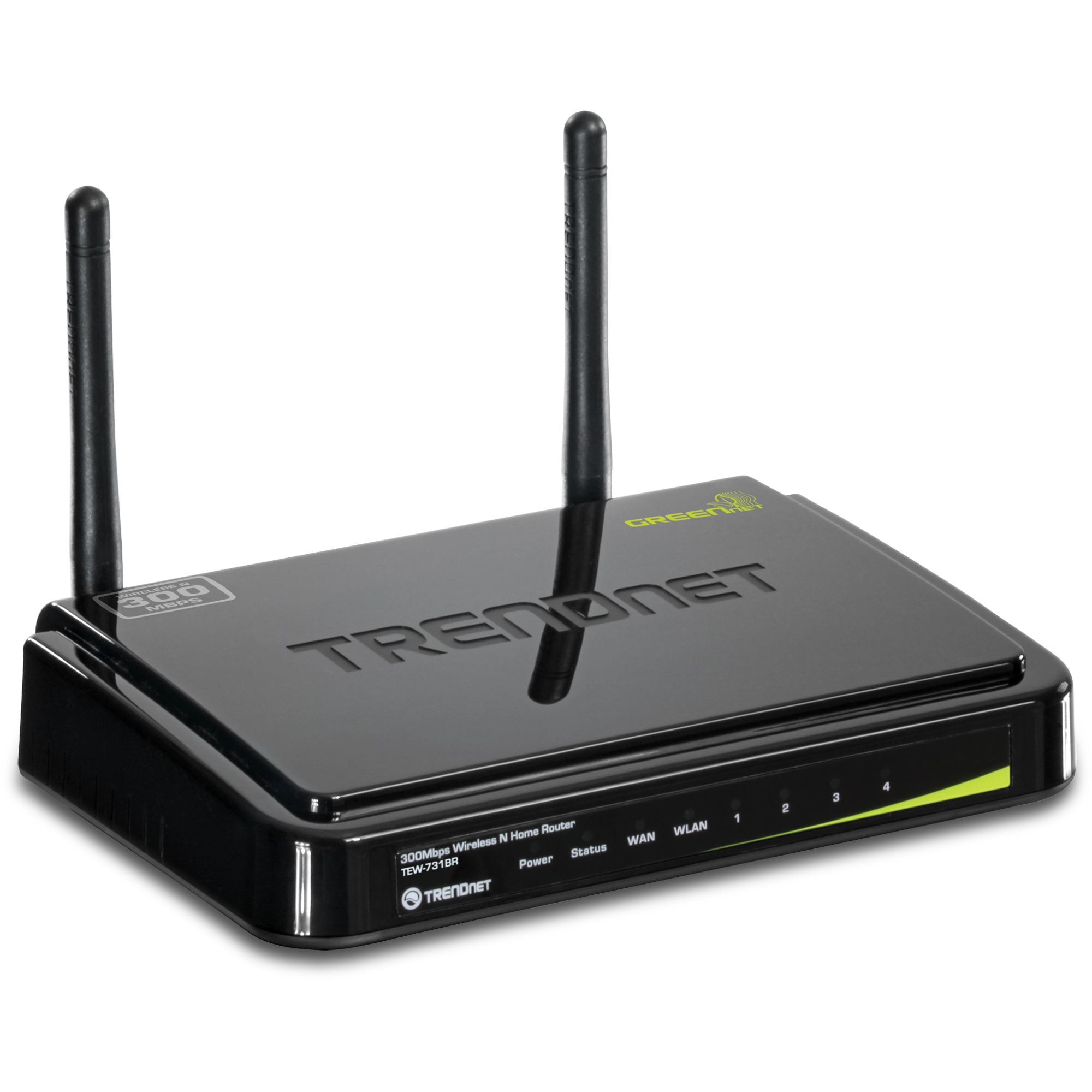

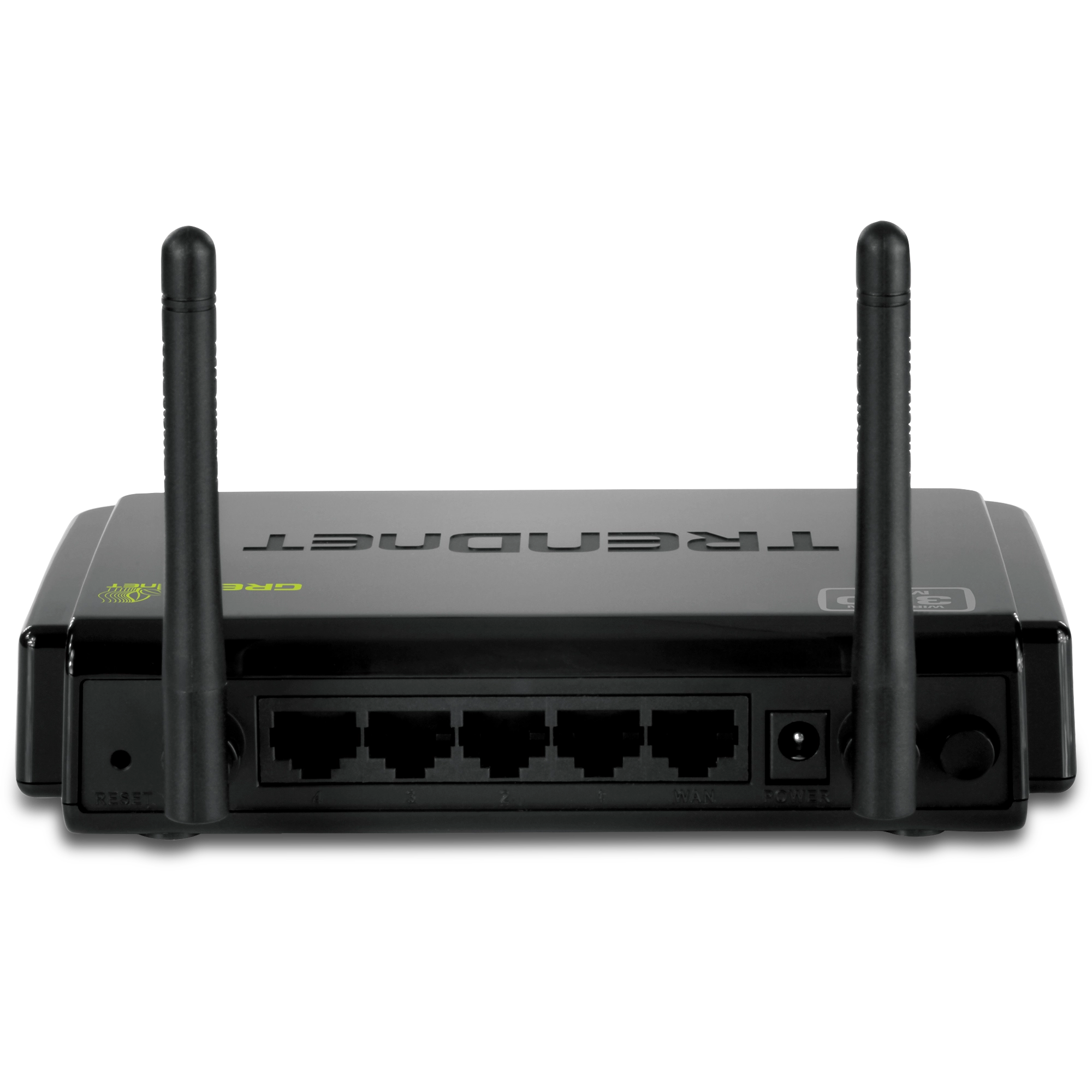

Product Images
Login to the TEW-731BR using a web browser by going to https://192.168.10.1.
For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the top of the router and on the device label located on the bottom.
Enter the Username and Password th...
Login to the TEW-731BR using a web browser by going to https://192.168.10.1.
For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the top of the router and on the device label located on the bottom.
Enter the Username and Password th...
Login to the TEW-731BR using a web browser by going to https://192.168.10.1.
For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the top of the router and on the device label located on the bottom.
Enter the Username and Password th...
The TEW-731BR is preconfigured with a unique password and wireless network settings. Locate the default settings on the sticker on the top of the router and on the device label located on the bottom.
...
Press and hold in the WPS/Reset button located on the back of the TEW-731BR for 10 seconds to restore factory default settings.
...
Log in to the TEW-731BR by enteringhttps://TEW-731BR or https://192.168.10.1 into the address line of your browser.
For added security, the router is preconfigured with a unique password. You can find the password on a sticker on the front of the router and on the label on the bottom of the route...
Connect a computer to one of the LAN ports on the TEW-731BR. Log in to it by entering https://TEW-731BR or https://192.168.10.1 into the address line of your browser.
The username is admin. For added security, the router is preconfigured with a unique password. You can find the password on a stic...
The following are some general wireless tips to help minimize the impact of interference within an environment.
Assign your network a unique SSID. Do not use anything that would be identifying like "Smith Family Network". Choose something that you would easily identify when searching for available...
Press and hold in the reset button on the back of the router for approximately 15 seconds while the power is on.
The default values are as follows.
IP Address: 192.168.10.1
Username: admin
Password: admin
SSID: TRENDnet711
Encryption: none
...
Login to the TEW-731BR by entering https://192.168.10.1 into the address line of your browser.
The default User Name and Password are both admin.
Click Access and then FirewallRule. The example shown forwards TCP port 80 to an IP camera at 192.168.10.150.
...
The default User Name and password are both admin.
Login to the TEW-731BR by entering https://192.168.10.1 into the address line of your browser.
The default User Name and password are both admin.
...
Login to the TEW-731BR by entering https://192.168.10.1 into the address line of your browser.
The default User Name and Password are both admin.
Click Wireless and then Basic. You can define the wireless network parameters here.
...
Login to the TEW-731BR by entering https://192.168.10.1 into the address line of your browser.
The default User Name and Password are both admin.
Click on Wireless and then Security. Select the highest form of security supported by your wireless computers and network appliances. Note: Fo...
| Hardware | |
| Standards |
|
| WAN |
|
| LAN |
|
| WPS Button |
|
| Power Switch |
|
| Connection Type |
|
| Supported Web Browsers |
|
| Internet Access Control |
|
| Management/ Monitoring |
|
| Routing |
|
| LED Indicators |
|
| Power |
|
| Power Consumption |
|
| Dimension (L x W x H) |
|
| Weight |
|
| Temperature |
|
| Humidity |
|
| Certifications |
|
| Wireless | |
| Frequency |
|
| Antenna |
|
| Modulation |
|
| Media Access Protocol |
|
| Data Rate |
|
| Security |
|
| Output Power |
|
| Receiving Sensitivity |
|
| Channels |
|
| PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
