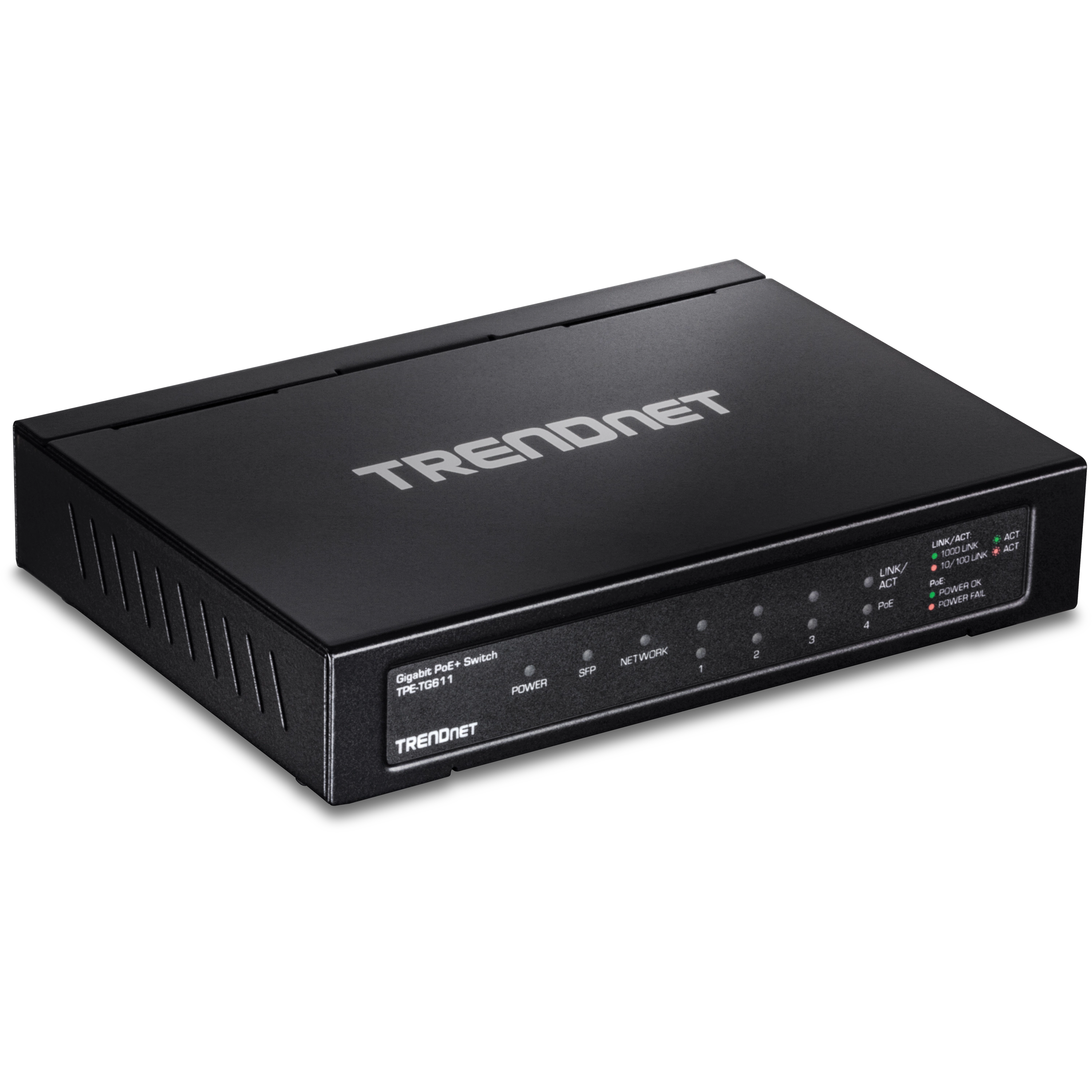

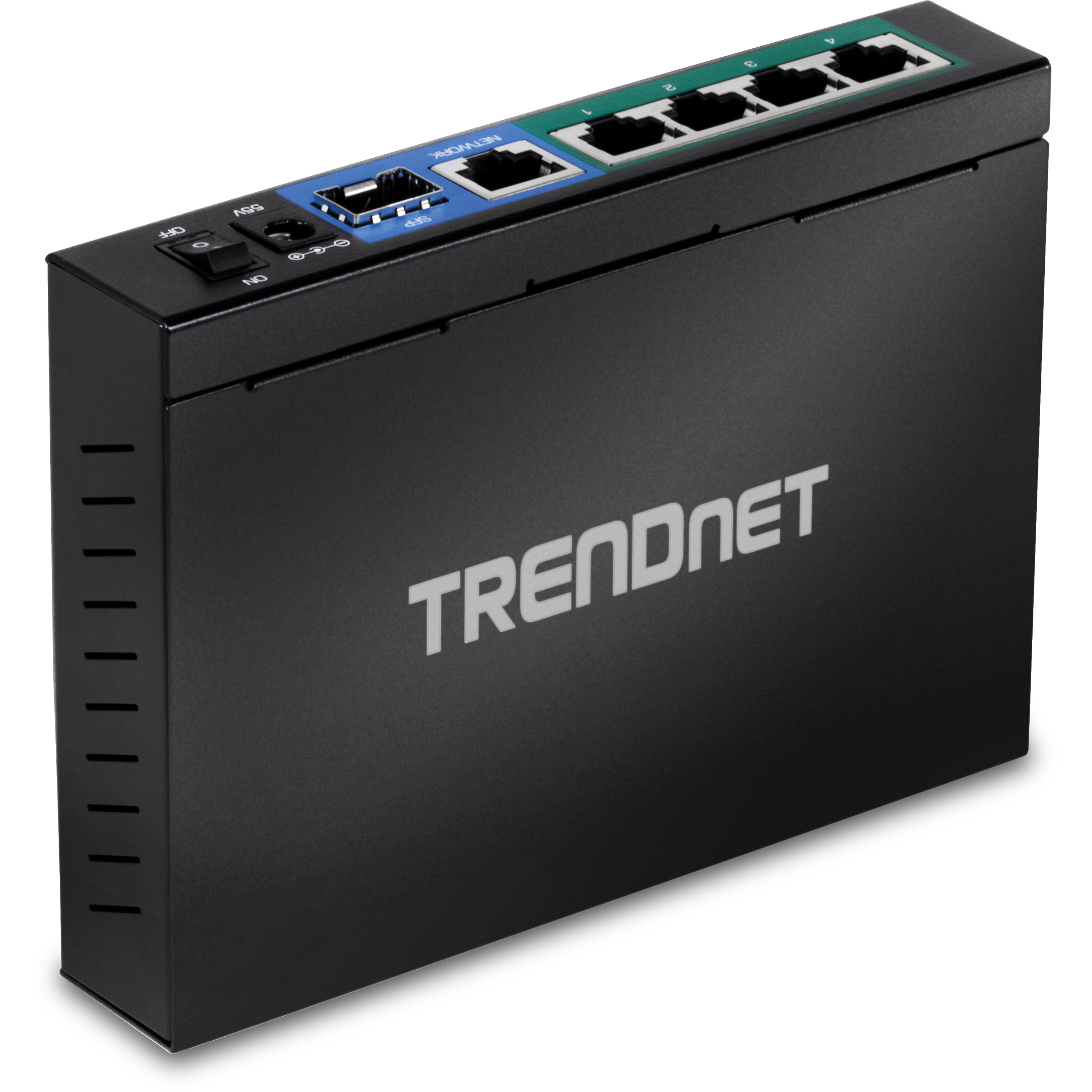

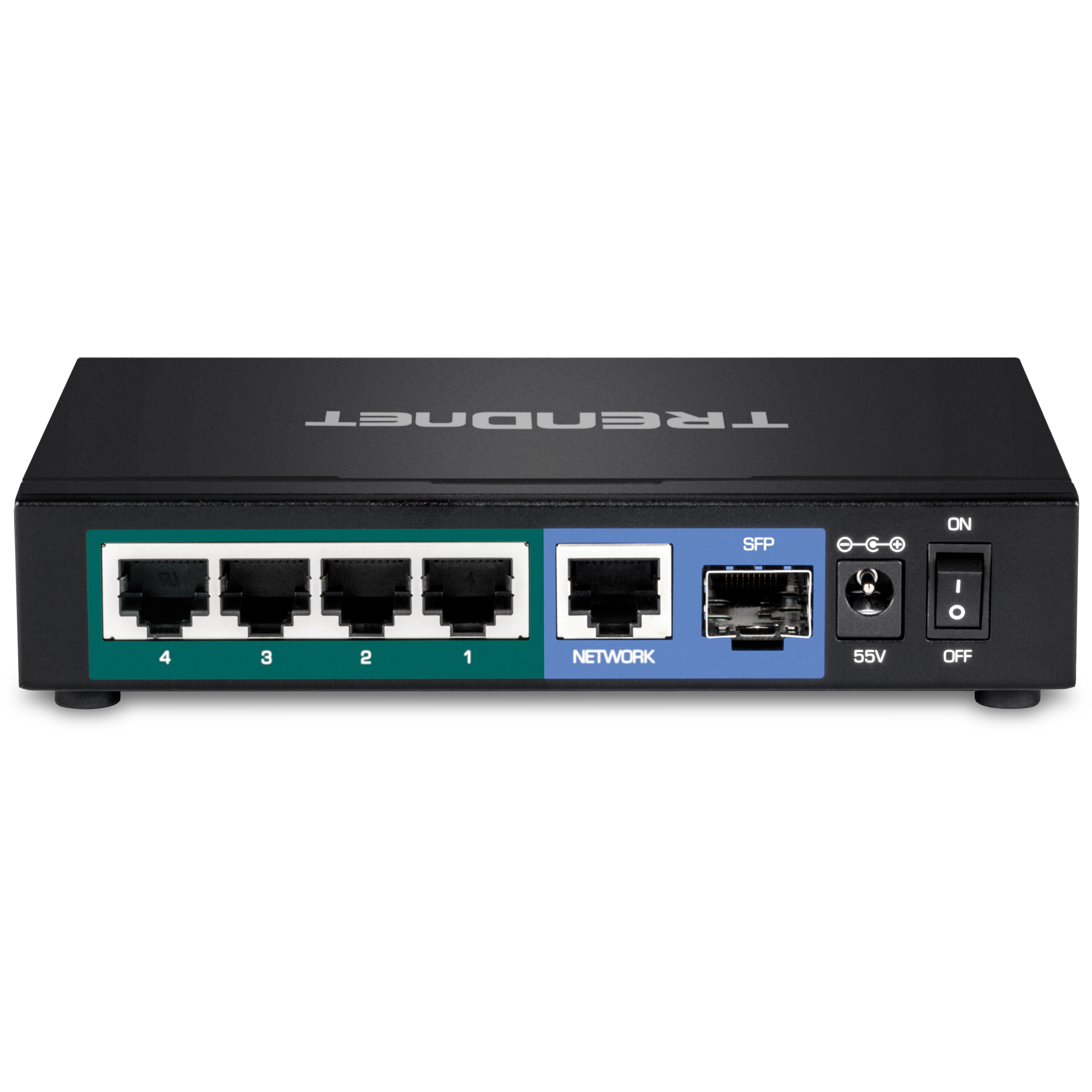

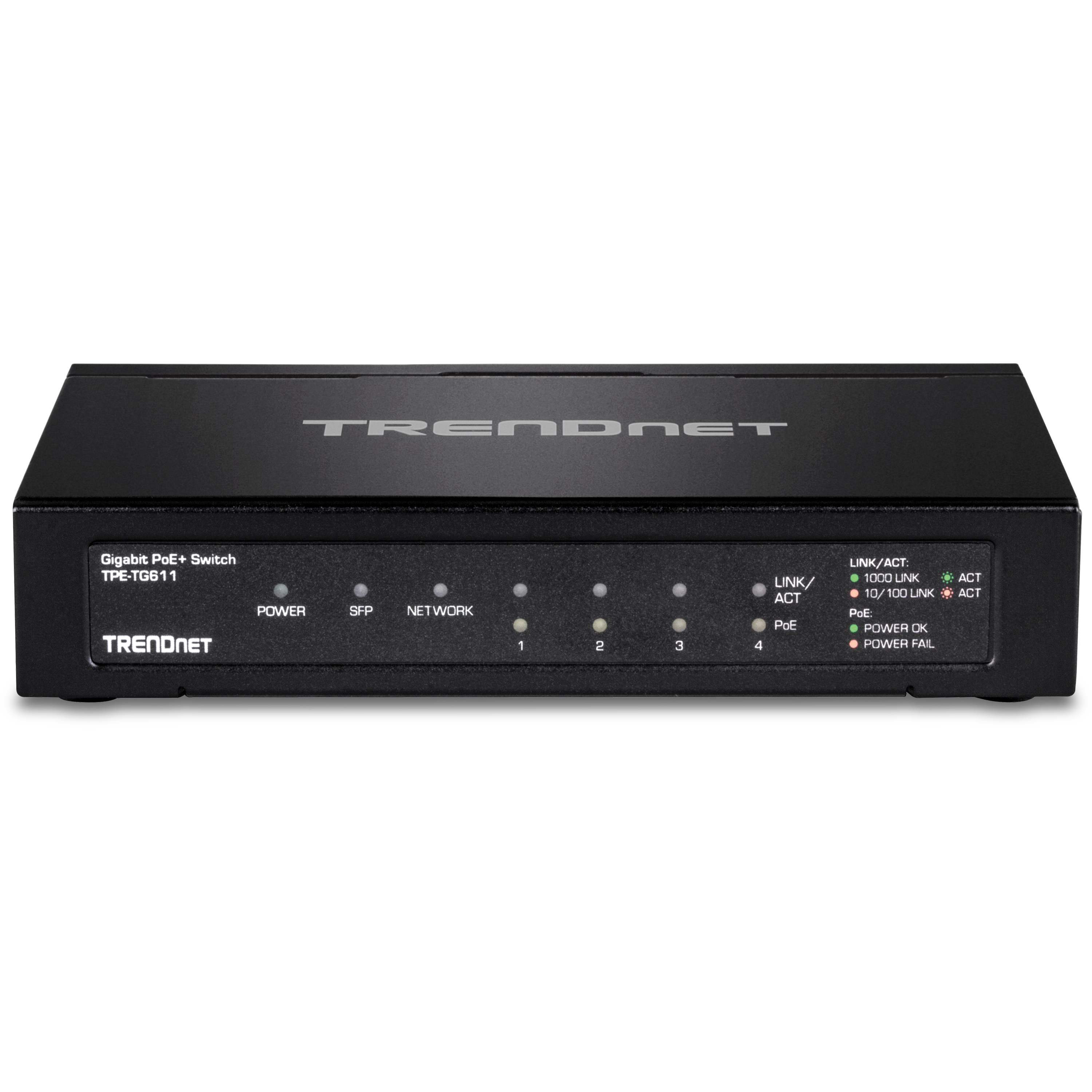

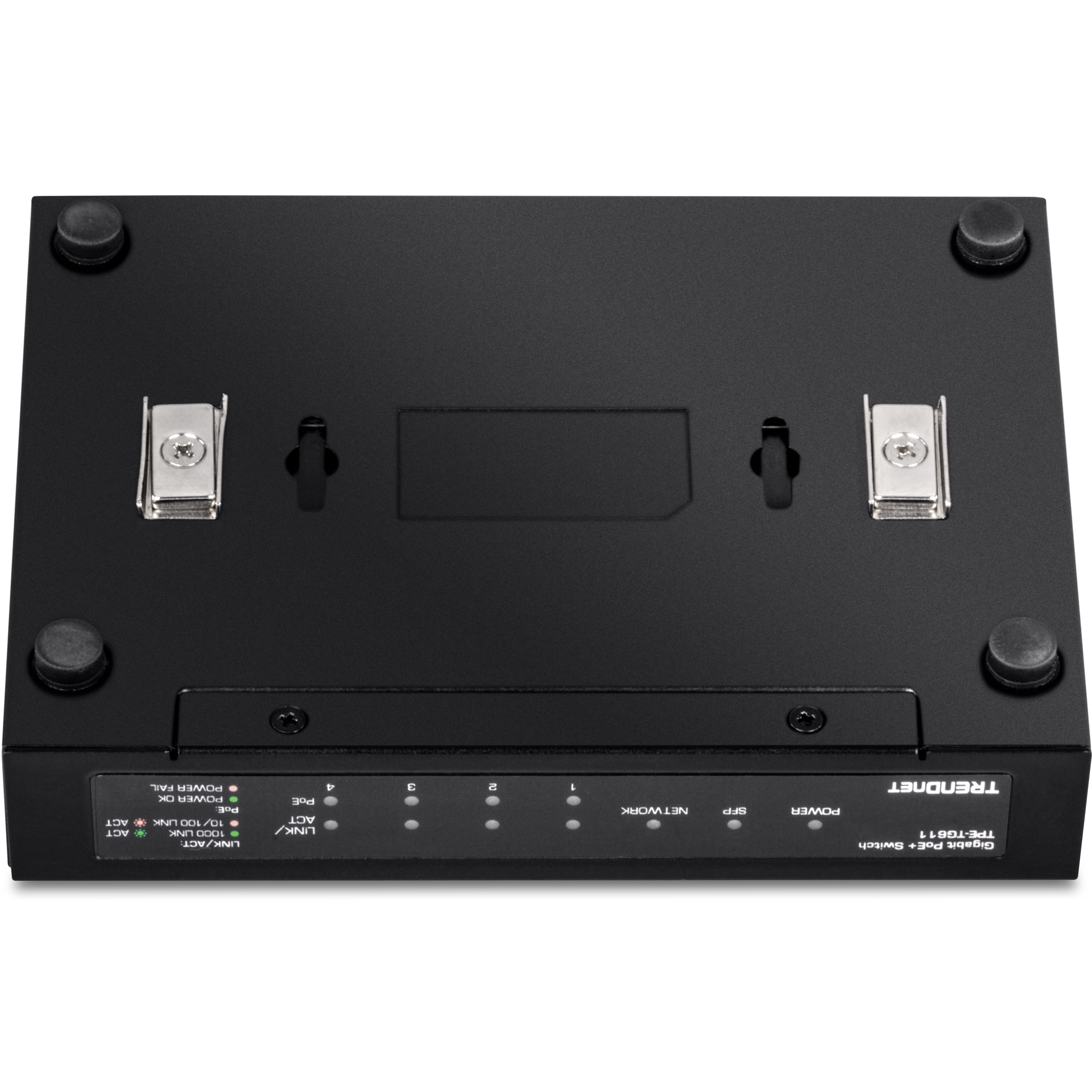

TPE-TG611 Product Photo
TPE-TG611 Product Photo TPE-TG611 Product Photo TPE-TG611 Product Photo TPE-TG611 Product Photo TPE-TG611 Product Photo TPE-TG611 Product Photo

6-Port Gigabit PoE+ Switch

TPE-TG611   (Version V2)

  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 1 x SFP port
  • 65W PoE power budget
  • IEEE 802.1p QoS and DSCP passthrough support
  • Compact wall-mountable metal housing
  • Fanless design
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 4 x Gigabit PoE+ ports (10Mbps/100Mbps/1Gbps)
  • 1 x Gigabit Network port (uplink) (10Mbps/100Mbps/1Gbps)
  • 1 x SFP port (100Mbps/1Gbps)
  • Power Switch
  • LED indicators
  • Wall-Mountable
  • Magnetic Mount
Performance
  • Switching Capacity: 12Gbps
  • RAM Buffer: 128KB
  • Jumbo Frames: 9KB
  • MAC Address Table: 2K entries
  • Forwarding Rate: 8.298Mpps (64-byte packet size)
Special Features
  • 802.1p CoS passthrough
Power
  • Input: 100 – 240V AC, 50/60 Hz
  • Output: 55V DC, 1.3A
  • Max. Consumption: 71.5W
PoE
  • PoE budget: 65W
  • Pin 1, 2 for power+ and pin 3, 6 for power- (mode A)
Fan/Acoustics
  • Fanless design
MTBF
  • 1,401,356 hours
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 193 x 84 x 26mm (7.6 x 3.3 x 1.02 in.)
Weight
  • 456g (16.1 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty
  • 3 year

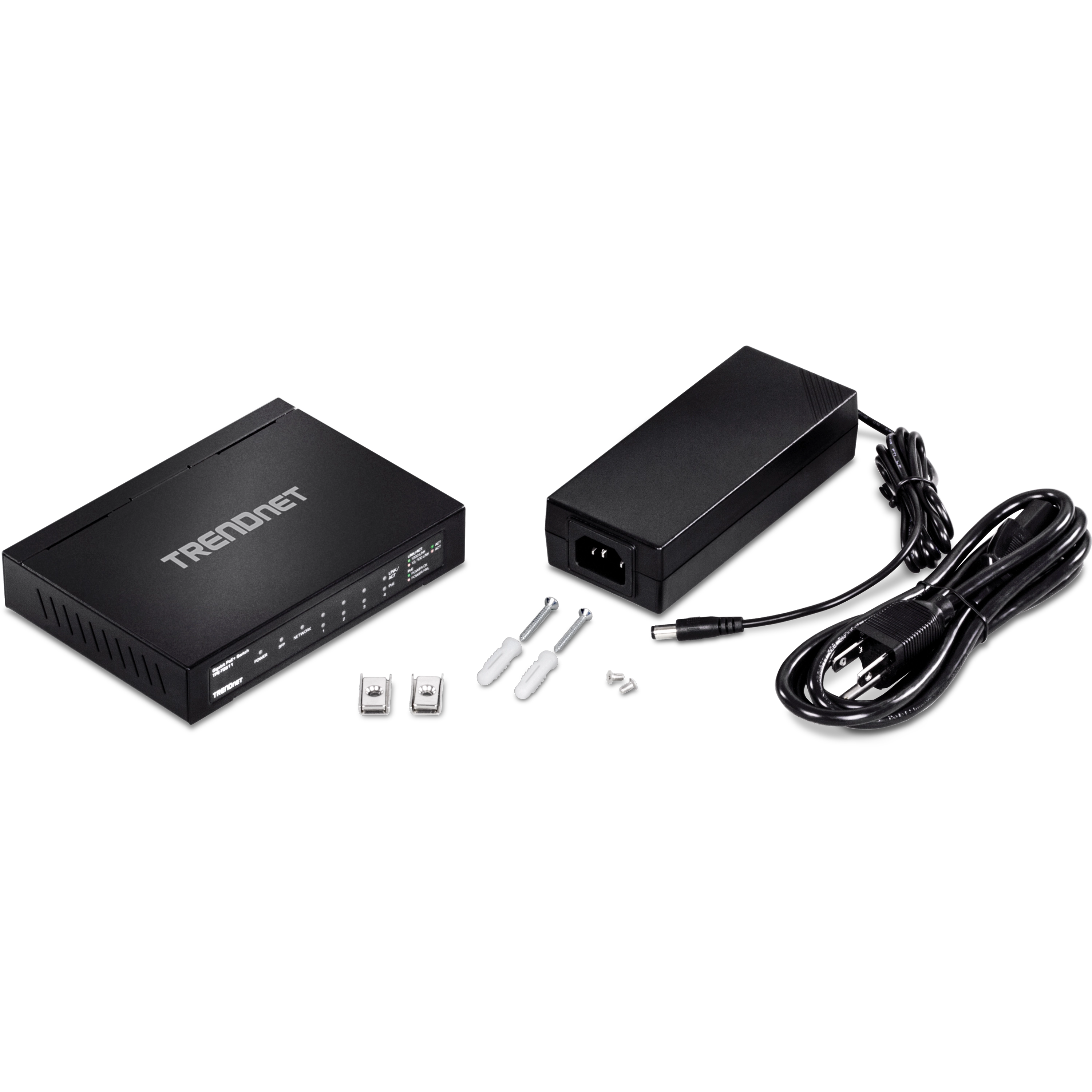

PACKAGE CONTENTS
  • TPE-TG611
  • Power brick (55V DC, 1.3A) (116cm/45.6 in)
  • Power cord (97cm/38 in.)
  • Mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
