Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.1d
- IEEE 802.1p
- IEEE 802.1Q
- IEEE 802.1X
- IEEE 802.11d
- IEEE 802.11e
- IEEE 802.11f
- IEEE 802.11h
- IEEE 802.11i
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n (2.4 GHz up to 300 Mbps)
|

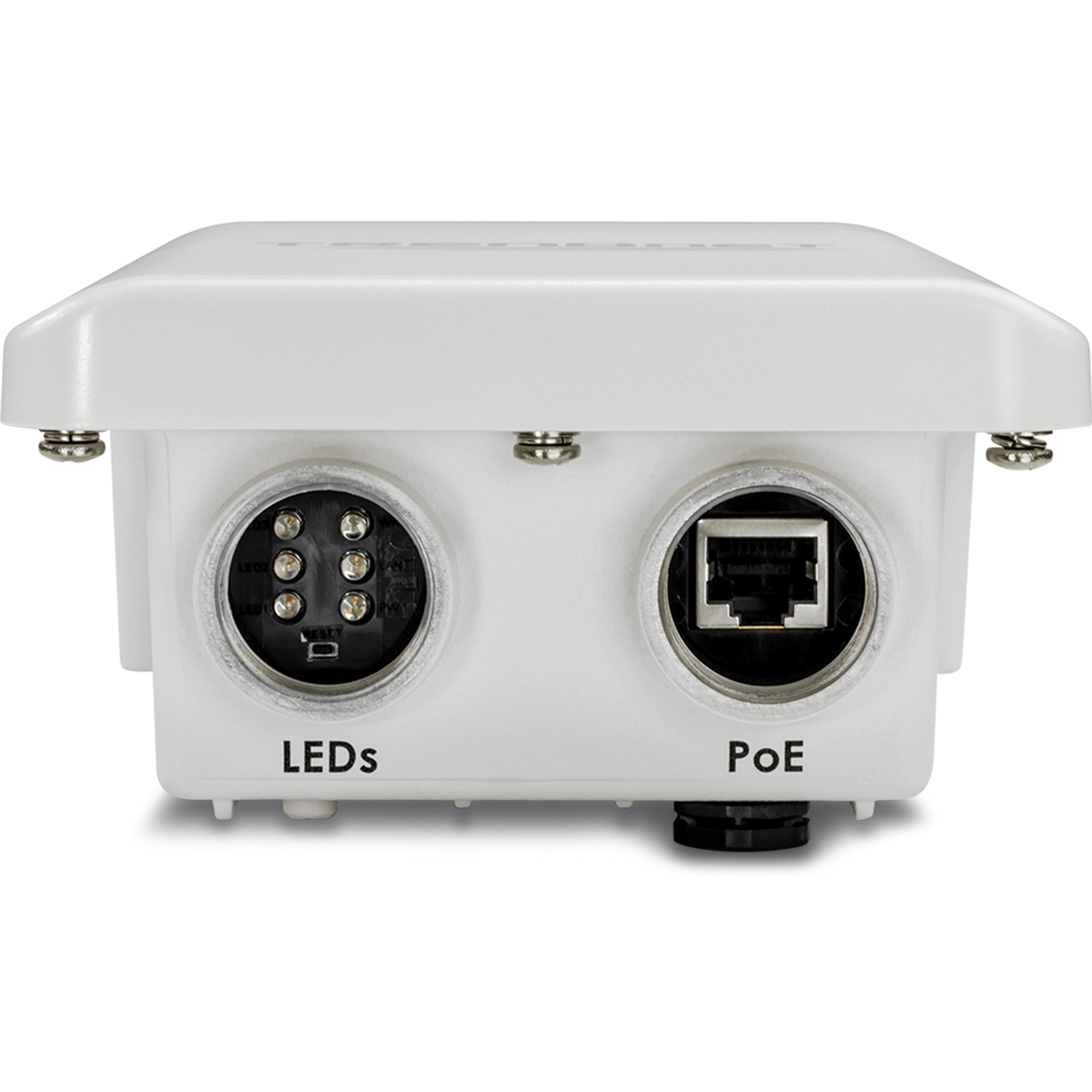

Hardware Interface | - 1 x 10/100 Mbps (proprietary PoE) port**
- 2 x N-Type (female) antenna connector (required antennas sold separately*)
- Reset button
- Grounding point
- LED indicators
|
Special Features | - IP67 weather rated
- 802.1Q VLAN assignment per SSID
- DDNS support for dyn.com, dhs.org, osd, tzo.com
- Schedule radio on/off time policy
|
Access Control | - Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
- Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough
- Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting
- 802.1Q VLAN
|
QoS | - WMM
- Diffserv (DSCP)/ToS
- 802.1p/CoS
|
Operation Modes | - Access Point (AP)
- Wireless Distribution System (WDS)
- Repeater
- CPE + AP (WISP)
|
SSID | |
Internet Connection Types (CPE mode) | - Dynamic IP (DHCP)
- Static IP (Fixed)
- PPPoE (Dynamic IP/Static IP)
- PPTP (Dynamic IP/Static IP)
|
Management/Monitoring | - Local/remote web based management (HTTP, HTTPS)
- Local/remote CLI based management (Telnet, SSH)
- SNMP v1/v2c/v3
- SNMP Trap
- MIB II
- Upgrade firmware
- Backup/restore configuration
- Event logging
- Reboot
- Restore to factory defaults
- Ping test
- Ping Watchdog
|
Routing (CPE mode) | - Static
- Dynamic (RIP v1/2, OSPF)
|
Frequency | - FCC: 2.412 - 2.462 GHz
- ETSI: 2.412 – 2.472 GHz
|
Wireless Channels | |
Modulation | - 802.11b: DBPK, DQPSK, CCK with DSSS
- 802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
|
Media Access Protocol | |
Wireless Output Power/Receiving Sensitivity | - 802.11b: FCC/ETSI: FCC: 24 dBm (max.), ETSI: 14 dBm (max.)/-88 dBm (typical) @ 11 Mbps
- 802.11g: FCC/ETSI: FCC: 24 dBm (max.), ETSI: 14 dBm (max.)/-74 dBm (typical) @ 54 Mbps
- 802.11n: FCC/ETSI: FCC: 24 dBm (max.), ETSI: 14 dBm (max.)/-69 dBm (typical) @ 300 Mbps
|
Power | - Input: 100 – 220 V, 50 - 60 Hz, 0.6 A
- Output: 48 V, 0.5 A
- Consumption: 22 Watts (max.)
|
Operating Temperature | - -30 - 60° C (-22 - 140° F)
|
Operating Humidity | |
Certifications | |
Dimensions | - 215 x 122 x 66 mm (8.5 x 4.8 x 2.6 in.) (not including mounting bracket)
|
Weight | |
Warranty | |
