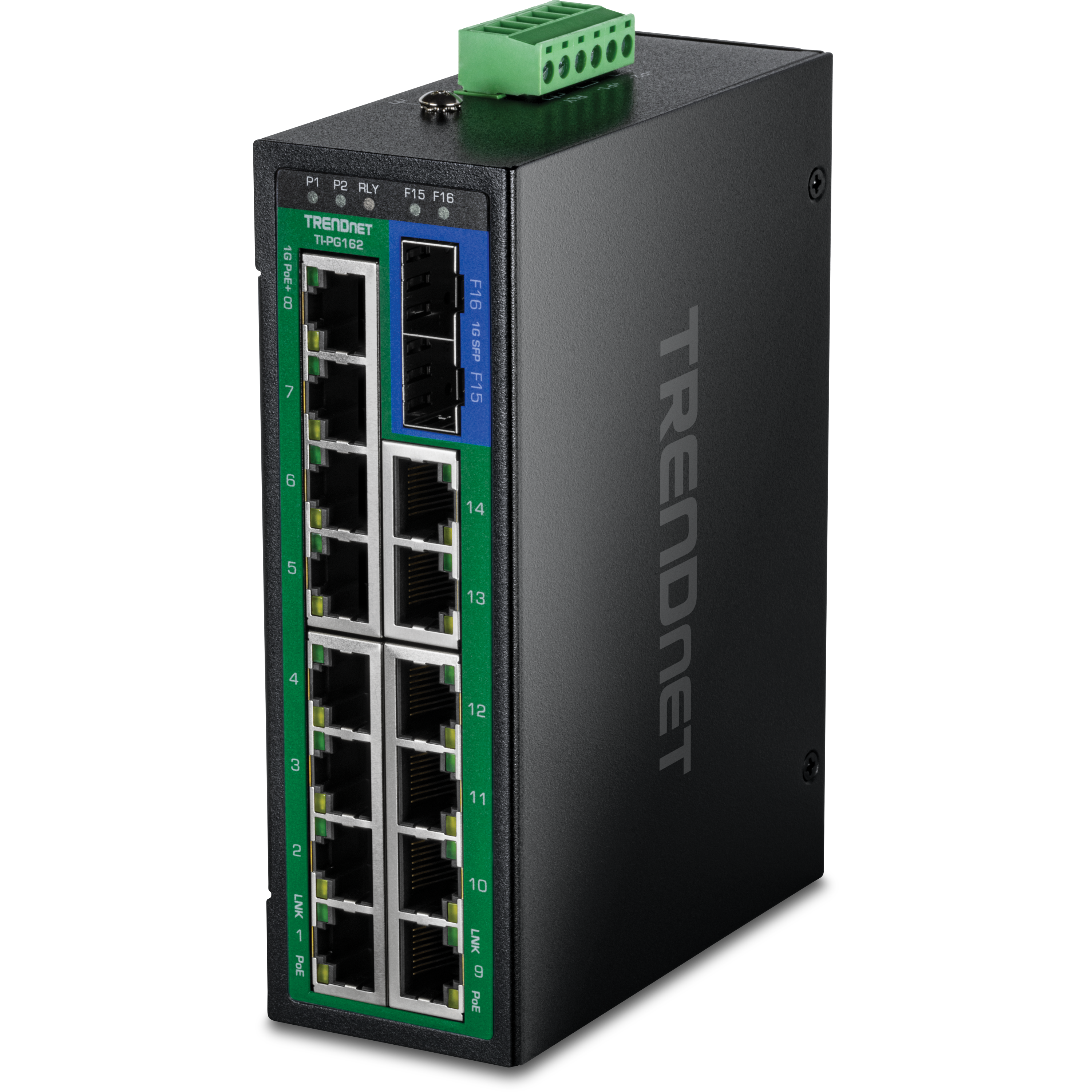

16-Port Industrial Gigabit PoE+ DIN-Rail Switch

TI-PG162   (Version V2)

   Select Another Version
  • 14 x Gigabit PoE+ ports
  • 2 x Gigabit SFP ports
  • Up to 300W PoE power budget
  • 32Gbps switching capacity
  • Hardened IP50 rated metal switch

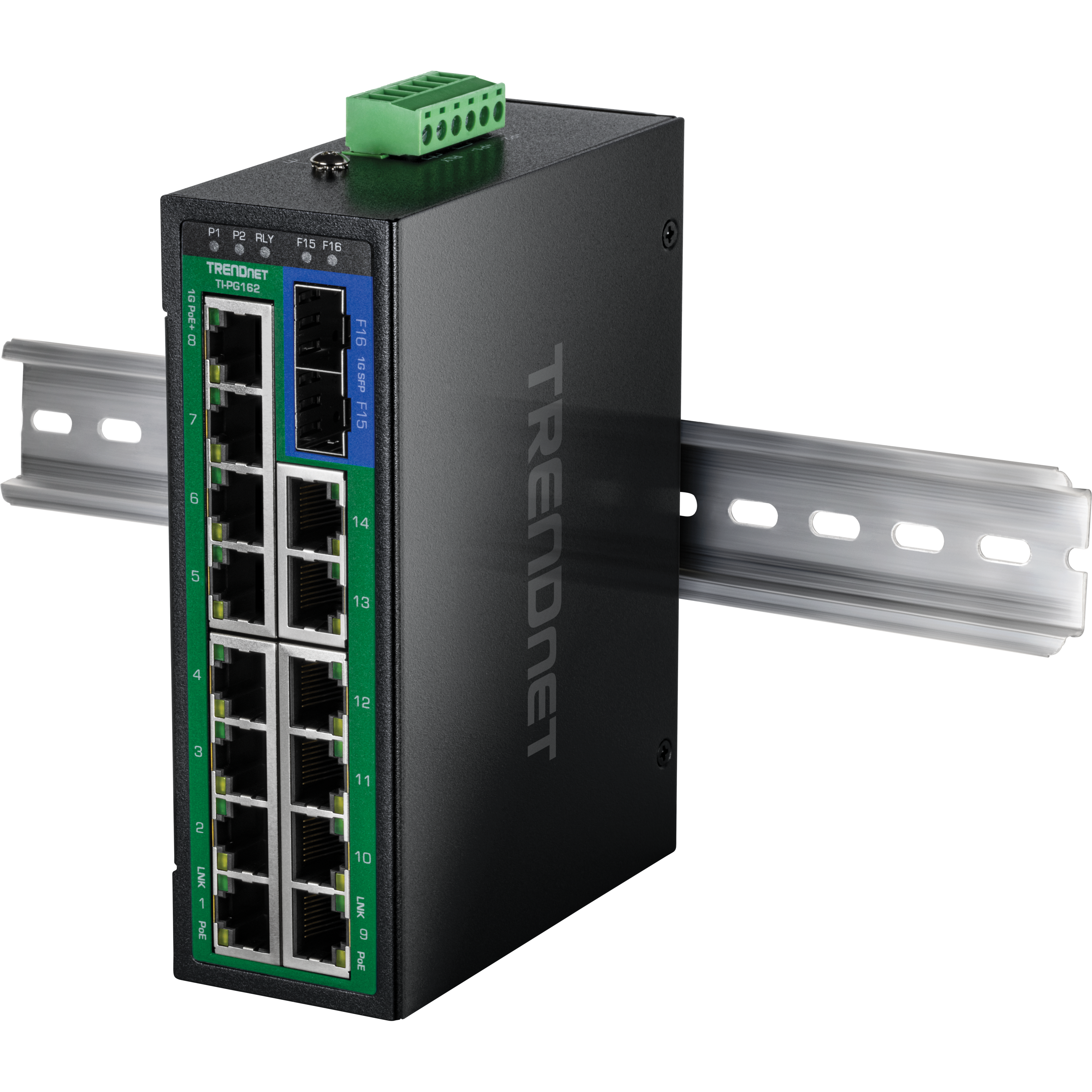

  • Includes DIN-Rail mount and wall-mount brackets
  • Wide operating temperature range of -40° – 75° C (-40° – 167° F)
  • Redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (model: TI-S48048)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3af
  • IEEE 802.3at

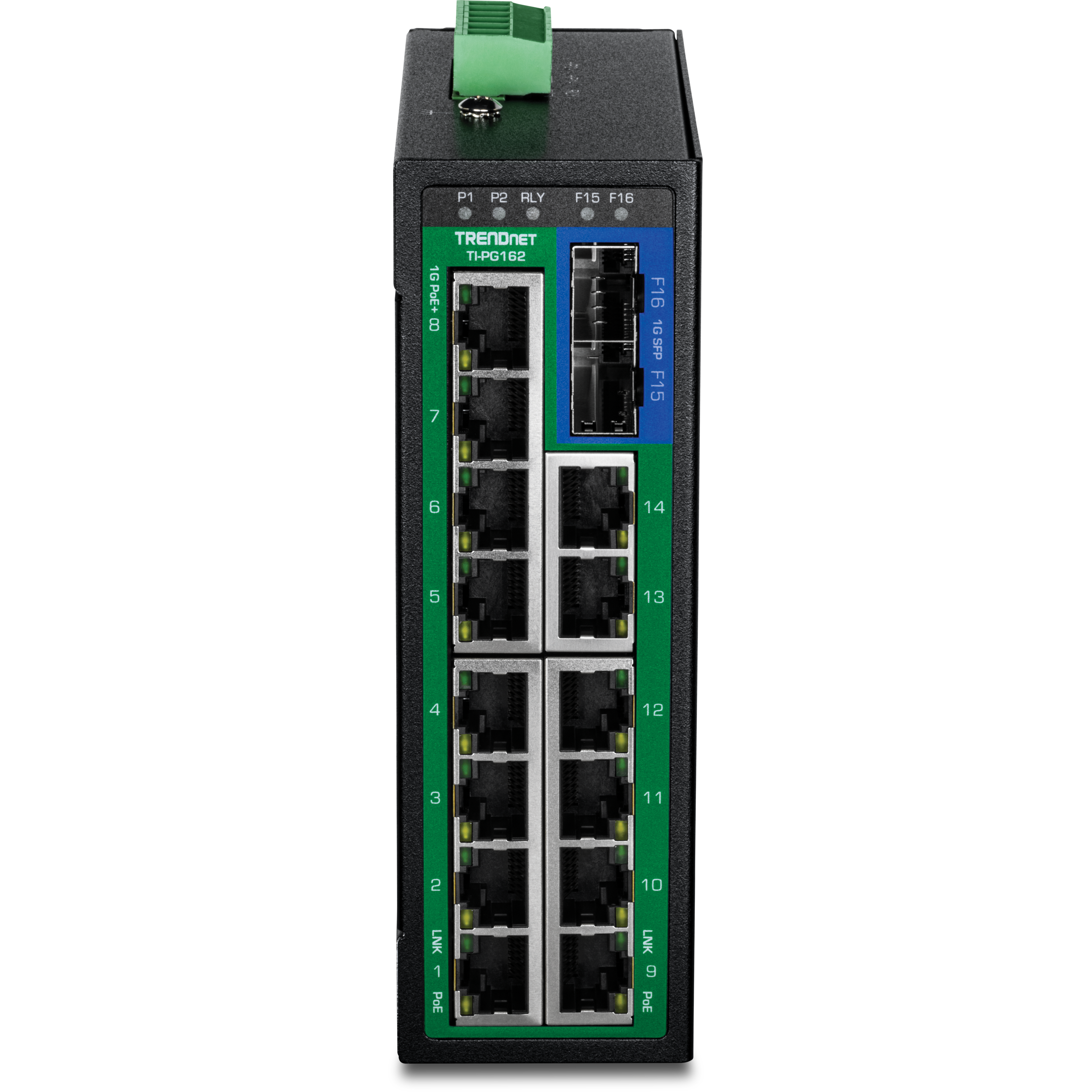

Device Interface
  • 14 x Gigabit PoE+ ports (10/100/1000Mbps)
  • 2 x Gigabit SFP ports (1000Mbps)
  • 6-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 512KB
  • Switching Fabric: 32Gbps
  • MAC Address Table: 8K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 23.8Mpps (64-byte packet size)
DC Power
  • Input: 48 – 56V DC
  • Recommended power supply: TI-S48048 (sold separately)
  • Max. consumption: 9W (no PoE)
PoE
  • 802.3af PoE: up to 15.4W per port
  • 802.3at PoE+: up to 30W per port
  • Power budget: 240W@48V, 300W@56V
  • Mode A: Pins 1, 2 for power + , 3, 6 for power -

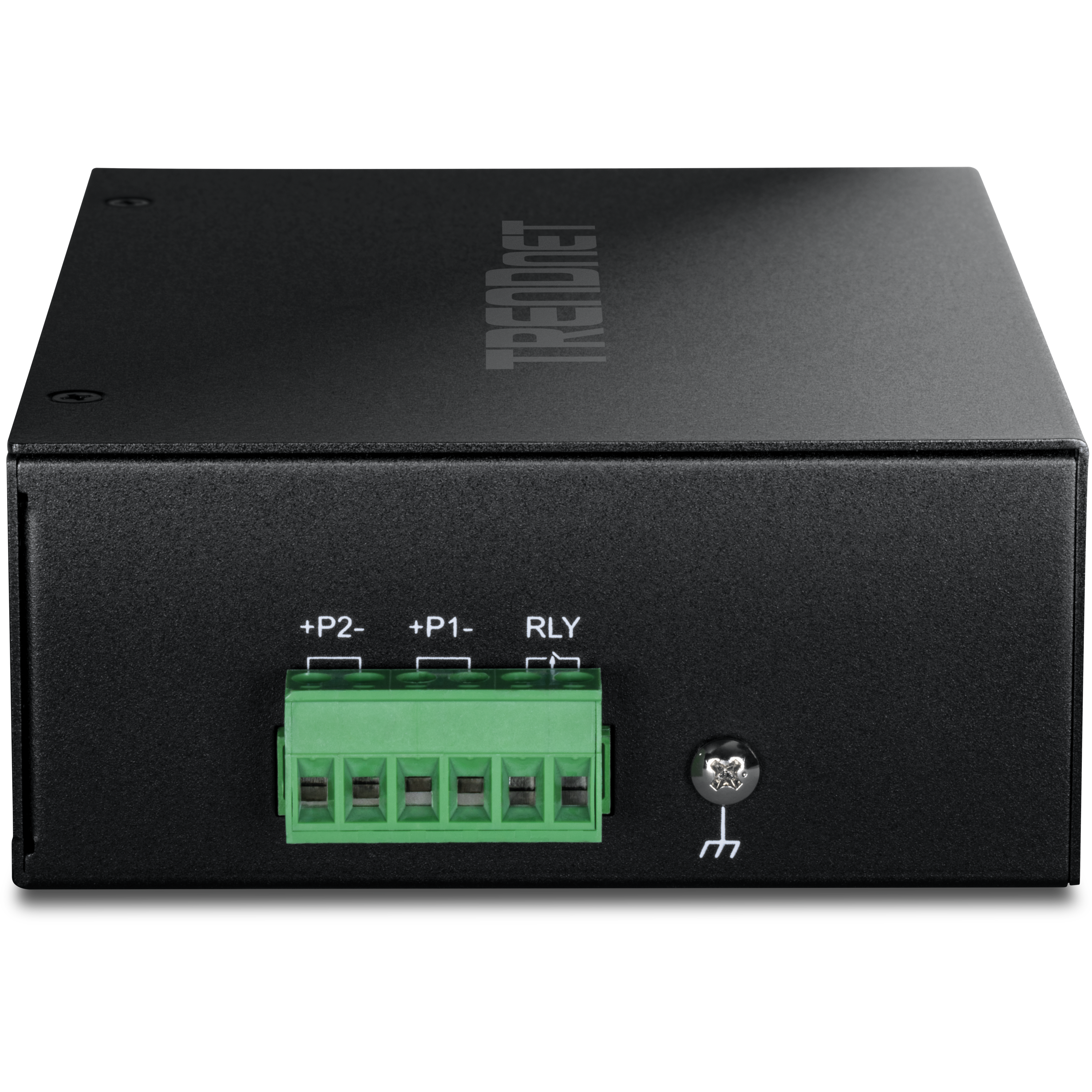

Terminal Block
  • 6-pin terminal block
  • Alarm Relay: 1A@24V DC
  • Wire range: 0.34mm² to 2.5mm²
  • Solid wire (AWG): 12-24
  • Stranded wire (AWG): 12-24
  • Torque: 5 lb. – In / 0.5Nm / 0.56Nm
  • Wire strip length: 7-8mm
MTBF
  • 1,261,145 hours @ 25° C
Housing
  • IP50 metal case
  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 8kV Air protection
  • 2kV surge protection
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 142 x 105 x 45.5mm (5.6 x 4.1 x 1.8 in.)
Weight
  • 457g (16.13 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-PG162
  • Removable terminal block

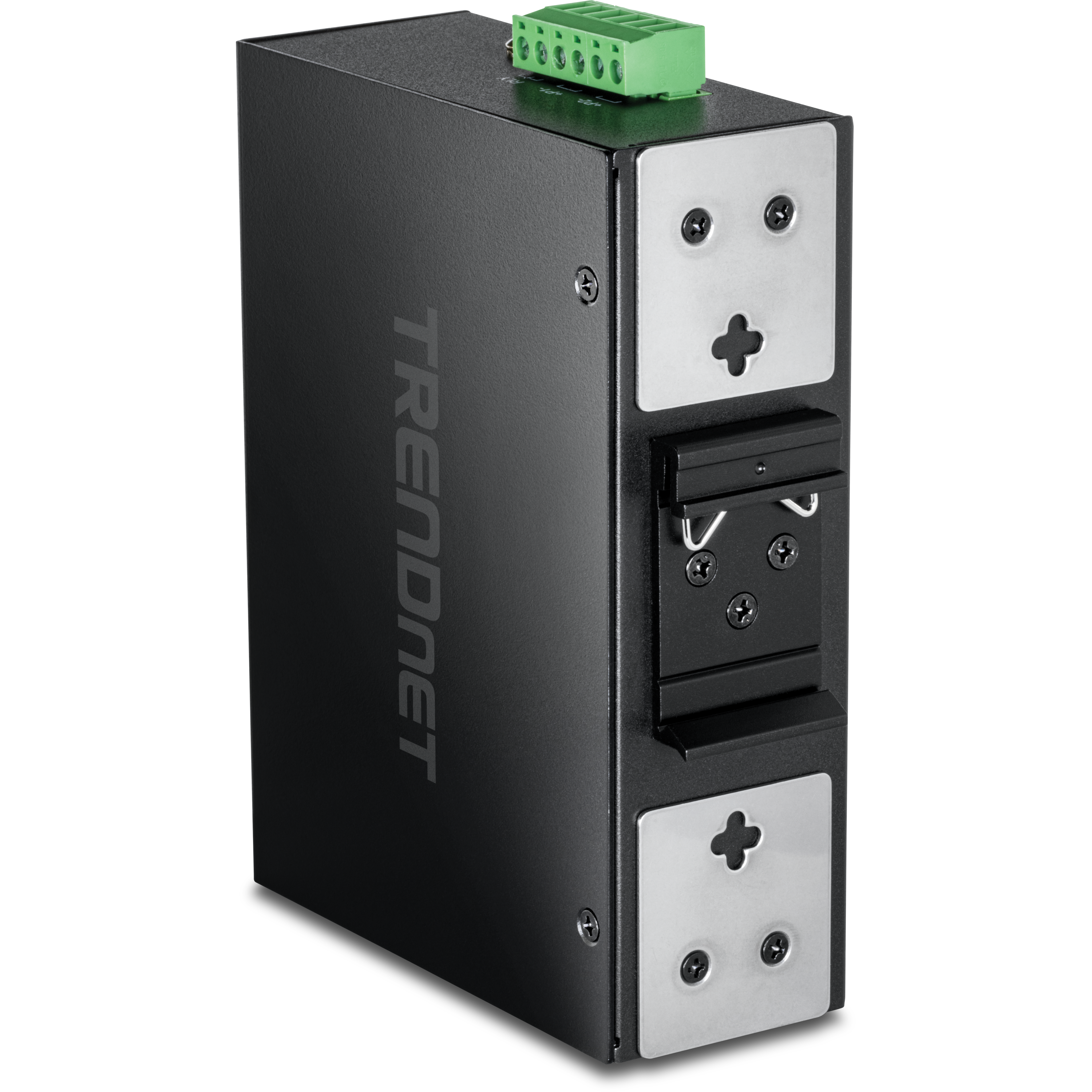

  • DIN-Rail and wall-mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
