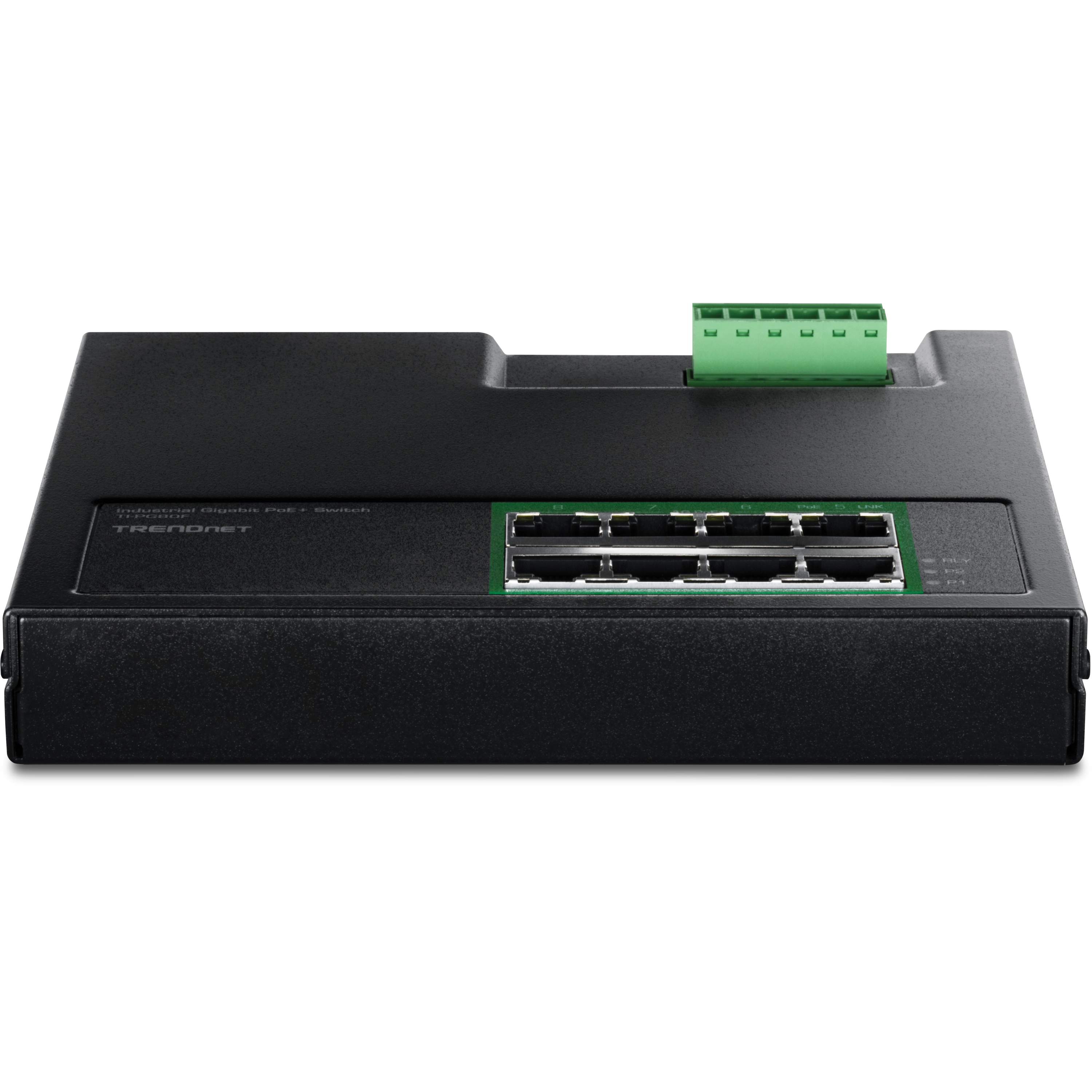

8-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch

TI-PG80F   (Version V3)

   Select Another Version
  • 8 x Gigabit PoE+ ports
  • 200W PoE power budget
  • 16Gbps switching capacity
  • Forwarding rate: 11.9Mpps (64-byte packet size)
  • Supports jumbo frames up to 9KB
  • Hardened IP50 rated metal housing
  • Includes DIN-Rail bracket, magnetic mount, and wall mount kit
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Dual DC power inputs with overload current protection
  • Alarm relay triggered by power failure
  • Power supply sold separately (models: TI-S24048 or TI-S24052)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-PG80F_(v3.xR).pdf
Date: 2/23/2026
File Size: 2.92 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-PG80F_(v3.xR).pdf
Date: 2/23/2026
File Size: 2.96 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-PG80F_(v3.xR).pdf
Date: 2/23/2026
File Size: 2.94 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-PG80F_(v3.xR).pdf
Date: 2/23/2026
File Size: 2.97 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-PG80F_(v3.xR).pdf
Date: 2/23/2026
File Size: 2.98 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-PG80F_(v3.xR).pdf
Date: 2/23/2026
File Size: 2.96 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: TI-PG80F (V3).pdf
Date: 2/23/2026
File Size: 4.89 MB
Download

Product Images

TI-PG80F Product Photo (PNG Image 1)
PNG Image
File Size: : 9.54 MB
Date: : 2/23/2026
Download
TI-PG80F Product Photo (PNG Image 2)
PNG Image
File Size: : 9.90 MB
Date: : 2/23/2026
Download
TI-PG80F Product Photo (PNG Image 3)
PNG Image
File Size: : 4.37 MB
Date: : 2/23/2026
Download
TI-PG80F Product Photo (PNG Image 4)
PNG Image
File Size: : 10.87 MB
Date: : 2/23/2026
Download
TI-PG80F Product Photo (PNG Image 5)
PNG Image
File Size: : 9.67 MB
Date: : 2/23/2026
Download
TI-PG80F Product Photo (PNG Image 6)
PNG Image
File Size: : 5.14 MB
Date: : 2/23/2026
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface
  • 8 x Gigabit PoE+ ports (10/100/1000Mbps)
  • 6-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 256KB
  • Switching Fabric: 16Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 11.9Mpps (64-byte packet size)
DC Power
  • Input: 48 – 56 V DC
  • Compatible power supply: TI-S24048 or TI-S24052 (sold separately)
  • Max. consumption: 4.6W @ 56V DC (without PD)
PoE
  • 802.3af PoE: up to 15.4W per port
  • 802.3at PoE+: up to 30W per port
  • PoE budget: 200W @ 56V DC
  • PoE Mode A: pin 1, 2 +; pin 3, 6 -
Terminal Block
  • Dual power inputs, alarm relay contact, 6-pin
  • Alarm relay: 1A @ 24V DC
  • Wire range: 0.34mm² to 2.5mm²
  • Solid wire (AWG): 12-24/14-22
  • Stranded wire (AWG): 12-24/14-22
  • Torque: 5 lb. – In / 0.5Nm (North America) / 0.56 Nm (EU)
  • Wire strip length: 7-8mm
MTBF
  • 1,289,353 hours @ 25° C
Housing
  • IP50 metal case

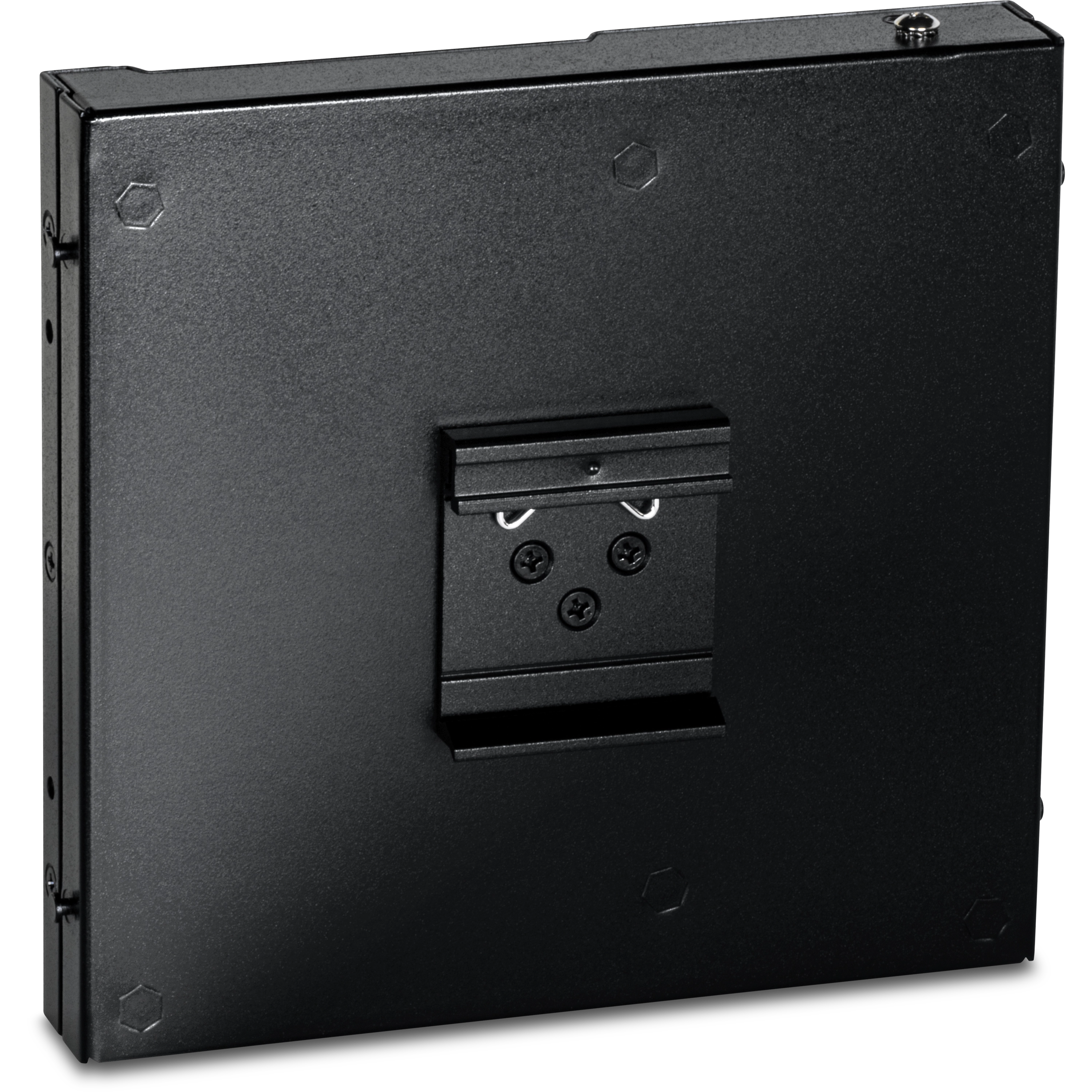

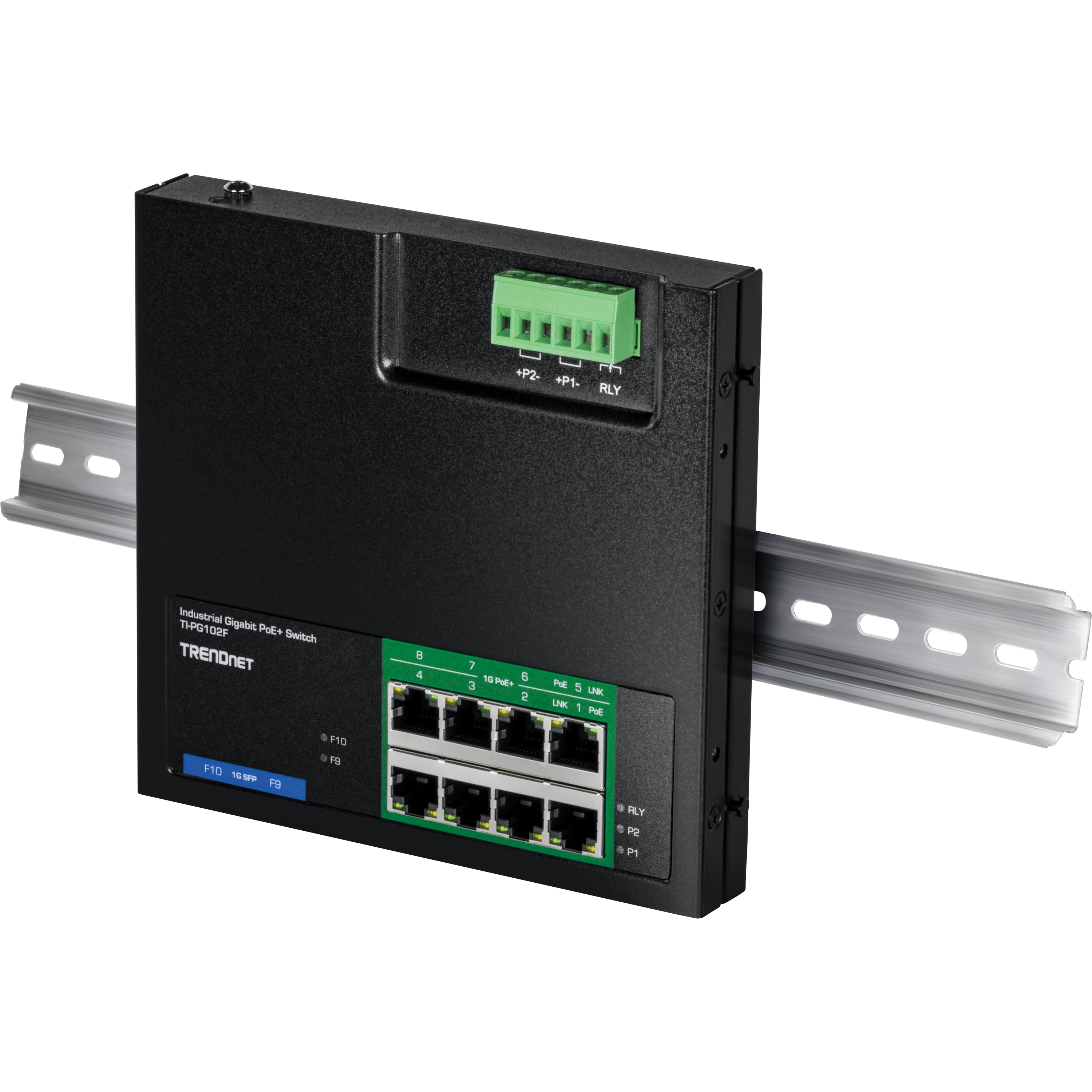

  • DIN-Rail mount
  • Low-profile design

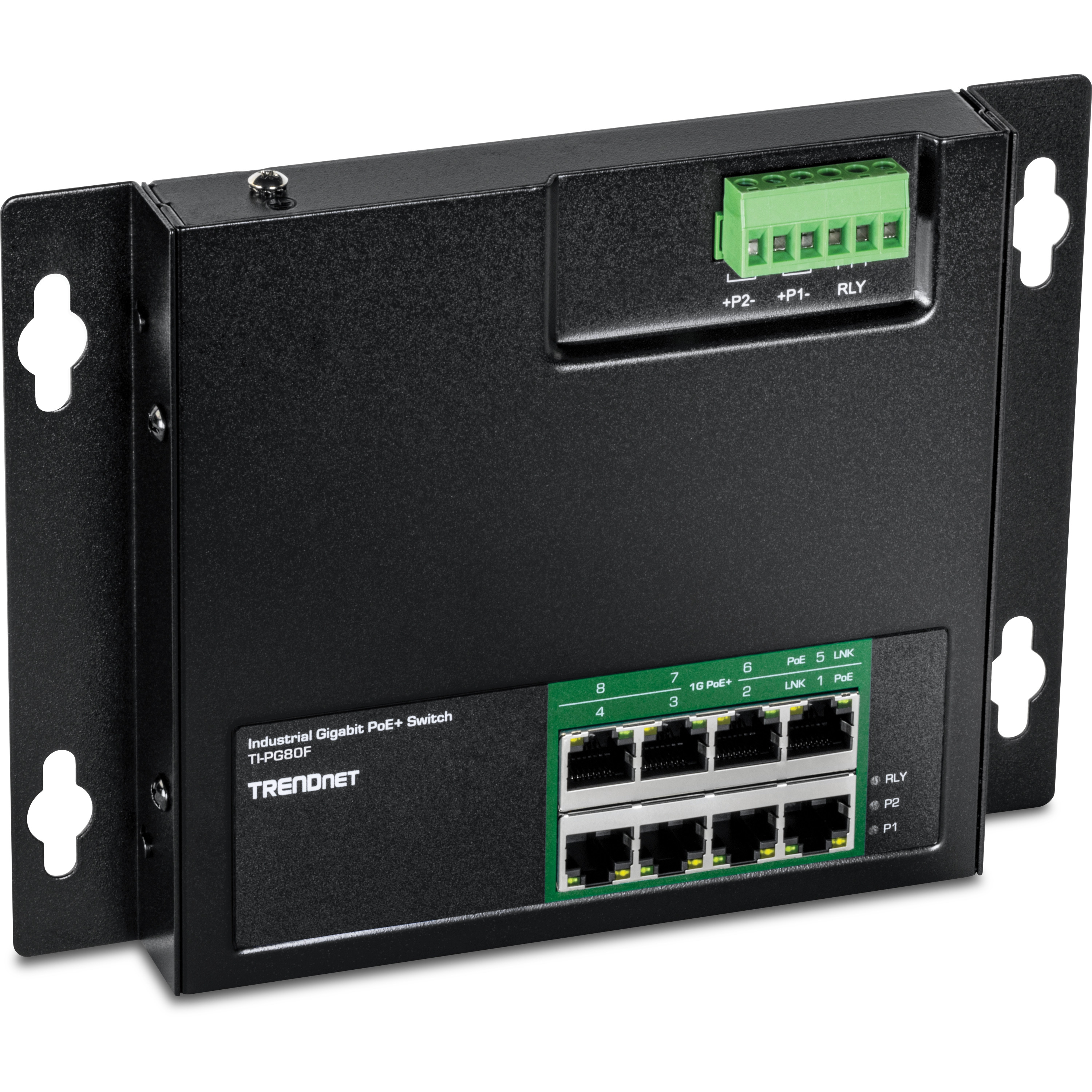

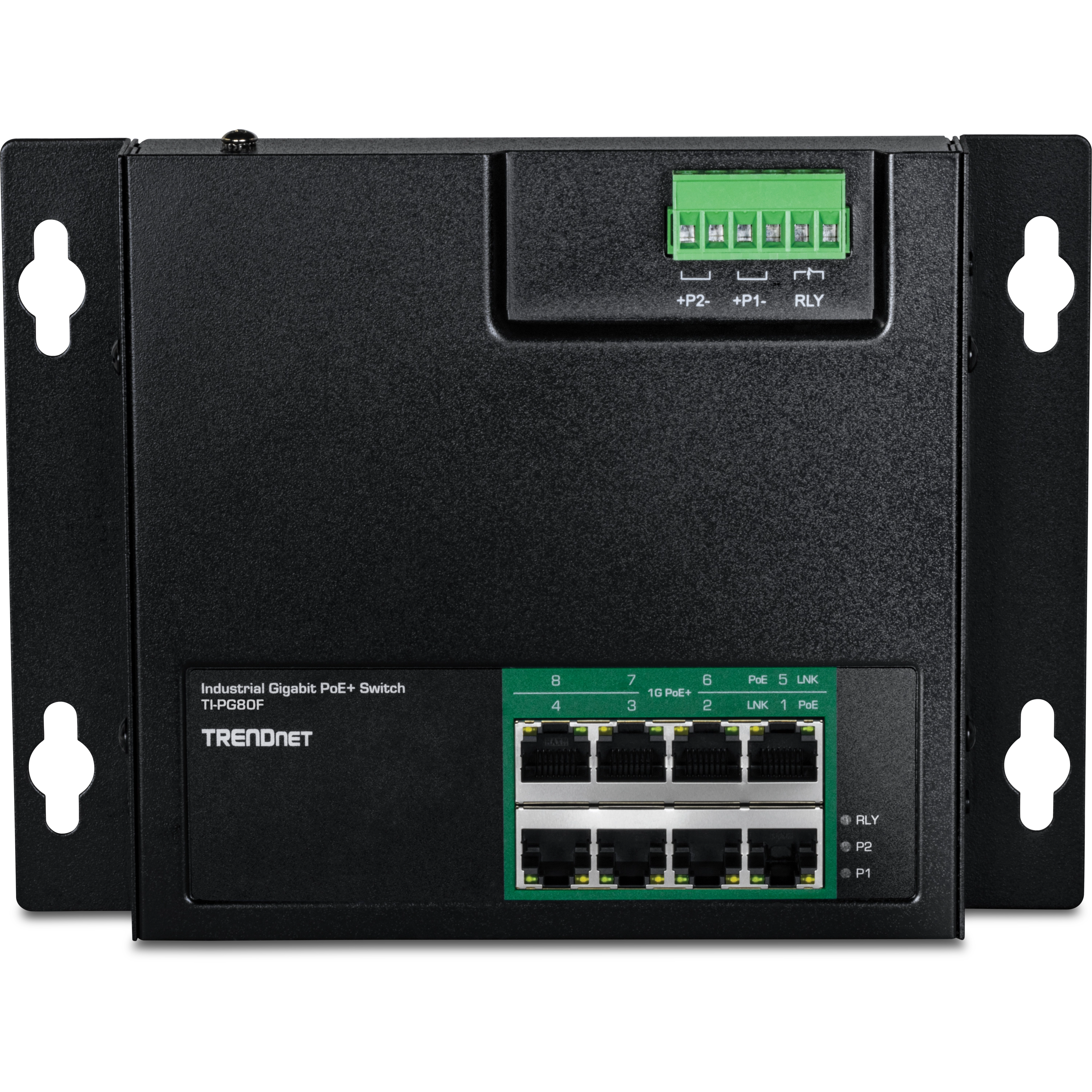

  • Wall mount
  • Magnet mount
  • Grounding point
  • 8kV ESD protection
  • 2kV EFT protection
  • 2kV surge protection
Operating Temperature
  • - 40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 152 x 145 x 24mm (6 x 5.7 x 0.95 in.)
  • 198 x 145 x 24mm (7.8 x 5.7 x 0.95 in.) with brackets
Weight
  • 716g (25.3 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty

PACKAGE CONTENTS
  • TI-PG80F
  • Removable terminal block

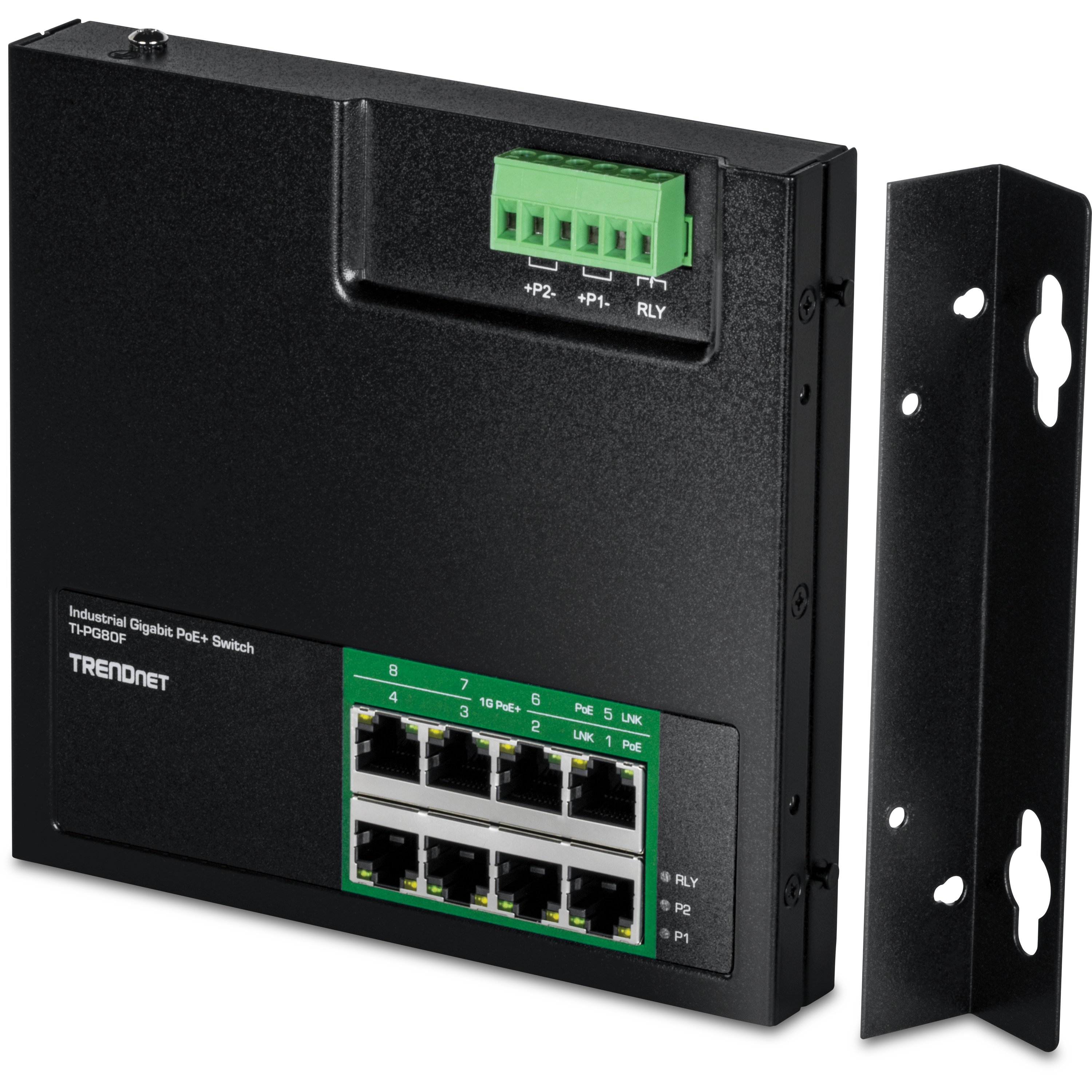

  • DIN-Rail, wall, and magnet mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
