Indoor 2 MP 1080p WDR Mini Pan / Tilt PoE IR Network Camera

TV-IP410PI   (Version v1.0R)

  • 2 MP 1080p HD resolution
  • Night vision up to 10 m (32.8 ft.)
  • Increase bandwidth efficiency with H.264+ video compression
  • Save installation costs with Power over Ethernet (PoE)
  • Digital Wide Dynamic Range image balancing
  • Program motion detection recording and email alerts
  • MicroSD card slot (up to 128 GB)
  • ONVIF and IPv6 support
  • Free iOS® and Android™ mobile apps


DISCONTINUED PRODUCT

The TV-IP410PI (Version v1.0R) has been discontinued. It has been replaced by the TV-IP420P (Version v1.0R). For a list of discontinued products, click here.

Utility

Camera Utility
Filename: Camera_Utility.zip
SHA-1 Checksum: 679B96BB0EF1F0763DC23D01D670C8FC4E943004
Date: 10/27/2017
File Size: 20.98 MB
Download

Firmware

Firmware
DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 5.4.1 build180413
Release Date: 4/2018
Release Notes:

  1. Fixed storage setting issue
  2. Addressed naming response

Filename: FW_TV-IP314_315_310(5.4.1_build_180413).zip
SHA-1 Checksum: 0672CAE47AECB22698AC93C9455993C738FBEB89
Date: 4/17/2018
File Size: 26.74 MB
Download

Software

TRENDnetView Evo Advanced camera management software (64-bit)

Version 1.17.0

Product Information
Filename: TRENDnetView_EVO__x64_1.17.0.zip
SHA-1 Checksum: CCFBBCC1D40FB24B5CC471BC361ABD752374011A
Date: 9/11/2020
File Size: 504.20 MB
Download
TRENDnetView Evo Advanced camera management software (32-bit)

Version 1.17.0

Product Information
Filename: TRENDnetView_EVO__x86_1.17.0.zip
SHA-1 Checksum: E9C5C64BDAC9FAD036C246AA9902AD78BF527D6E
Date: 9/11/2020
File Size: 372.41 MB
Download

Datasheet

Datasheet (English)
Filename: EN_datasheet_TV-IP410PI_(v1.0R).pdf
Date: 1/19/2018
File Size: 3.81 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TV-IP410PI_(v1.0R).pdf
Date: 1/19/2018
File Size: 3.83 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TV-IP410PI_(v1.0R).pdf
Date: 1/19/2018
File Size: 3.82 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TV-IP410PI_(v1.0R).pdf
Date: 1/19/2018
File Size: 3.82 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TV-IP410PI_(v1.0R).pdf
Date: 1/19/2018
File Size: 3.83 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TV-IP410PI_(v1.0R).pdf
Date: 1/19/2018
File Size: 3.81 MB
Download Email

Quick Installation Guide

Quick Installation Guide (English)
Filename: EN_Web_TV-IP410PI(V1.0R).pdf
Date: 5/18/2017
File Size: 1.52 MB
Download
Quick Installation Guide (Français)
Filename: FR_Web_TV-IP410PI(V1.0R).pdf
Date: 5/18/2017
File Size: 1.52 MB
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TV-IP410PI(V1.0R).pdf
Date: 5/18/2017
File Size: 1.37 MB
Download
Quick Installation Guide (Português)
Filename: PT_Web_TV-IP410PI(V1.0R).pdf
Date: 5/18/2017
File Size: 1.37 MB
Download
Quick Installation Guide (Español)
Filename: SP_Web_TV-IP410PI(V1.0R).pdf
Date: 5/18/2017
File Size: 1.37 MB
Download
Quick Installation Guide (Pусский)
Filename: RU_TV-IP410PI(V1.0R).pdf
Date: 4/5/2018
File Size: 1.96 MB
Download
Quick Installation Guide (Italiano)
Filename: ITA_Web_TV-IP410PI(V1.0R).pdf
Date: 5/18/2017
File Size: 1.37 MB
Download

User's Guide

User's Guide
Filename: UG_TV-IP410PI(v1.0R).pdf
Date: 8/9/2017
File Size: 3.69 MB
Download

Product Images

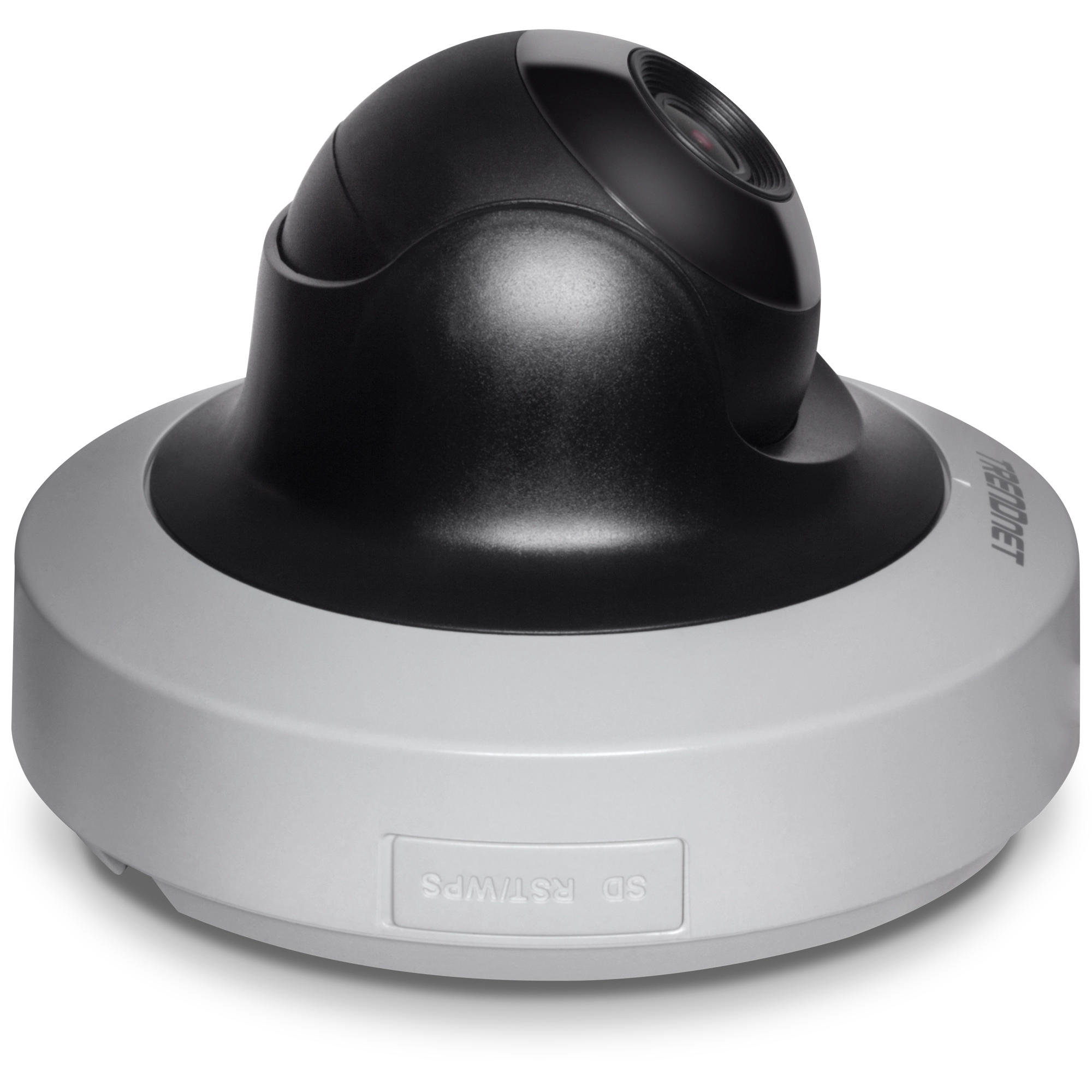

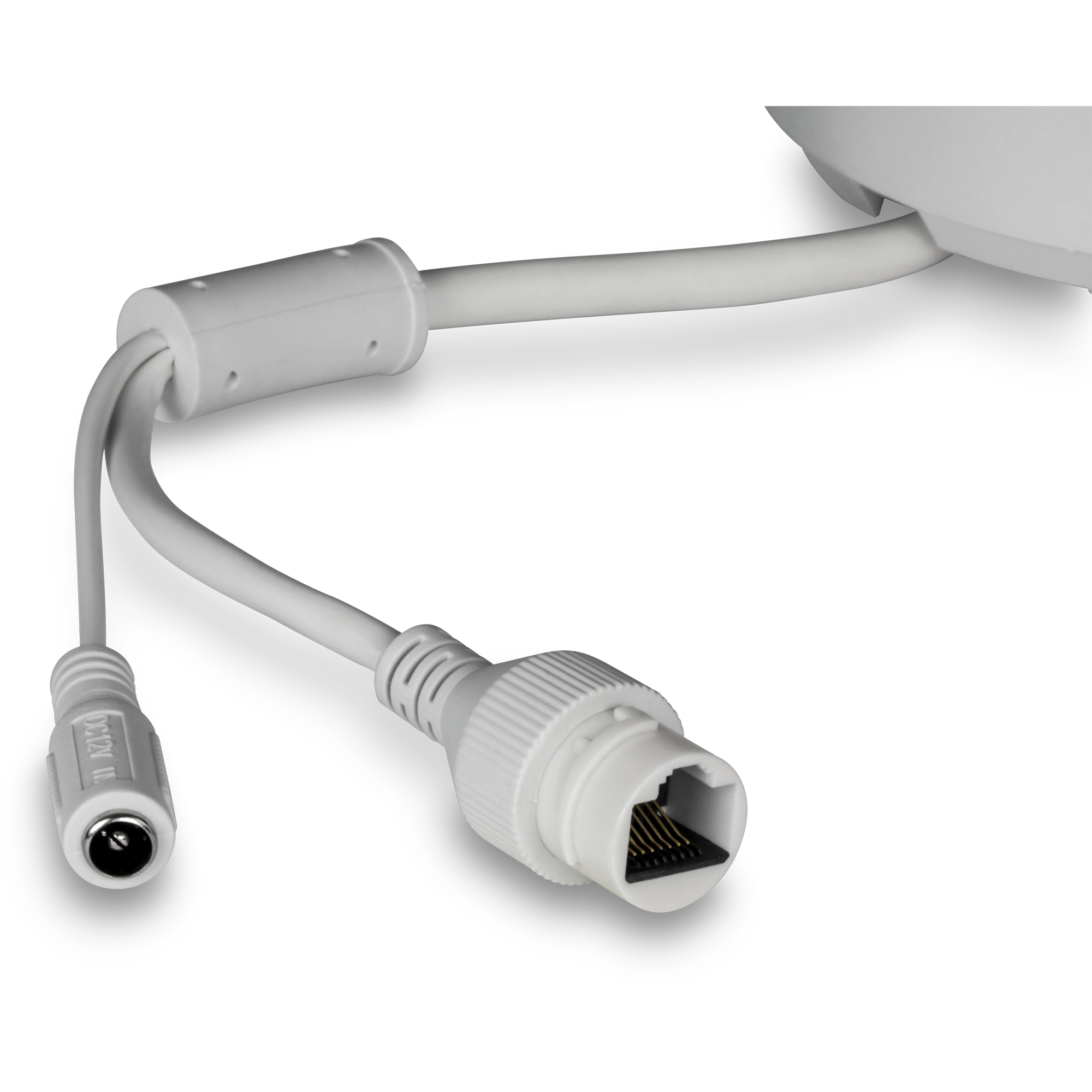

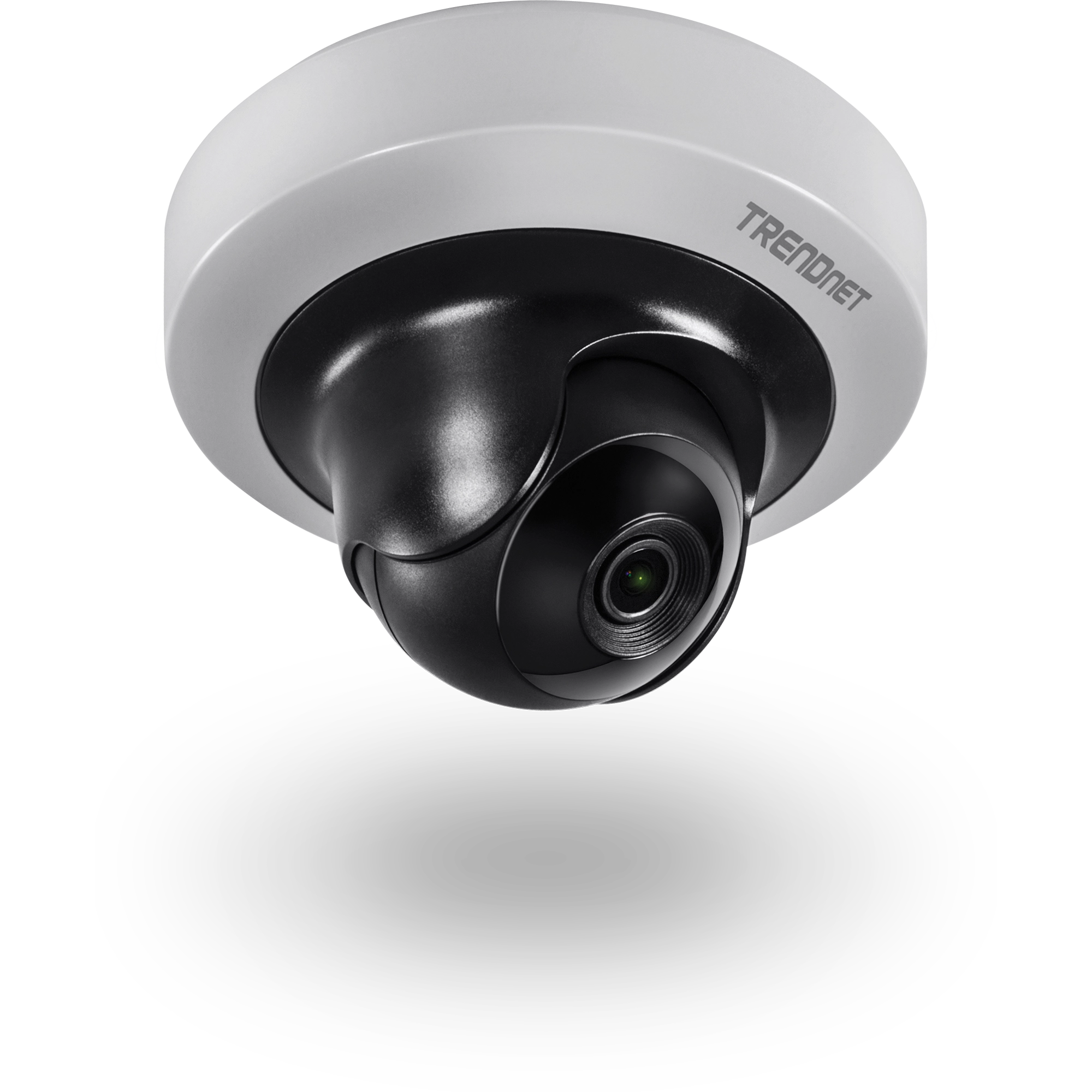

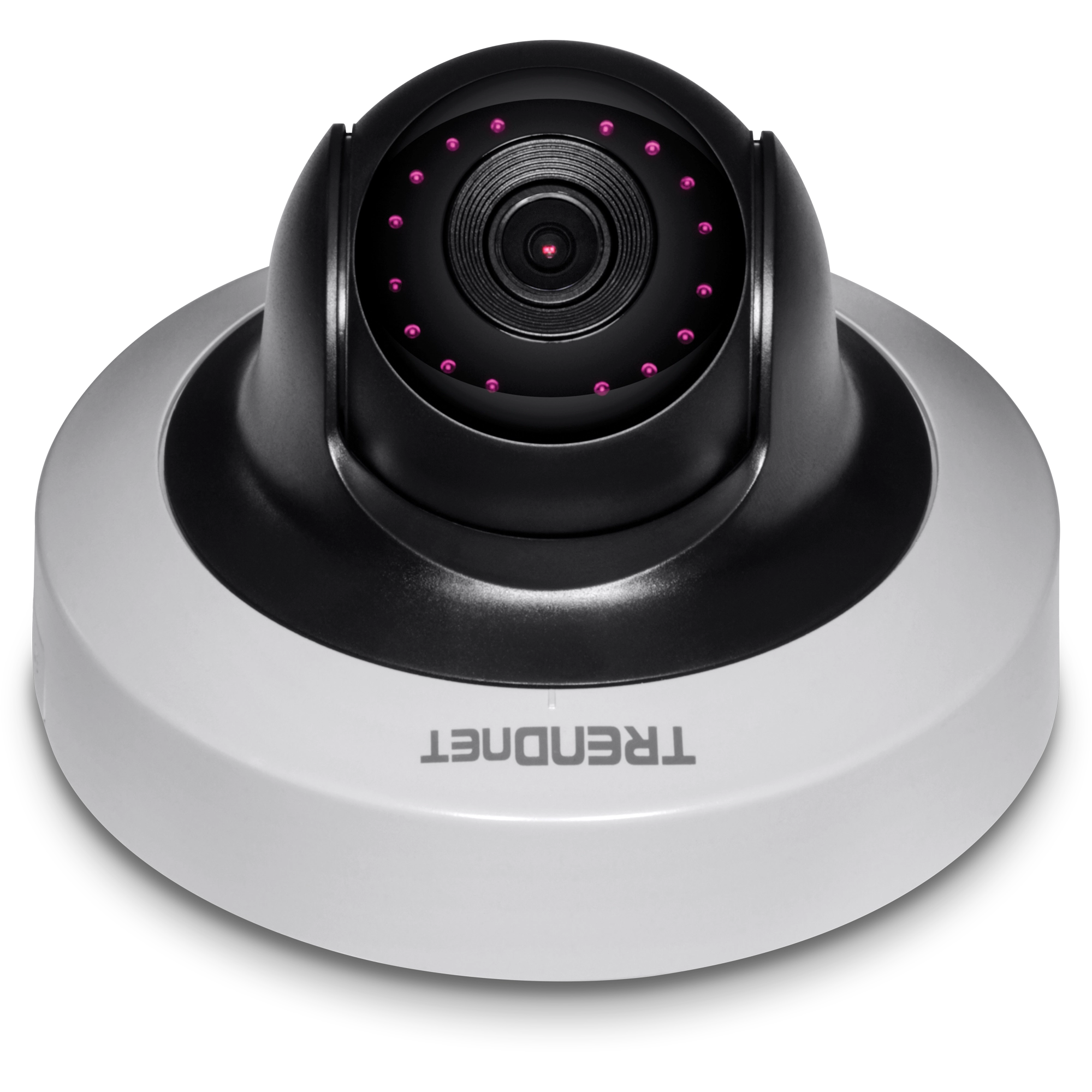

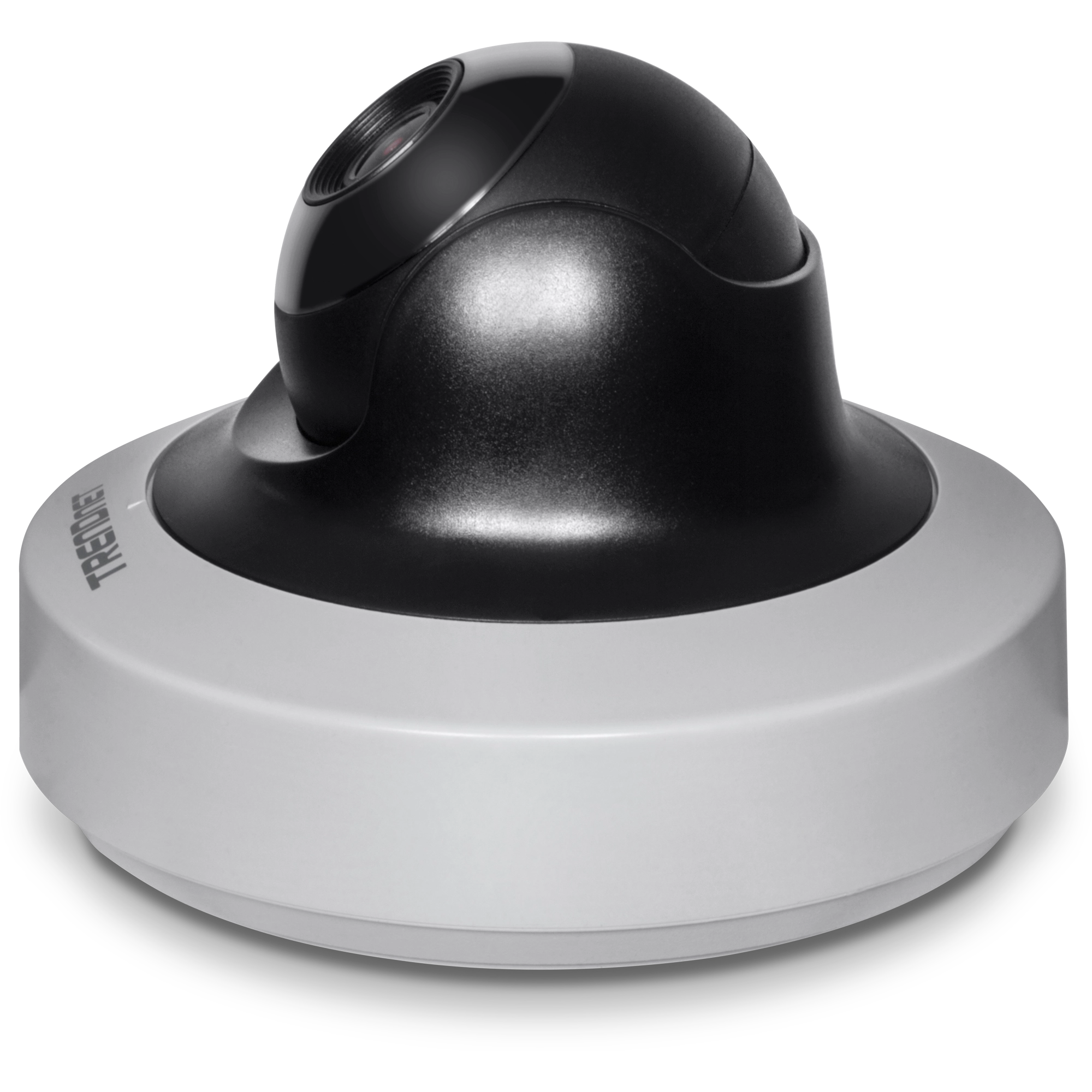

TV-IP410PI Product Photo (PNG Image 1)
PNG Image
File Size: : 2.33 MB
Date: : 2/23/2017
Download
TV-IP410PI Product Photo (PNG Image 2)
PNG Image
File Size: : 2.75 MB
Date: : 2/23/2017
Download
TV-IP410PI Product Photo (PNG Image 3)
PNG Image
File Size: : 3.13 MB
Date: : 2/23/2017
Download
TV-IP410PI Product Photo (PNG Image 4)
PNG Image
File Size: : 2.81 MB
Date: : 2/23/2017
Download
TV-IP410PI Product Photo (PNG Image 5)
PNG Image
File Size: : 1.68 MB
Date: : 2/23/2017
Download
ROHS compliant Non-Disposable
Camera
  • Focal Length: 2.8 @ F2.0
  • Sensor: 1/2.8” CMOS sensor
  • DNR: 3D DNR
  • WDR: 120 dB
  • Mount: M12
Viewing Angle
  • 109.4˚
Pan/Tilt Rotation
  • Pan: -90 ~ 90˚
  • Tilt: 0 ~ 75˚
Minimum Illumination
  • IR off: 0.01 lux
  • IR on: 0 lux
  • 10m distance
  • IR wavelength : 850nm
Resolution
  • H.264/H.264+: 1920 x 1080 up to 25 fps
  • H.264/MJPEG: 640 x 360 up to 30 fps
Hardware Standard
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3af
Device Interface
  • 10/100 Mbps PoE port
  • Micro SD card slot
  • IR LEDs
  • Power jack
Micro-SD slot
  • Supports Micro SD/SDHC/SDXC
  • Up to 128GB
Network Protocol
  • IPv4, IPv6, UDP, TCP / IP, ONVIF, SPIA
  • DHCP, NTP, DDNS, SMTP, FTP, LLTD
  • SNMP v1-v3, QoS / DSCP, IEEE 802.1X
  • NFS, SMB/CIFS, Bonjour
  • HTTP, HTTPS
  • PPPoE
  • UPnP, RTSP, RTP
  • ONVIF Profile S, Profile G, PSIA
Dimension
  • 120 x 87 mm (4.7 x 3.4 in.)
Weight
  • 500 g (1 lb.)
Operating Temperature
  • -10 – 40 °C (-14 – 104 °F)
Humidity
  • Max. 95% non-condensing
Power
  • Input: PoE
  • Consumption: 5W avg. (7W IR on, 9W P/T on)
Power (Power adapter not included)
  • Input: 100 - 240 V AC , 50/60 Hz, 1 A
  • Output: 12 V DC, 1 A external power adapter (for non-PoE installations)
Management Interface
  • Multi-language support: English, French, German, Spanish and Portuguese
  • IP address filter
  • QoS traffic prioritization
  • Time, date, and text overlay
  • Image settings: brightness, contrast, hue, sharpness, Denoise 3D, Shutter time, sense-up, Saturation, AGC (automatic gain control), flip, day/night mode, white balance
  • WDR enhances video quality in high contrast daytime lighting
  • 2D Digital Noise Reduction enhances night vision quality
  • Recording: to computer, NAS, SAMBA, or through software
  • Video Recording: scheduled, motion detection, sound detection, and tamper detection
  • Motion detection: define up to three motion detection areas and motion sensitivity
  • Privacy masks: define custom privacy mask up to 3 areas
  • Tamper detection function: email notification, FTP, SD card, or Samba server if the viewing field darkens suddenly
  • Network disconnection fallback: set to automatically save video to Micro SD card (sold separately) if connection to network is broken
  • Snapshot: real time snapshot, sound detection, and motion detection
  • Supported dynamic DNS services: dyn.com, no-ip.com, and iptecno.com
  • Management setting: maximum 21 user accounts
  • Supports remote management
  • Compatible browsers: Chrome™ or Firefox® (live view resolution up to 640 x 360), Internet Explorer® (live view resolution up to 1920 x 1080)
TRENDnetVIEW EVO Software
  • Supports up to 32 TRENDnet cameras
  • Multiple language support
  • Set recording options (motion detection, schedule, event trigger)
  • Search and playback
  • Custom viewing modes and options
  • Compatibility: Windows® 10, 8.1, Windows Server® 2012, 2008
TRENDnet IPVIEW App
  • Free iOS® and Android™ apps
  • View live camera video on a mobile device
  • Take snapshots
  • Zoom
Certifications
  • CE
  • FCC
Warranty
  • 3 year

PACKAGE CONTENTS
  • TV-IP410PI
  • Quick Installation Guide
  • CD-ROM (Utility, Software, & User's Guide)
  • Camera mounting hardware

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
