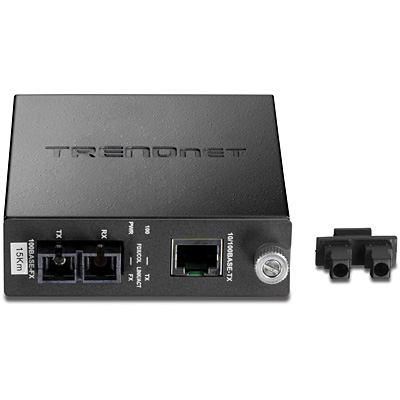

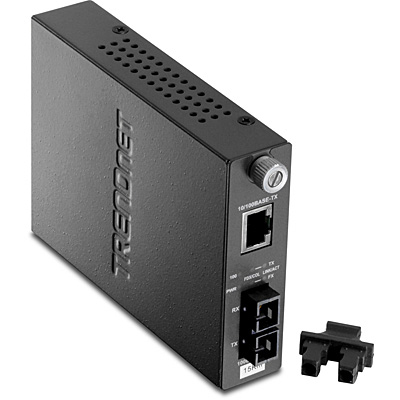

100Base-TX to 100Base-FX Single Mode SC Fiber Converter (Certified Refurbished)

RB-TFC-110S15   (Version v1.0R)

   Select Another Version
  • SC type single-mode fiber port connects over distances of up to 15km
  • 10/100Base-TX port supports Auto-Negotiation, Auto-MDIX and Full-Duplex mode
  • Functions as a stand alone converter or with the TFC-1600 fiber chassis
Datasheet
Datasheet (English)
Filename: EN_Spec_TFC-110S15.pdf
Date
5/6/2011
File Size
1.08 mb
Download Email
Datasheet (Français)
Filename: FR_Spec_TFC-110S15.pdf
Date
5/6/2011
File Size
1.08 mb
Download Email
Datasheet (Deutsch)
Filename: GE_Spec_TFC-110S15.pdf
Date
5/6/2011
File Size
1.09 mb
Download Email
Datasheet (Português)
Filename: PO_Spec_TFC-110S15.pdf
Date
5/6/2011
File Size
87.87 kb
Download Email
Datasheet (Español)
Filename: SP_Spec_TFC-110S15.pdf
Date
5/6/2011
File Size
1.08 mb
Download Email
Datasheet (Pусский)
Filename: RU_Spec_TFC-110S15.pdf
Date
5/6/2011
File Size
1.93 mb
Download Email
Datasheet (Italiano)
Filename: ITA_Spec_TFC-110S15.pdf
Date
5/6/2011
File Size
1.12 mb
Download Email
Quick Installation Guide
Quick Installation Guide (English)
Filename: EN_Web_TFC-110 Series_Fiber_Converters_102012.pdf
Date
11/19/2012
File Size
4.21 mb
Download
Quick Installation Guide (Français)
Filename: FR_Web_TFC-110 Series_Fiber_Converters_102012.pdf
Date
11/19/2012
File Size
4.17 mb
Download
Quick Installation Guide (Deutsch)
Filename: GE_Web_TFC-110 Series_Fiber_Converters_102012.pdf
Date
11/19/2012
File Size
3.68 mb
Download
Quick Installation Guide (Português)
Filename: PO_Web_TFC-110 Series_Fiber_Converters_102012.pdf
Date
11/19/2012
File Size
4.17 mb
Download
Quick Installation Guide (Español)
Filename: SP_Web_TFC-110 Series_Fiber_Converters_102012.pdf
Date
11/19/2012
File Size
3.68 mb
Download
Quick Installation Guide (Pусский)
Filename: RU_Web_TFC-110 Series_Fiber_Converters_102012.pdf
Date
11/19/2012
File Size
4.58 mb
Download
Quick Installation Guide (Eesti)
Filename: EST_Web_TFC-110 Series_Fiber_Converters_102012.pdf
Date
11/19/2012
File Size
4.20 mb
Download
Product Images

JPEG Image
File Size: 437.28 kb
Date: 9/20/2004
Download

TIFF Image
File Size: 4.14 mb
Date: 9/20/2004
Download

JPEG Image
File Size: 2.24 mb
Date: 8/10/2006
Download

TIFF Image
File Size: 8.78 mb
Date: 8/10/2006
Download
Hardware
Standards: IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX
Supported Frame Size: Standard Ethernet up to 1522-Byte
Network Media:
  • 100Base-TX: Cat. 5, EIA/TIA-568 100-ohm UTP/STP, up to 100 meters.
  • 100Base-FX: Single-Mode fiber optic cable 9/125 or 10/125 µm, up to 15 Km.
Wavelength: 1310nm
Protocol: CSMA/CD
Ports:
  • 1 x 10/100Base-TX
  • 1 x 100Base-FX
Data Transfer Rate: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)
Diagnostic LEDs: Power, Link/Activity, Full-Duplex, and Speed
Power Adapter: 7.5VDC, 1.5A (7.2 watts max.)
Temperature:
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity:
  • Operating: 10% ~ 90%
  • Storage: 5% ~ 90% (non-condensing)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
