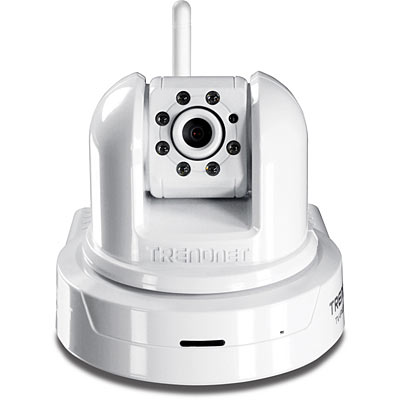

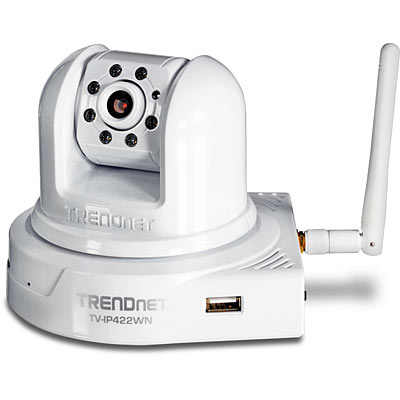

SecurView Wireless N Day/Night Pan/Tilt/Zoom Network Camera

TV-IP422WN   (Version V1.0R)

  • Night vision of up to 5 m (16 ft.)
  • High speed wireless n connection
  • Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection
  • Program motion detection recording and email alerts with complimentary software

DISCONTINUED PRODUCT

The TV-IP422WN (Version V1.0R) has been discontinued. It has been replaced by the TV-IP460PI (Version v1.0R). For a list of discontinued products, click here.

Utility

Filename: Utility_IPSetup(v1.0.0.9).zip
SHA-1 Checksum: DF2576962235590F425CAB35246A68886DD0C6C9
Date: 7/27/2017
File Size: 700.14 KB
Filename: SecurViewPro(v2.0.0.0)_08292011.zip
SHA-1 Checksum: 73065E14971D00A27ACF41BFA88C643EA081CFBE
Date: 7/27/2017
File Size: 76.79 MB

Firmware

DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: V1.1.1 build 29
Release Date: 1/2015
Note:

  1. Fix ActiveX buffer overflow issue
  2. Apply new security key to ActiveX/java applet

Note:

  • The new firmware natively works with Internet Explorer 10. If you have Internet Explorer 11 or higher version. Please add the camera on the compatibility setting list.
  • Please change the Java setting with Java Control app to turn off blocking self-signing apps.
  • More details included in the firmware upgrade instruction file.

Filename: FW_TV-IP422WN_V1(1.1.1.29).zip
SHA-1 Checksum: 9C36A61B4541D9A7E9879475D46F2C0983FB7376
Date: 7/27/2017
File Size: 4.72 MB

Software

Software Version: 2.5.9
Release Date: 4/2017
Notes:

  • Fixed TV-IP420P P/T issue

Filename: TRENDnetViewPro(2.5.9).zip
SHA-1 Checksum: 7CD1D9AE621816395E9FE9644B651F3696388215
Date: 7/27/2017
File Size: 41.15 MB

Datasheet

Filename: EN_spec_TV_IP422WN(v1.0R).pdf
Date: 9/6/2013
File Size: 516.32 KB
Filename: FR_spec_TV_IP422WN(v1.0R).pdf
Date: 9/6/2013
File Size: 522.40 KB
Filename: GE_spec_TV_IP422WN(v1.0R).pdf
Date: 9/6/2013
File Size: 504.94 KB
Filename: SP_spec_TV_IP422WN(v1.0R).pdf
Date: 9/6/2013
File Size: 519.48 KB
Filename: RU_spec_TV_IP422WN(v1.0R).pdf
Date: 9/6/2013
File Size: 484.58 KB
Filename: IT_spec_TV_IP422WN(v1.0R).pdf
Date: 9/6/2013
File Size: 514.54 KB

Quick Installation Guide

Filename: EN_Web_TV-IP422WN(1.01).pdf
Date: 3/30/2011
File Size: 2.50 MB
Filename: FR_Web_TV-IP422WN(1.01).pdf
Date: 3/30/2011
File Size: 2.54 MB
Filename: GE_Web_TV-IP422WN(1.01).pdf
Date: 3/30/2011
File Size: 1.89 MB
Filename: PO_Web_TV-IP422WN(1.01).pdf
Date: 3/30/2011
File Size: 1.85 MB
Filename: SP_Web_TV-IP422WN(1.01).pdf
Date: 3/30/2011
File Size: 1.89 MB
Filename: RU_Web_TV-IP422WN(1.01).pdf
Date: 3/30/2011
File Size: 2.90 MB
Filename: EST_Web_TV-IP422WN(1.01).pdf
Date: 3/30/2011
File Size: 1.63 MB

User's Guide

Filename: UG_SecurViewPro.pdf
Date: 6/5/2012
File Size: 4.66 MB
Filename: UG_TV-IP422WN(1.01).pdf
Date: 3/30/2011
File Size: 6.22 MB

Product Images

JPEG Image
File Size: : 52.30 KB
Date: : 3/30/2011
JPEG Image
File Size: : 252.42 KB
Date: : 3/30/2011
JPEG Image
File Size: : 367.62 KB
Date: : 3/30/2011
JPEG Image
File Size: : 293.29 KB
Date: : 3/30/2011
TIFF Image
File Size: : 3.66 MB
Date: : 3/30/2011
TIFF Image
File Size: : 17.33 MB
Date: : 3/30/2011
TIFF Image
File Size: : 4.38 MB
Date: : 3/30/2011
TIFF Image
File Size: : 3.29 MB
Date: : 3/30/2011
ROHS compliant WEEE crossed-out bin symbol.
OverviewPlease ensure you have followed the quick installation guide and have the camera setup and accessible on your home/office network. The following instructions are going to outline how to make a SecurView camera accessible over the Internet. We will start by assigning a unique static IP addres...
The files cannot be accessed through the camera. Dismount the USB memory stick from the camera and connect it to your computer....
The USB page does not automatically update, press Control + F5 simultaneously to refresh the page.
The USB stick may not be formatted in FAT, to check connect USB stick to your computer. Go to My Computer right click on the USB stick go to Properties look for File System....
Unfortunately due to the IR lights causing a reflection from an ensclosures dome when there is not enough light we do not recommend using the TV-IP422WN in an enclosure....
No, unfortunately the IR lights do not have a manual switch. They will activate automatically when there is not enough light....
Log into the camera and click on Setup then click on Event Server>Network Storage on the left hand side. Enter your Samba server information here. After applying the Samba server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uplo...
The camera must be configured properly to have Internet access.  This includes making sure you have entered a valid default gateway address for the camera and valid DNS server entries to ensure it can resolve names.   ...
TRENDnet offers TREDnet VortexIP, an advanced Server-based IP camera management software solution designed for small, medium and large enterprise applications and packed full of advanced security features.    You can find more information regarding TRENDnet VortexIP here. https://www.TRENDnet.com/...
By default the camera uses TCP port 80. Forward this port in your router or firewall to the camera.
Unfortunately SecurView is not compatible with Macintosh operating systems.
The camera can be configured from a Macintosh through its web-based configuration page.  The camera's web configuration page can be reached by entering its IP address into a web browser.  For example, if the IP address is 192.168.10.30 you would access it by opening your web browser and entering htt...
The camera's web configuration page can be reached by entering its IP address into a web browser.  For example, if the IP address is 192.168.10.30 you would access it by opening Internet Explorer and entering https://192.168.10.30 into the address line....
The camera by default is configured to receive an IP address via DHCP. If it is unable to receive an IP address via DHCP it will default to 192.168.10.30. You can use the IP Setup Utility to find and change the IP address of the camera as well. ...
Log into the camera and click on Setup. Click on Motion Detect on the left hand side. On this page you can setup two motion detection windows. Under "Window" you can select either 1 or 2. Place a check in "Enable" to turn on motion detection. You can adjust the threshold for each window individually...
Warning: Firmware upgrade failure may permanently damage the unit and cause it to malfunction. Do not interrupt the firmware upgrade process by disconnecting it from the network or unplugging its power from the power outlet once the firmware upgrade process has begun. Never perform a firmware upgr...
Log into the camera and click on Setup then click on Event Server>Email on the left hand side. Enter your email server and user information here. After applying the email server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uploa...
Log into the camera and click on Setup then click on Event Server>FTP on the left hand side. Enter your FTP server information here. After applying the FTP server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uploading and GPIO ...
Once you have the camera configured on your network start SecurView.  Click on the "Settings" button then click on the "Add Camera" button.  It will search your network for any supported cameras and display a list of them.  Highlight the camera you want to view in SecurView then click "Add Camera". ...
The supported browsers are Internet Explorer 6.0 or above.
Press and hold in the reset button on the back of the camera for approximately 10 seconds while the power is on to restore the factory default settings. ...
The orange LED is a power light. It should be a steady orange light when power is applied to the camera. The green LED is a link light. It should be green and blinking when sending and receiving data. ...
  Log into the camera by entering the camera's IP address into your browser.  The default IP address is https://192.168.10.30.  The default username and password are both "admin". Once you have logged into the camera do the following. -Click Setup -Click Basic>User You can define...
Log into the camera by entering the camera's IP address into your browser.  The default IP address is https://192.168.10.30.  The default username and password are both "admin". Once you have logged into the camera do the following. -Click Setup. -Click Network>Wireless. -Click the S...
Yes, the camera does support DDNS (Dynamic DNS).     Dynamic DNS services will allow you to maintain a single hostname for the camera, even if your ISP changes your WAN IP address.  The camera will update the DDNS record to reflect the new IP address.  This ensures that each time you go to the hostn...
You will need to forward the port that the camera is using in the router to the camera.   By default this is TCP port 80.  From a remote location you would enter in the public or WAN IP address of your router into your browser or add it to SecurView using the public IP address.  Refer to your rou...
Camera
General Sensor: 1/4" color CMOS sensor
Resolution: 640 x 480 pixels
Board Lens
Focal Length: 4.0mm
Aperture (F/No): F1.8
IR LED with light sensor control
Minimum illumination: 0 Lux
Diagonal viewing angle: 64 degree
Pan & Tilt
  • Pan: +165~-165 degree
  • Tilt: +90 ~ -15 degree
  • Preset positions: 8 positions
Image & Video
  • Compression: MPEG-4/MJPEG dual streaming
  • Exposure/white balance/Gain Control : automatic
  • Resolution: up to 30ps for VGA (640x480), 30fps for QVGA (320x240), 30fps for QQVGA (160x120)
Audio
  • Audio in: internal omni-directional microphone
  • Sensitivity: -48dB +/- 3dB
  • Frequency response: 50 ~ 16000Hz
  • Audio out: external output to active speaker (mono)
  • Echo Cancellation: hardware voice processor
  • Audio codec: PCM/AMR
Hardware
Network IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
LEDPower, Link
IR wavelength940nm
Reset ButtonRestore to factory default
WPS ButtonPush button for Wi-Fi Protected Setup
Power Consumption10 watts max.
Power12 V DC, 1.5 A external power adapter (3.5 mm plug)
Dimension115 x 110 x 105 mm (4.53 x 4.33 x 4.13 in)
Weight360 g (12.6 oz)
Temperature
  • Operating: 0°C ~ 45°C (32°F ~ 113°F)
  • Storage: -15°C ~ 60°C (5°F ~ 140°F)
HumidityMax. 90% (non-condensing)
CertificationsCE, FCC
Requirement
Management InterfaceInternet Explorer 6.0 or above
To Run SecurView ProWindows 7 (32/64 bit), Vista (32/64 bit), XP (32/64 bit)
SecurView ProChannel: supports up to 32 cameras
Record/Playback/Motion Detection
Network ProtocolsTCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
Wireless
StandardBased on IEEE 802.11n technology
IEEE 802.11g/b compliant
Frequency2.4 ~ 2.4835GHz
Antenna1 x 2dBi dipole antenna (Reverse-SMA connector)
Data Rate (auto fallback)
  • 802.11n: up to 150Mbps
  • 802.11g: up to 54Mbps
  • 802.11b: up to 11Mbps
Security64/128-bit WEP, WPA/WPA2-PSK
Output Power
  • 802.11n: 15 + 1 dBm
  • 802.11b: 15 + 1 dBm
  • 802.11g: 18 + 1 dBm
Receiving Sensitivity
  • 802.11n HT20: -67dBm
  • 802.11n HT40: -64dBm
  • 802.11g: -70dBm
  • 802.11b: -87dBm
Channel1~11 (FCC), 1~13 (ETSI)
Management
RemoteRemote management supported
Backup / RestoreSave/retrieve configuration files
Settings
RecordingRecording type: continuous, schedule or motion detection with software
Multi-Profile3 profiles simultaneously
Port SettingsHTTP port: 80 (default)
Digital Zoom3x
Dynamic DNSYes
TimeSynchronize with NTP server or set time/date manually
SMTPSMTP mail supported up to 2 accounts with software
System Log100 entries (max.)

PACKAGE CONTENTS

  • TV-IP422WN
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Power adapter (12V DC, 1.5A)
  • Network cable (1.8 m/5.9 ft.)
  • Mounting stand

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
