7-Port Industrial Gigabit PoE++ DIN-Rail Switch

TI-UPG62   (Version V3)

   Select Another Version
  • 4 x Gigabit PoE++ ports
  • 1 x Gigabit port
  • 2 x Gigabit SFP slots
  • Up to 240W PoE power budget
  • Hardened IP30 rated metal switch
  • Extreme operating temperature range of -40° – 75°C (-40° – 167°F)
  • Dual inputs provide redundant power with overload current protection
  • Alarm relay triggered by power failure
  • 14Gbps switching capacity
  • Includes DIN-Rail mount and wall-mount brackets
  • Power supply sold separately (model: TI-S24048, TI-S48048)
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-UPG62_(v3.xR).pdf
Date: 10/6/2025
File Size: 3.59 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-UPG62_(v3.xR).pdf
Date: 10/6/2025
File Size: 3.60 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-UPG62_(v3.xR).pdf
Date: 10/6/2025
File Size: 3.64 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-UPG62_(v3.xR).pdf
Date: 10/6/2025
File Size: 3.68 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-UPG62_(v3.xR).pdf
Date: 10/6/2025
File Size: 3.66 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-UPG62_(v3.xR).pdf
Date: 10/6/2025
File Size: 3.71 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: lineart_qig_TI-UPG62(v3.0R)_081425.pdf
Date: 10/6/2025
File Size: 3.38 MB
Download

Product Images

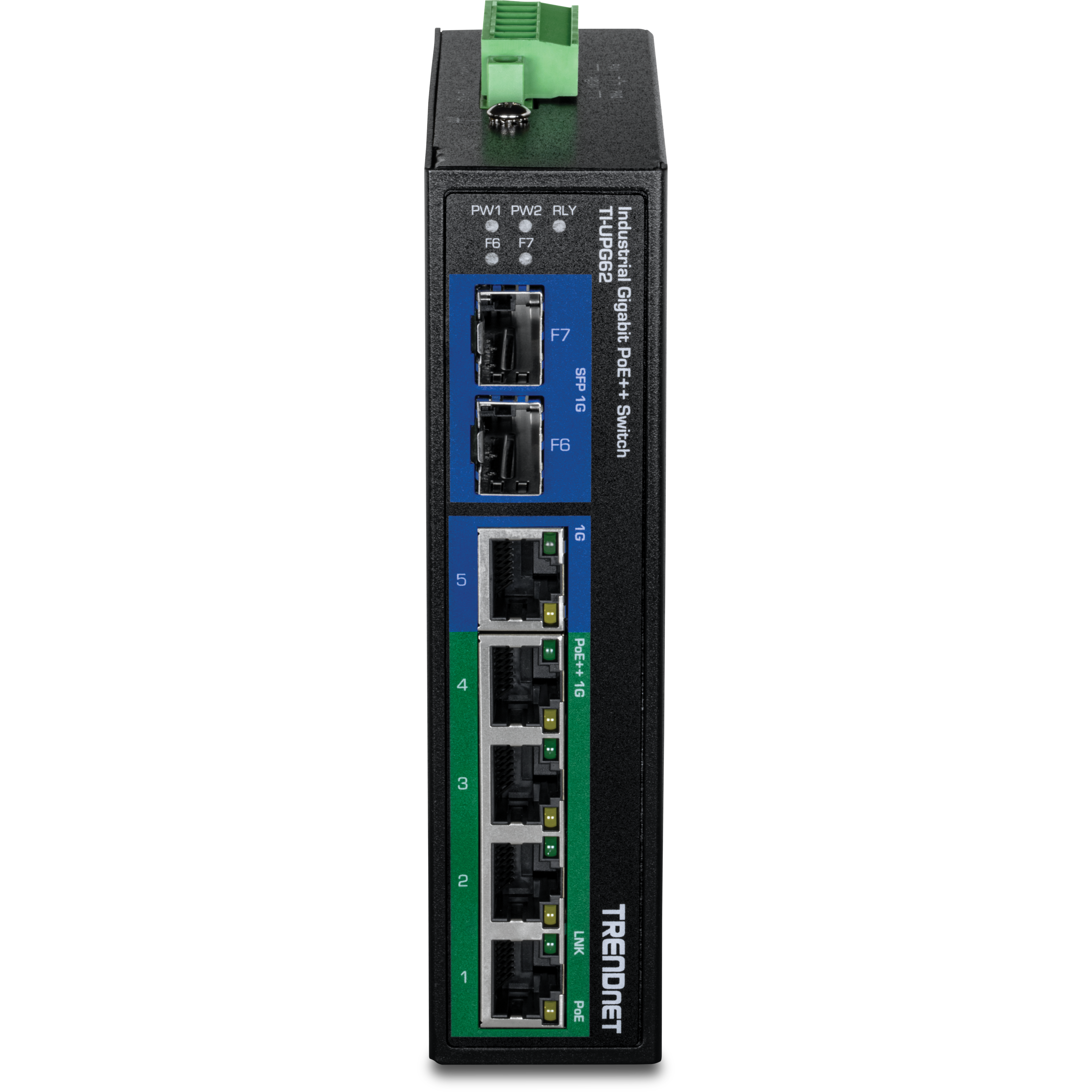

TI-UPG62 Product Photo (PNG Image 1)
PNG Image
File Size: : 6.32 MB
Date: : 10/6/2025
Download

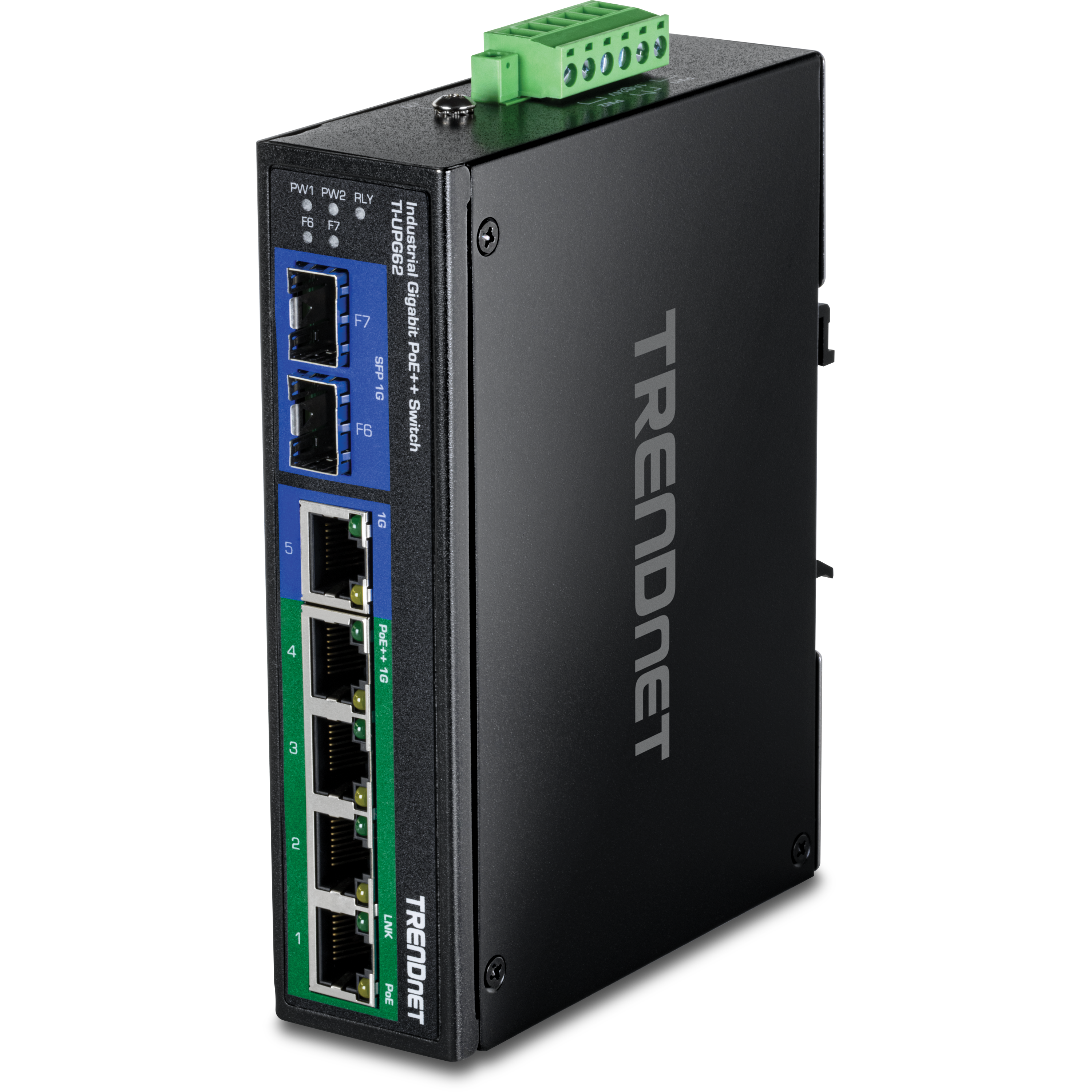

TI-UPG62 Product Photo (PNG Image 2)
PNG Image
File Size: : 3.31 MB
Date: : 10/6/2025
Download
TI-UPG62 Product Photo (PNG Image 3)
PNG Image
File Size: : 6.59 MB
Date: : 10/6/2025
Download
TI-UPG62 Product Photo (PNG Image 4)
PNG Image
File Size: : 6.37 MB
Date: : 10/6/2025
Download
TI-UPG62 Product Photo (PNG Image 5)
PNG Image
File Size: : 6.35 MB
Date: : 10/6/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Device Interface
  • 4 x Gigabit PoE++ ports (10/100/1000Mbps)
  • 1 x Gigabit port (10/100/1000Mbps)
  • 2 x Gigabit SFP ports (1000Mbps)
  • 6-pin removable terminal block
  • LED indicators
Performance
  • Data RAM Buffer: 256KB
  • Switching Fabric: 14Gbps
  • MAC Address Table: 4K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 10.416Mpps (64-byte packet size)
DC Power
  • Input: 52 - 56V DC
  • Compatible power supply: TI-S24048 (sold separately)
  • Max. consumption: 4.48W @ 56V DC (no PD)
PoE
  • 802.3af PoE: up to 15.4W per port
  • 802.3at PoE+: up to 30W per port
  • 802.3bt PoE++: up to 95W per port
  • Power budget: 240W
  • Pins 1, 2, 7, 8 for power - and 3, 6, 4 5 for power +

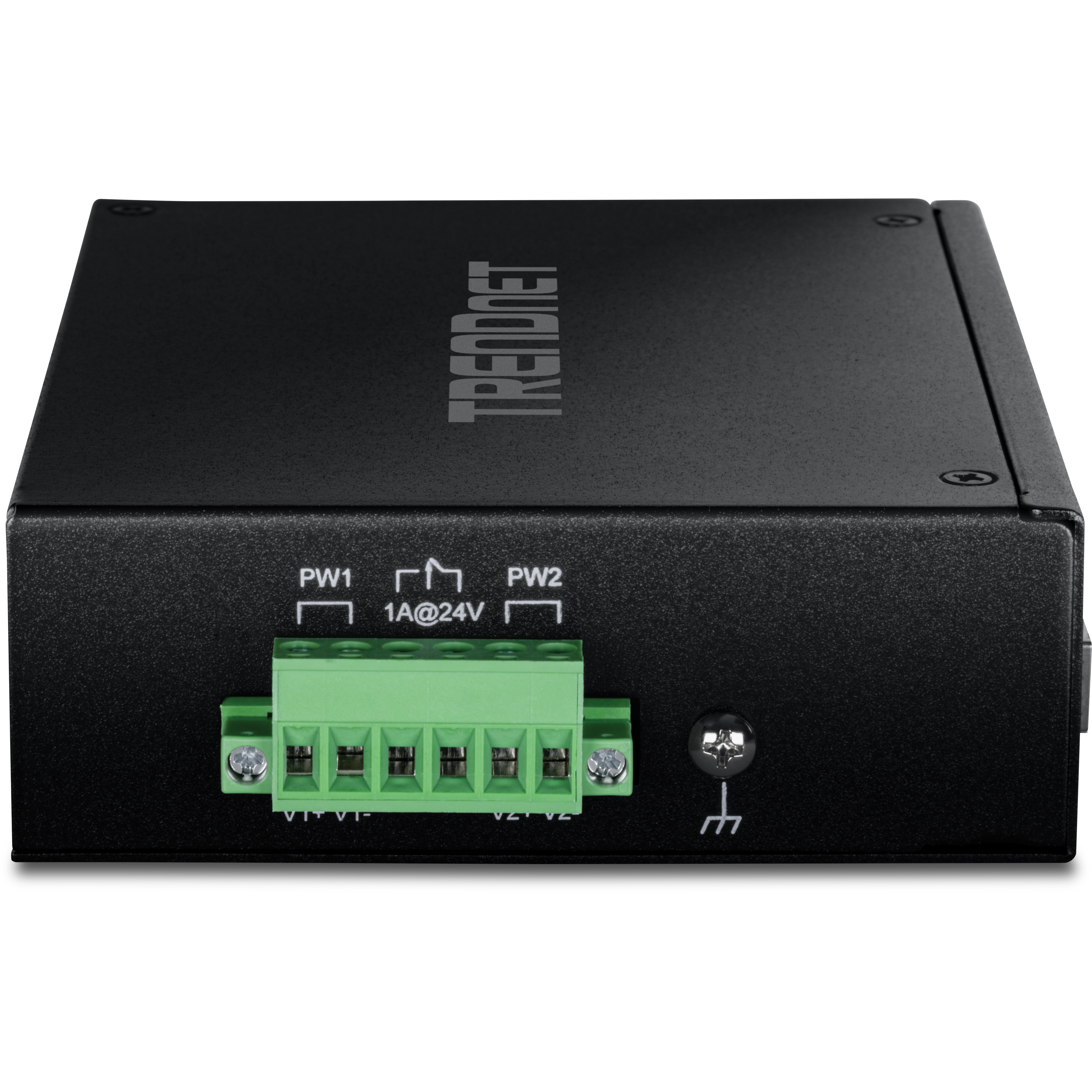

Terminal Block
  • 6-pin terminal block
  • Alarm Relay: 1A @ 24V DC
  • Wire range: 2.5mm2
  • Solid wire (AWG): 12-24
  • Stranded wire (AWG): 12-24
  • Torque: 5 lb. – In / 0.5Nm (North America) / 0.56 Nm (EU)
  • Wire strip length: 7-8mm
MTBF
  • 1,285,091 hours @ 25°C
Housing
  • IP50 metal case

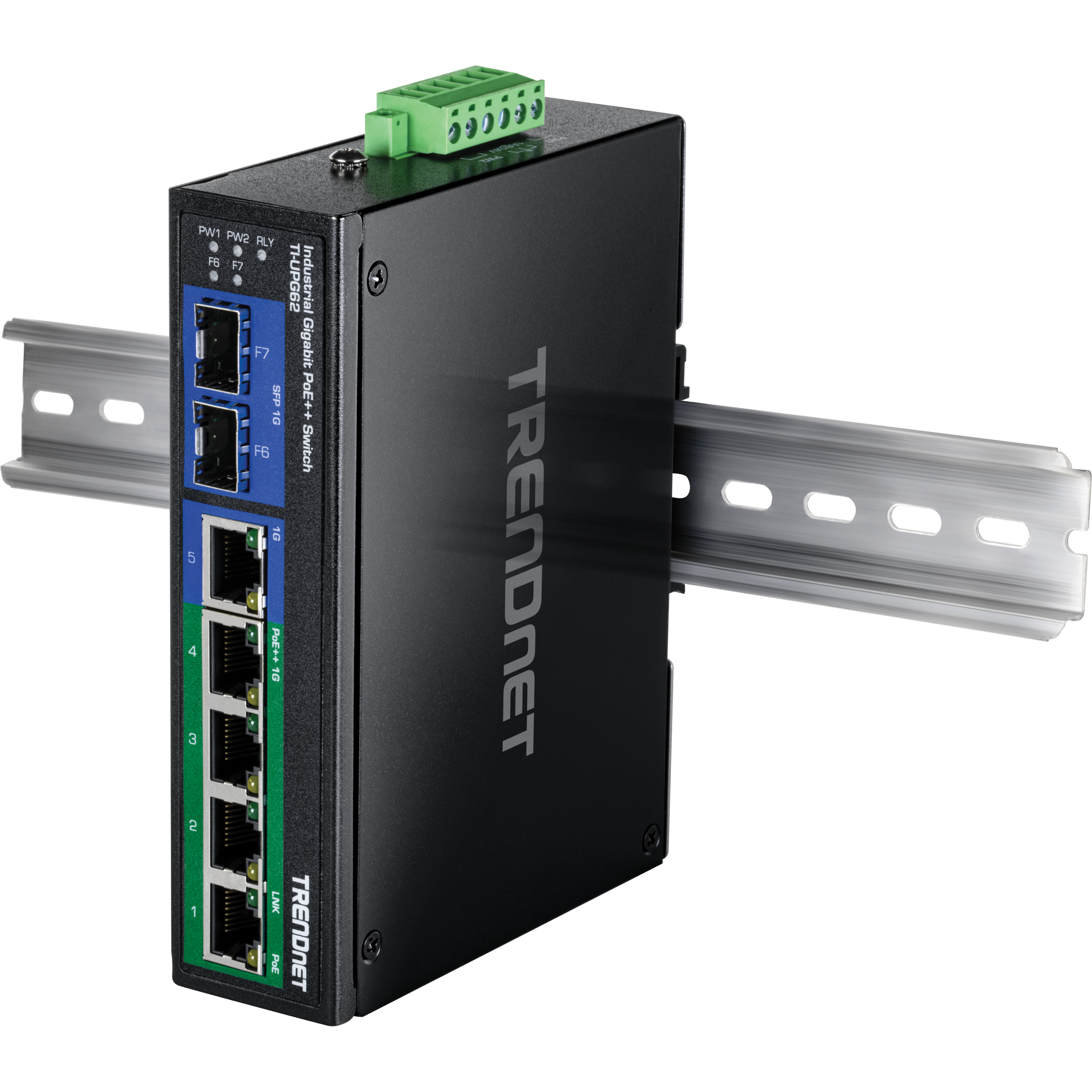

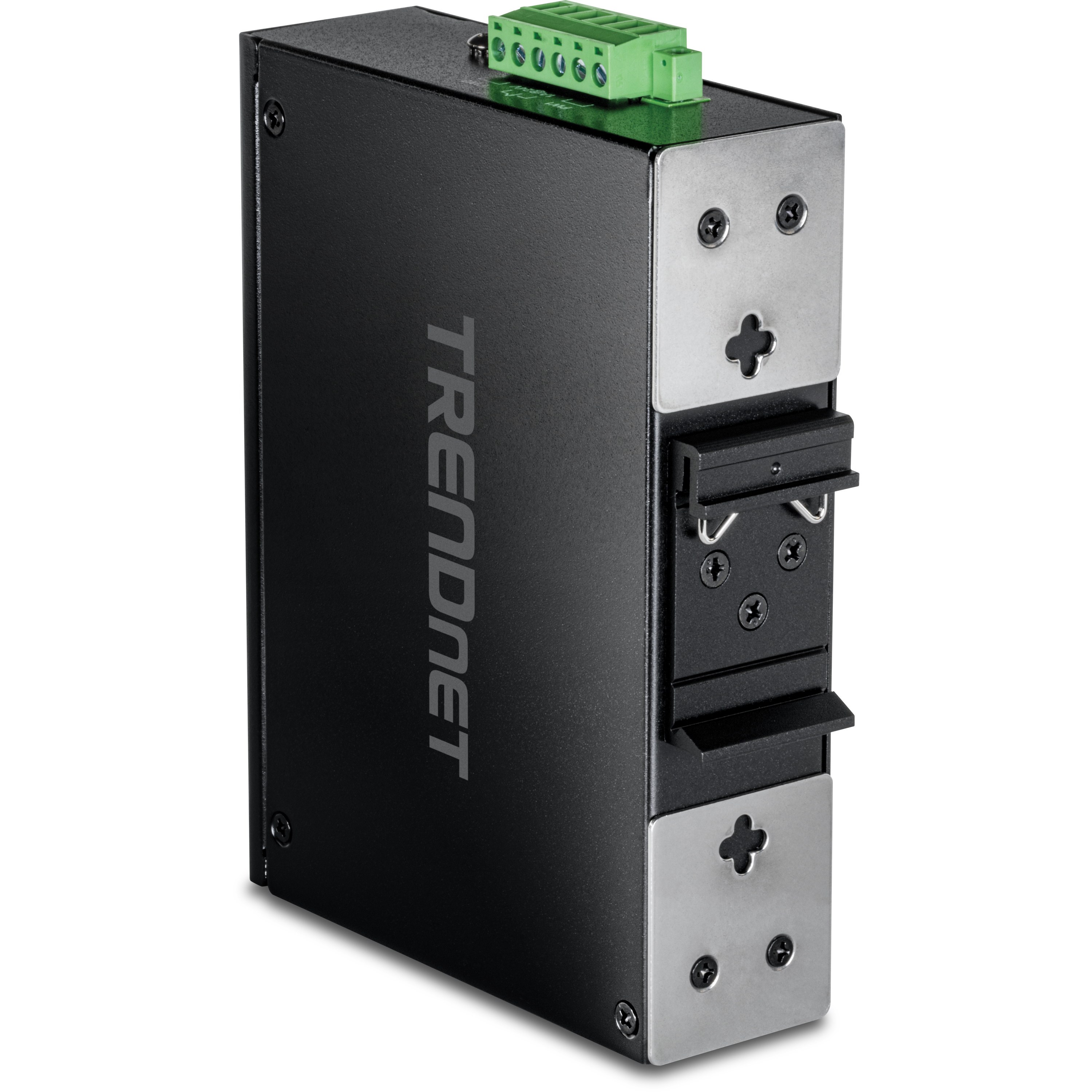

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6KV ESD protection
  • 2kV Surge protection
Operating Temperature
  • - 40° – 75° C (-40 – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 142 x 105 x 36.2mm (5.6 x 4.13 x 1.42 in.)
Weight
  • 300g (10.6 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
Warranty

PACKAGE CONTENTS
  • TI-UPG62
  • Quick Installation Guide
  • Removable terminal block
  • DIN-Rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
