10-Port 2.5G Switch with 10G SFP+ Ports

TEG-S5091   (Version V2)

   Select Another Version
  • 8 x 2.5G RJ45 ports
  • 2 x 10G SFP+ ports
  • Compatible with existing Cat5e or better cabling
  • Backward compatible SFP speeds of 1000Mbps
  • Fanless design eliminates noise

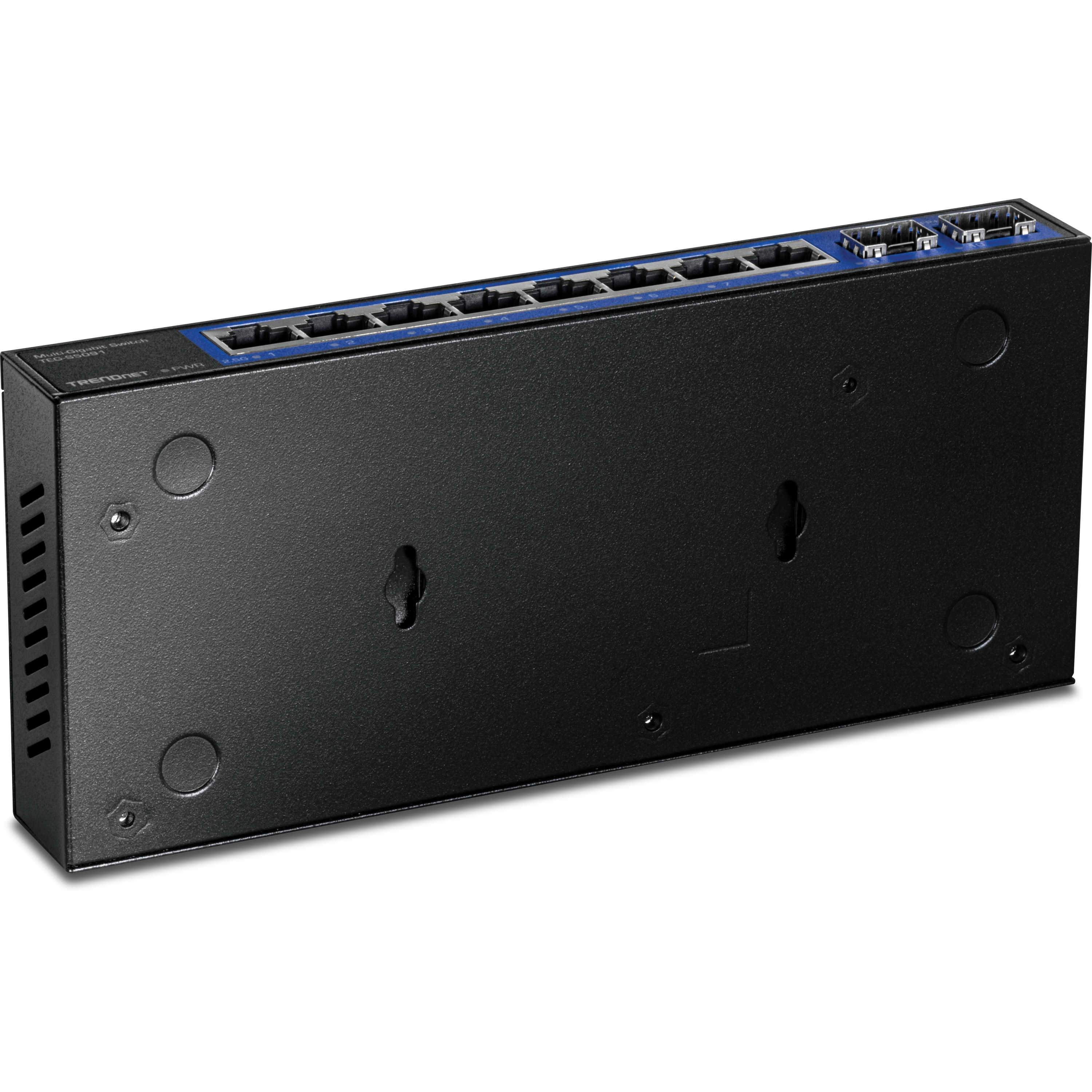

  • Wall mountable for installation flexibility
  • 80Gbps switching capacity
  • IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 8 x 2.5G RJ45 ports (100Mbps/1Gbps/2.5Gbps)
  • 2 x 10G SFP+ ports (1Gbps/10Gbps)
  • LED indicators
Performance
  • Switching Capacity: 80Gbps
  • RAM Buffer: 1MB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 59.52Mpps (64-byte packet size)
  • Jumbo Frames: 10KB
Special Features
  • Wall mountable
Power
  • Input: 90 – 264V AC, 50/60 Hz, 0.2A
  • Output: 12V DC, 1A external power adapter
  • Max. Consumption: 10.2W
Fan/Acoustics
  • Fanless design
MTBF
  • 793,494 hours @ 25° C
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 193 x 84 x 26mm (7.6 x 3.3 x 1.02 in.)
Weight
  • 426g (15 oz.)
Certifications
  • FCC
  • CE
  • LVD
Warranty

PACKAGE CONTENTS
  • TEG-S5091
  • Power adapter (12V DC, 1A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
