16-Port 30 Watt 10/100Mbps PoE+ Switch

TPE-T160   (Version v1.1R)

   Select Another Version
  • 30 watts per PoE+ port
  • Up to 30 W per port with 480 W total power budget
  • Reduces equipment cost by delivering data and power over existing network cables
  • 16 x 10/100Mbps PoE+ ports
  • 3.2 Gbps switching capacity
  • Sturdy 1U 19” wide rack mountable metal enclosure
  • Up to 75% GREENnet power savings
  • Lifetime Warranty*

Datasheet

Datasheet (English)
Filename: EN_spec_TPE-T160(v1.1R).pdf
Date: 6/5/2017
File Size: 488.90 KB
Download Email
Datasheet (Français)
Filename: FR_spec_TPE-T160(v1.1R).pdf
Date: 6/5/2017
File Size: 467.57 KB
Download Email
Datasheet (Deutsch)
Filename: GE_spec_TPE-T160(v1.1R).pdf
Date: 6/5/2017
File Size: 469.45 KB
Download Email
Datasheet (Português)
Filename: PO_spec_TPE-T160(v1.1R).pdf
Date: 6/5/2017
File Size: 508.42 KB
Download Email
Datasheet (Español)
Filename: SP_spec_TPE-T160(v1.1R).pdf
Date: 6/5/2017
File Size: 486.98 KB
Download Email
Datasheet (Pусский)
Filename: RU_spec_TPE-T160(v1.1R).pdf
Date: 6/5/2017
File Size: 478.99 KB
Download Email
Datasheet (Italiano)
Filename: IT_spec_TPE-T160(v1.1R).pdf
Date: 6/5/2017
File Size: 503.49 KB
Download Email

Quick Installation Guide

Quick Installation Guide (EUNL)
Filename: Web_EUNL_TPE-T160(V1.1R).pdf
Date: 6/5/2017
File Size: 594.84 KB
Download
Quick Installation Guide (English)
Filename: Web_QIG_TPE-T160(V1.0R).pdf
Date: 6/5/2017
File Size: 1.41 MB
Download

Product Images

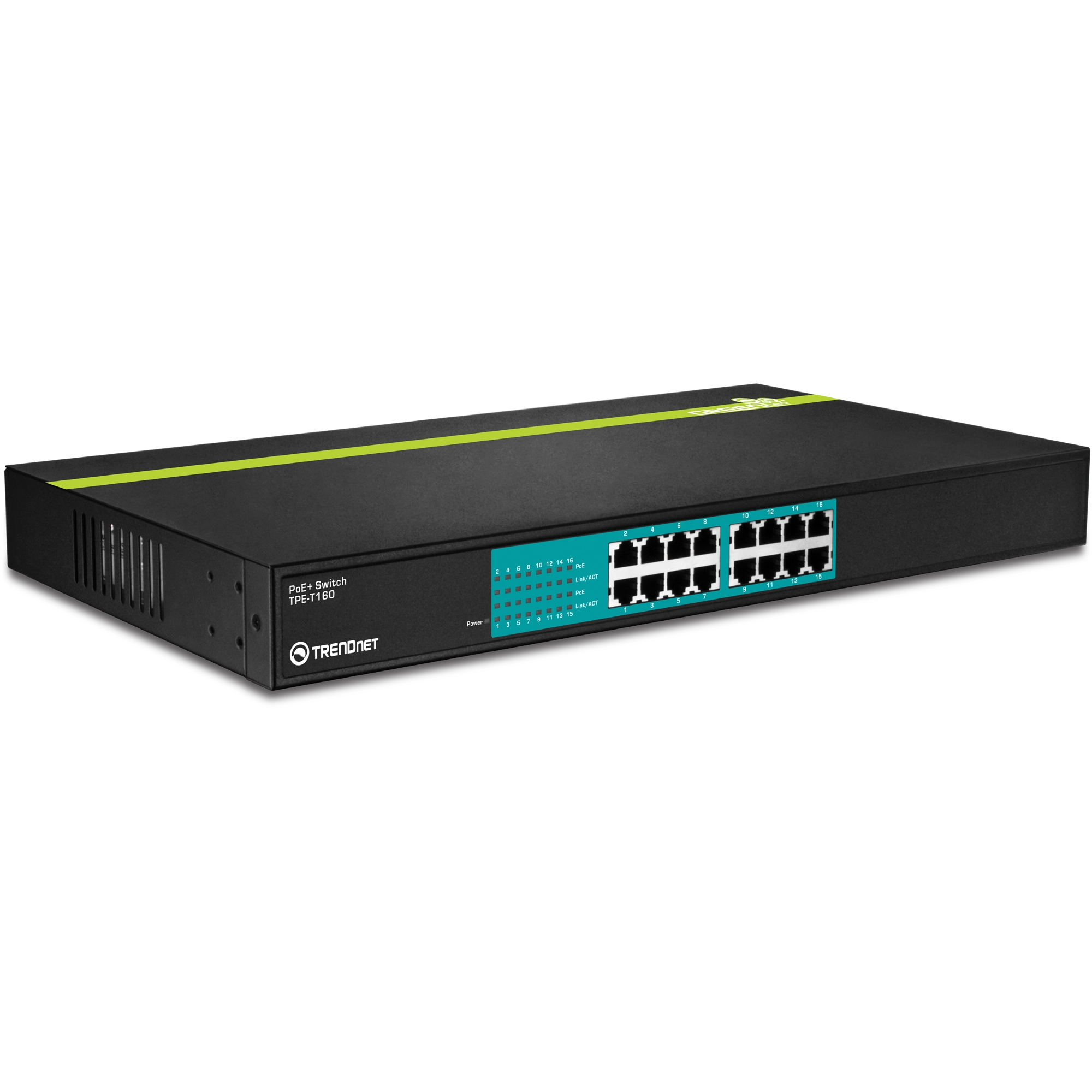

TPE-T160 Product Photo (PNG Image 1)
PNG Image
File Size: : 941.77 KB
Date: : 6/5/2017
Download

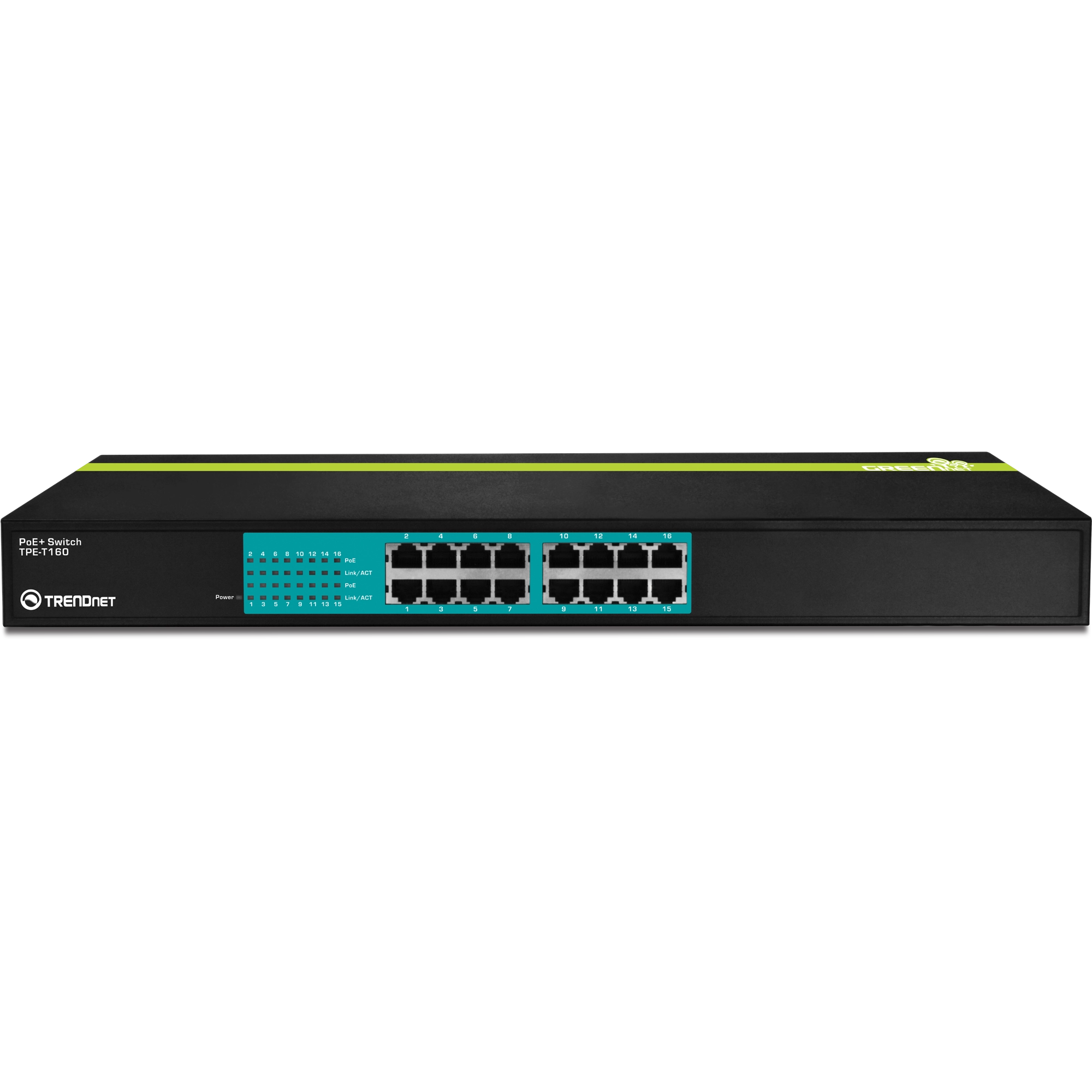

TPE-T160 Product Photo (PNG Image 2)
PNG Image
File Size: : 634.44 KB
Date: : 6/5/2017
Download

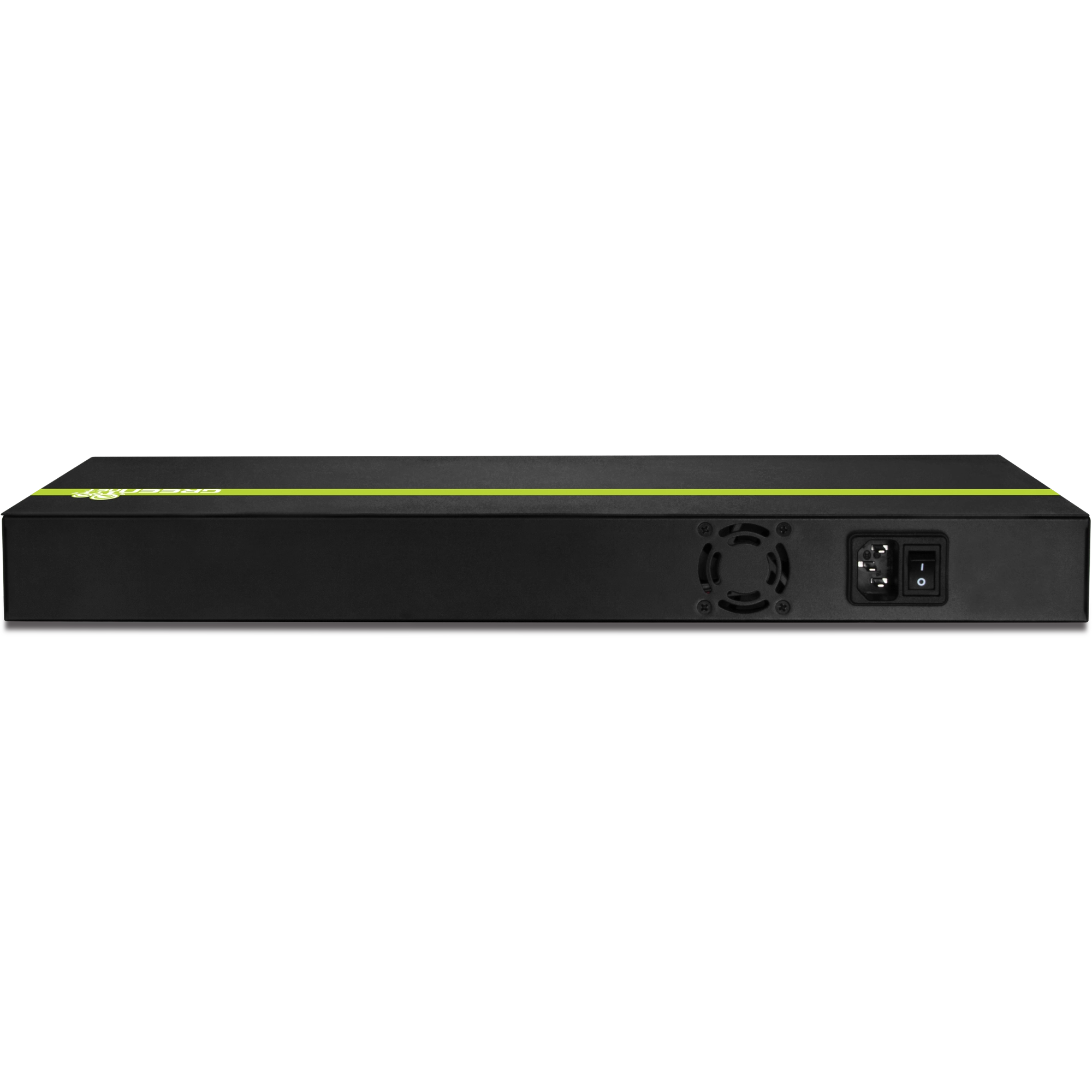

TPE-T160 Product Photo (PNG Image 3)
PNG Image
File Size: : 585.92 KB
Date: : 6/5/2017
Download
ROHS compliant Non-Disposable
What is the maximum Ethernet cable length that can be used with the TPE-T80 and TPE-T160?
The maximum Ethernet cable length is 100 meters (328ft).
My powered device is not receiving power from the TPE-T80 or TPE-T160. What should I check?
Please ensure the TPE-T80 or TPE-T160 is plugged in and that the Ethernet cable is Cat5e or higher. Please also ensure the cable is a known working cable. For the TPE-T80 please also check the dip switch on the front panel and make sure it is on....
Will the TPE-T80 and TPE-T160 power standard 802.3af PoE devices?
Yes, the TPE-T80 and TPE-T160 will power standard 802.3af PoE devices. The switch will automatically identify the powered device and provide the correct amount of power....
Hardware
Standard
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3at Power over Ethernet (PoE+)
  • IEEE 802.3af Power over Ethernet (PoE)
  • IEEE 802.3x Flow Control
Ports
  • 16 x 10/100Mbps Auto-MDIX PoE+ ports
Data Transfer Rate
  • Ethernet: 10/20Mbps (half/full duplex)
  • Fast Ethernet: 100/200Mbps (half/full duplex)
Data RAM Buffer
  • 1.5Mbits
Address Table
  • 4K MAC entries
Switch Fabric
  • 3.2 Gbps
Power
  • 90~260V AC 50/60Hz, internal universal switching power
Diagnostic LEDs
  • Power, PoE, Link/Activity
Power Consumption
  • Min: 10 Watts (standby)
  • Max: 500 Watts
  • PoE Max: 480 Watts (16 x 30 watts PoE devices connected)
Temperature
  • Operating: 0° ~ 40°C (32° ~ 104°F)
  • Storage: -20° ~ 90°C (-4° ~ 194°F)
Humidity
  • Max. 90% (non-condensing)
Dimensions
  • 440 x 220 x 45 mm (17.3 x 8.7 x 1.8 in.)
Weight
  • 2.5 kg (5.5 lbs.)
Certifications
  • CE, FCC
PoE
Power over Ethernet
  • Up to 30 watts per port; PD classification
  • Polymer switch for short protection
  • PoE: pin 1,2 for power+ and pin 3,6 for power- (mode A)

PACKAGE CONTENTS
  • TPE-T160
  • Quick Installation Guide
  • Power cord
  • Rack mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
