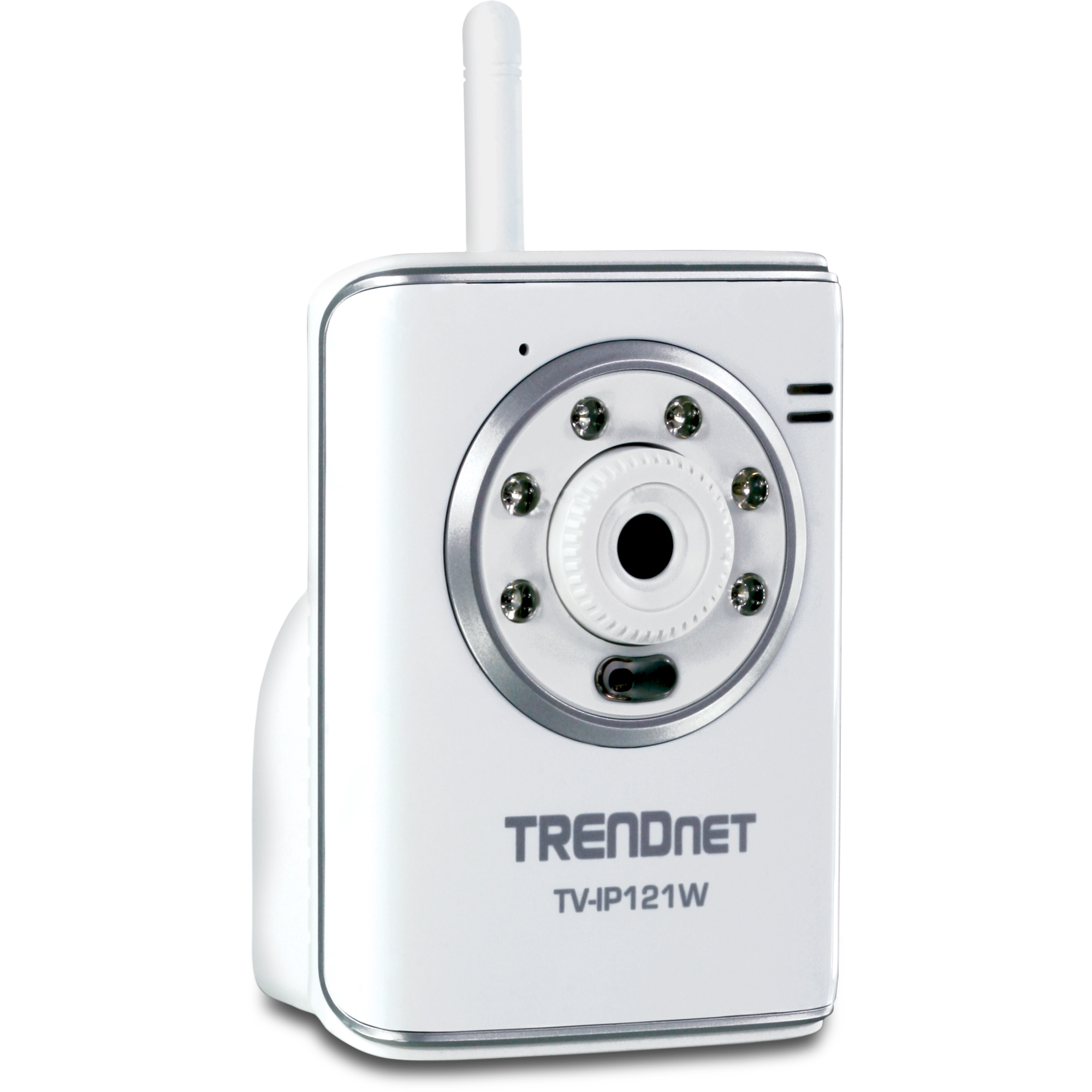

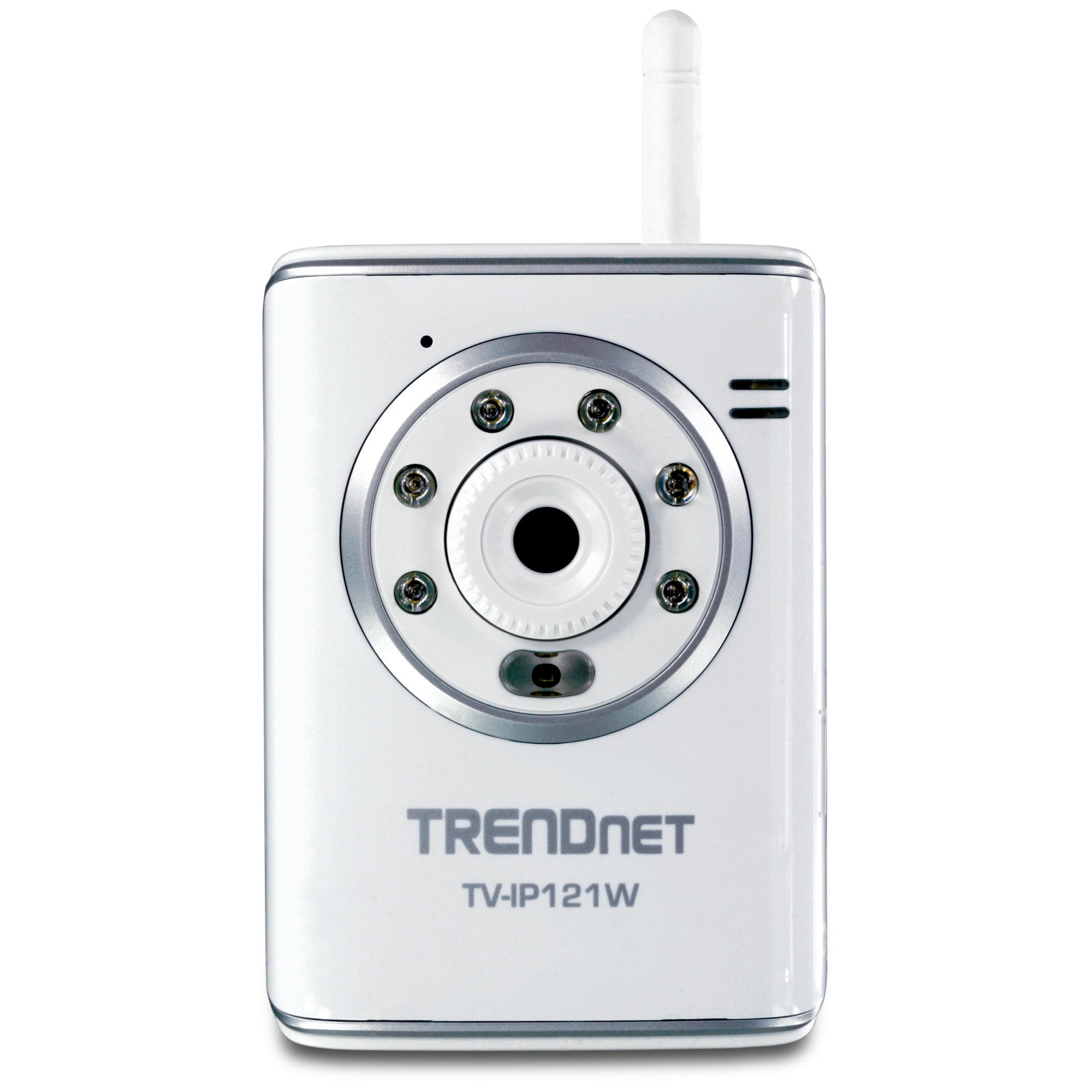

SecurView Wireless Day/Night Network Camera

TV-IP121W   (Version A1.0R)

  • Night vision of up to 5m (16 ft.)
  • No need for an Ethernet connection, video is transmitted over a secure encrypted wireless signal
  • Program motion detection recording and email alerts* with complimentary software
  • Mount this compact Network Camera on most surfaces

DISCONTINUED PRODUCT

The TV-IP121W (Version A1.0R) has been discontinued. It has been replaced by the TV-IP324PI (Version v1.0R). For a list of discontinued products, click here.

Utility

Filename: Utility_IPSetup(v1.0.0.8).zip
SHA-1 Checksum: 8BAB782BCB8F5C9792A9A03B5DEA651D235F8CB0
Date: 7/25/2017
File Size: 719.16 KB
Filename: Utility_SecurView(V1.2.0.21).zip
SHA-1 Checksum: A1FA7F7428BB3D0D6772BFB8B0492A7AF9072794
Date: 7/25/2017
File Size: 50.83 MB

Firmware

DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: V1.1.1 build 36
Release Date: 4/2013
Notes:

  1. Upload.asp removed.
  2. Updated save configuration file encryption type.

Notes:

  • Please do not save the camera's configuration file from the old firmware and restore it after the firmware upgrade.
  • After a successful firmware upgrade, please reset the camera to factory default and reconfigure the camera. We strongly recommend that you change the camera's administrator's account password.

Filename: FW_TV-IP121W_A1(1.1.1.36).zip
SHA-1 Checksum: 756BC9CAE1B8986DAC135AE25DE4EEB5C175E329
Date: 7/25/2017
File Size: 3.05 MB

Datasheet

Filename: EN_Spec_TV-IP121W(A1.0R).pdf
Date: 12/20/2013
File Size: 881.76 KB
Filename: FR_Spec_TV-IP121W(A1.0R).pdf
Date: 12/20/2013
File Size: 885.67 KB
Filename: GE_Spec_TV-IP121W(A1.0R).pdf
Date: 12/20/2013
File Size: 882.35 KB
Filename: SP_Spec_TV-IP121W(A1.0R).pdf
Date: 12/20/2013
File Size: 871.82 KB
Filename: RU_Spec_TV-IP121W(A1.0R).pdf
Date: 12/20/2013
File Size: 1.87 MB
Filename: IT_Spec_TV-IP121W(A1.0R).pdf
Date: 12/20/2013
File Size: 860.63 KB

Quick Installation Guide

Filename: EN_Web_TV-IP121W(A1).pdf
Date: 3/28/2013
File Size: 2.24 MB
Filename: FR_Web_TV-IP121W(A1).pdf
Date: 3/28/2013
File Size: 2.25 MB
Filename: GE_Web_TV-IP121W(A1).pdf
Date: 3/28/2013
File Size: 1.77 MB
Filename: PO_Web_TV-IP121W(A1).pdf
Date: 5/16/2013
File Size: 1.72 MB
Filename: SP_Web_TV-IP121W(A1).pdf
Date: 3/28/2013
File Size: 1.77 MB
Filename: RU_Web_TV-IP121W(A1).pdf
Date: 5/16/2013
File Size: 2.55 MB
Filename: EST_Web_TV-IP121W(A1).pdf
Date: 3/28/2013
File Size: 1.71 MB

User's Guide

Filename: UG_TV-IP121W(A1.31).pdf
Date: 3/28/2013
File Size: 2.97 MB

Product Images

JPEG Image
File Size: : 275.34 KB
Date: : 6/5/2009
JPEG Image
File Size: : 287.29 KB
Date: : 6/5/2009
JPEG Image
File Size: : 262.95 KB
Date: : 6/5/2009
TIFF Image
File Size: : 3.02 MB
Date: : 6/5/2009
TIFF Image
File Size: : 3.28 MB
Date: : 2/28/2011
TIFF Image
File Size: : 3.35 MB
Date: : 6/5/2009
ROHS compliant WEEE crossed-out bin symbol.
OverviewPlease ensure you have followed the quick installation guide and have the camera setup and accessible on your home/office network. The following instructions are going to outline how to make a SecurView camera accessible over the Internet. We will start by assigning a unique static IP addres...
The files cannot be accessed through the camera. Dismount the USB memory stick from the camera and connect it to your computer....
The USB page does not automatically update, refresh the page
The USB stick may not be formatted in FAT, to check connect USB stick to your computer. Go to My Computer right click on the USB stick go to Properties look for File System....
Yes, they can be disabled.   Log in to the camera by entering the camera's IP address into your browser.  The default IP address is https://192.168.10.30.  The default username and password are both "admin". Click on Setup and then go to the Basic>System page.   The IR LED control can be set to "o...
The camera must be configured properly to have Internet access.  This includes making sure you have entered a valid default gateway address for the camera and valid DNS server entries to ensure it can resolve names.  Unfortunately the camera does not support SSL.  If the email provider requires SS...
Unfortunately the cameras from different families do not share a common, free, application and cannot be used together. SecurView cameras will not function in IPView Pro and vice versa....
By default the camera uses TCP port 80. Forward this port in your router or firewall to the camera.
Unfortunately SecurView is not compatible with Macintosh operating systems.
The camera can be configured from a Macintosh through its web-based configuration page. The camera's web configuration page can be reached by entering its IP address into a web browser. For example, if the IP address is 192.168.10.30 you would access it by opening your web browser and entering 192.1...
The camera's web configuration page can be reached by entering its IP address into a web browser. For example, if the IP address is 192.168.10.30 you would access it by opening Internet Explorer and entering 192.168.10.30 into the address line....
What is the default IP address of my TV-IP121W and TV-IP121WN? ...
Log in to the camera and click on Setup. Click on Motion Detect on the left hand side. On this page you can setup two motion detection windows. Under "Window" you can select either 1 or 2. Place a check in "Enable" to turn on motion detection. You can adjust the threshold for each window individuall...
Warning: Firmware upgrade failure may permanently damage the unit and cause it to malfunction. Do not interrupt the firmware upgrade process by disconnecting it from the network or unplugging its power from the power outlet once the firmware upgrade process has begun. Never perform a firmware upgr...
Log in to the camera and click on Setup then click on Event Server>Email on the left hand side. Enter your email server and user information here. After applying the email server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uplo...
Log in to the camera and click on Setup then click on Event Server>FTP on the left hand side. Enter your FTP server information here. After applying the FTP server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled uploading and GPIO trig...
After you have the camera configured on your network start SecurView. Click on the "Settings" button then click on the "Add Camera" button. It will search your network for any supported cameras and display a list of them. Highlight the camera you want to view in SecurView then click "Add Camera". ...
The supported browsers are Internet Explorer 6.0 or above.
Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)

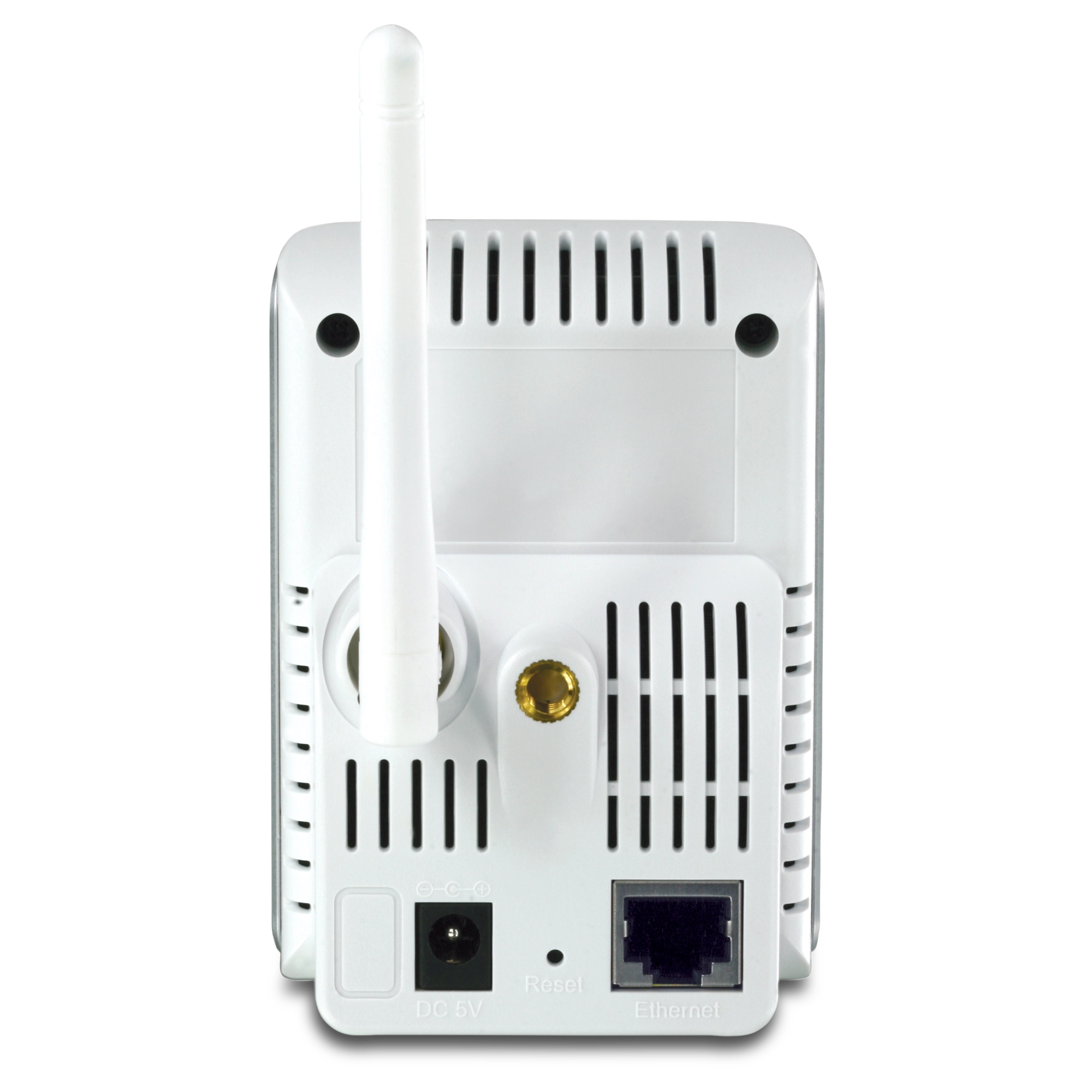

Press and hold in the reset button on the back of the camera for approximately 10 seconds while the power is on to restore the factory default settings. ...
The top LED is a power light. It should be a steady orange light when power is applied to the camera. The bottom LED is a link light. It should be green and blinking when sending and receiving data. ...
Log in to the camera by entering the camera's IP address into your browser. The default IP address is https://192.168.10.30. The default username and password are both "admin". After you have logged into the camera do the following. -Click Setup -Click Basic>User You can define the Adm...
Log in to the camera by entering the camera's IP address into your browser. The default IP address is https://192.168.10.30. The default username and password are both "admin". After you have logged into the camera do the following. -Click Setup. -Click Network>Wireless. -Click the Site Su...
Yes, the camera does support DDNS (Dynamic DNS). Dynamic DNS services will allow you to maintain a single hostname for the camera, even if your ISP changes your WAN IP address. The camera will update the DDNS record to reflect the new IP address. This ensures that each time you go to the hostname yo...
You will need to forward the port that the camera is using in the router to the camera. By default this is TCP port 80. From a remote location you would enter in the public or WAN IP address of your router into your browser or add it to SecurView using the public IP address. Refer to your router'...
Camera
GeneralSensor: 1/4" color CMOS sensor
Resolution: 640 x 480 pixels
Focal Length: 4.5mm
F/No: F2.8 (Board Lens)
Minimum illumination: 0.5 Lux @ F2.8
View angle: 60 degrees diagonal
AudioBuilt-in omni-directional microphone
Sensitivity: -48dB +/- 3dB (5 meters max)
Frequency: 50~16000Hz
Codec: PCM
Image & VideoCompression: MJPEG
Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120) up to 30fps
Exposure/white balance control: automatic
Flip Images: Vertical/horizontal
Light Frequency: 50Hz, 60Hz or outdoor
Hardware
Network IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
LEDPower, Link/Act
IR Wavelength850nm
Reset ButtonReset settings
Power Consumption6 watts (max)
Power5V DC, 2.5A external power adapter
Dimension70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)
WeightCamera: 165g (5.8 oz.)
Stand: 135g (4.76 oz.)
TemperatureOperating: 0°C ~ 45°C (32°F ~ 113°F)
Storage: -15°C ~ 60°C (14°F ~ 140°F)
CertificationCE, FCC
Requirement (SecurView™)
To ViewInternet Explorer 6.0 or above
To Run SoftwareWindows 2000, XP, Vista, Windows 7
SecurView™ SoftwareChannel: supports up to 16 cameras
Record/Playback/Motion Detection/Audio
Wireless
StandardIEEE 802.11b/g
Frequency2.412 ~ 2.484 GHz
Antenna1 x 2dBi detachable Reverse SMA connector
Security64/128-bit WEP, WPA-PSK, WPA2-PSK
Settings
ImageBrightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical)
RecordingRecording type: event based (motion detection and digital input trigger), continuous and scheduled
Storage size: 32MB (minimum)
SnapshotTrigger event: motion detection
Action: send alert email and/or upload to FTP
Port SettingsHTTP port: 80 (default)
Digital Zoom3x
Dynamic DNSYes
TimeSynchronize with NTP server or set time/date manually
Hardware
Network IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
LEDPower, Link/Act
Reset ButtonReset settings
Power Consumption6 watts (max)
Power5V DC, 2.5A external power adapter
Dimension70 x 100 x 57mm (2.67 x 3.94 x 2.95 in.)
WeightCamera: 165g (5.8 oz.)
Stand: 135g (4.76 oz.)
TemperatureOperating: 0°C ~ 45°C (32°F ~ 113°F)
Storage: -15°C ~ 60°C (14°F ~ 140°F)
CertificationCE, FCC
Requirement (SecurView™)
To ViewInternet Explorer 6.0 or above
To Run SoftwareWindows 2000, XP, Vista, Windows 7
SecurView™ SoftwareChannel: supports up to 16 cameras
Record/Playback/Motion Detection/Audio
Wireless
StandardIEEE 802.11b/g
Frequency2.412 ~ 2.484 GHz
Antenna1 x 2dBi detachable Reverse SMA connector
Security64/128-bit WEP, WPA-PSK, WPA2-PSK
Settings
ImageBrightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal/vertical)
RecordingRecording type: event based (motion detection and digital input trigger), continuous and scheduled
Storage size: 32MB (minimum)
SnapshotTrigger event: motion detection
Action: send alert email and/or upload to FTP
Port SettingsHTTP port: 80 (default)
Digital Zoom3x
Dynamic DNSYes
TimeSynchronize with NTP server or set time/date manually

PACKAGE CONTENTS

  • TV-IP121W
  • Multi-Language Quick Installation Guide
  • Utility CD-ROM
  • Cat.5 Ethernet cable (1.8m  /  5.9ft)
  • Mounting kit
  • Power adapter (5VDC, 2.5A)
