Standards | - IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
|

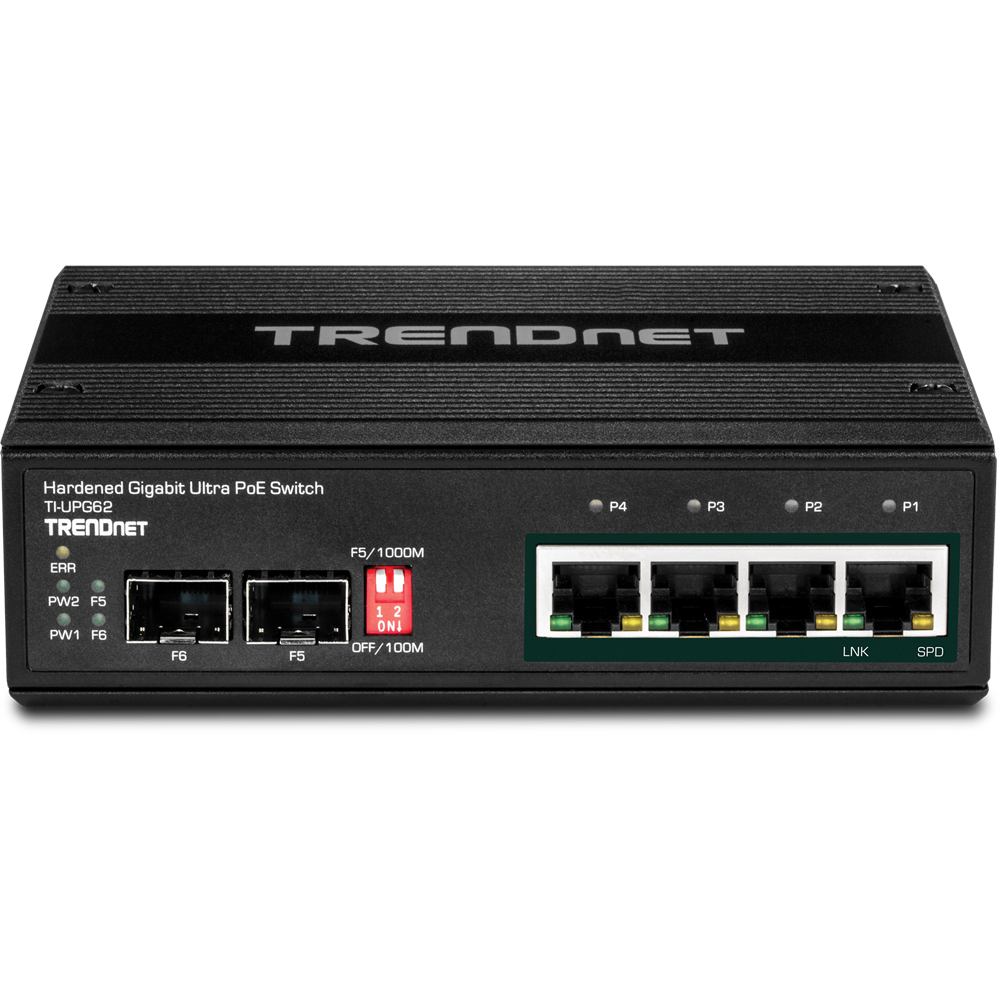

Device Interface | - 4 x Gigabit Ultra PoE ports
- 2 x Gigabit SFP slots
- 6-pin removable terminal block
- LED indicators

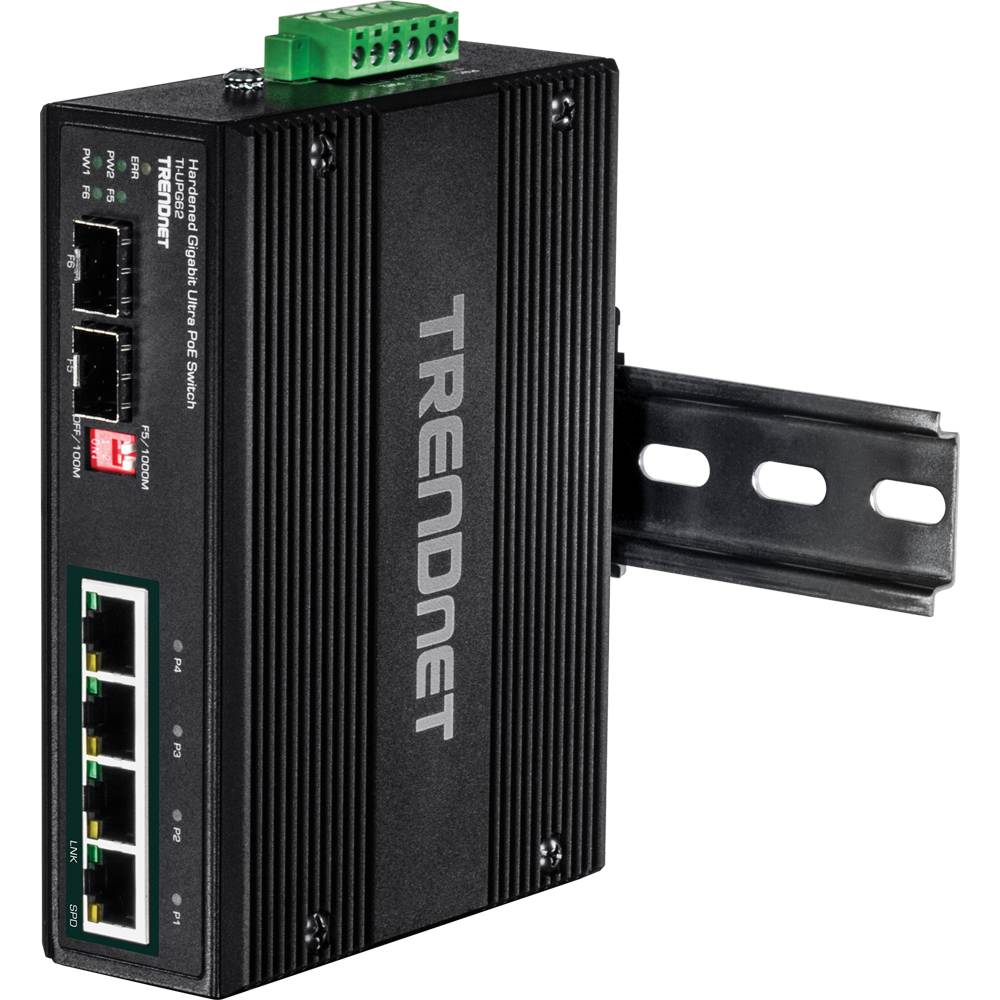

- DIN-Rail mount
- Wall mount
- Grounding point
|
Data Transfer Rate | - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
- Fast Ethernet
- Gigabit
|
Performance | - Data RAM Buffer: 1024 KB
- Switching Fabric: 12 Gbps
- MAC Address Table: 1 K entries
- Jumbo Frame: 9 KB
- Forwarding rate: 8.9 Mpps (64-byte packet size)
|
Special Features | - Hardened components rated for extreme temperatures
- Dual redundant power inputs
- Auto-Negotiation
- Auto store and forward architecture
- Automatic address learning and address aging
- ESD 8KV protection
|
DC Power | - Input: 48 - 56 V DC
- Compatible power supply: TI-S24048 (sold separately)
- Consumption: Max. 5.76 watts (no PD)
|
PoE | - PoE: up to 15.4 watts per port
- PoE+
- Ultra PoE
- Total PoE budget
|

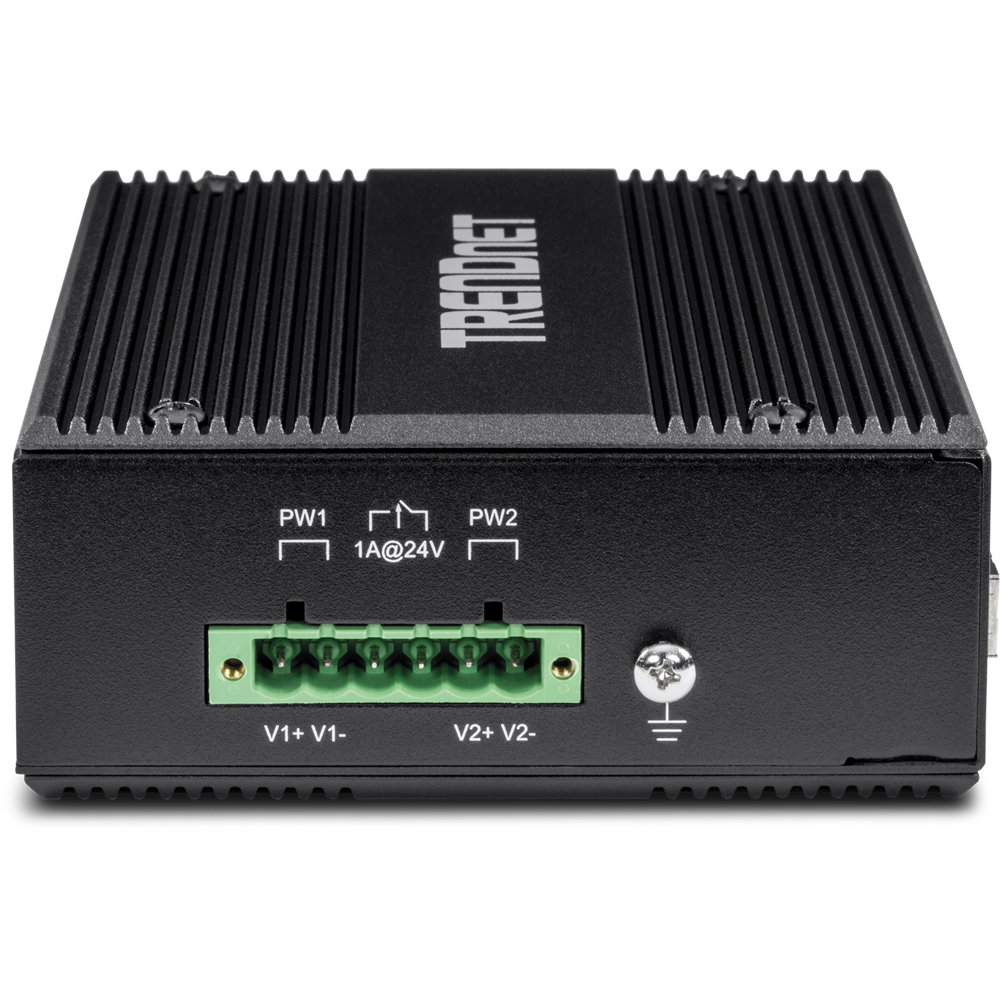

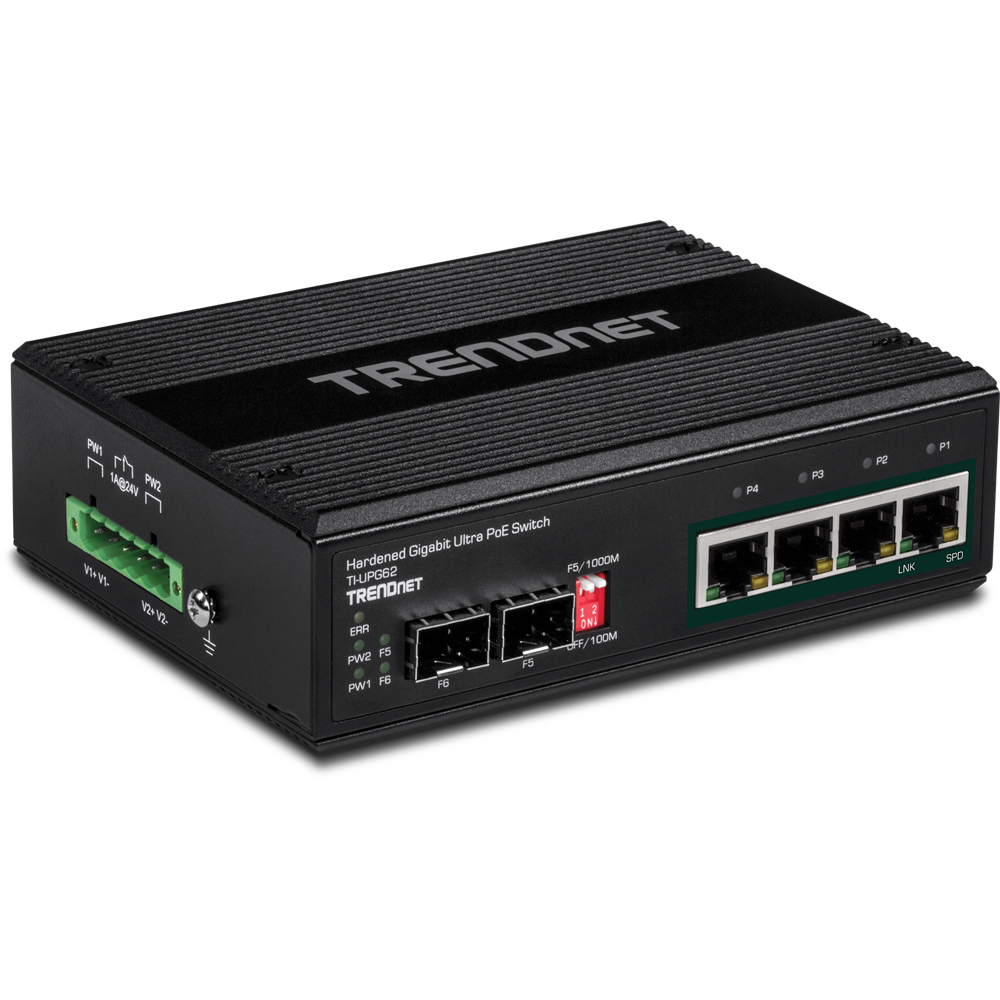

Terminal Block | - Redundant power inputs, alarm relay contact, 6 pin
- Wire range: 0.34 mm^2 to 2.5 mm^2
- Solid wire (AWG)
- Stranded wire (AWG)
- Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
- Wire strip length: 7-8 mm
|
DIP Switch | - 1: OFF (port 5 SFP on, default), ON (port 5 SFP off)
- 2: OFF (SFP 1000M, default), ON (SFP 100M)
|
Alarm Relay Contact | - Relay outputs with current carrying capacity of 1A, 24V DC
- Short circuit mode when two power sources are connected
- Open circuit mode when only one power source is connected
- 304 hours
|

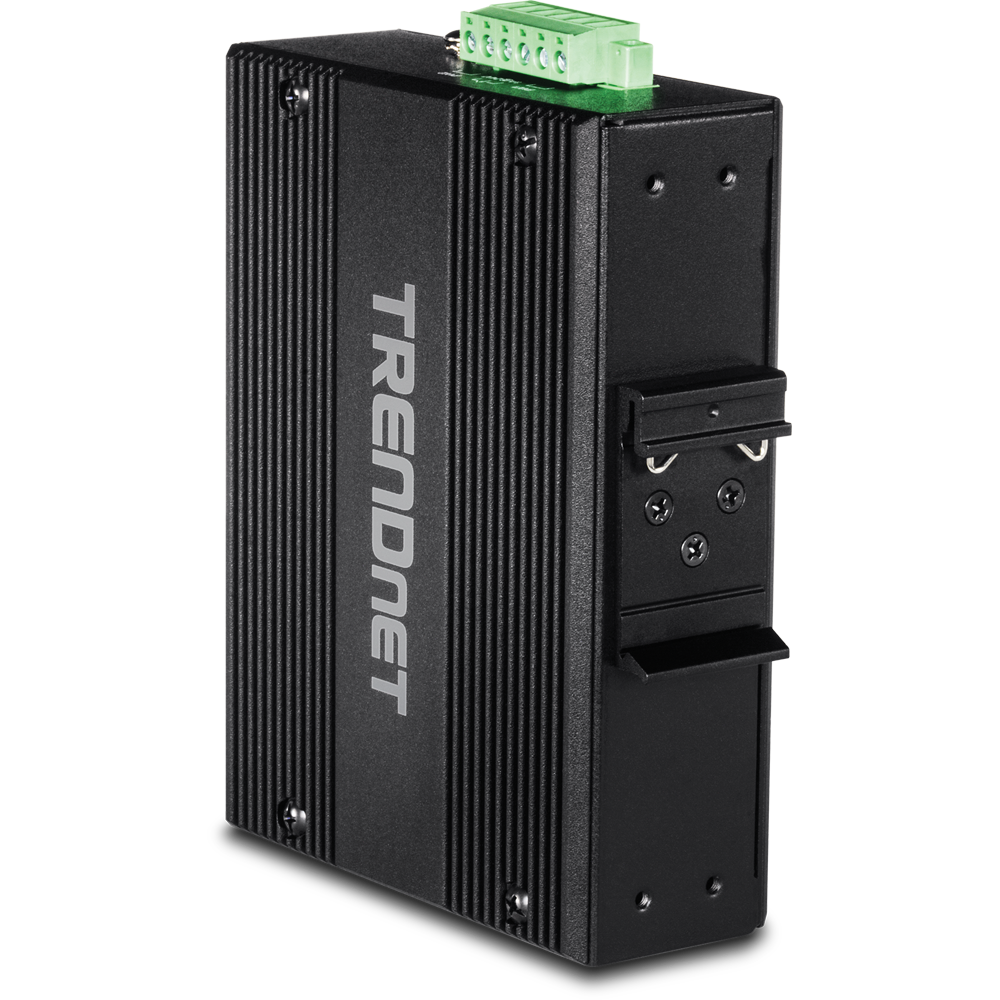

Housing | - IP30 metal case
- DIN-rail mount
- Wall mount
- Grounding point
- 8 KV ESD protection
|
Operating Temperature | - - 40 to 75 °C (-40 to 167 °F)
|
Operating Humidity | |
Dimensions | - 143 x 105 x 36 mm (5.6 x 4.1 x 1.4 in.)
|
Weight | |
Certifications | - CE
- FCC
- Shock
- Freefall
- Vibration (IEC 60068-2-6)
|
Warranty | |
PACKAGE CONTENTS |
- TI-UPG62
- Quick Installation Guide
- Removable terminal block

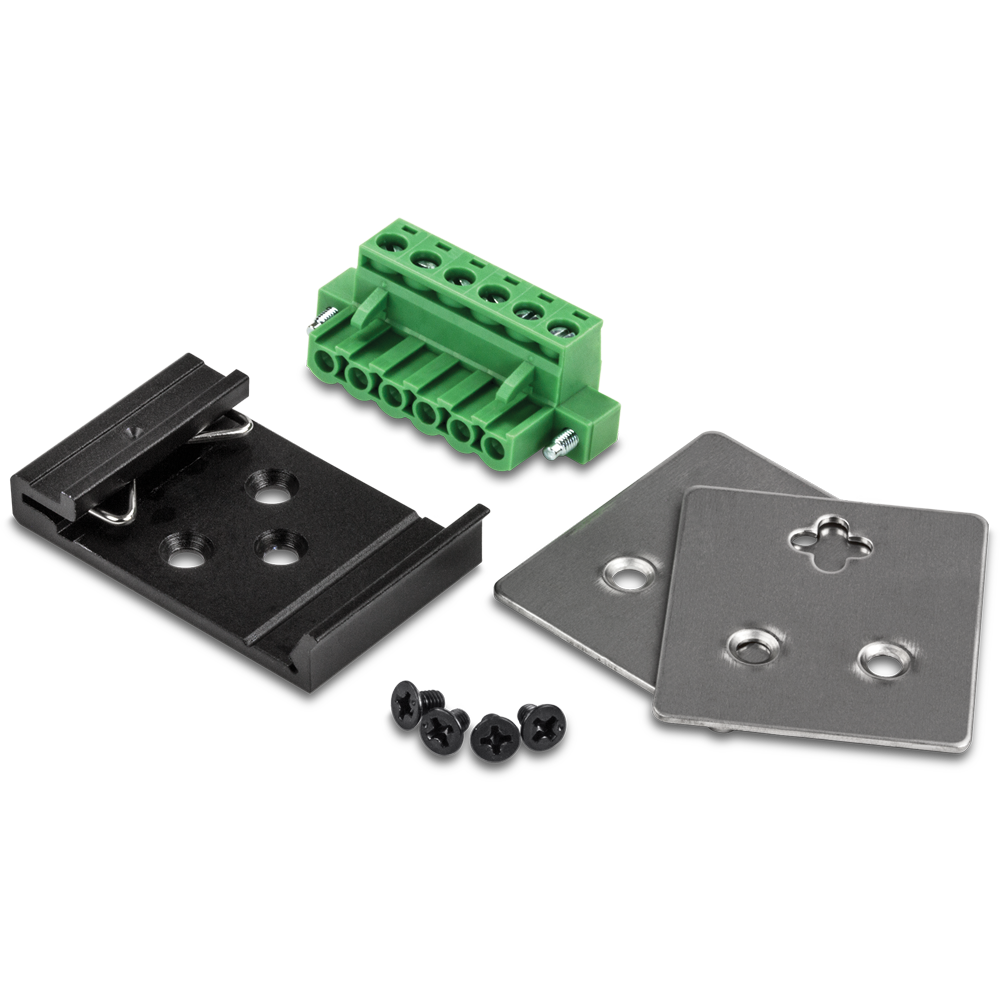

- DIN-rail and wall mount kit
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
