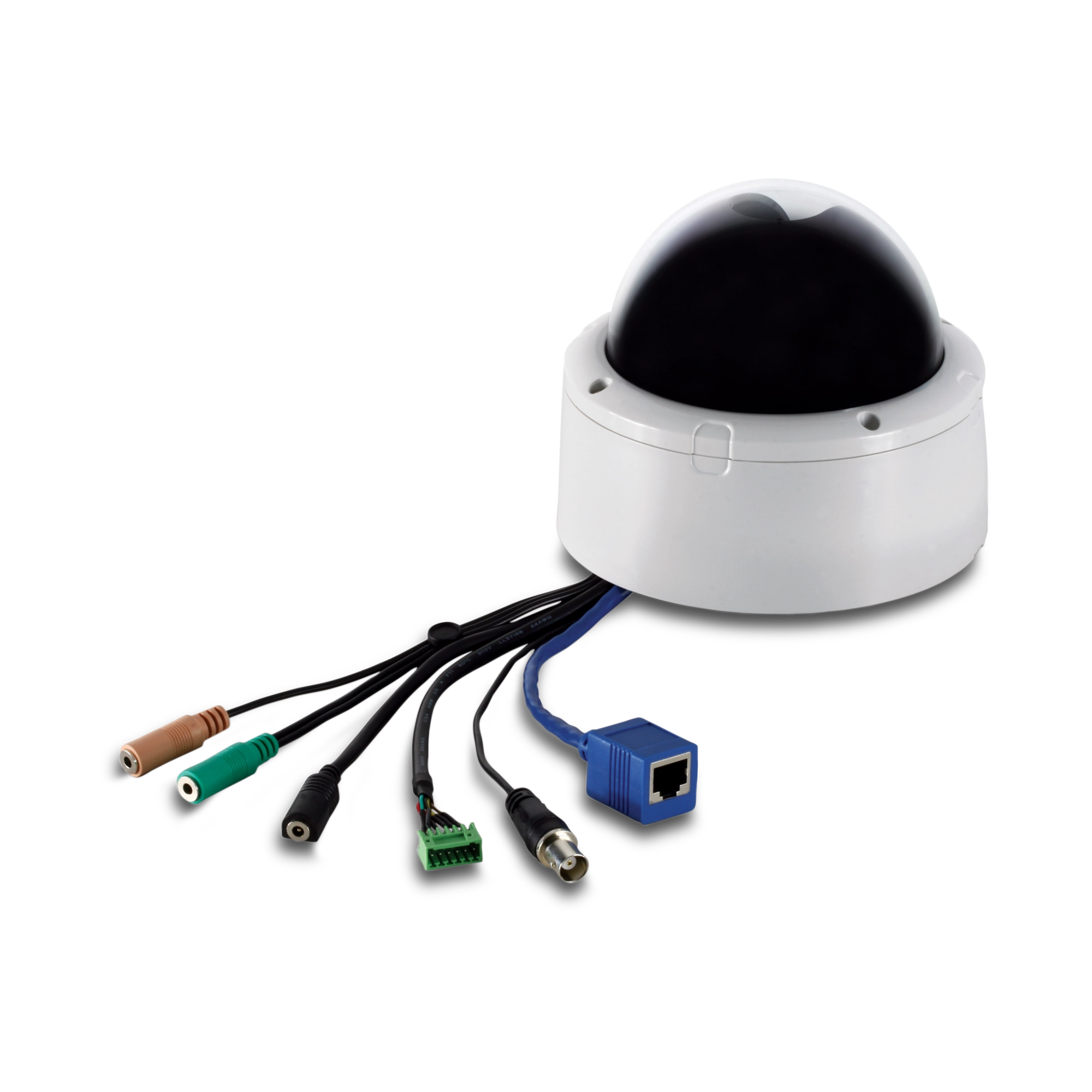

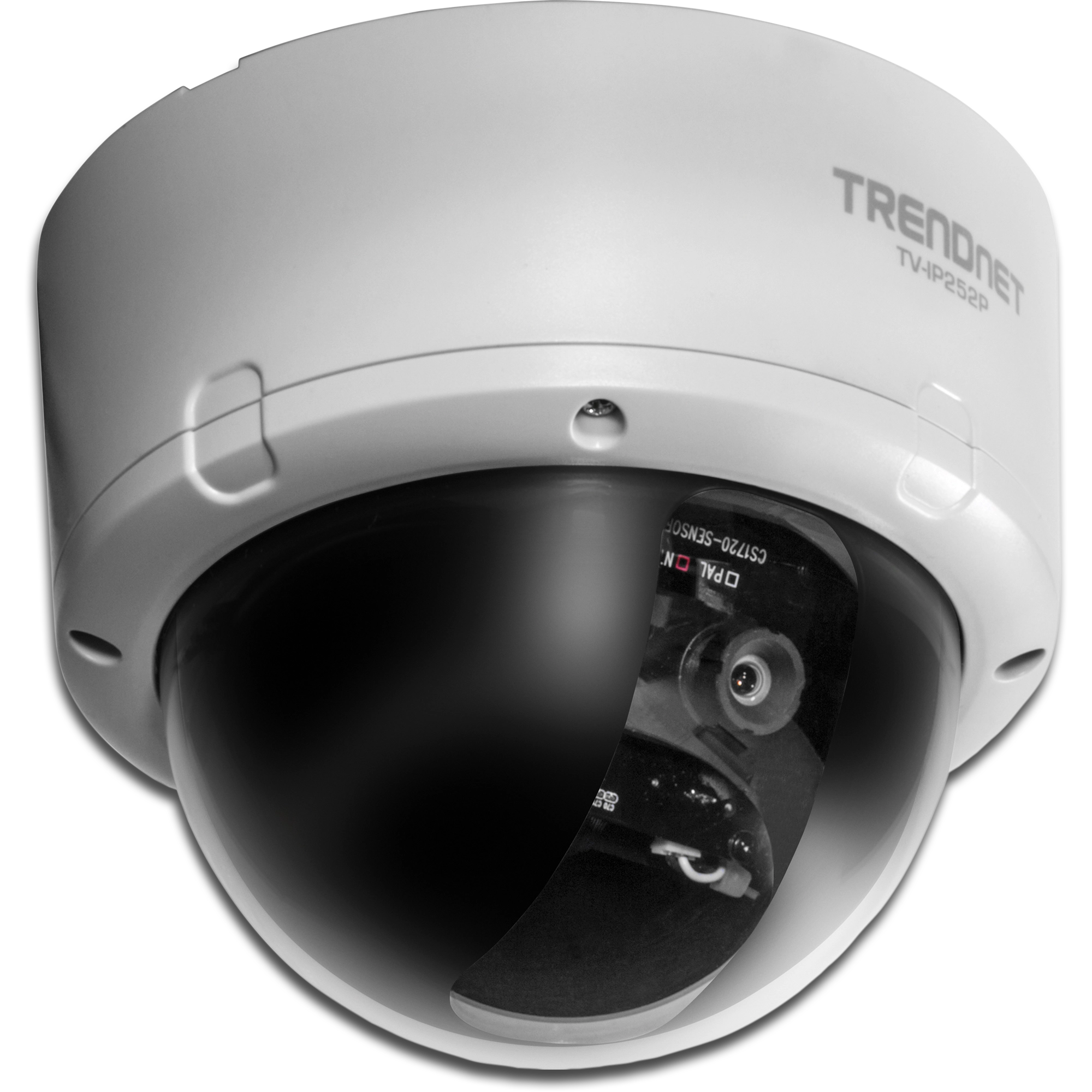

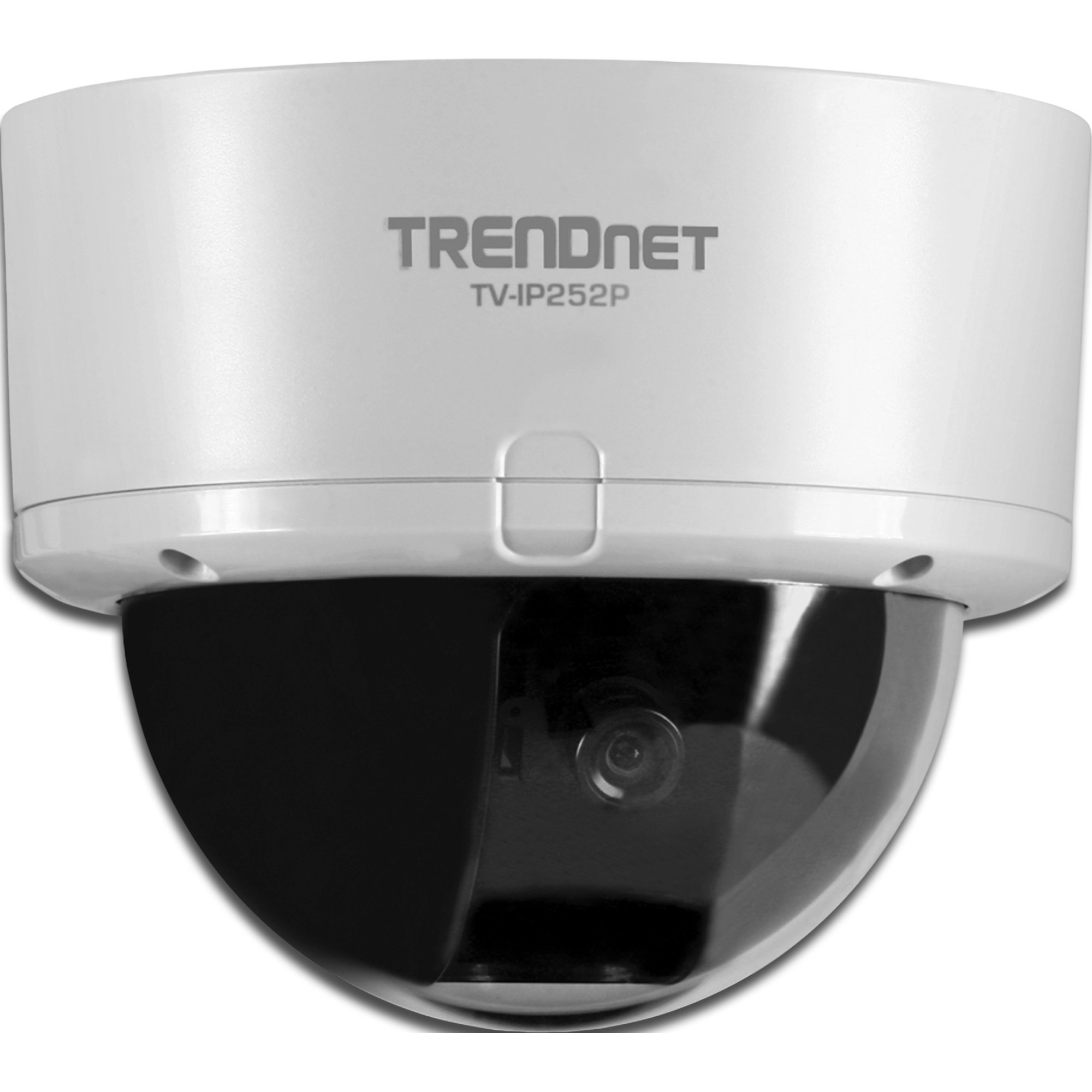

PoE Dome Network Camera

TV-IP252P   (Version B1.xR)

  • Tamper resistant interior wall and ceiling mount applications
  • Pan and tilt adjustable fixed position camera
  • No need to install this camera near a power source, power and data are received through a single Ethernet cable
  • Program motion detection recording, email alerts and more with complimentary software

DISCONTINUED PRODUCT

The TV-IP252P (Version B1.xR) has been discontinued. It has been replaced by the TV-IP325PI (Version v1.0R). For a list of discontinued products, click here.

Utility

Filename: Utility_IPSetup(v1.0.0.8).zip
SHA-1 Checksum: 8BAB782BCB8F5C9792A9A03B5DEA651D235F8CB0
Date: 7/25/2017
File Size: 719.16 KB

Firmware

DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware Version: 1.1.3
Release Date: 1/2014
Notes:

  1. Support Internet Explorer 11

Notes:

  • Please do not save the camera's configuration file from the old firmware and restore it after the firmware upgrade.
  • After a successful firmware upgrade, please reset the camera to factory default and reconfigure the camera. We strongly recommend that you change the camera's administrator's account password.

Filename: FW_TV-IP252P(1.1.3).zip
SHA-1 Checksum: 9844F679807F5D2BA4F9247F120499DA982FE822
Date: 7/25/2017
File Size: 4.63 MB

Software

Software Version: 2.5.9
Release Date: 4/2017
Notes:

  • Fixed TV-IP420P P/T issue

Filename: TRENDnetViewPro(2.5.9).zip
SHA-1 Checksum: 7CD1D9AE621816395E9FE9644B651F3696388215
Date: 7/25/2017
File Size: 41.15 MB

Datasheet

Filename: EN_Spec_TV-IP252P(V1.0R).pdf
Date: 8/7/2013
File Size: 900.23 KB
Filename: FR_Spec_TV-IP252P(V1.0R).pdf
Date: 8/7/2013
File Size: 910.40 KB
Filename: GE_Spec_TV-IP252P(V1.0R).pdf
Date: 8/7/2013
File Size: 908.03 KB
Filename: PO_Spec_TV-IP252P(V1.0R).pdf
Date: 8/7/2013
File Size: 907.95 KB
Filename: SP_Spec_TV-IP252P(V1.0R).pdf
Date: 8/7/2013
File Size: 908.80 KB
Filename: RU_Spec_TV-IP252P(V1.0R).pdf
Date: 8/7/2013
File Size: 1.14 MB
Filename: IT_Spec_TV-IP252P(V1.0R).pdf
Date: 8/7/2013
File Size: 907.97 KB

Quick Installation Guide

Filename: TRENDnetVIEW_App_(iOS).pdf
Date: 7/25/2017
File Size: 1.90 MB
Filename: TRENDnetVIEW_App_(Android).pdf
Date: 7/25/2017
File Size: 1.90 MB
Filename: EN_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.63 MB
Filename: EN_Web_QIG_TV-IP252P(1.01)_071609.pdf
Date: 7/20/2009
File Size: 2.06 MB
Filename: FR_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.63 MB
Filename: FR_Web_QIG_TV-IP252P(1.01)_071609.pdf
Date: 7/20/2009
File Size: 2.02 MB
Filename: GE_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.62 MB
Filename: GE_Web_QIG_TV-IP252P(1.01)_071609.pdf
Date: 7/20/2009
File Size: 2.02 MB
Filename: PO_Web_QIG_TV-IP252P(1.01)_071609.pdf
Date: 7/20/2009
File Size: 1.96 MB
Filename: SP_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.62 MB
Filename: SP_Web_QIG_TV-IP252P(1.01)_071609.pdf
Date: 7/20/2009
File Size: 2.06 MB
Filename: RU_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.64 MB
Filename: RU_Web_QIG_TV-IP252P(1.01)_071609.pdf
Date: 7/20/2009
File Size: 2.99 MB
Filename: EST_Web_QIG_TV-IP252P(1.01)_071609.pdf
Date: 7/20/2009
File Size: 1.95 MB
Filename: POL_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.64 MB
Filename: RO_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.65 MB
Filename: NL_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.63 MB
Filename: HU_Web_TRENDnetVIEW_Pro.pdf
Date: 6/11/2014
File Size: 1.64 MB
Date: 6/11/2014
File Size: 1.62 MB

User's Guide

Filename: UG_TV-IP252P(1.12).pdf
Date: 1/19/2011
File Size: 2.05 MB
Filename: UG_TRENDnetVIEW_Pro.pdf
Date: 6/10/2014
File Size: 7.92 MB

Product Images

JPEG Image
File Size: : 334.32 KB
Date: : 7/22/2009
JPEG Image
File Size: : 190.05 KB
Date: : 7/22/2009
TIFF Image
File Size: : 3.39 MB
Date: : 7/27/2009
TIFF Image
File Size: : 1.84 MB
Date: : 7/27/2009
ROHS compliant WEEE crossed-out bin symbol.
The TV-IP252P is a fixed position camera. You can manually adjust the camera's viewing angle to a desired position. It cannot be remotely adjusted. ...
Camera
General Sensor: 1/4” low lux CMOS sensor
Resolution: 640 x 480 pixels
Focal length: 4mm
F/No: F2.0 (Board Lens)
Minimum illumination: 0.1 Lux @ F2.0
View angle:
  • Horizontal: 51°
  • Vertical: 45°
  • Diagonal: 64°
AudioExternal mic/audio in (sold separately)
External speaker/audio out; mono (sold separately)
Audio codec: PCM/AMR
Image & VideoCompression: MPEG-4/MJPEG dual streaming, 3GPP
Resolution: VGA (640x480), QVGA (320x240), QQVGA (160x120) up to 30fps
Mirror image: vertical/horizontal
Frequency/A: NTSC/60Hz
/EU: PAL/50Hz
Manual Pan/Tilt/RotatePan: +175 ~ -175
Tilt: +80 ~ -80
Rotate: +90 ~ -90
GPIO2 input and 1 output
TV-outBNC connector/ 1 Vp-p/ 75 Ohms
Hardware
Network IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIX
IEEE 802.3af PoE
LEDPower, link/act
Reset ButtonReset settings
Power Consumption8 watts (max)
Power12V DC, 1.5A external power adapter
Dimension140 x 120 x 140mm (5.51 x 4.72 x 5.51in.)
WeightCamera: 600g (21.2oz.)
TemperatureOperating: 0°C ~ 45°C (32°F ~ 113°F)
Storage: -15°C ~ 60°C (14°F ~ 140°F)
CertificationsCE, FCC
Requirements
To ViewInternet Explorer 6.0 or above
To Run SoftwareWindows 2000, XP, Vista, Windows 7
SecurView™ SoftwareChannel: supports up to 16 cameras
Record/playback/motion detection/audio
Network ProtocolsTCP/IP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP Server
Samba Client
PPPoE
UPnP, Bonjour
RTP (Real Time Protocol)
RTSP (Real Time Streaming Protocol)
RTCP (Real Time Control Protocol)
Settings
ImageBrightness, saturation, sharpness, mirror (horizontal/vertical)
RecordingRecording type: event based (motion detection and digital input trigger), continuous and scheduled
Storage size: 32MB (minimum)
SnapshotTrigger event: motion detection
Action: send alert email and/or upload to FTP
Port SettingsHTTP port: 80 (default)
RTSP port: 554 (default)
Digital Zoom3x
Dynamic DNSYes
TimeSynchronize with NTP server or set time/date manually

PACKAGE CONTENTS

  • TV-IP252P
  • Multi-Language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Cat.5 Ethernet cable (1.8m  /  5.9ft.)/li>
  • GPIO adapter
  • Power adapter (12V DC, 1.5A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
