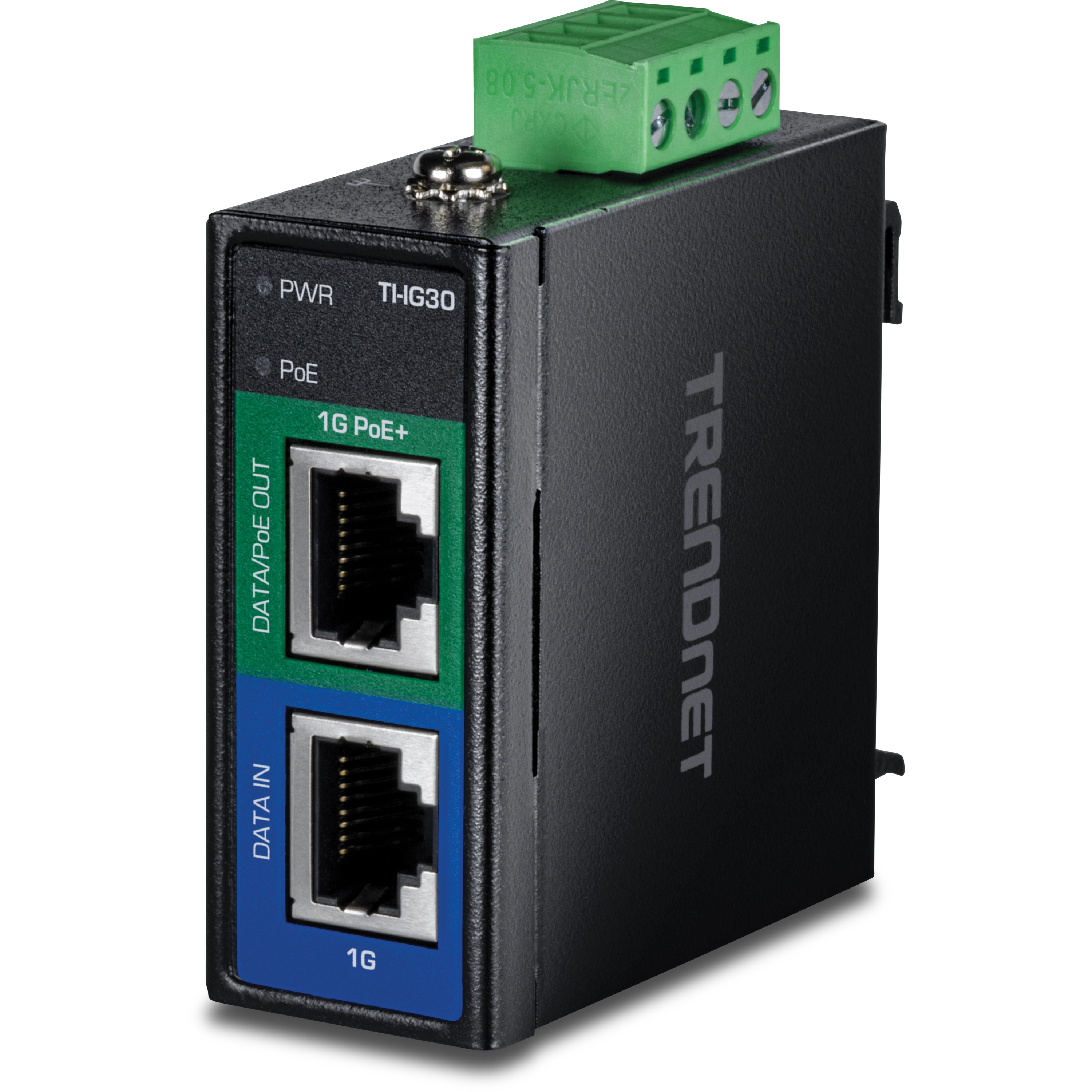

Industrial 30W Gigabit PoE+ Injector

TI-IG30   (Version v2.0R)

   Select Another Version
  • Hardened IP50-rated gigabit PoE+ injector
  • Provides PoE (15.4W) or PoE+ (30W) power
  • Network a PoE device located up to 100m (328 ft.) away
  • Extreme - 40° — 75° C (-40° — 167° F) operating temperature range
  • 6kV RJ45 Ethernet surge protection
  • Redundant power inputs with overload current protection
  • Includes DIN-rail mount and wall mount
  • Power supply sold separately (model: TI-S15052)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-IG30_(v2.xR).pdf
Date: 3/5/2025
File Size: 3.37 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-IG30_(v2.xR).pdf
Date: 3/5/2025
File Size: 3.33 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-IG30_(v2.xR).pdf
Date: 3/5/2025
File Size: 3.43 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-IG30_(v2.xR).pdf
Date: 3/5/2025
File Size: 3.46 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-IG30_(v2.xR).pdf
Date: 3/5/2025
File Size: 3.45 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-IG30_(v2.xR).pdf
Date: 3/5/2025
File Size: 3.42 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: lineart_qig_TI-IG30_TI-IG90_(v2.xR)_TI-IG15_TI-IG219_TI-IG31
Date: 3/5/2025
File Size: 4.86 MB
Download

Product Images

PNG Image
File Size: : 7.78 MB
Date: : 3/5/2025
Download
PNG Image
File Size: : 4.68 MB
Date: : 3/5/2025
Download
PNG Image
File Size: : 6.58 MB
Date: : 3/5/2025
Download
PNG Image
File Size: : 7.43 MB
Date: : 3/5/2025
Download
PNG Image
File Size: : 3.71 MB
Date: : 3/5/2025
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
Device Interface

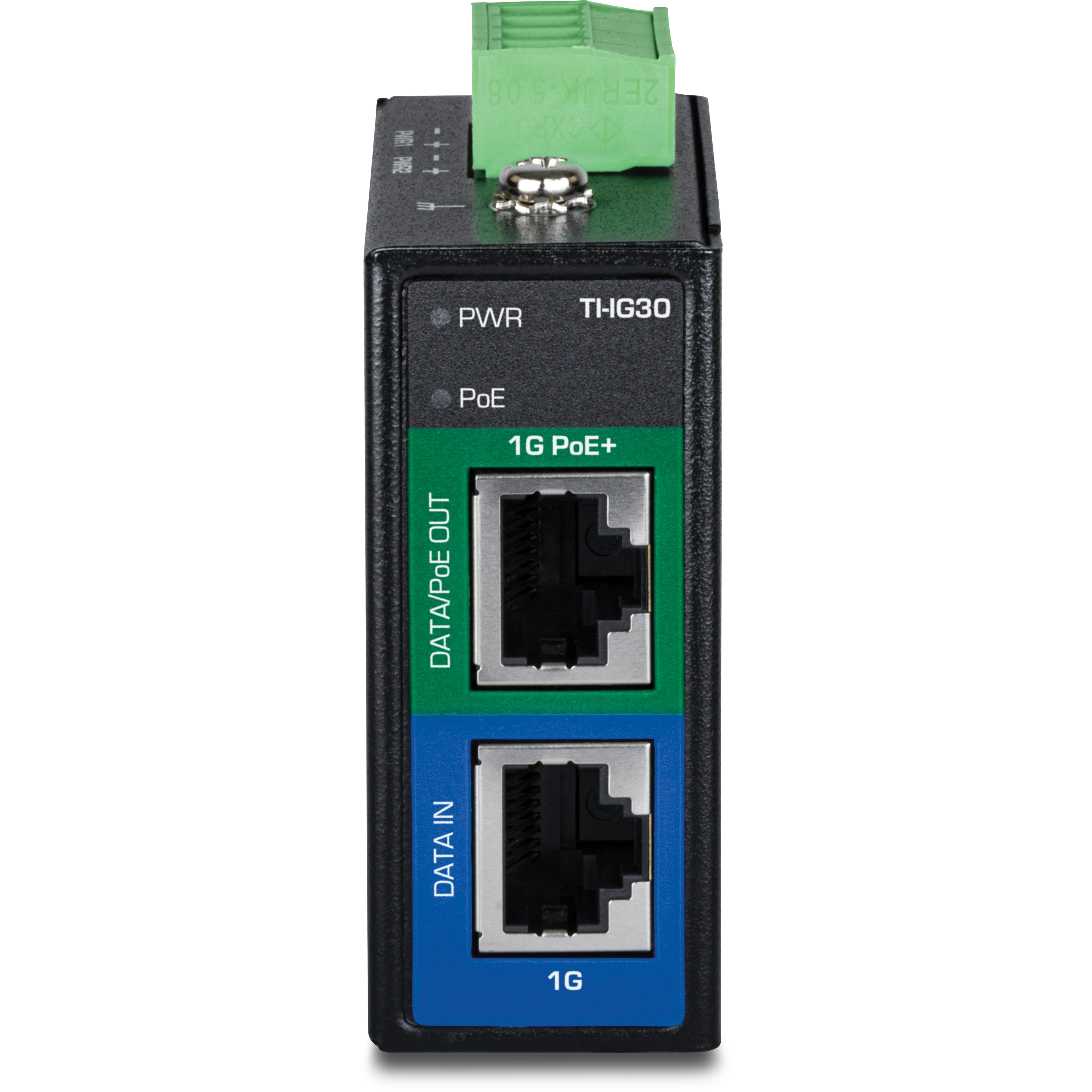

  • 1 x Gigabit port (10Mbps/100Mbps/1Gbps)
  • 1 x Gigabit PoE+ port (10Mbps/100Mbps/1Gbps)
  • 4-pin power terminal block
  • LED indicators
Power
  • Input: 48 – 57V DC
  • Compatible power supply: TI-S15052 (sold separately)
  • Max. consumption: 4.3W (without PoE) @ 56V DC
PoE
  • PoE budget: 30W
  • Pins 1, 2, 3, and 6 for power (mode A)

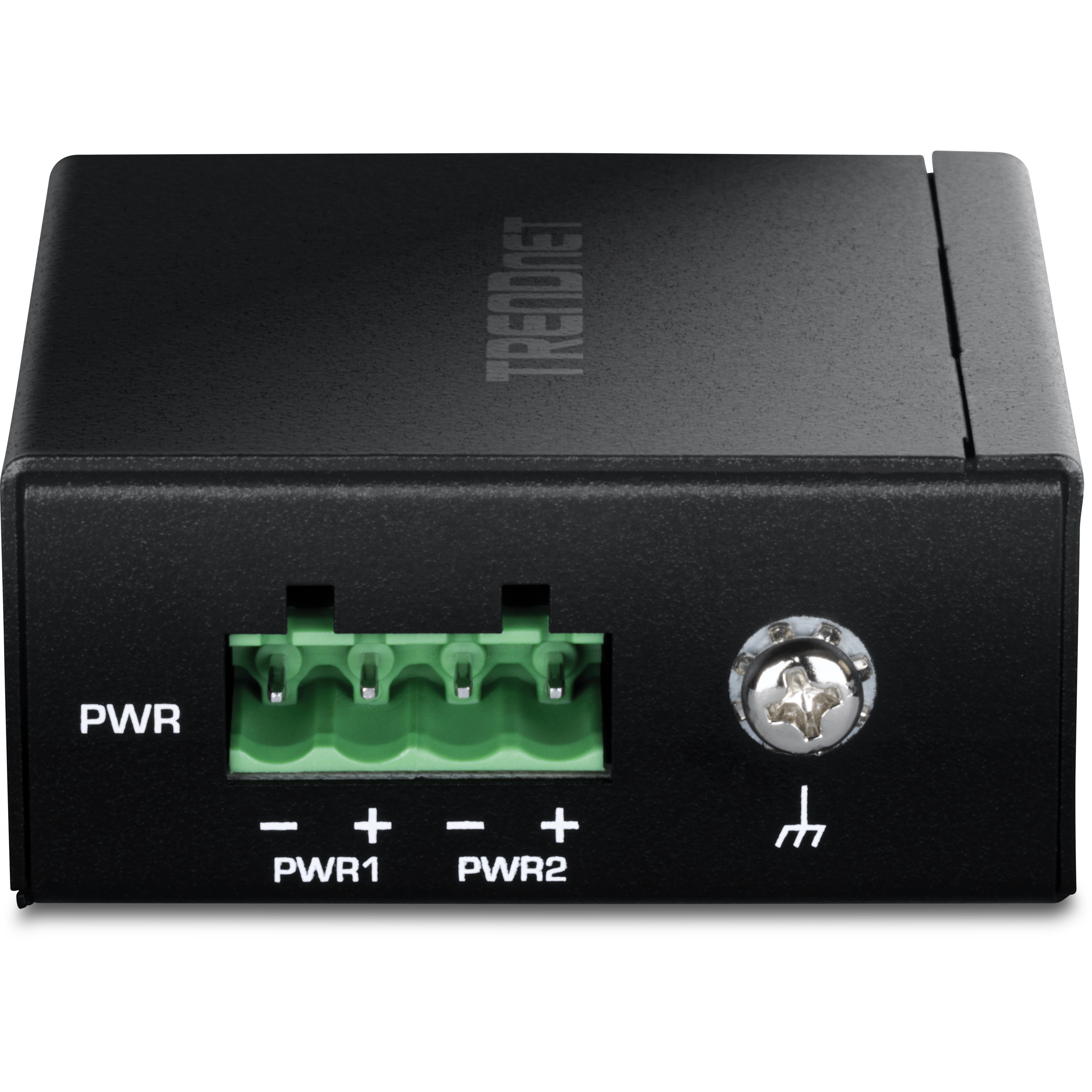

Terminal Block
  • Redundant power inputs, 4 pin
  • Wire range: 0.34mm2 to 2.5mm2
  • Solid wire (AWG): 14-22
  • Stranded wire (AWG): 14-22
  • Torque: 4.4 lb. – In
  • Wire strip length: 7-8mm
MTBF
  • 7,682,280 hours @ 25° C
Housing
  • IP50 metal case

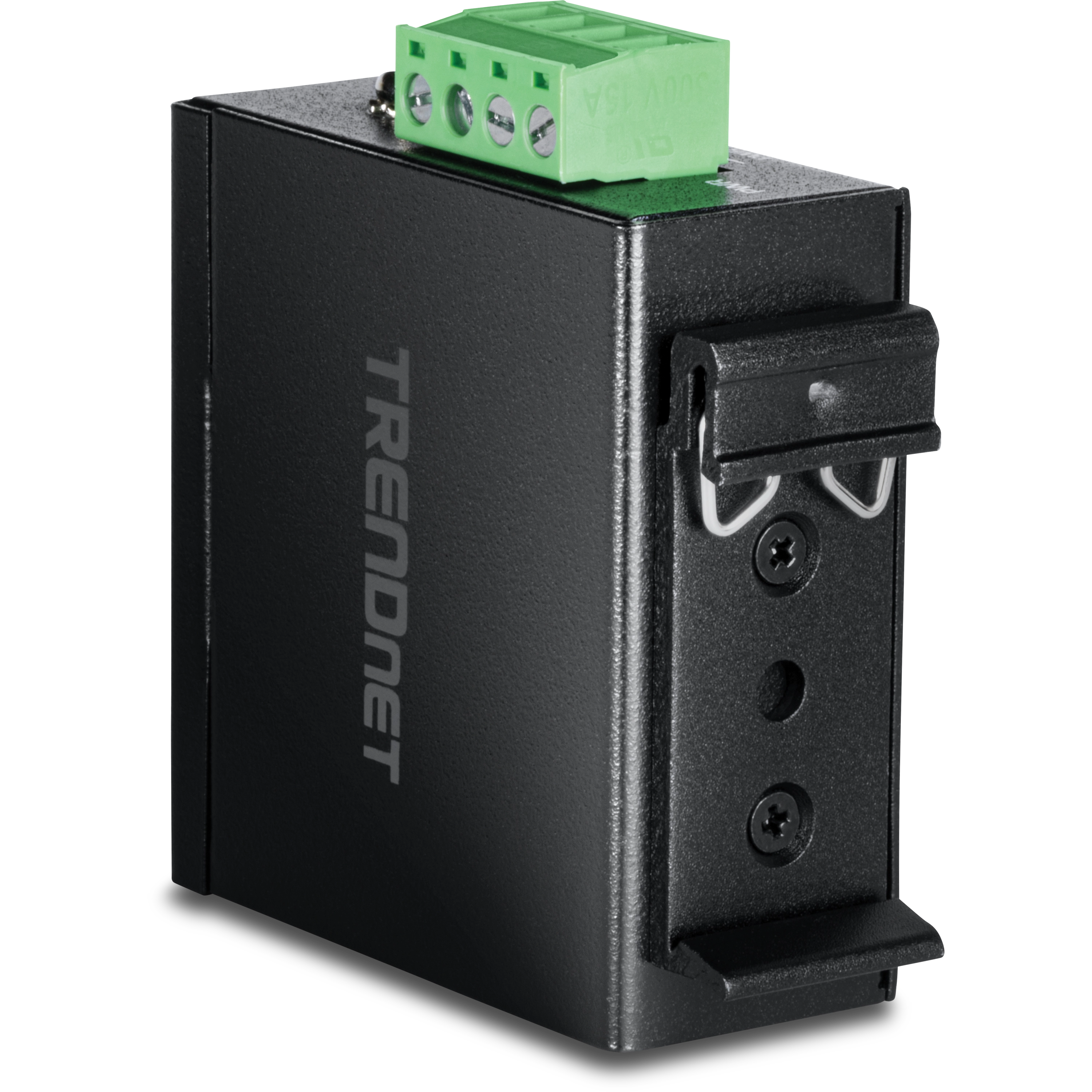

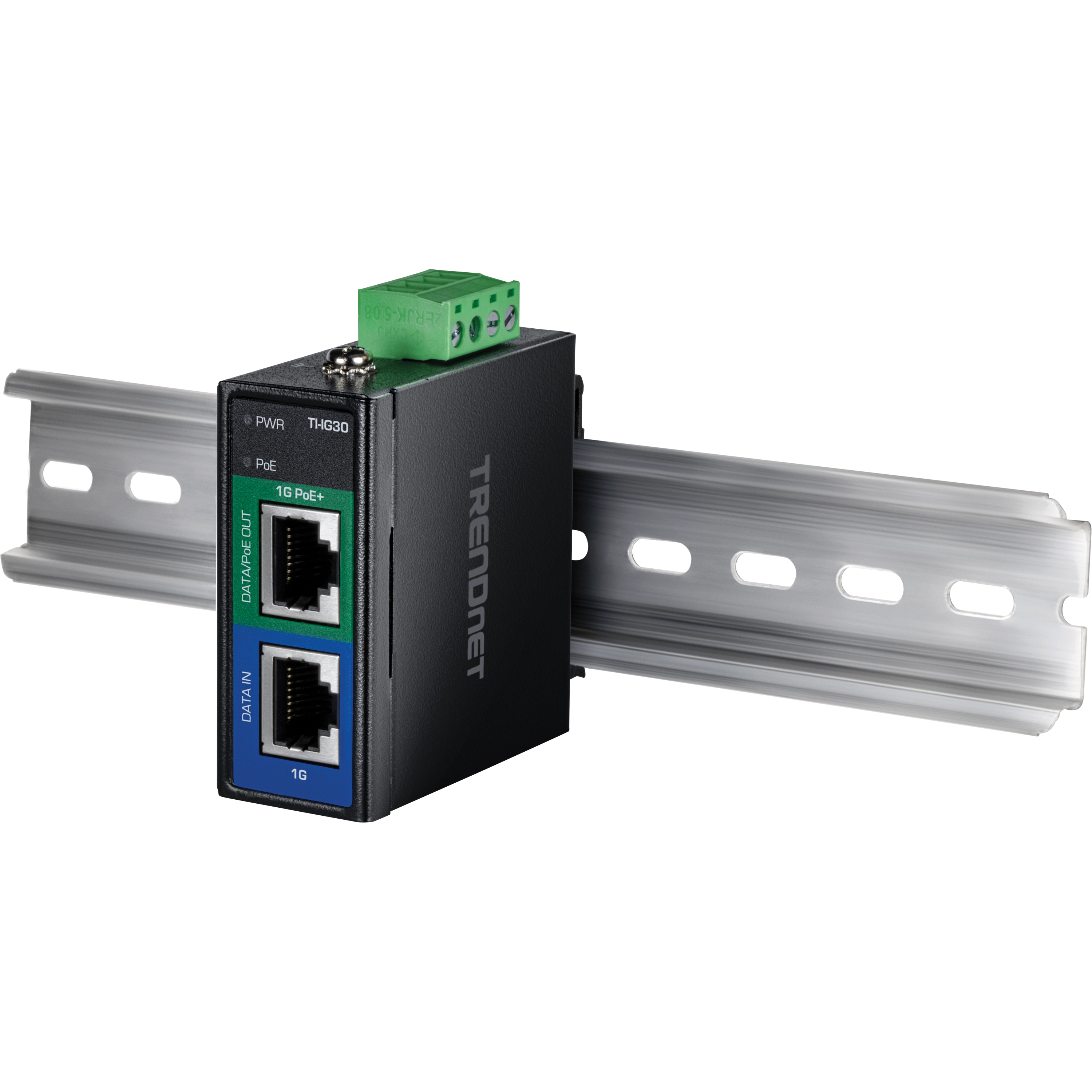

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • 6kV ESD protection
  • 6kV RJ45 surge protection
Operating Temperature
  • - 40° — 75° C (-40° — 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 60 x 60 x 25mm (2.24 x 2.24 x 0.98 in.)
Weight
  • 134g (4.7 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty
  • 3-year

PACKAGE CONTENTS
  • TI-IG30
  • Removable terminal block
  • DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
