Single Channel PoE Analog to IP Video Encoder

TV-VS1P   (Version v1.0R)

  • Provides advanced IP-based functionality to an analog CCTV camera
  • View a CCTV camera from any Internet connection and on compatible mobile phones
  • No need to install this device near a power source, power and data are received through a single Ethernet cable
  • Motion detection recording, email alerts, and alarm triggers
  • Schedule recording sessions to a server with Samba client support

DISCONTINUED PRODUCT

The TV-VS1P (Version v1.0R) has been discontinued. For a list of discontinued products, click here.

Utility

Filename: Utility_IPSetup_2.0.0.0.zip
SHA-1 Checksum: 726795D8F4960B605CD4C80F2D23437268275074
Date: 7/28/2017
File Size: 793.68 KB

Firmware

DO NOT upgrade firmware on any TRENDnet product using wireless connection.
Firmware upgrade over wireless connection may damage the product. Please perform firmware upgrade with "wired" network connection only

Firmware : V1.0.1 build 11
Release Note: 2/2012

  1. Improved Security

Note:

  • Please do not save the camera's configuration file from the old firmware and restore it after the firmware upgrade.
  • After a successful firmware upgrade, please reset the camera to factory default and reconfigure the camera.   We strongly recommend that you change the camera's administrator's account password.

Filename: FW_TV-VS1P_V1(1.0.1.11).zip
SHA-1 Checksum: DEDCAA92019AE2D5443F22DA385C84B09CE7A445
Date: 7/28/2017
File Size: 5.32 MB

Datasheet

Filename: EN_spec_TV_VS1P(V1.0R).pdf
Date: 9/6/2013
File Size: 655.22 KB
Filename: FR_spec_TV_VS1P(V1.0R).pdf
Date: 9/6/2013
File Size: 673.36 KB
Filename: GE_spec_TV_VS1P(V1.0R).pdf
Date: 9/6/2013
File Size: 678.23 KB
Filename: PO_spec_TV_VS1P(V1.0R).pdf
Date: 9/6/2013
File Size: 653.44 KB
Filename: SP_spec_TV_VS1P(V1.0R).pdf
Date: 9/6/2013
File Size: 660.99 KB
Filename: RU_spec_TV_VS1P(V1.0R).pdf
Date: 9/6/2013
File Size: 630.87 KB
Filename: IT_spec_TV_VS1P(V1.0R).pdf
Date: 9/6/2013
File Size: 660.12 KB

Quick Installation Guide

Filename: EN_Web_TV-VS1_VS1P(1.01).pdf
Date: 6/30/2011
File Size: 5.59 MB
Filename: FR_Web_TV-VS1_VS1P(1.01).pdf
Date: 6/30/2011
File Size: 5.55 MB
Filename: GE_Web_TV-VS1_VS1P(1.01).pdf
Date: 6/30/2011
File Size: 5.00 MB
Filename: PO_Web_TV-VS1_VS1P(1.01).pdf
Date: 6/30/2011
File Size: 4.96 MB
Filename: SP_Web_TV-VS1_VS1P(1.01).pdf
Date: 6/30/2011
File Size: 5.00 MB
Filename: RU_Web_TV-VS1_VS1P(1.01).pdf
Date: 6/30/2011
File Size: 5.95 MB
Filename: EST_Web_TV-VS1_VS1P(1.01).pdf
Date: 6/30/2011
File Size: 4.74 MB

User's Guide

Filename: UG_TV-VS1_TV-VS1P(1.01).pdf
Date: 6/30/2011
File Size: 3.55 MB

Product Images

JPEG Image
File Size: : 371.41 KB
Date: : 6/30/2011
JPEG Image
File Size: : 460.67 KB
Date: : 6/30/2011
JPEG Image
File Size: : 488.06 KB
Date: : 6/30/2011
TIFF Image
File Size: : 4.01 MB
Date: : 6/30/2011
TIFF Image
File Size: : 5.98 MB
Date: : 6/30/2011
TIFF Image
File Size: : 6.04 MB
Date: : 6/30/2011
ROHS compliant WEEE crossed-out bin symbol.
Yes, the Secure Digital card will allow you to save video to it on motion detected and GPIO triggered events. Log in to the camera by entering the camera's IP address into your browser. The default IP address is https://192.168.10.30. The default username and password are both admin. Click Setup ...
Yes, log in to the camera and click on Setup then click on Event Server>Network Storage on the left hand side. Enter your Samba server information here. After applying the Samba server information click on Event Config on the left hand side. You have three options, Motion Detection, Scheduled...
The camera must be configured properly to have Internet access. This includes making sure you have entered a valid default gateway address for the camera and valid DNS server entries. ...
By default the camera uses TCP port 80.  Forward this port in your router or firewall to the camera....
Unfortunately SecurView is not compatible with Macintosh operating systems.
The camera can be configured from a Macintosh through its web-based configuration page.  The camera's web configuration page can be reached by entering its IP address into a web browser.  For example, if the IP address is 192.168.10.30 you would access it by opening your web browser and entering htt...
The camera's web configuration page can be reached by entering its IP address into a web browser.  For example, if the IP address is 192.168.10.30 you would access it by opening Internet Explorer and entering https://192.168.10.30 into the address line....
The camera by default is configured to receive an IP address via DHCP. If it is unable to receive an IP address via DHCP it will default to 192.168.10.30. You can use the IP Setup Utility to find and change the IP address of the camera as well. ...
Start the SecurView Pro application and login. The default username and password are both "admin". Click on Device > Device Setting Select the camera and click modify Click the Motion Detection Area button Define your motion detection areas. You have three areas you can define....
Download the latest firmware update from our website here. Follow the firmware update instructions included with the downloaded firmware. TV-VS1P: https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1481 ...
Log in to the camera and click on Setup then click on Event Server>Email on the left hand side. Enter your email server and user information here. After applying the email server information click on EventConfig on the left hand side. You have three options, Motion Detection, Scheduled uploa...
Log in to the TV-VS1(P) and click on Setup then click on Event Server>FTP on the left hand side. Enter your FTP server information here. After applying the FTP server information click on Event Config on the left hand side. You have three options Motion Detection, Scheduled uploading and GPI...
After you have the camera configured on your network start SecurView Pro. The default username and password for SecurView Pro are both admin. Click on the Device button then click Device Settings. Click New. Click on the Device Search button. Click Sea...
The supported browsers are Internet Explorer 6.0 or above.
Press and hold in the reset button on the TV-VS1(P) for 5 seconds while the power is on to restore factory default settings. ...
The orange LED is a power light. It should be a steady orange light when power is applied. The green LED is a link light. It should be green with an active Ethernet connection and blinking when sending and receiving data....
Log in to the camera by entering the camera's IP address into your browser. The default IP address ishttps://192.168.10.30. The default username and password are both admin. After you have logged into the camera do the following. -Click Setup>Basic>User You can define the Administrator Pass...
Yes, the camera does support DDNS (Dynamic DNS). Dynamic DNS services will allow you to maintain a single hostname for the camera, even if your ISP changes your WAN IP address. The camera will update the DDNS record to reflect the new IP address. This ensures that each time you go to the hostname yo...
You will need to forward the port that the TV-VS1(P) is using in the router to the TV-VS1(P). By default this is TCP port80. From a remote location you would enter in the public or WAN IP address of your router into your browser or add it to SecurView Pro using the public IP address. Refer to you...
General
Video

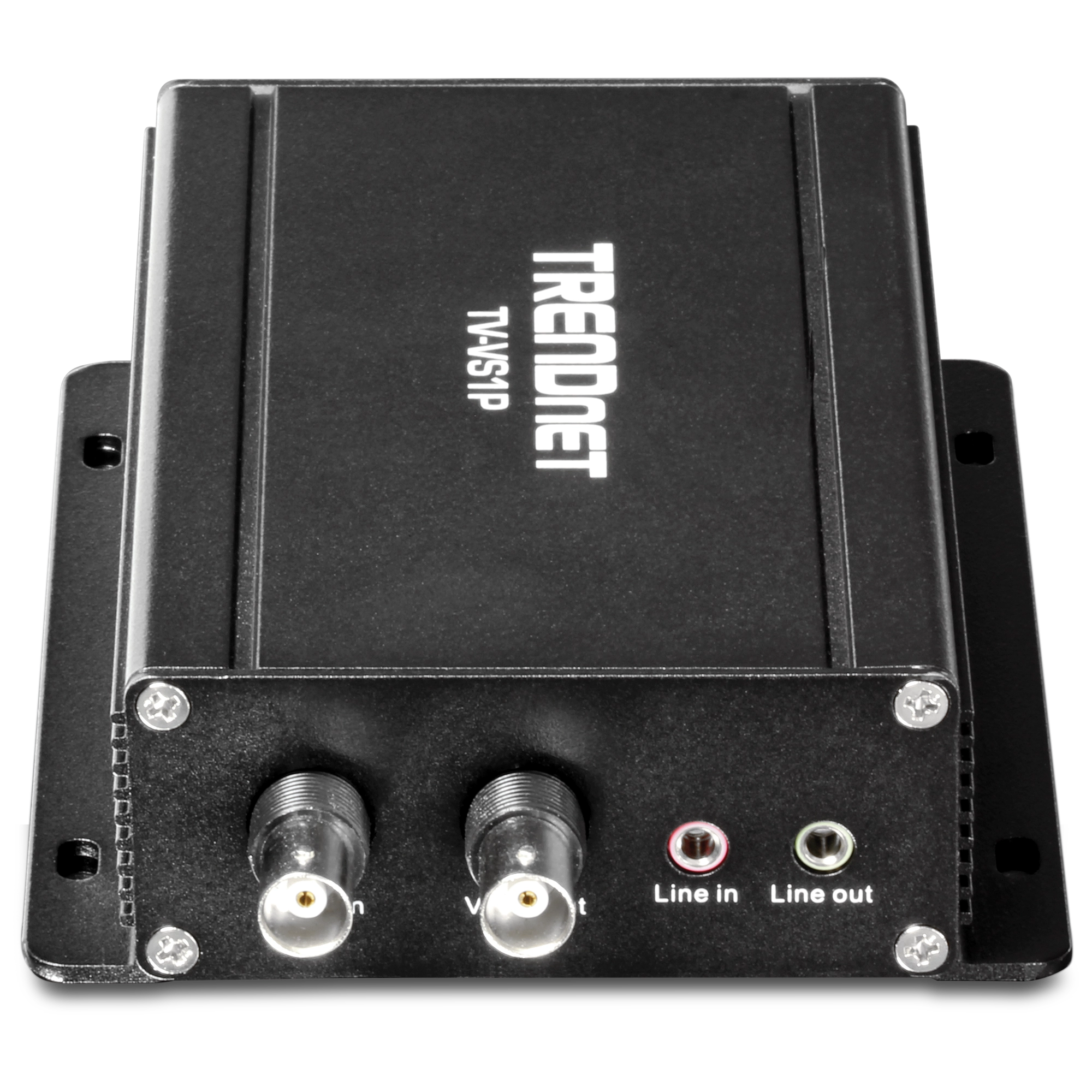

  • Video In: CVBS / 1 Vp-p±0.2 / 75 Ohms; BNC connecter
  • Video Out: CVBS /1 Vp-p /75 Ohms; BNC connecter
Audio
  • Line Input: 3.5mm jack (CCTP audio)
  • Line Output: 3.5mm jack (Speaker)
  • Format: PCM/AMR
  • 2 Way audio supported
GPIO
  • Ground, GPIO in/out, DV12V output, RS485 TX+/TX-
SD Slot
  • Supports SD/SDHC (up to 32GB)
Pan/Tilt/Zoom
  • Protocol: Pelco D and Pelco P32 presetsAuto Patrol
Hardware
Network
  • IEEE 802.3u 10/100Mbps Fast Ethernet, Auto-MDIXIEEE 802.3af PoE

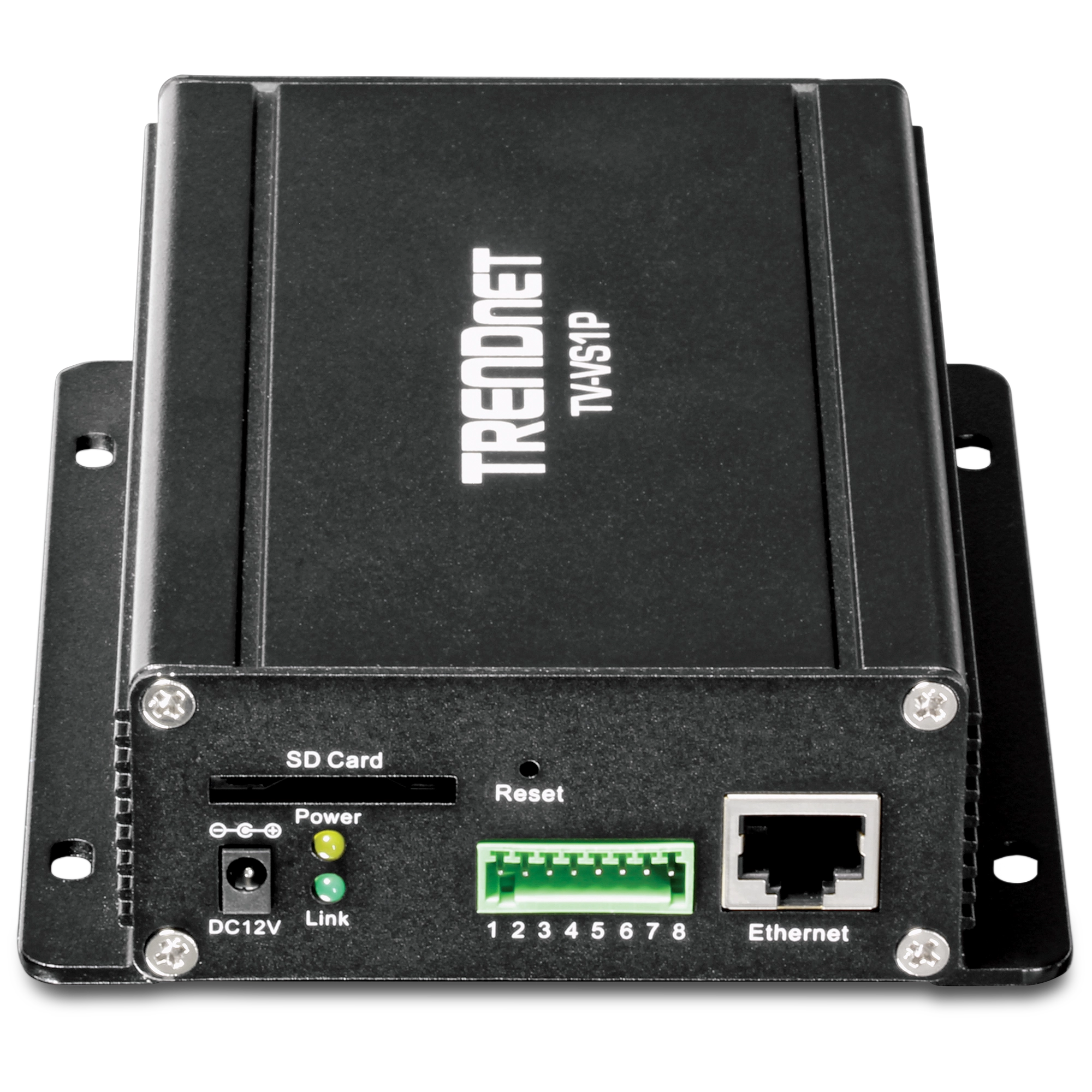

LED
  • Power, Link
Reset Button
  • Push and release to rebootPush and hold for 5 seconds to restore to factory default
Power Consumption
  • 7 Watts
Power
  • 12V, 1.5A external power adapter (for non-PoE installation)
Dimension
  • 160 x 109 x 36 mm (6.3 x 4.3 x 1.4 in.)
Weight
  • 445 g (15.7 oz.)
Temperature
  • Operating: 0°C ~ 45°C (32°F ~ 113°F)
  • Storage: -15°C ~ 60°C (5°F ~ 140°F)
Humidity
  • Max. 85% (non-condensing)
Certifications
  • CE, FCC
Requirement
Management Interface
  • Internet Explorer 6.0 or above
To run Utility
  • Windows 7(32/64-bit), Vista(32/64-bit), XP(32/64-bit)
Network Protocols
  • TCP/IP, IPv4/IPv6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
Management
Remote
  • Remote management supported
Backup / Restore
  • Save/retrieve configuration files
Settings
  • Brightness, contrast, saturation, mirror (horizontal/vertical)
Video Encoder
  • Encoding type: H.264, MPEG4, MJPEGResolution/frame rate(auto-sensing)704 x 480, 352 x 240, 176 x 120, up to 30 fps (NTSC)
  • 704 x 576, 352 x 288, 176 x 144, up to 25 fps (PAL)
  • Compression: 5 levels
Recording
  • Recording type: continuous, schedule, or motion detection
Port Settings
  • HTTP port: 80 (default), RTSP (554)
Digital Zoom
  • 3x
Dynamic DNS
  • Yes
Time
  • Synchronize with NTP server or set time/date manually
SMTP
  • Supported up to 2 destination accounts
System Log
  • 100 items

PACKAGE CONTENTS

  • TV-VS1P
  • Multi-language Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • Network cable (1.8 m / 6 ft.)
  • GPIO Connector
  • Audio and cable (3.5 mm)
  • Power adapter (12 VDC, 1.5 A)
  • Mounting accessories

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
