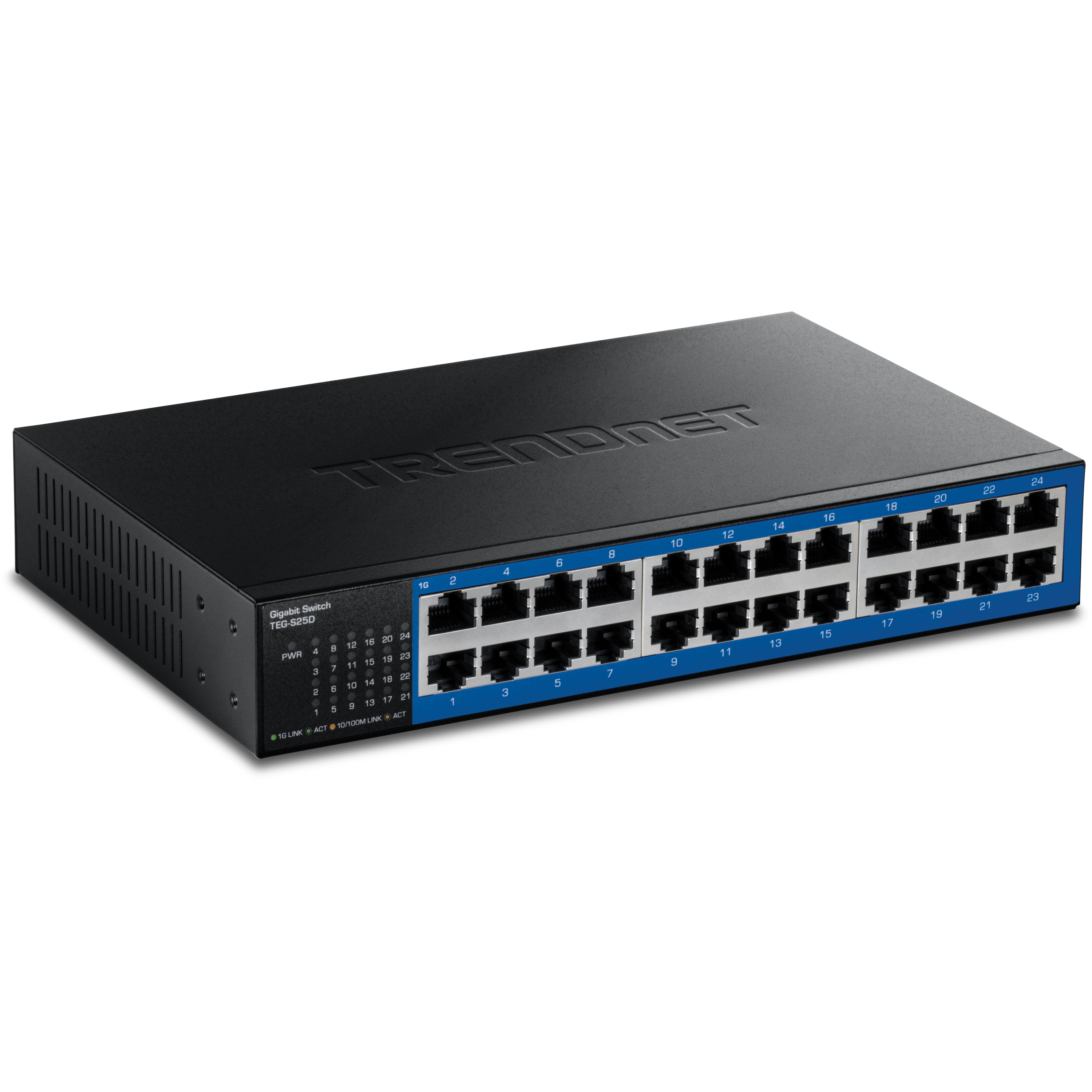

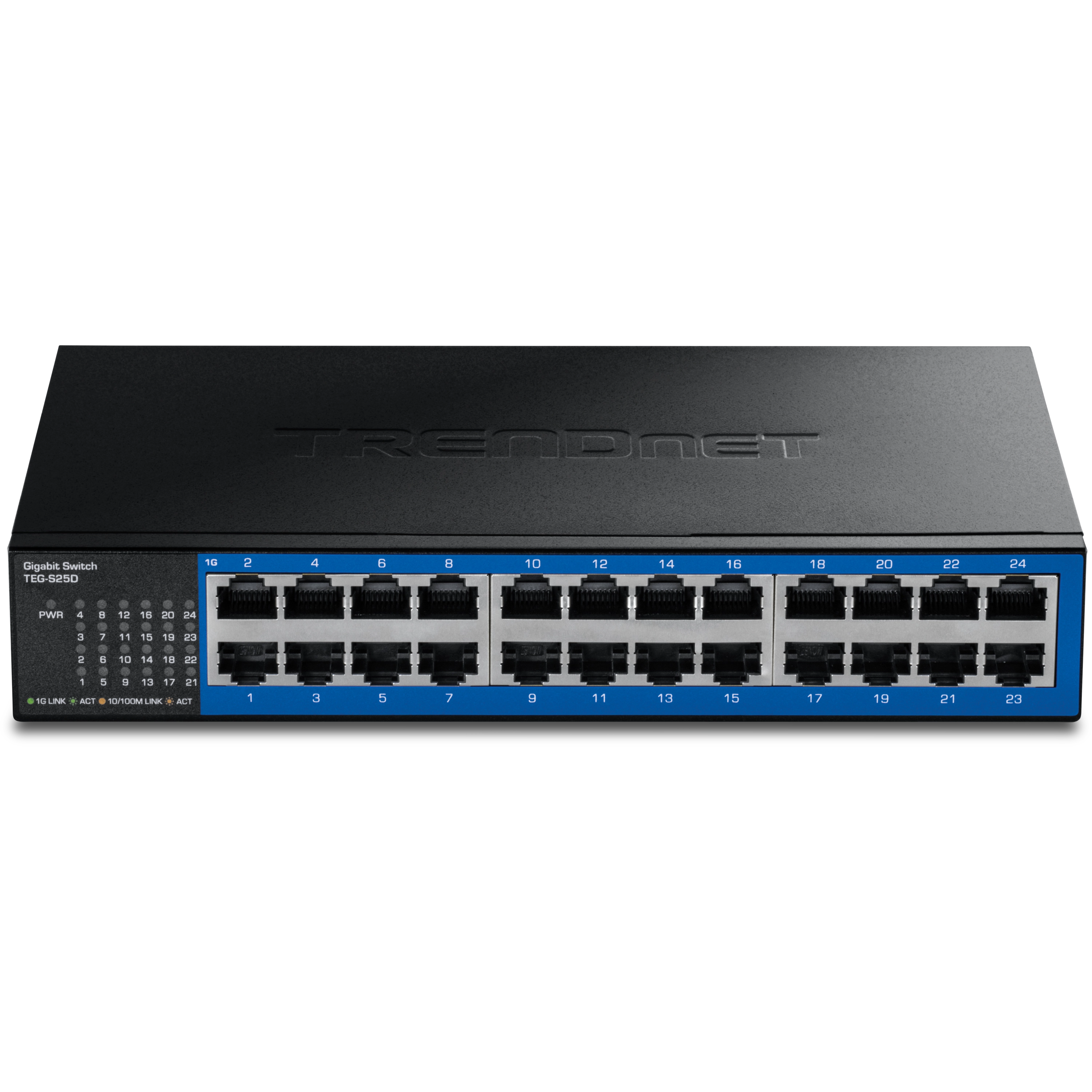

24-Port Gigabit Desktop Switch

TEG-S25D   (Version V2)

  • 24 x Gigabit RJ45 ports
  • Sturdy metal desktop switch
  • Built-in power supply
  • Supports VLAN Passthrough, QoS Passthrough, Loopback Detection, and IGMP Snooping
  • Fanless design
  • 1U rackmount brackets included
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
Device Interface
  • 24 x Gigabit ports (10Mbps/100Mbps/1000Mbps)
  • Wall mountable
  • LED indicators
Performance
  • Switching Capacity: 48Gbps
  • RAM Buffer: 1024KB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 35.7Mpps (64-byte packet size)
  • Jumbo Frames: 12KB
Special Features
  • VLAN Passthrough
  • IGMP Snooping v1/v2/v3
  • DSCP QoS Passthrough
  • Loop prevention
  • Multicast Flooding
Power
  • Internal power supply: 100 – 240V AC, 50/60 Hz, 0.5A
  • Max. consumption: 13.75W
Fan/Acoustics
  • Fanless design
MTBF
  • 581,968 hours @ 25° C
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 225 x 143.5 x 40mm (8.86 x 5.65 x 1.57in.)
Weight
  • 873g (30.8 oz.)
Certifications
  • FCC
  • CE
  • LVD
  • ETL
Warranty

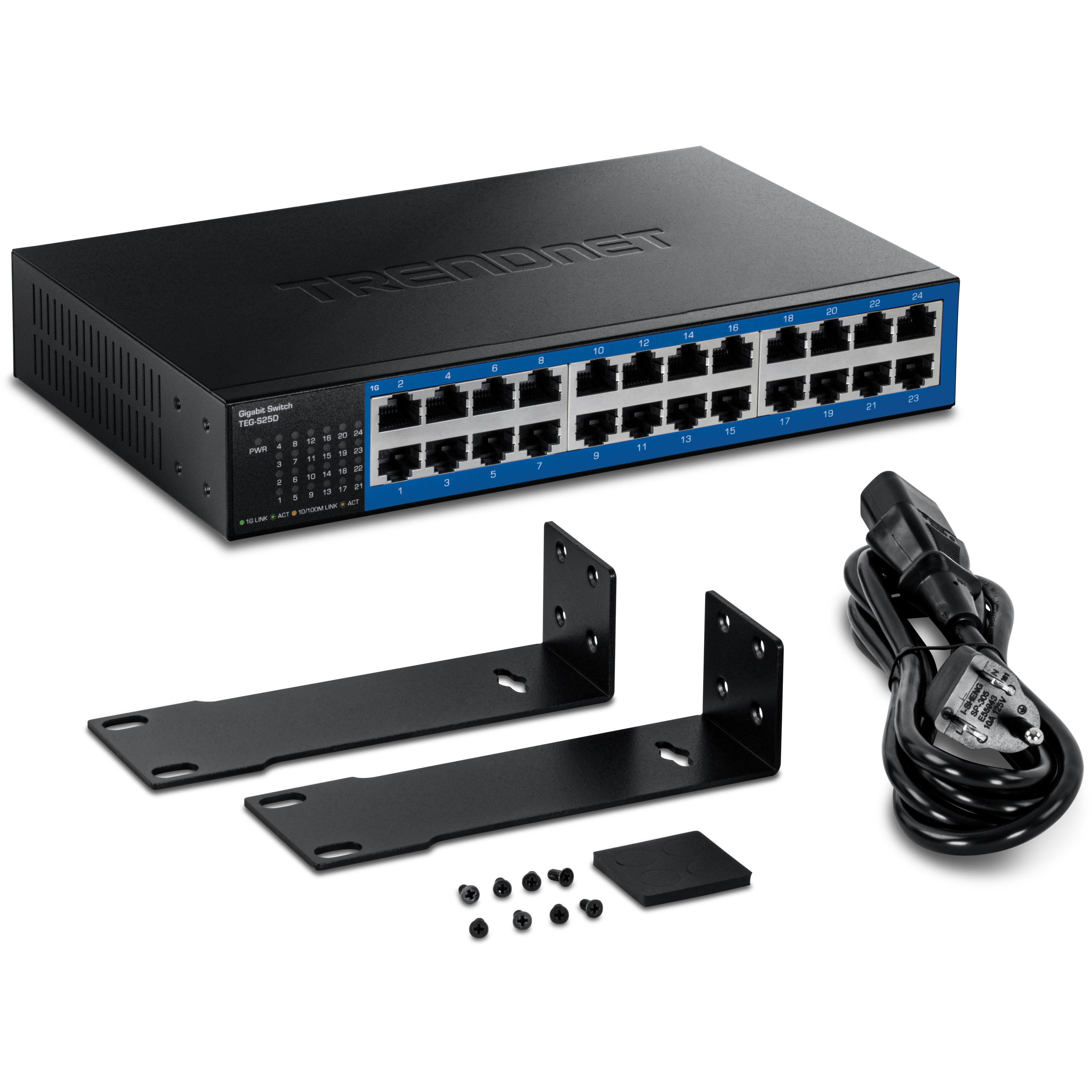

PACKAGE CONTENTS
  • TEG-S25D
  • Power cord (1.5m / 4.9 ft.)
  • Rackmount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
