200Mbps Powerline AV Adapter with Bonus Outlet
TPL-307E (Version v1.0R)
- Building-wide HD networking from any electrical outlet
- Never lose an electrical outlet with the built in socket
- Compact form factor does not block adjacent outlets
- Advanced noise filter boosts performance
- Power Save mode reduces electrical consumption by 80%
DISCONTINUED PRODUCT
The TPL-307E (Version v1.0R) has been discontinued. It has been replaced by the TPL-423E (Version V1). For a list of discontinued products, click here.Utility
Release Date: 9/2013
Utility Version: v7.1 Build 0101
WinPcap Version: v4.1.3
OS Compatibility: Windows® 8.1 (32/64-bit), 8 (32/64-bit), Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Notes:
- Added compatibility for Windows® 8/8.1
*Prerequisite: Requires Microsoft® .NET Framework 2.0. Please refer to the Microsoft download center for details on downloading and installing .NET Framework 2.0
***To start the installation, double click the file "Installer_CD.bat***
Filename: Utility_Powerline(v7.1.0101).zip
SHA-1 Checksum: 764C84BB70A7ED416094EBF79A2E91F70CB97023
Date: 7/28/2017
File Size: 6.52 MB
Firmware
Datasheet
Filename: EN_spec_TPL-307E(V1.0R).pdf
Date: 11/22/2011
File Size: 668.83 KB
Filename: FR_spec_TPL-307E(V1.0R).pdf
Date: 11/22/2011
File Size: 647.79 KB
Filename: GE_spec_TPL-307E(V1.0R).pdf
Date: 11/22/2011
File Size: 637.44 KB
Filename: SP_spec_TPL-307E(V1.0R).pdf
Date: 11/22/2011
File Size: 649.15 KB
Filename: RU_spec_TPL-307E(V1.0R).pdf
Date: 11/22/2011
File Size: 616.79 KB
Filename: IT_spec_TPL-307E(V1.0R).pdf
Date: 11/22/2011
File Size: 645.77 KB
Quick Installation Guide
Filename: QIG_Web_TPL-307K_307E2K(1.01).pdf
Date: 11/23/2011
File Size: 1.55 MB
Filename: FR_Web_TPL-307K_307E2K(1.01).pdf
Date: 10/7/2011
File Size: 982.43 KB
Filename: GE_Web_TPL-307K_307E2K(1.01).pdf
Date: 10/7/2011
File Size: 601.61 KB
Filename: PO_Web_TPL-307K_307E2K(1.01).pdf
Date: 10/7/2011
File Size: 602.10 KB
Filename: SP_Web_TPL-307K_307E2K(1.01).pdf
Date: 10/7/2011
File Size: 601.71 KB
Filename: RU_Web_TPL-307K_307E2K(1.01).pdf
Date: 10/7/2011
File Size: 604.40 KB
Filename: EST_Web_TPL-307K_307E2K(1.01).pdf
Date: 10/7/2011
File Size: 601.19 KB
User's Guide

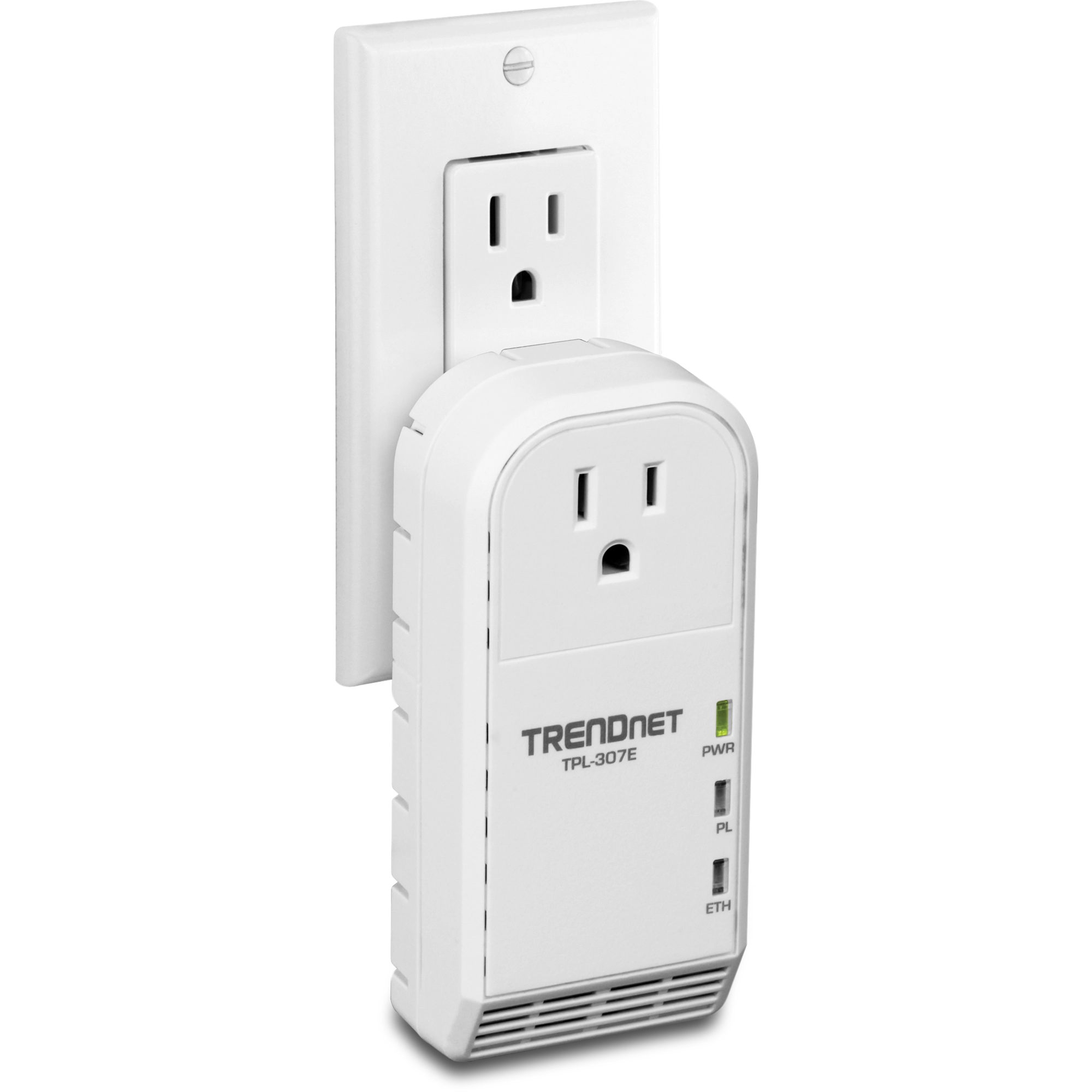

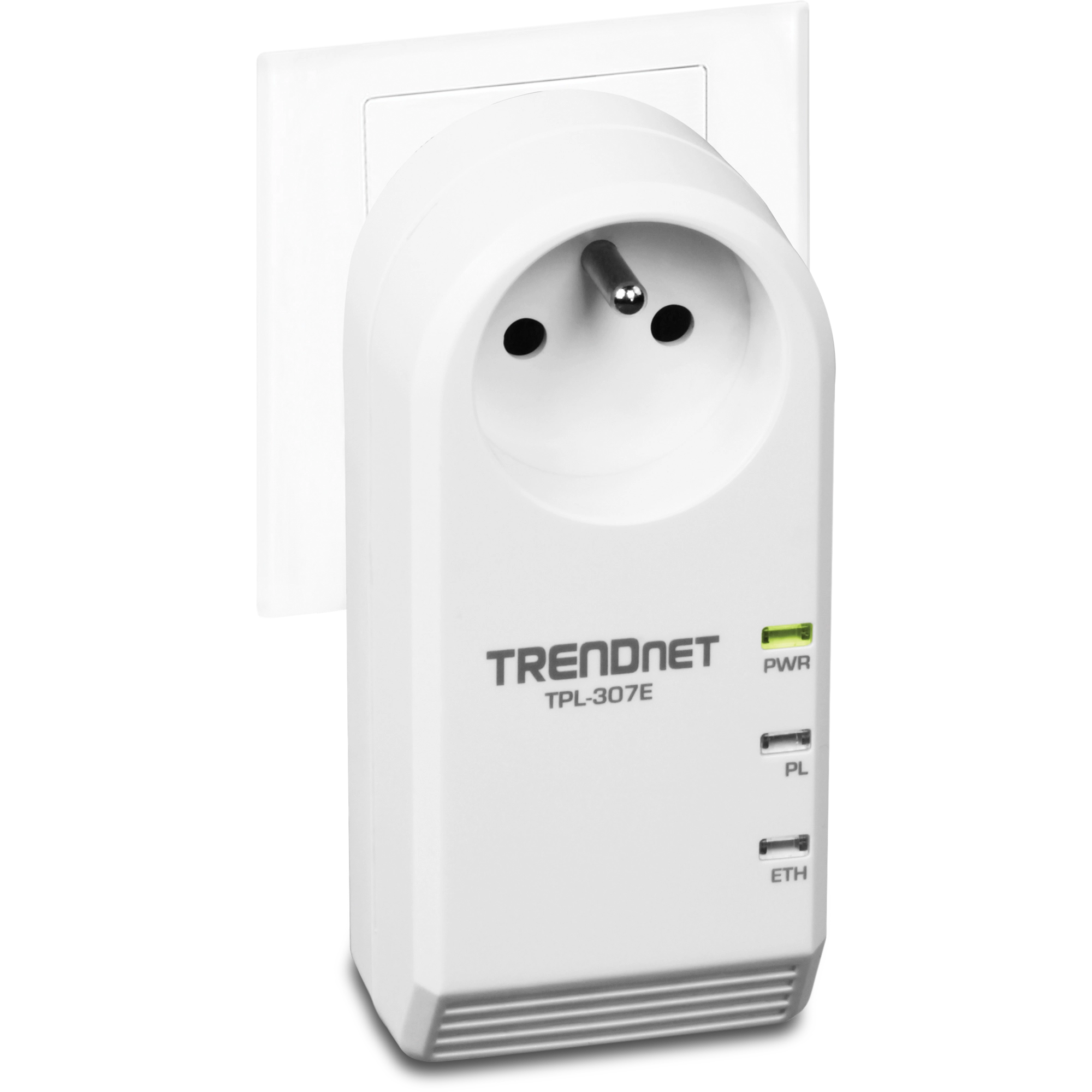

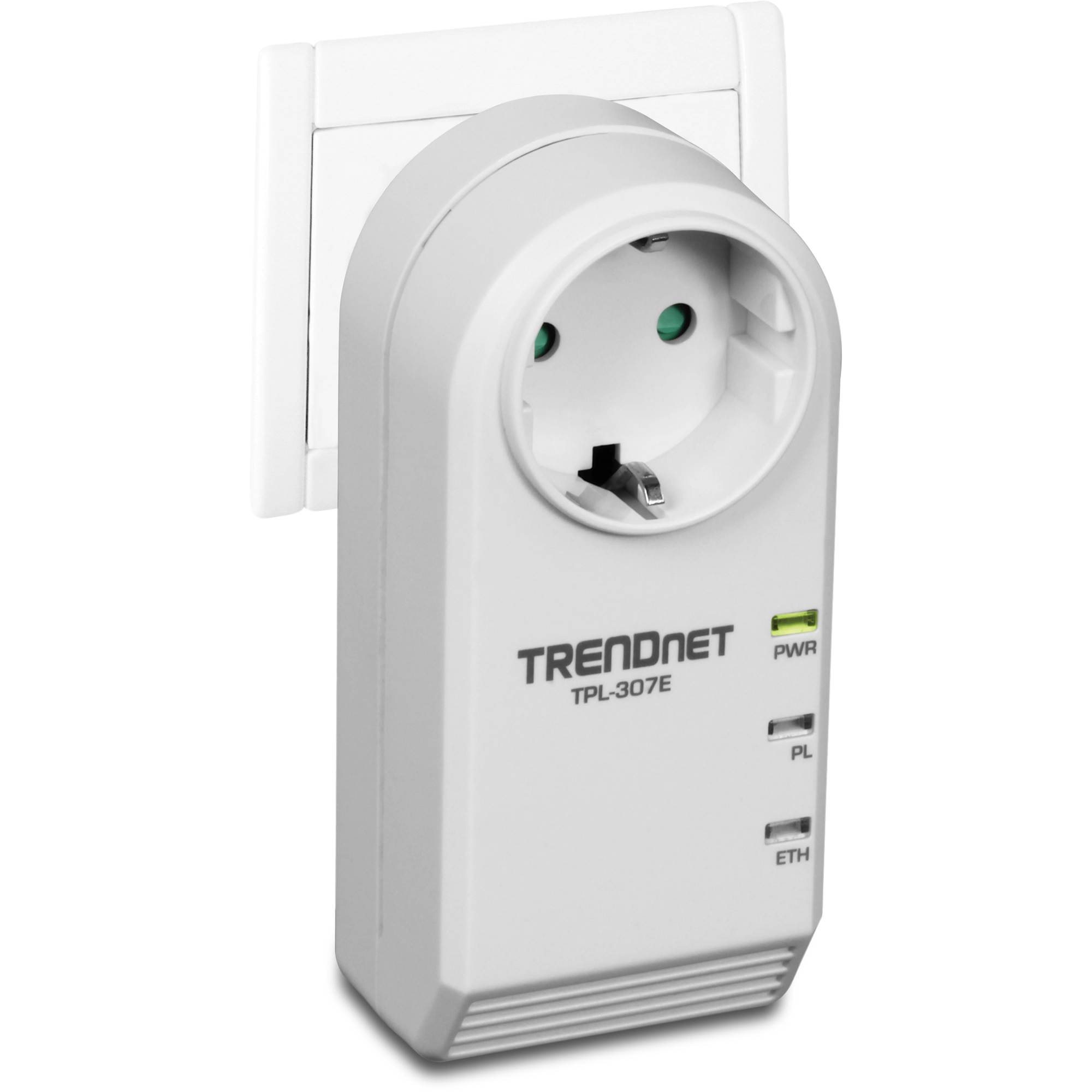

Product Images
Please reference the items below if you continue to experience difficulty with installing and using your Powerline adapters.
Power-cycle the Powerline adapters by disconnecting them from their power outlets for 15 seconds and then reconnect them.
If the Powerline (PL) LED is red, try pluggi...
We do not recommend any more than 6 total TPL-307E/TPL-307E2K adapters on a single network.
LED
Color
Sequence
Definition
PWR (Power)
Green
Solid
Device powered on
N/A
Off
Device powered off
PL (Powerline)
Green
Solid
Powerline connected (Connection quality is Best)
Blinking
Syncing or Powerline data transmitting/receiving (Conn...
Please reference page 9 of the User's Guide. The User's guide is located on the CD that was included with the product. You can also download it from our website here.
https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1506
...
Please reference page 7 of the User's Guide. The User's Guide is located on the CD that was included with the product. You can also download it from our website here.https://www.TRENDnet.com/downloads/list_subcategory.asp?SUBTYPE_ID=1506...
Reset the TPL-307E/TPL-307E2K by pressing and holding in the reset button for 1 second. The default network ID is HomePlugAV. ...
Ensure you do not have the TPL-307E/TPL-307E2K units connected to surge protectors or to any outlet with appliances. Please also ensure the units are connected to outlets within the same circuit breaker box. Reset the units and ensure they are configured with the same Network ID or use the sync b...
| Hardware | |
| Standards | IEEE 1901, HomePlug® AV, IEEE 802.3, IEEE 802.3x, IEEE 802.3u |
| Interface |
|
| Frequency Band | 2 ~ 28 MHz |
| Modulation | OFDM Symbol modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO carrier |
| Protocols | TDMA and CSMA/CA |
| Speed |
|
| Utility OS Compatibility | Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit) |
| Nodes | Up to 6 (max.) |
| Overlapping Powerline Networks Supported | Up to 4 (per electrical system) |
| Coverage | Up to 300 m (984 ft.) |
| Security | 128-Bit AES (Advanced Encryption Standard) |
| LED | Power (PWR) Powerline (PL) Connection
|
| Buttons | Sync, Reset |
| Dimension (L x W X H) |
|
| Weight |
|
| Power Source | 100~240V AC, 50~60Hz |
| Consumption |
|
| Temperature |
|
| Humidity | Max. 90% (non-condensing) |
| Certifications | CE, FCC, HomePlug® AV |
PACKAGE CONTENTS |
|
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
