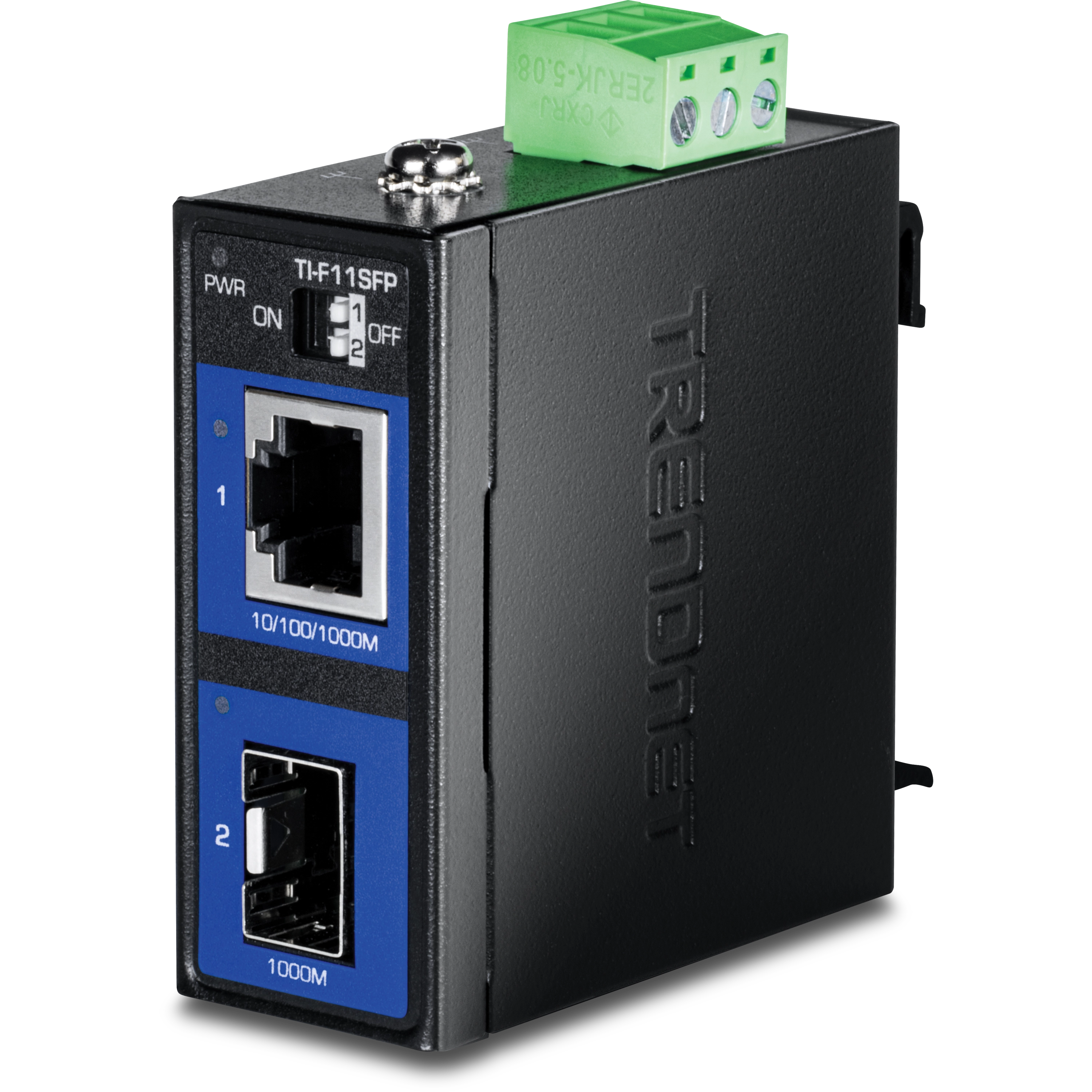

Industrial 100/1000Base-T to SFP Media Converter

TI-F11SFP   (Version V4)

   Select Another Version
  • Hardened IP50 rated 100/1000Base-T Ethernet to SFP converter
  • SFP port accommodates Multi or Single Mode fiber modules
  • Up to 80km fiber networking distances with the TEG-MGBS80 SFP module
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • 12 – 60V DC power input with overload current protection
  • 6kV RJ45 surge protection

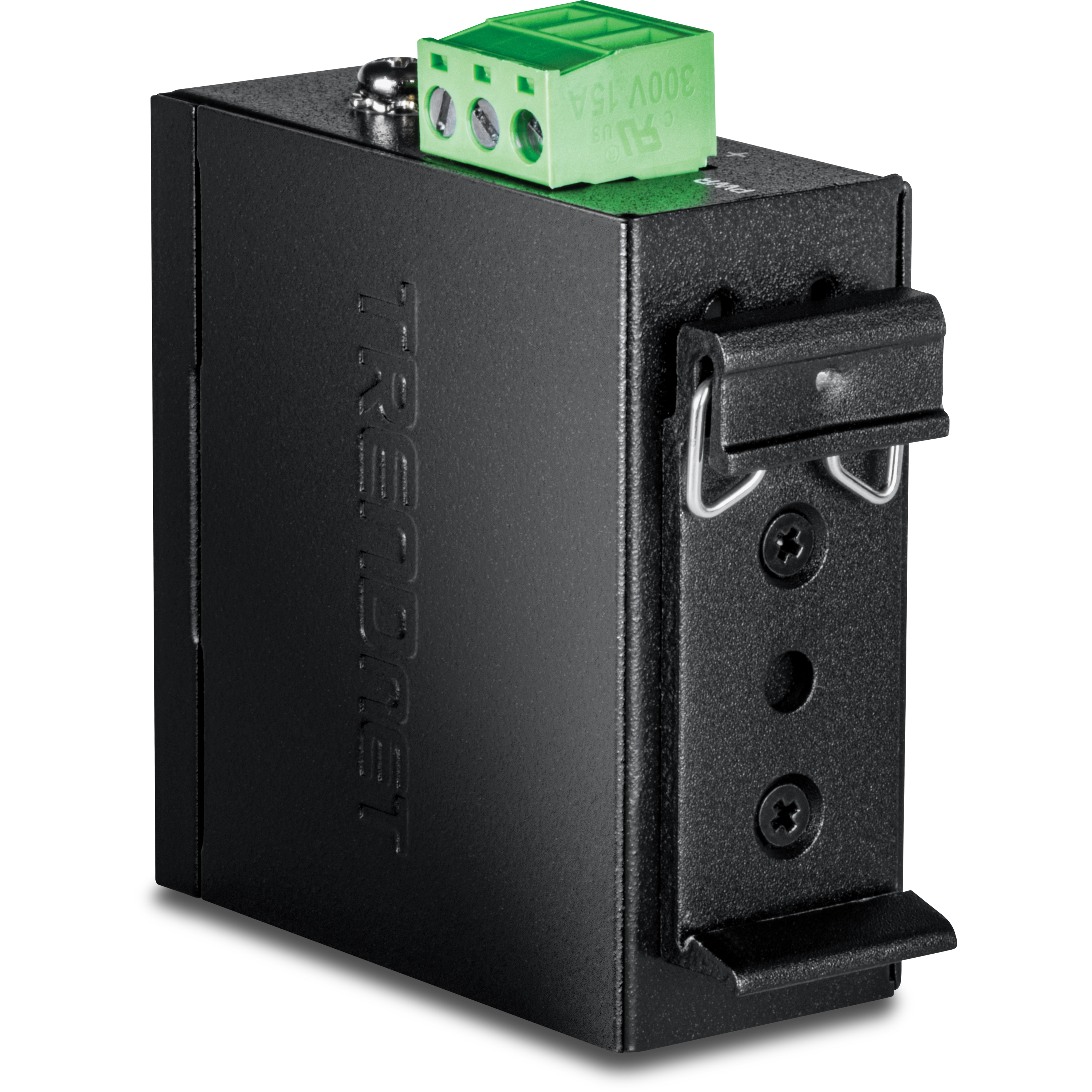

  • Includes DIN-Rail and wall mounts
  • Powers supply sold separately (model: TI-M6024)
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant

Datasheet

Datasheet (English)
Filename: EN_datasheet_TI-F11SFP_(v4.xR).pdf
Date: 3/25/2026
File Size: 3.43 MB
Download Email
Datasheet (Français)
Filename: FR_datasheet_TI-F11SFP_(v4.xR).pdf
Date: 3/25/2026
File Size: 3.48 MB
Download Email
Datasheet (Deutsch)
Filename: GE_datasheet_TI-F11SFP_(v4.xR).pdf
Date: 3/25/2026
File Size: 3.46 MB
Download Email
Datasheet (Português)
Filename: PO_datasheet_TI-F11SFP_(v4.xR).pdf
Date: 3/25/2026
File Size: 3.45 MB
Download Email
Datasheet (Español)
Filename: SP_datasheet_TI-F11SFP_(v4.xR).pdf
Date: 3/25/2026
File Size: 3.47 MB
Download Email
Datasheet (Italiano)
Filename: IT_datasheet_TI-F11SFP_(v4.xR).pdf
Date: 3/25/2026
File Size: 3.45 MB
Download Email

Quick Installation Guide

Quick Installation Guide
Filename: qig_TI-F711SFP_(V1.0R)_011225.pdf
Date: 3/25/2026
File Size: 8.33 MB
Download

Product Images

TI-F11SFP Product Photo (PNG Image 1)
PNG Image
File Size: : 7.22 MB
Date: : 3/25/2026
Download
TI-F11SFP Product Photo (PNG Image 2)
PNG Image
File Size: : 4.63 MB
Date: : 3/25/2026
Download
TI-F11SFP Product Photo (PNG Image 3)
PNG Image
File Size: : 7.16 MB
Date: : 3/25/2026
Download
TI-F11SFP Product Photo (PNG Image 4)
PNG Image
File Size: : 8.03 MB
Date: : 3/25/2026
Download
TI-F11SFP Product Photo (PNG Image 5)
PNG Image
File Size: : 4.61 MB
Date: : 3/25/2026
Download
ROHS compliant Non-Disposable
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x

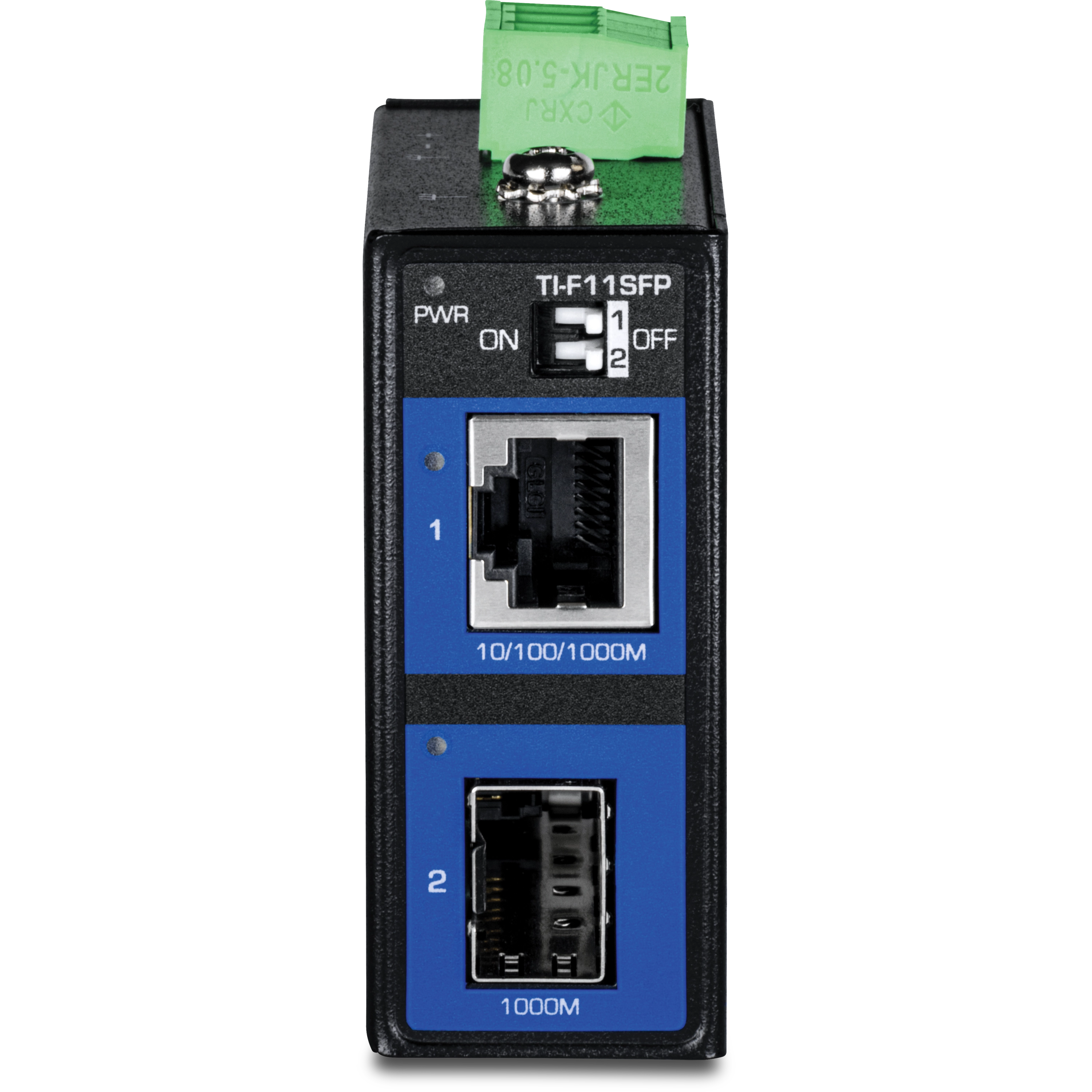

Device Interface
  • 1 x Gigabit port
  • 1 x Gigabit SFP port (100/1000Mbps)
  • 3-pin removable terminal block
  • LED indicators
  • DIP Switch
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
  • Fiber: 200Mbps (full duplex)
  • Fiber: 2Gbps (full duplex)
Performance
  • Data RAM Buffer: 64KB
  • Jumbo Frame: 16KB
Power
  • Input: 12-60V DC
  • Compatible power supply: TI-M6024 (sold separately)
  • Max. consumption: 1.64W

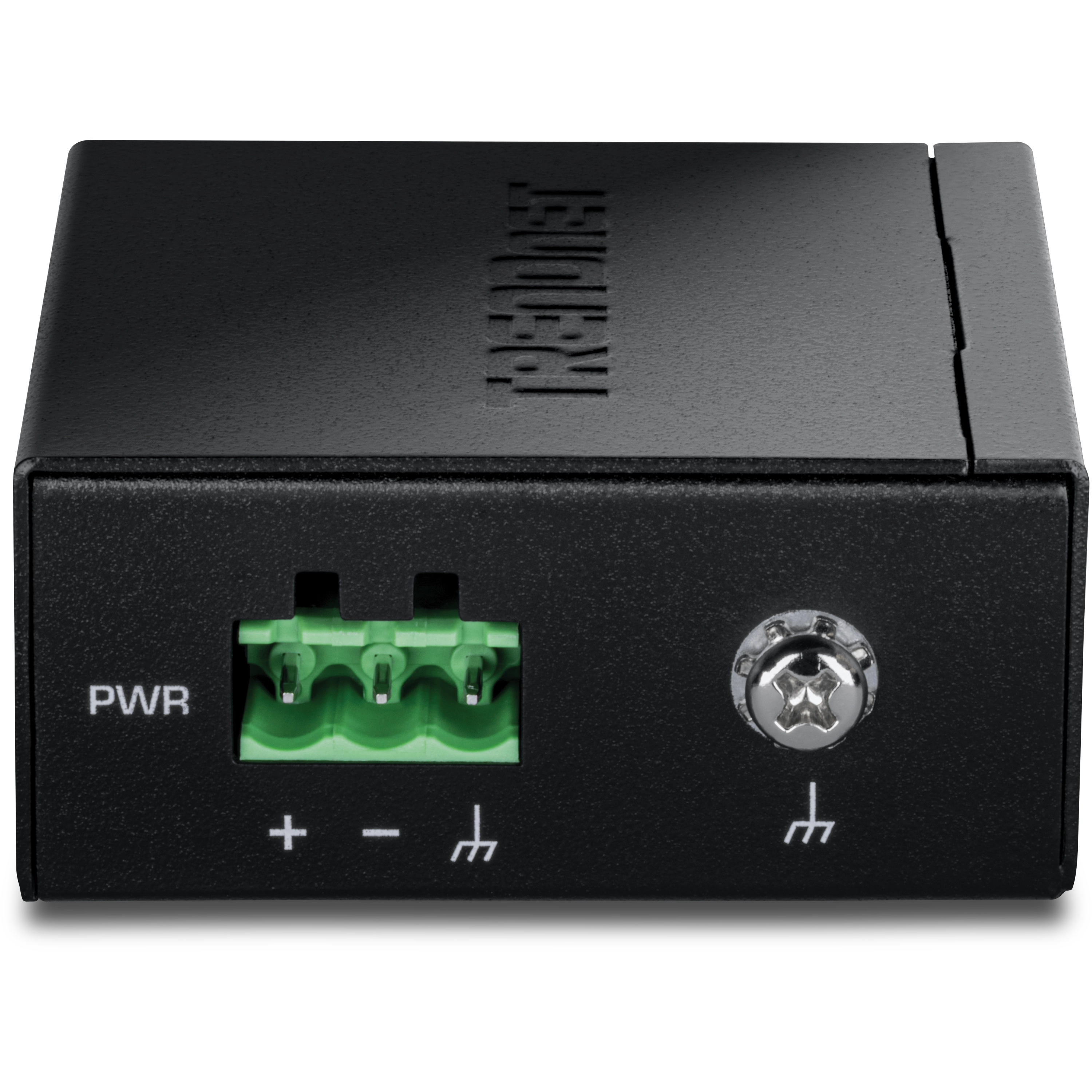

Terminal Block
  • 3-pin terminal block
  • Wire range: 1.5mm^2
  • Solid wire (AWG): 16-28
  • Stranded Wire (AWG): 16-28
  • Torque: 3 lb. – In / 0.2Nm / 0.56Nm
  • Wire strip length: 6-7mm
MTBF
  • 4,800,000 hours @ 25° C
DIP Switch
  • 1: On (LFPT on – Default), Off (LFPT off)
  • 2: On (Converter mode – Default), Off (Switch mode)
Housing
  • IP50 metal case

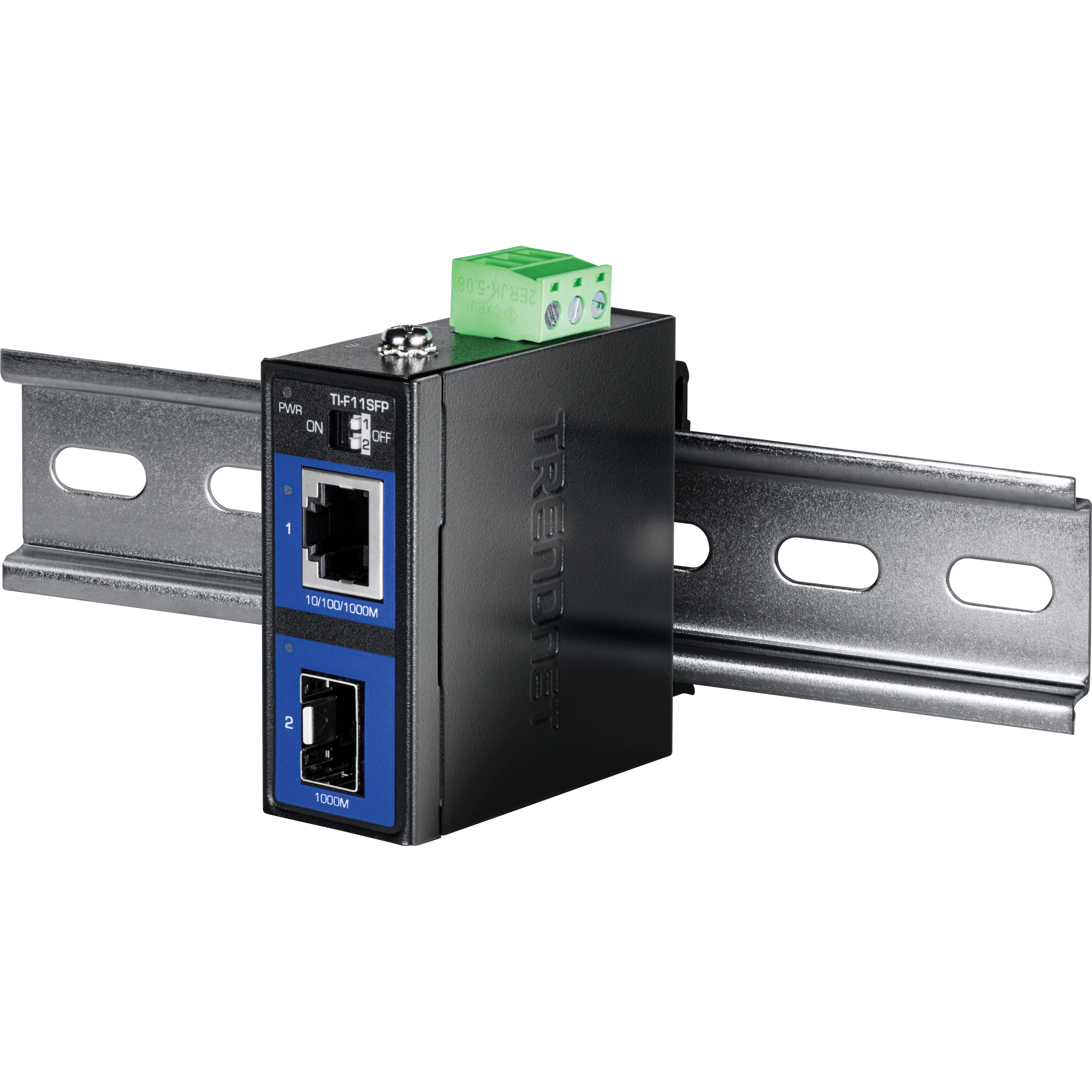

  • DIN-Rail mount
  • Wall mount
  • Grounding point
  • ESD 2kV protection
  • 6kV RJ45 protection
Operating Temperature
  • -40° - 75° C (-40° - 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 57 x 64 x 25mm (2.24 x 2.52 x 0.98 in.)
Weight
  • 144g (5.08 oz.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty
  • 3-year

PACKAGE CONTENTS
  • TI-F11SFP
  • Removable terminal block
  • DIN-Rail / wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
