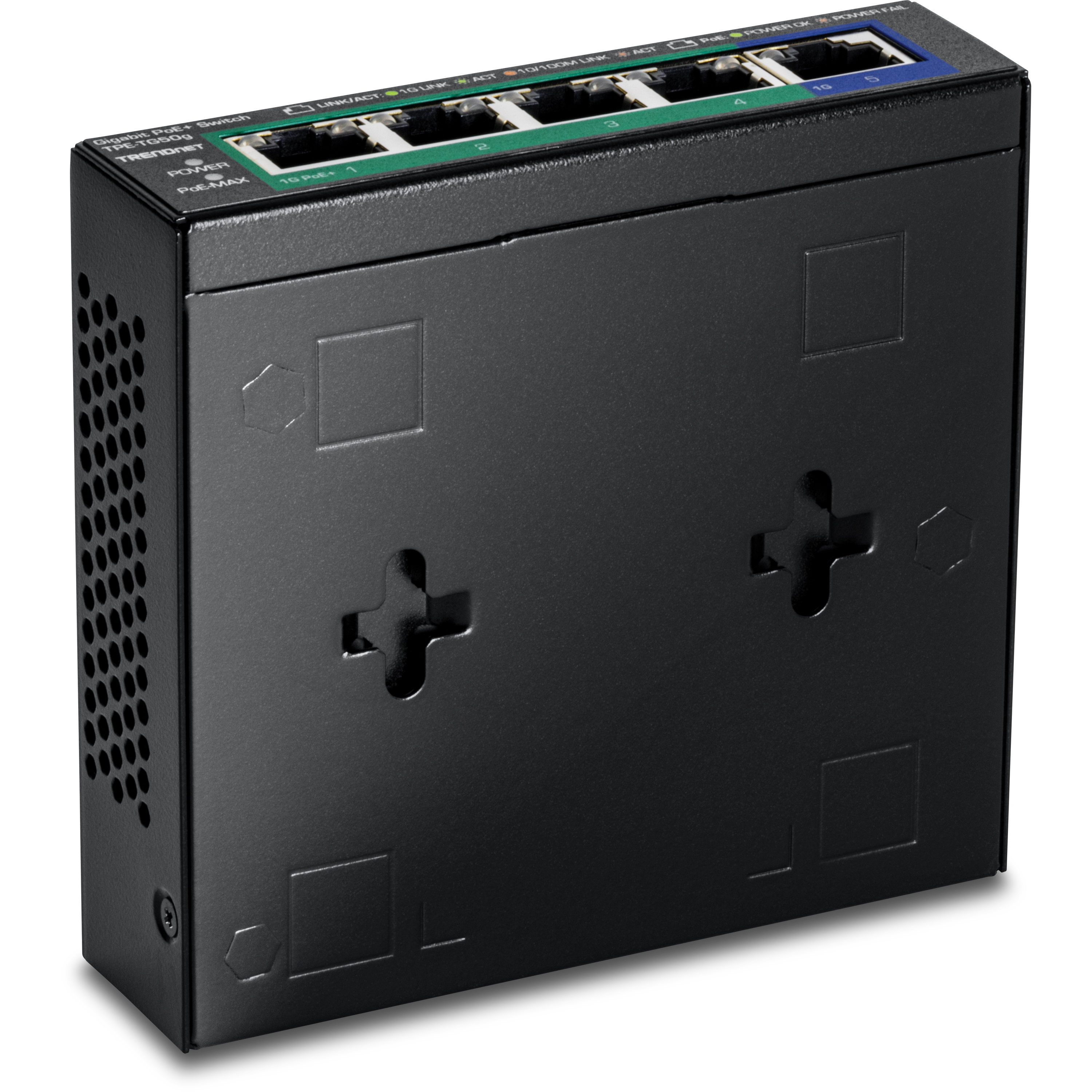

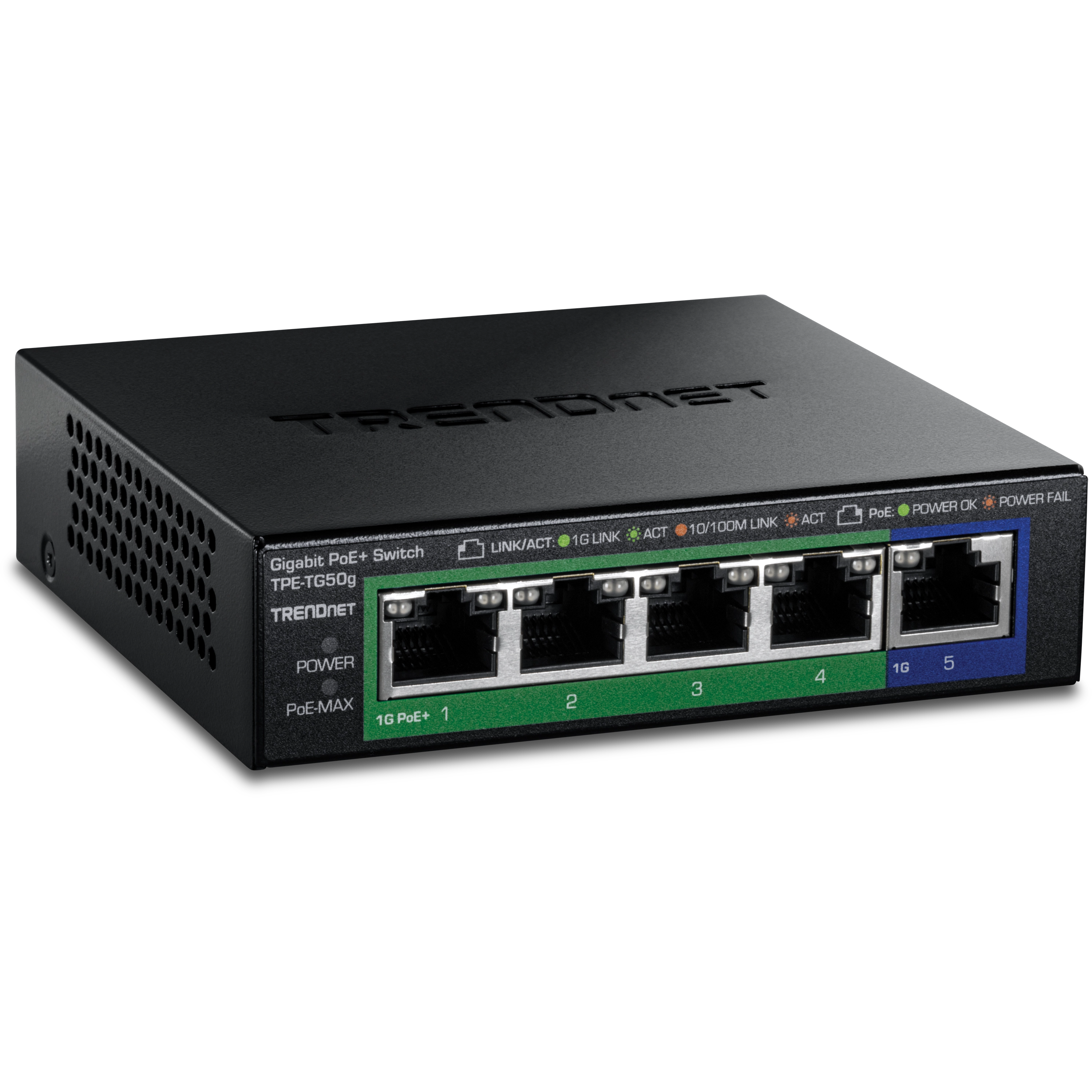

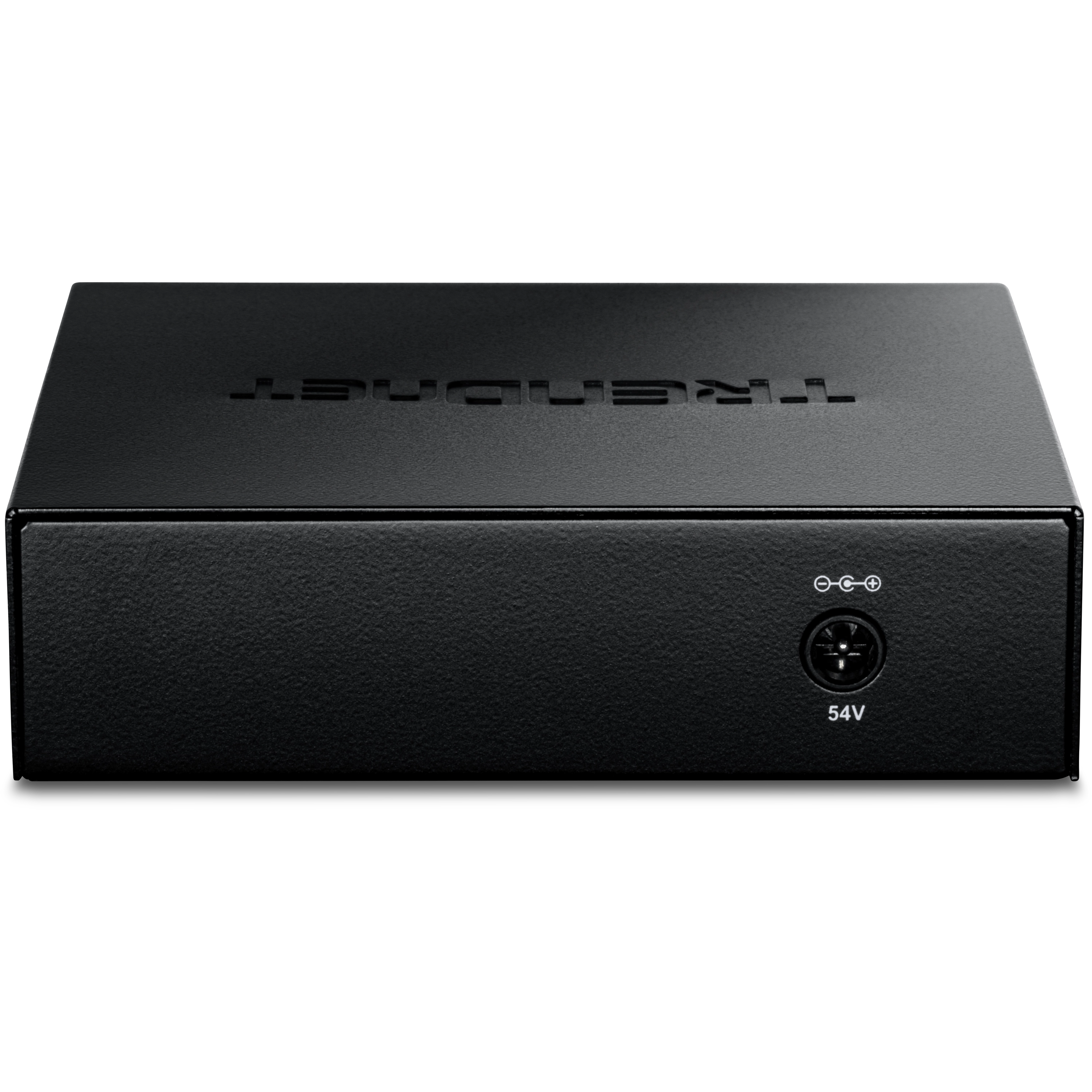

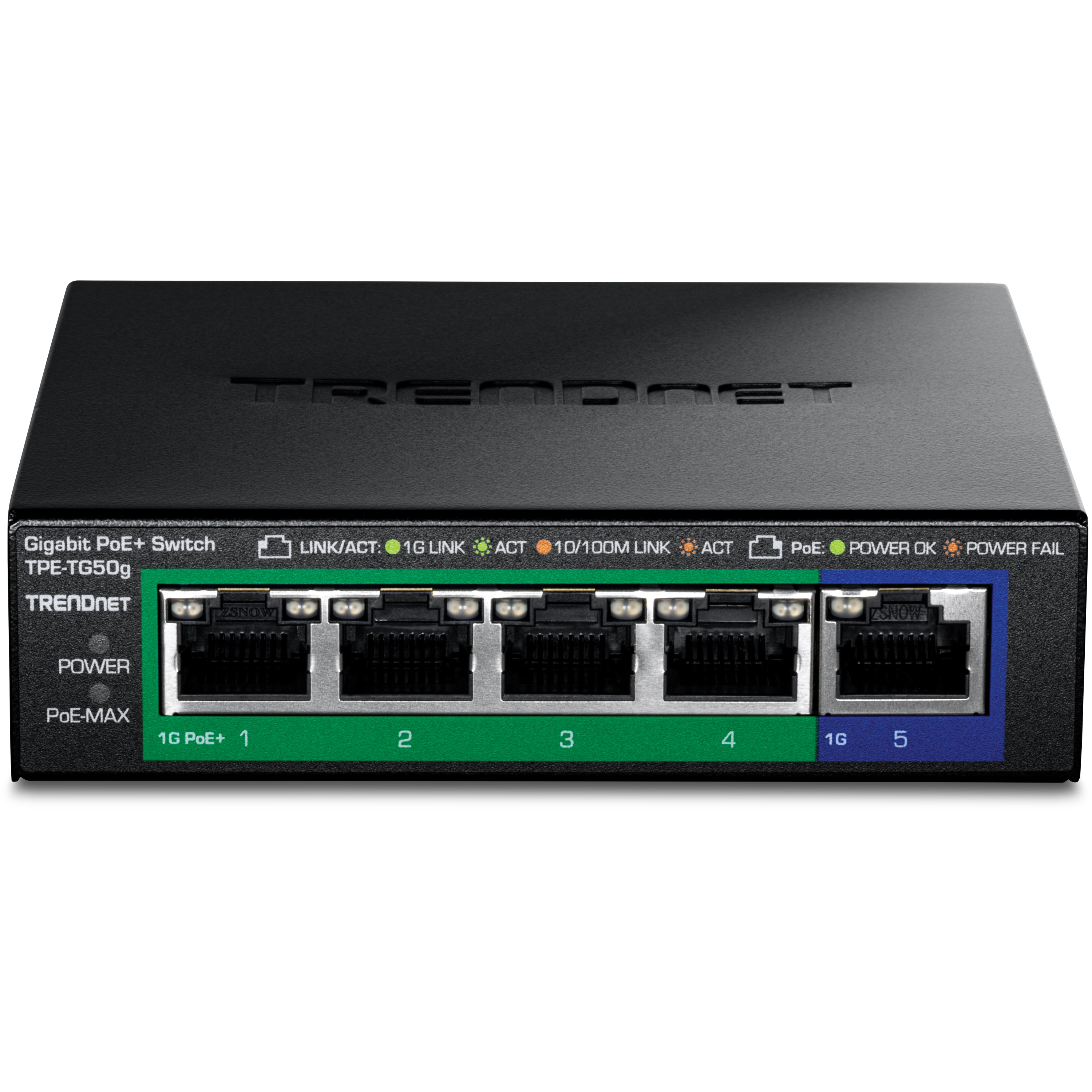

5-Port Gigabit PoE+ Switch

TPE-TG50g   (Version V4)

   Select Another Version
  • 4 x Gigabit PoE+ ports
  • 1 x Gigabit port
  • 31W PoE power budget
  • 10Gbps switching capacity
  • Compact metal switch
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3az
Device Interface
  • 4 x Gigabit PoE/PoE+ ports (10/100/1000Mbps)
  • 1 x Gigabit port (10/100/1000Mbps)
  • LED indicators
Performance
  • Packet Buffer: 128KB
  • Switch Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Forwarding rate: 7.44Mpps (64-byte packet size)
  • Jumbo Frame: 9KB
Power
  • Input: 110 -240 V AC, 50/60 Hz, 1.2A
  • Output: 54V DC, 0.7A
  • Max. consumption: 3.1W (no PoE load), 33.4W (full PoE load)
PoE
  • PoE budget: 31W
  • PoE Mode A: Pins 1, 2, 3, and 6 for power
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions
  • 105 x 98 x 28mm (4.13 x 3.86 x 1.1 in.)
Weight
  • 276g (9.74 oz.)
Certifications
  • CE
  • FCC
  • LVD
Warranty

PACKAGE CONTENTS
  • TPE-TG50g
  • Power adapter (54V DC, 0.7A)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
