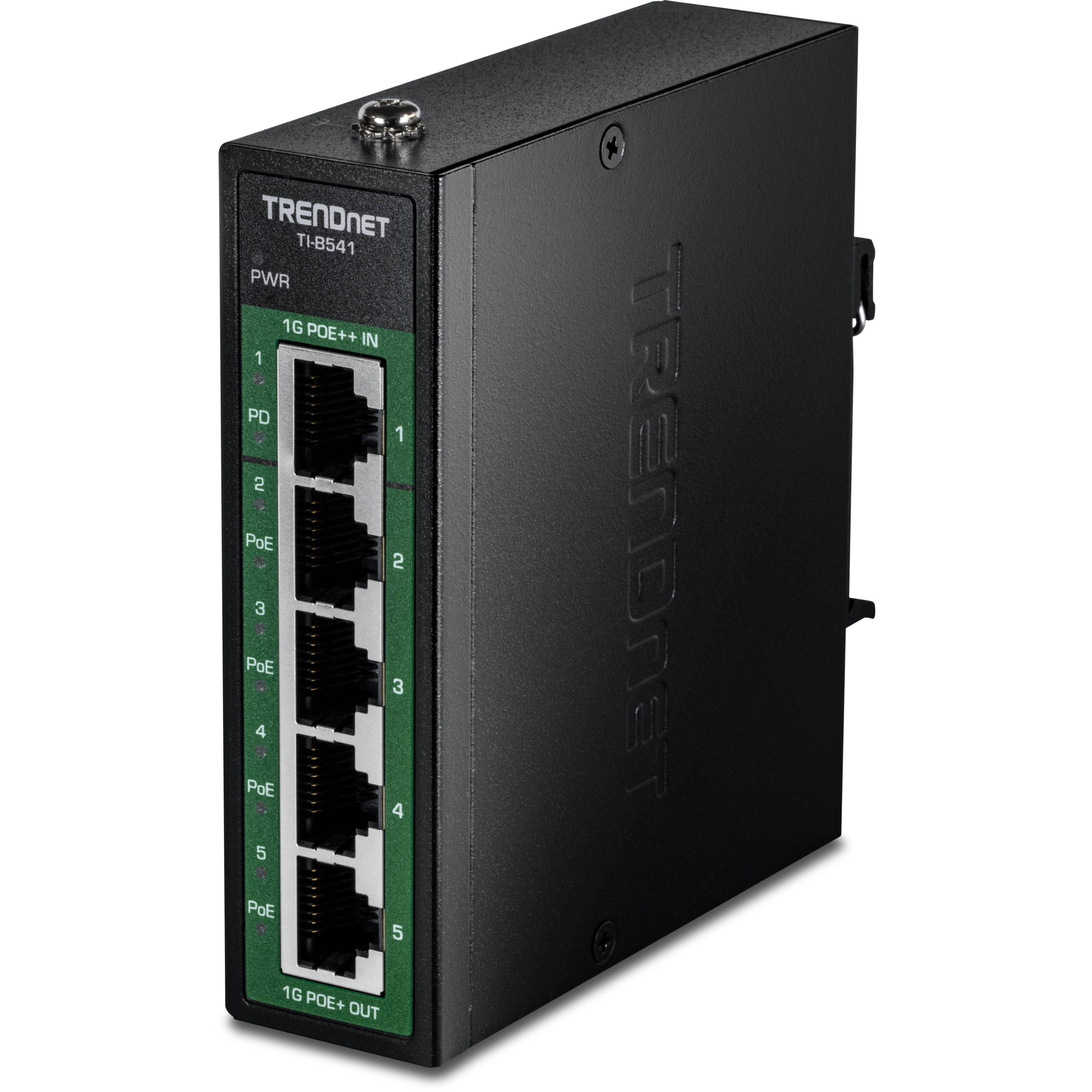

TI-B541 Product Photo
TI-B541 Product Photo TI-B541 Product Photo TI-B541 Product Photo TI-B541 Product Photo TI-B541 Product Photo

5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Passthrough

TI-B541   (Version V2)

   Select Another Version
  • 1 x Gigabit PoE++ input port
  • 4 x Gigabit PoE+ output ports
  • Up to 75W PoE power budget with PoE++ (95W) input power
  • Hardened IP50-rated metal switch

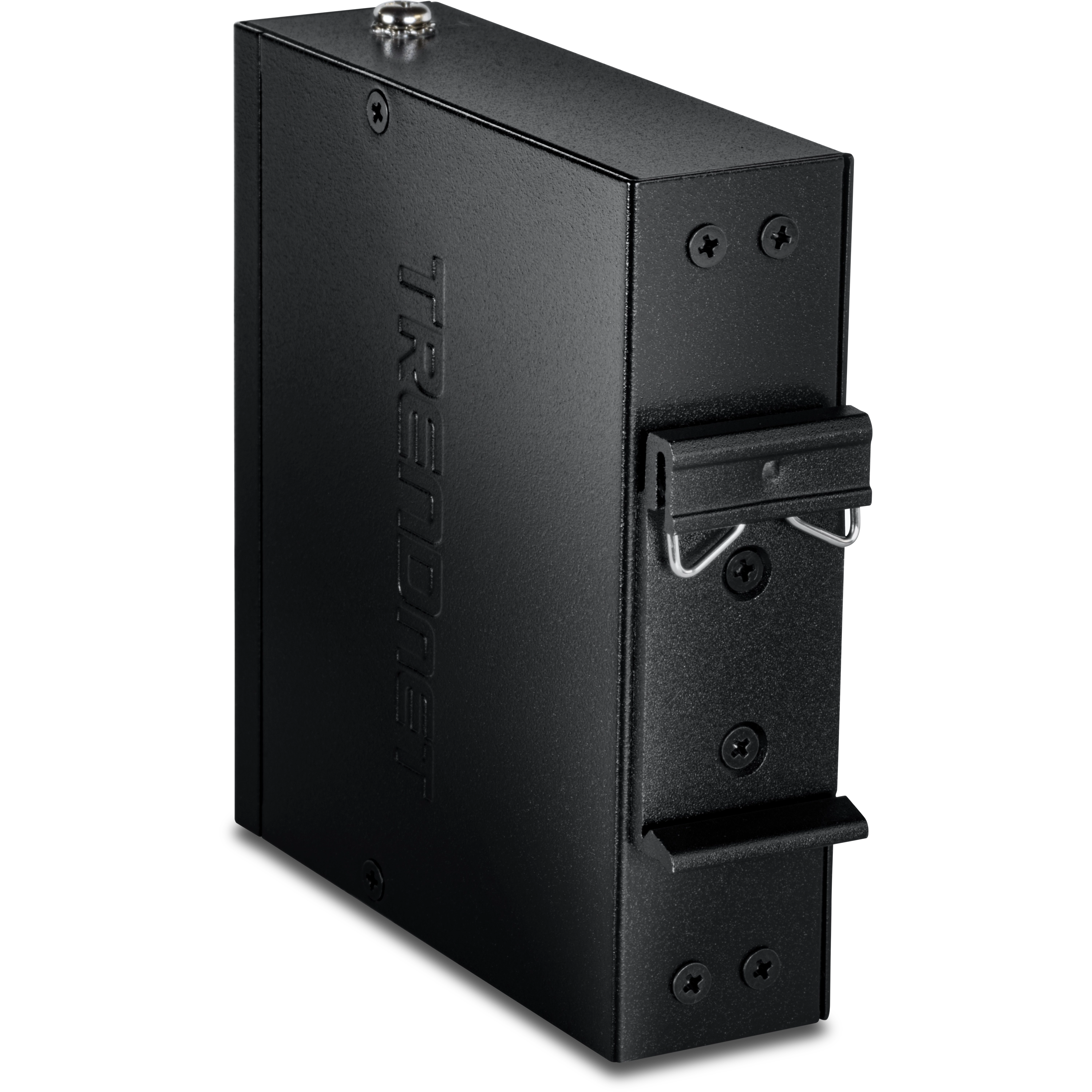

  • Includes DIN-Rail and wall mounts
  • Supports VLAN Passthrough
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt

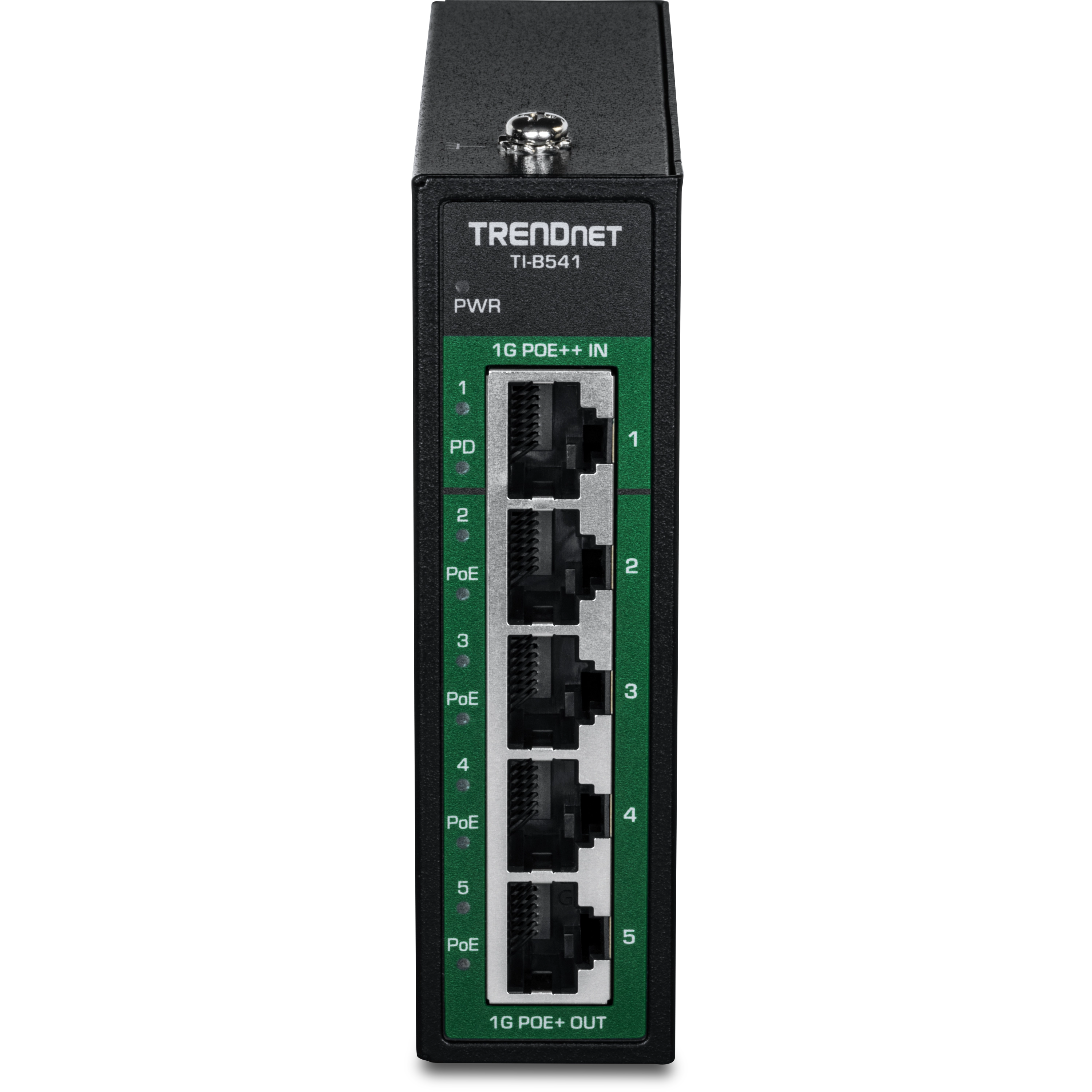

Device Interface
  • 1 x Gigabit PoE++ in port (10/100/1000Mbps)
  • 4 x Gigabit PoE+ out port (10/100/1000Mbps)
Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 10Gbps
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
  • Forwarding rate: 7.44Mpps (64-byte packet size)
PoE Budget
  • 802.3af 30W PoE input: up to 22W
  • 802.3at 60W PoE+ input: up to 52W
  • 802.3bt 95W PoE++ input: up to 75W
MTBF
  • 2,619,274 hours @ 25°C
Housing
  • IP50 metal case

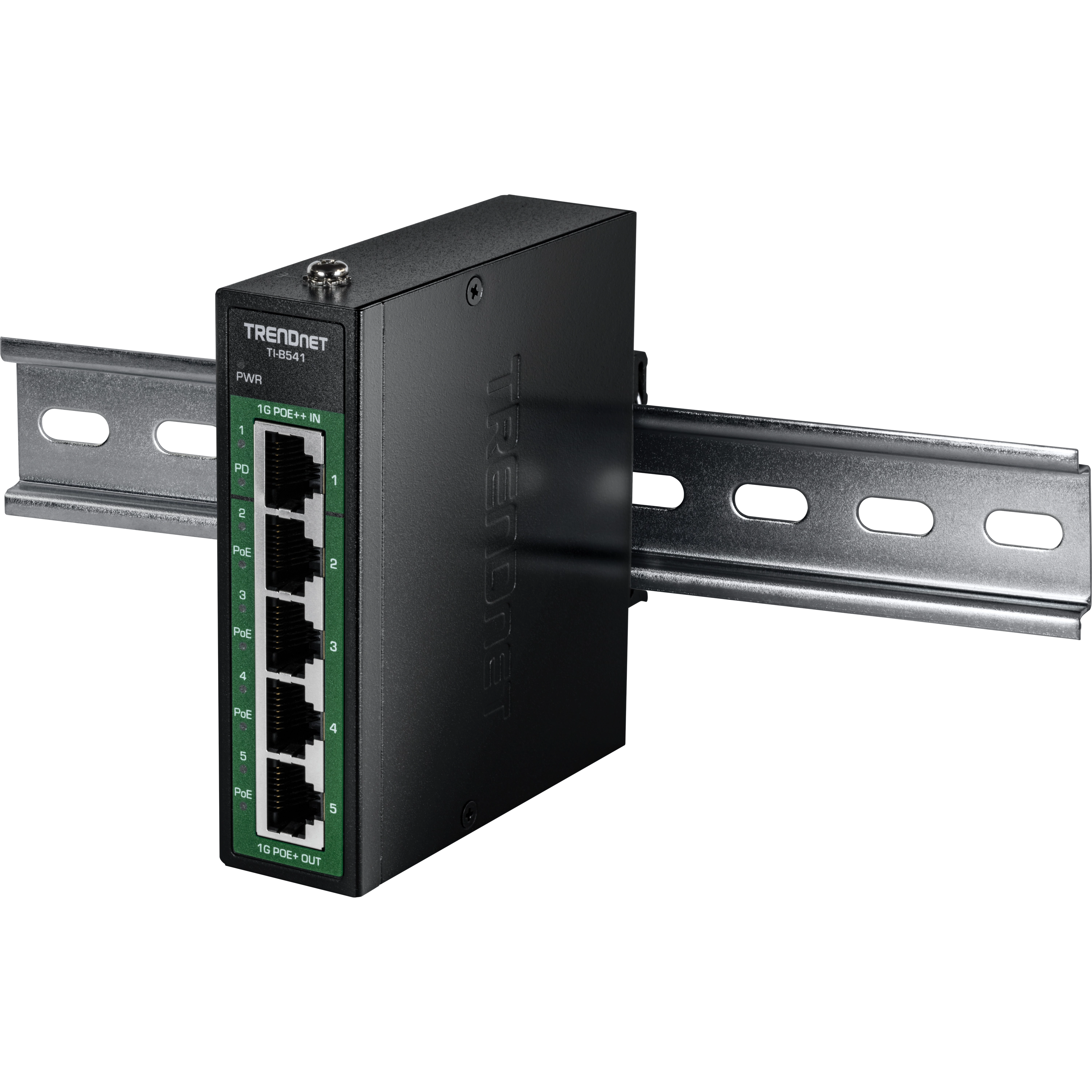

  • DIN-Rail mount
  • Wall mount

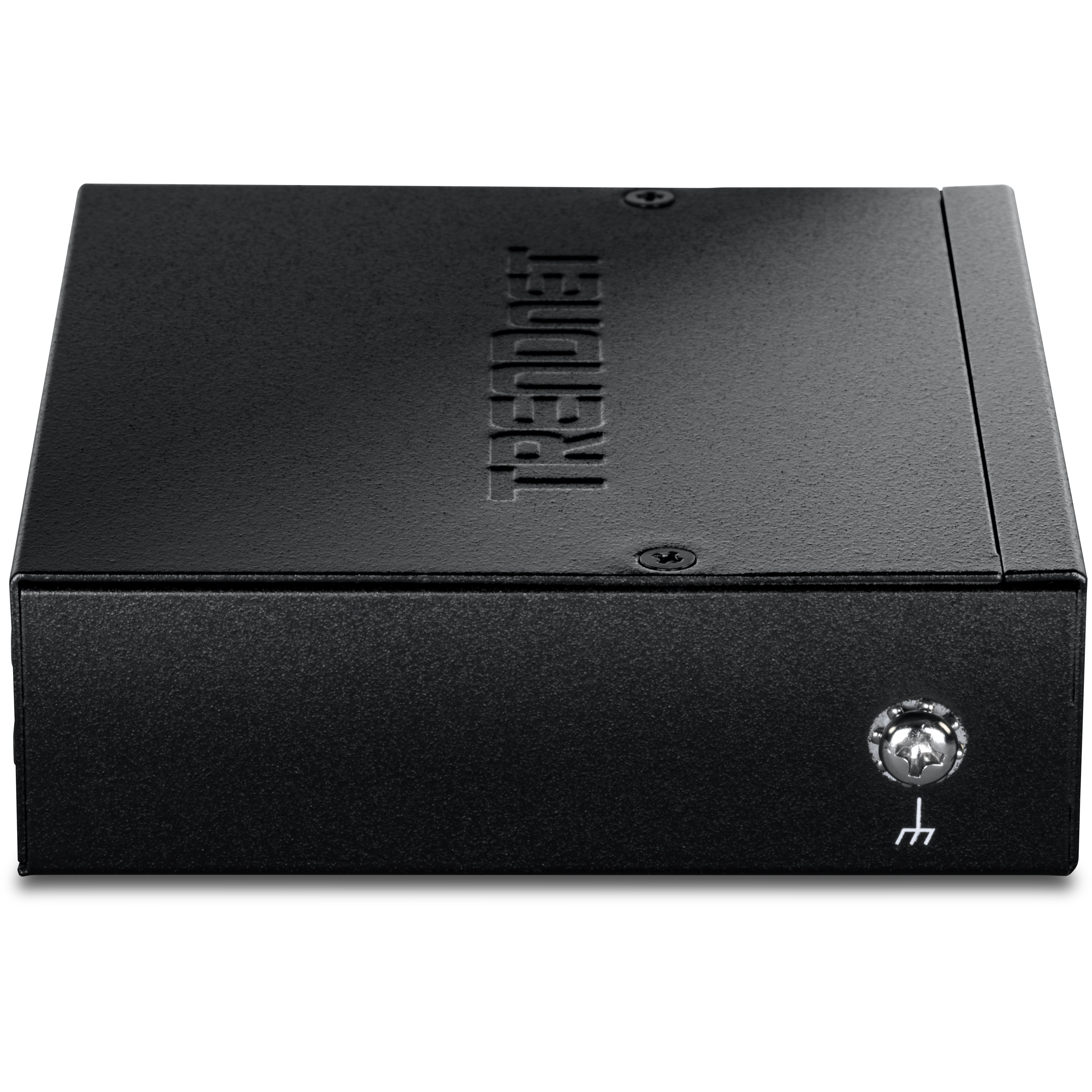

  • Grounding point
  • 6kV ESD protection
  • 6kV RJ45 protection
Operating Temperature
  • -40° – 75° C (-40° – 167° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions (L x W x H)
  • 99 x 90 x 28mm (3.9 x 3.54 x 1.1 in.)
Weight
  • 288g (0.63 lb.)
Certifications
  • CE
  • FCC
  • LVD
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-31)
  • Vibration (IEC 60068-2-6)
  • IEC 61000-4-2
  • IEC 61000-4-4
  • IEC 61000-4-5
Warranty
  • 3 year

PACKAGE CONTENTS
  • TI-B541
  • DIN-Rail and wall-mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
