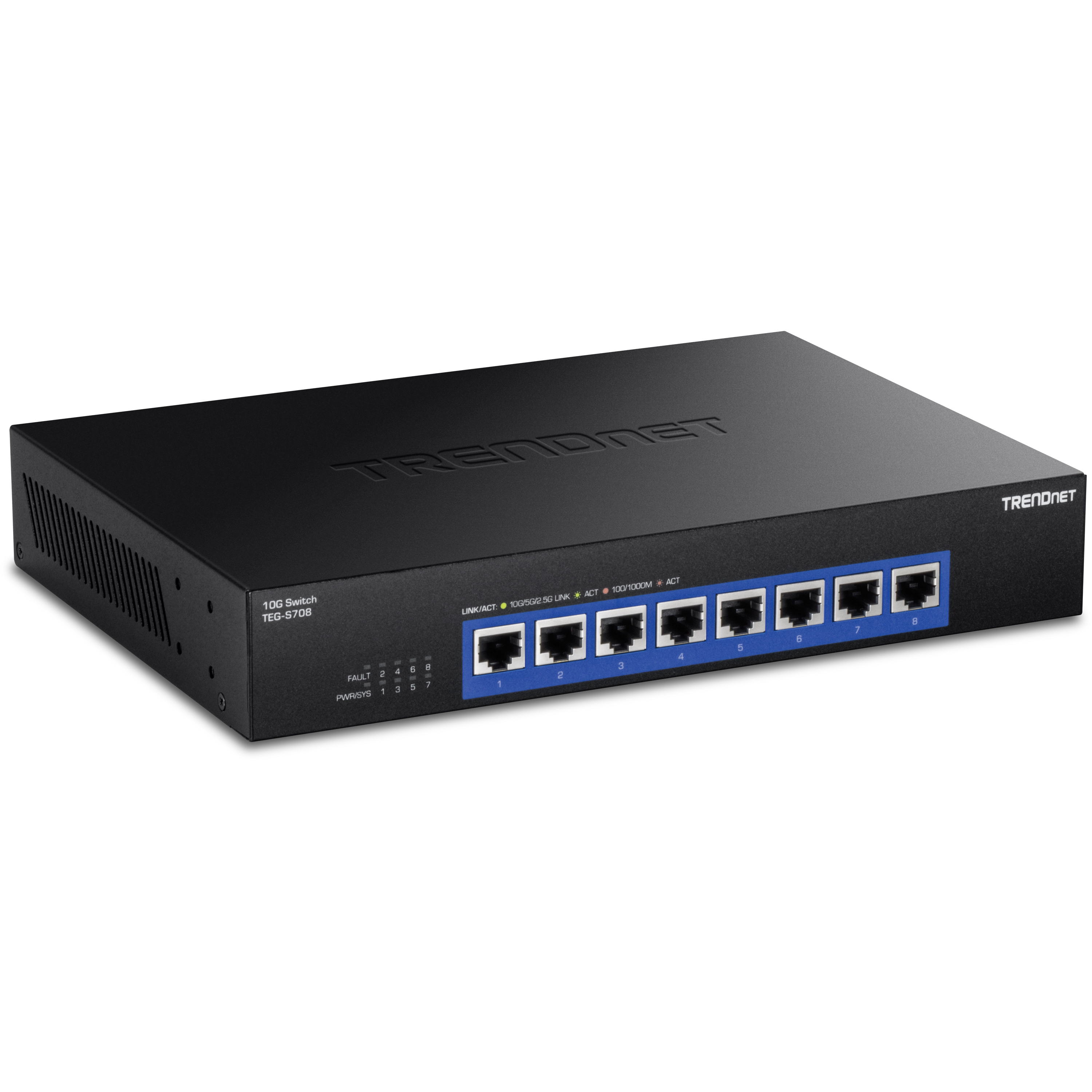

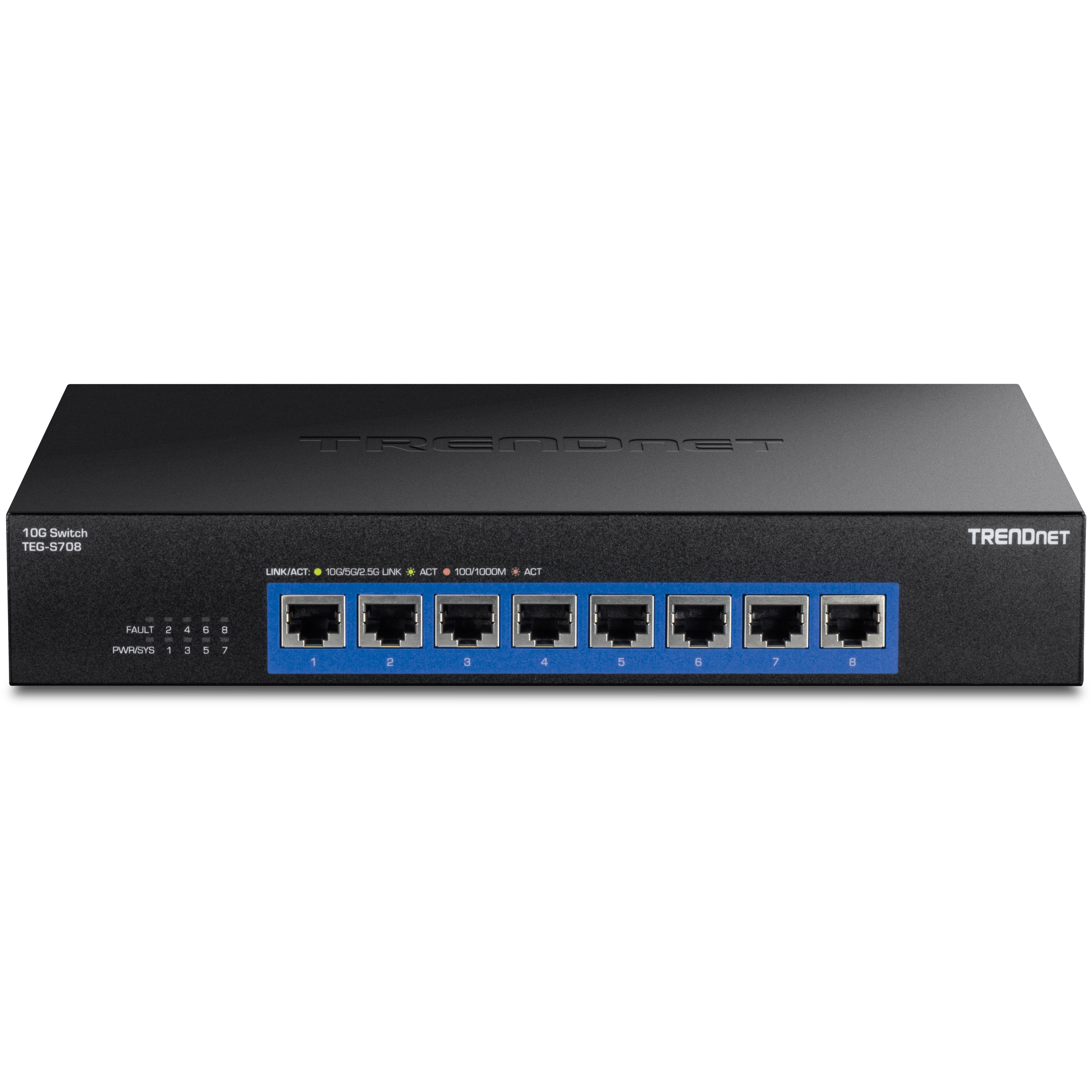

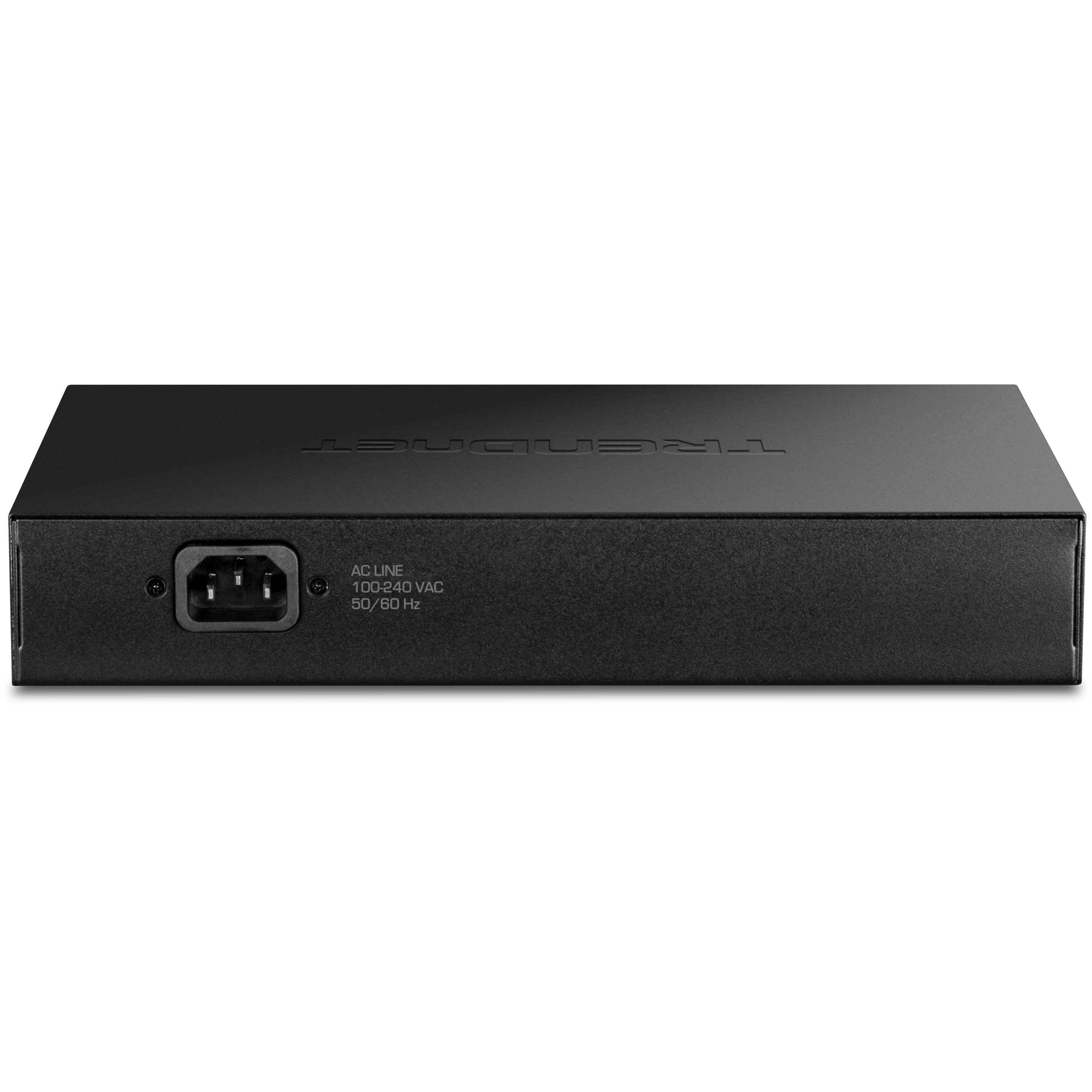

TEG-S708 Product Photo
TEG-S708 Product Photo TEG-S708 Product Photo TEG-S708 Product Photo

8-Port 10G Switch

TEG-S708   (Version V3)

   Select Another Version
  • 8 x 10G RJ45 ports
  • Compatible with existing Cat6A for 10Gbps
  • Backwards compatible Ethernet speeds of 1Gbps, and 2.5Gbps with Cat5e or better cabling
  • Smart fan
  • 160Gbps switching capacity
  • Supports 802.1Q VLAN and 802.1p CoS tag Passthrough
  • Rack mountable
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3an
  • IEEE 802.3bz
Device Interface
  • 8 x 10GBASE-T ports (1Gbps/2.5Gbps/10Gbps)
  • LED indicators
Throughput & Distance
  • Cat5e Cabling: 1Gbps @ 100m (328 ft.)
  • Cat6 Cabling: 10Gbps @ 55m (180 ft.)
  • Cat6a Cabling: 10Gbps @ 100m (328 ft.)
Performance
  • Switching Capacity: 160Gbps
  • RAM Buffer: 1.5MB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 119.4Mpps (64-byte packet size)
  • Jumbo Frames: 12KB
Power
  • Input: 100 – 240V AC, 50/60 Hz, 1A, internal power supply
  • Max. consumption: 25.01W
Fan/Acoustics
  • Quantity: 1
  • Smart Fan
  • Noise Level: 39.1dBa (max.) @ 3500 RPM
MTBF
  • 475,656 hours
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 265 x 183 x 43mm (10.43 x 7.2 x 1.73 in.)
Weight
  • 1.57g (3.46 lbs.)
Certifications
  • FCC
  • CE
  • LVD
  • ETL
Warranty

PACKAGE CONTENTS
  • TEG-S708
  • Rackmount kit
  • Power cord (1.5m / 4.9 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
