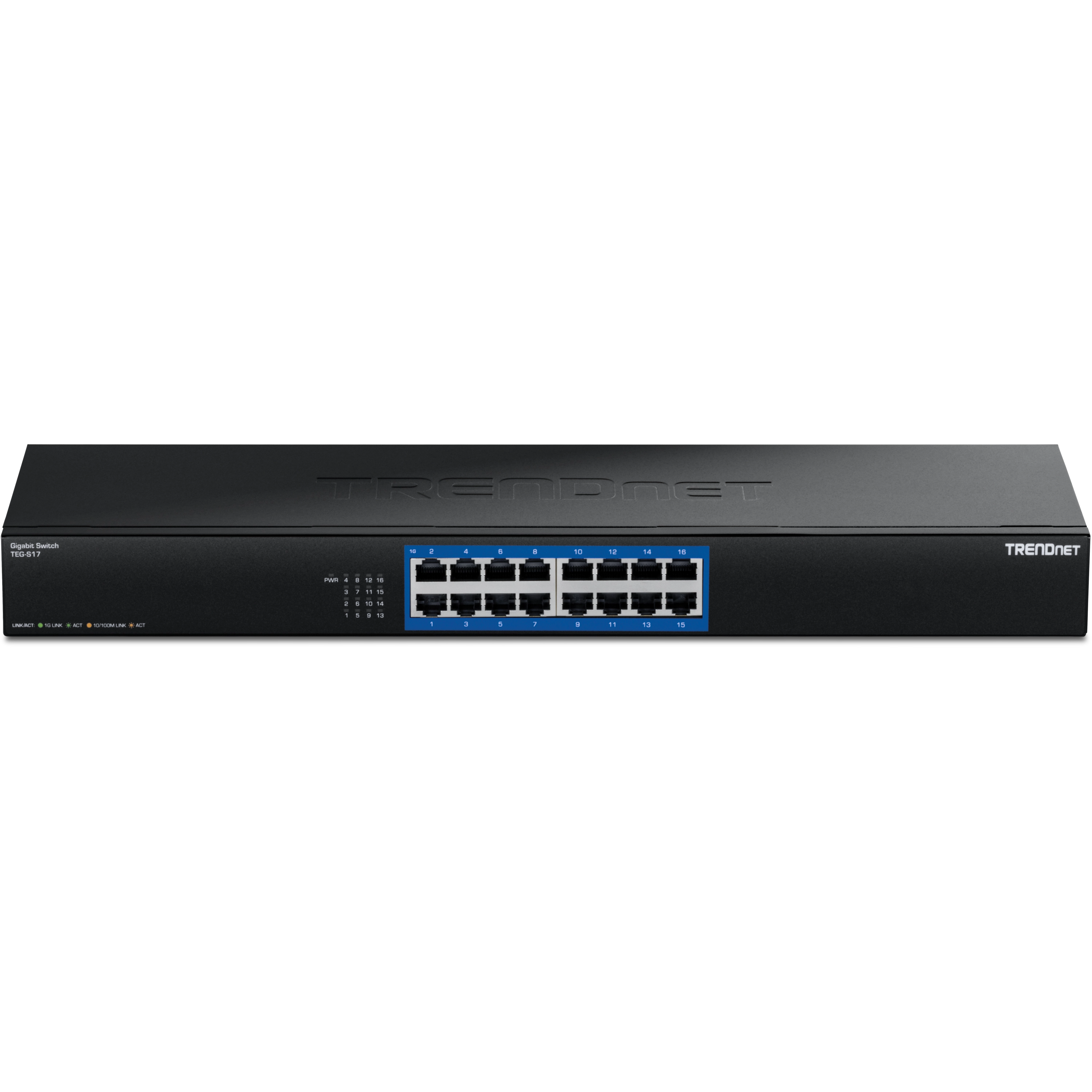

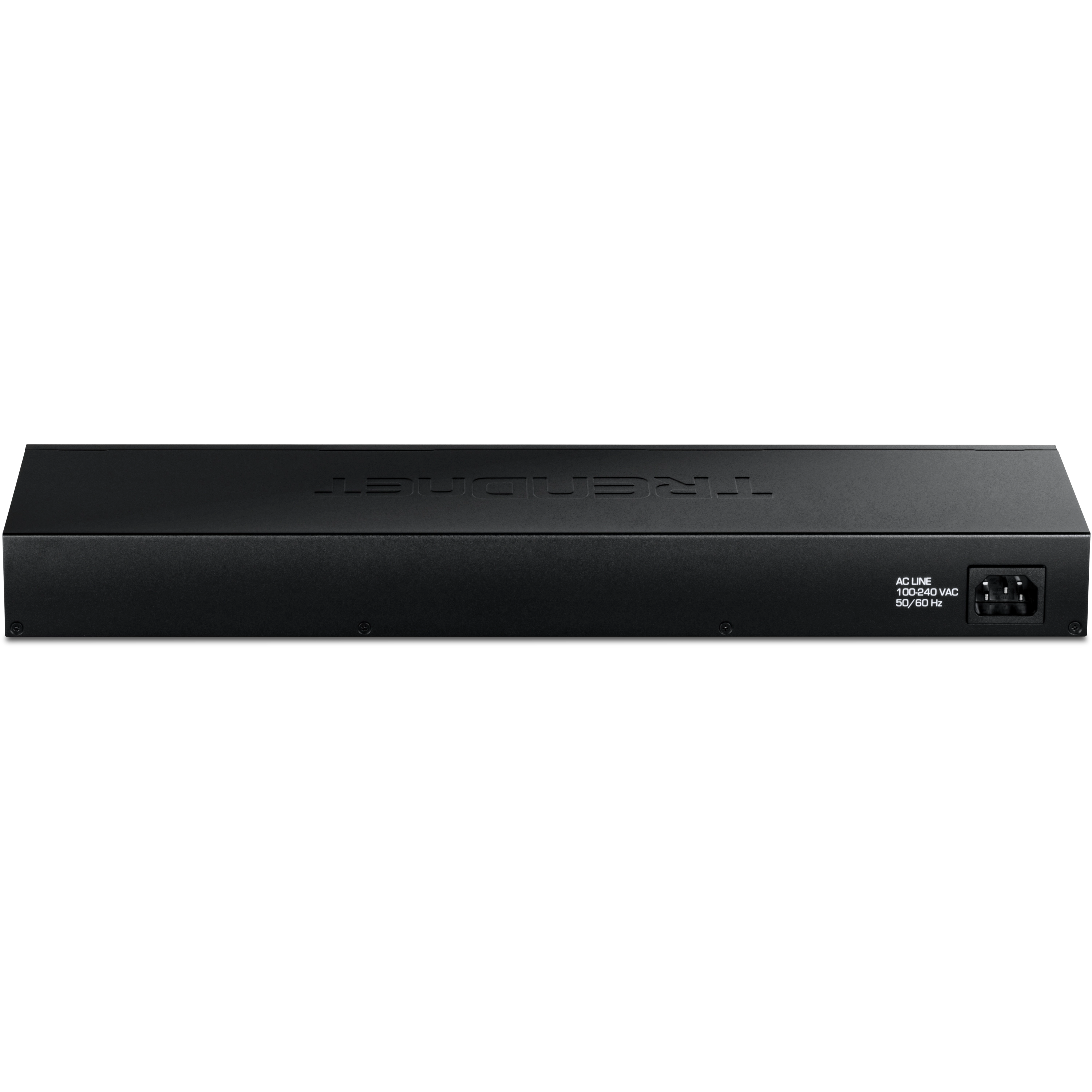

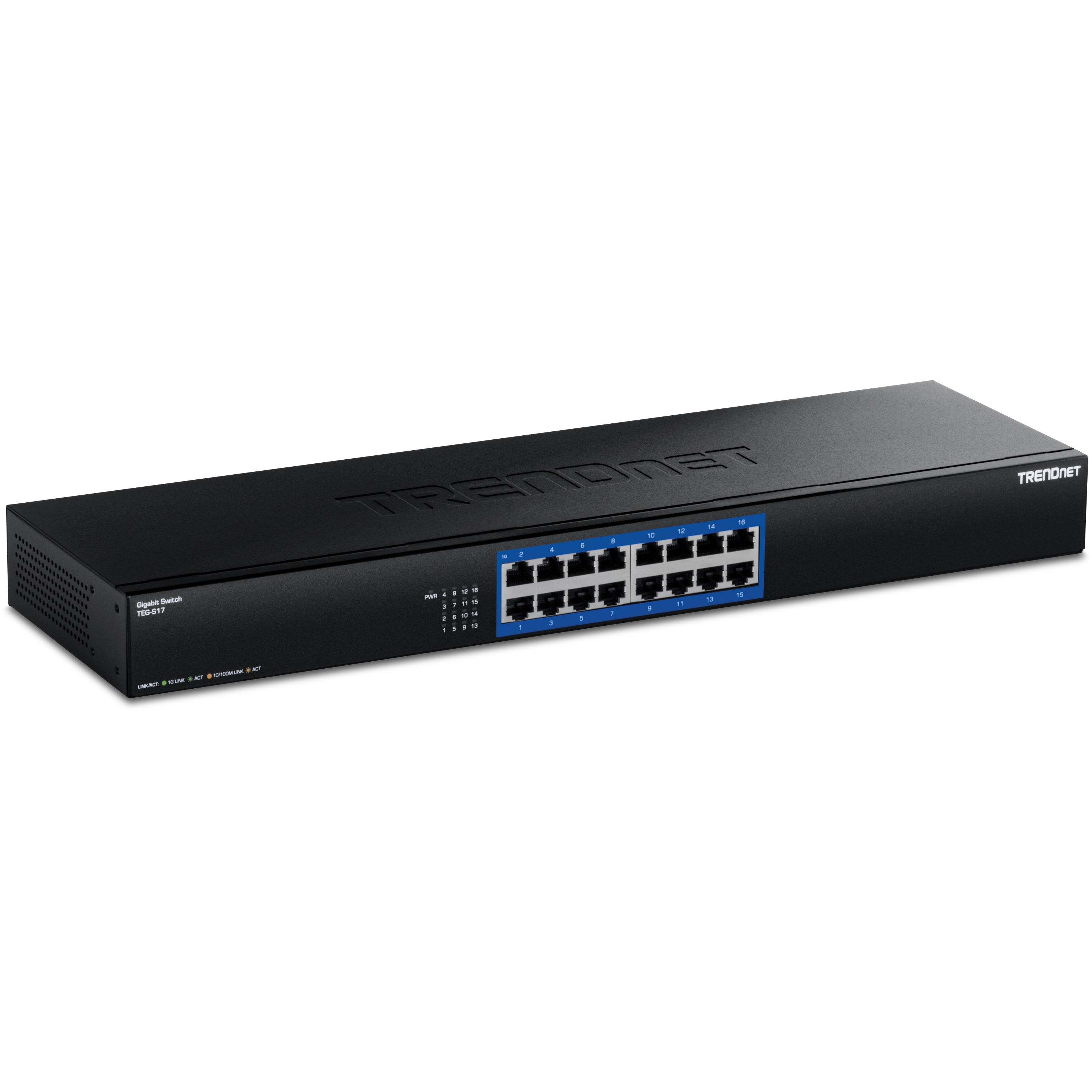

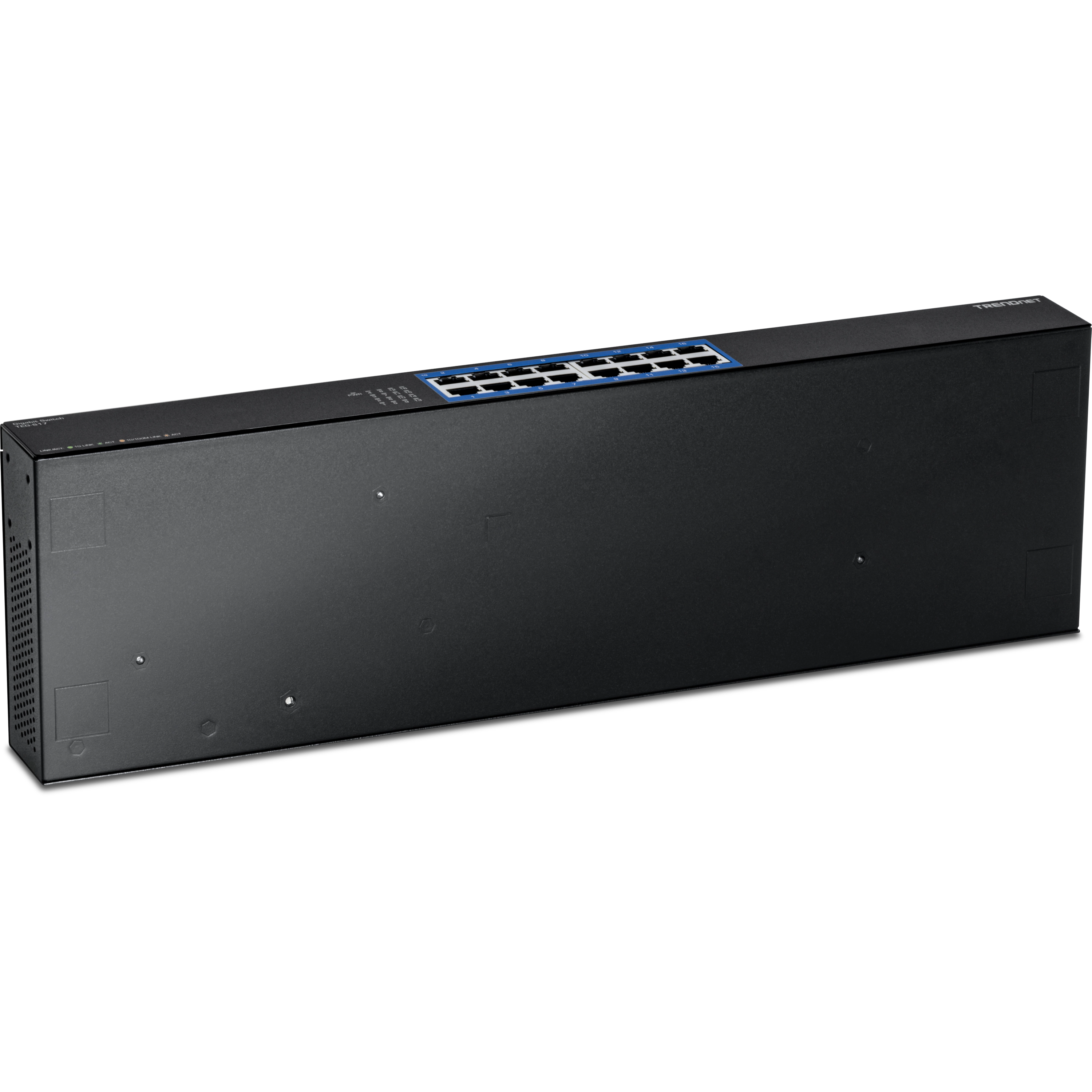

TEG-S17 Product Photo
TEG-S17 Product Photo TEG-S17 Product Photo TEG-S17 Product Photo TEG-S17 Product Photo TEG-S17 Product Photo

16-Port Gigabit Switch

TEG-S17   (Version V2)

  • 16 x Gigabit RJ45 ports
  • Sturdy metal switch
  • Built-in power supply
  • Supports VLAN Passthrough, QoS Passthrough, Loopback Detection, and IGMP Snooping
  • Fanless design
  • 1U 19” rackmount brackets included
  • NDAA / TAA compliant (U.S. and Canada only)
NDAA/TAA Compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
Device Interface
  • 16 x Gigabit ports (10Mbps/100Mbps/1000Mbps)
  • LED indicators
Performance
  • Switching Capacity: 32Gbps
  • RAM Buffer: 1024KB
  • MAC Address Table: 16K entries
  • Forwarding Rate: 23.8Mpps (64-byte packet size)
  • Jumbo Frames: 12KB
Special Features
  • VLAN Passthrough
  • IGMP Snooping v1/v2/v3
  • DSCP QoS Passthrough
  • Loop prevention
  • Multicast Flooding
Power
  • Internal power supply: 100 – 240V AC, 50/60 Hz, 0.5A
  • Max. Consumption: 8.43W
Fan/Acoustics
  • Fanless design
MTBF
  • 712,274 hours @ 25° C
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 440 x 131 x 44mm (17.4 x 5.16 x 1.73 in.)
Weight
  • 1.47kg (3.23 lbs.)
Certifications
  • FCC
  • CE
  • LVD
  • ETL
Warranty
  • 3 year

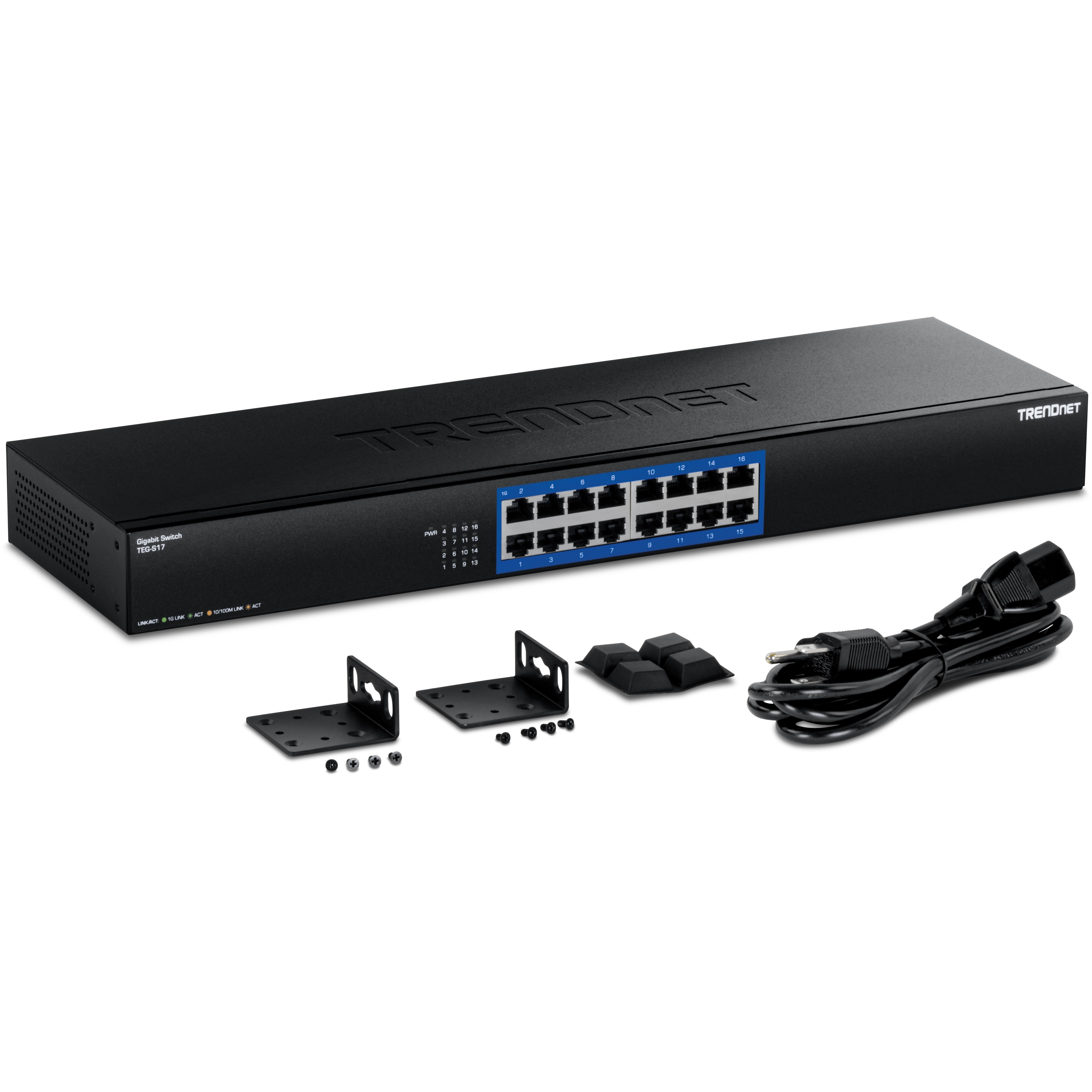

PACKAGE CONTENTS
  • TEG-S17
  • Rackmount kit
  • Power cord (1.5m / 4.9 ft.)

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
